1. Introducción
The Dirt Devil Kone 0213BLU is a cordless, rechargeable handheld vacuum cleaner designed for quick and convenient cleaning tasks around your home. Its elegant, sculptural design allows it to be displayed prominently in any room, ensuring it's always within reach when needed. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your Kone handheld vacuum.

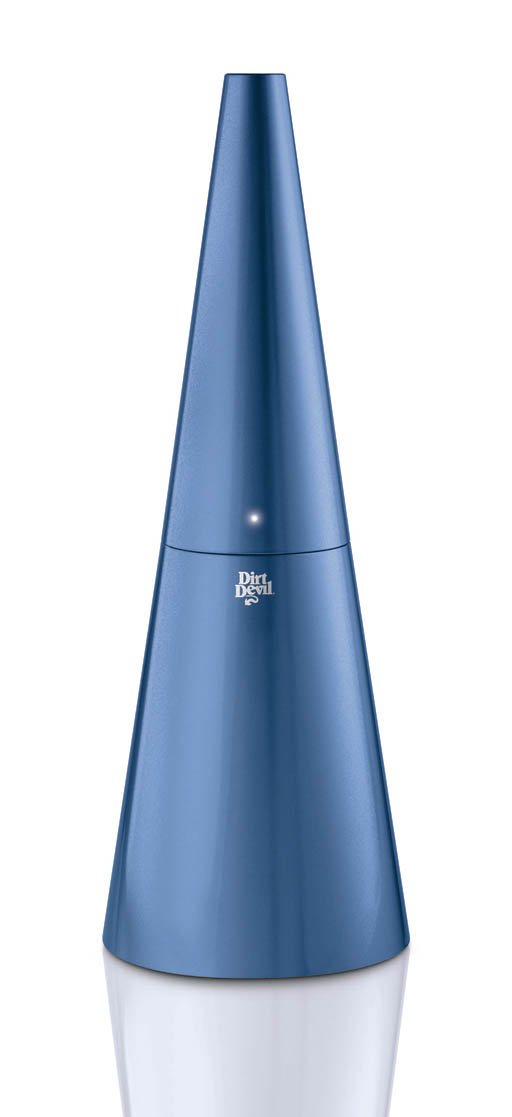

Figure 1: The Dirt Devil Kone 0213BLU Handheld Vacuum Cleaner in Blue.
2. Información importante de seguridad
Please read all safety instructions before operating this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- No utilizar en exteriores ni sobre superficies mojadas.
- No permita que se utilice como juguete. Se requiere especial atención cuando lo utilicen niños o cerca de ellos.
- Utilice únicamente como se describe en este manual. Utilice únicamente los accesorios recomendados por el fabricante.
- No lo utilice si el cable o el enchufe están dañados. Si el aparato no funciona como debería, se ha caído, se ha dañado, se ha dejado al aire libre o se ha sumergido en agua, devuélvalo a un centro de servicio.
- No tire del cable ni lo transporte, no lo use como manija, no cierre una puerta sobre el cable ni lo tire por bordes o esquinas filosos. No pase el aparato por encima del cable. Mantenga el cable alejado de superficies calientes.
- No desenchufe el aparato tirando del cable. Para desenchufarlo, sujete el enchufe, no el cable.
- No manipule el enchufe ni el aparato con las manos mojadas.
- No introduzca ningún objeto en las aberturas. No utilice el aparato si alguna de las aberturas está bloqueada; manténgalo libre de polvo, pelusa, pelos y cualquier cosa que pueda reducir el flujo de aire.
- Mantenga el cabello, la ropa suelta, los dedos y todas las partes del cuerpo lejos de las aberturas y piezas móviles.
- No recoja nada que esté ardiendo o humeando, como cigarrillos, fósforos o cenizas calientes.
- No lo utilice para recoger líquidos inflamables o combustibles, como gasolina, ni lo utilice en áreas donde pueda haberlos.
- No recoja materiales tóxicos, como blanqueador con cloro, amoníaco o limpiador de desagües.
- No lo use sin la copa de suciedad y/o los filtros en su lugar.
- Apague todos los controles antes de desenchufar.
- Tenga especial cuidado al limpiar escaleras.
- No cargue la unidad al aire libre.
- Recargue únicamente con el cargador especificado por el fabricante. Un cargador adecuado para un tipo de batería puede generar riesgo de incendio si se utiliza con otro tipo de batería.
- En condiciones de uso abusivo, puede salir líquido expulsado de la batería; evite el contacto. Si ocurre contacto accidental, enjuague con agua. Si el líquido entra en contacto con los ojos, busque ayuda médica. El líquido expulsado de la batería puede causar irritación o quemaduras.
3. Contenido del paquete
Carefully unpack your new Dirt Devil Kone handheld vacuum and ensure all items are present. If any parts are missing or damaged, please contact customer support.
- Dirt Devil Kone Handheld Vacuum Unit
- Charging Base with integrated power cord
- Soft-tip nozzle (integrated)
- Washable Dirt Cup and Filter (pre-installed)
4. Configuración y carga inicial
The Dirt Devil Kone is designed for quick assembly and immediate use after initial charging.
4.1 Asamblea
The vacuum assembles quickly with no tools required. Simply place the handheld vacuum unit onto its charging base. The cone-shaped top serves as the handle of the hidden vacuum, which easily twists off its plug-in charging base when it's time to clean.
4.2 Carga inicial
- Place the Kone handheld vacuum onto its charging base.
- Plug the charging base's power cord into a standard electrical outlet.
- Allow the unit to charge for at least 16 hours before first use to ensure optimal battery performance. The indicator light on the unit will illuminate during charging.
- For continuous readiness, keep the Kone on its charging base when not in use. This ensures it is always charged and ready for quick clean-ups.
5. Instrucciones de funcionamiento
The Dirt Devil Kone is designed for simple and efficient operation.
5.1 Encendido / Apagado
To turn the vacuum on, locate the power button (typically a push-button control) on the unit and press it. Press the button again to turn the vacuum off.
5.2 Limpieza de superficies
The Kone features a 1-1/2-inch-wide nozzle with a soft, rubberized tip. This soft tip is designed for detail cleaning without scratching delicate surfaces such as countertops, tables, furniture, and computer desks. Simply guide the nozzle over the debris you wish to vacuum.
Video 1: Demonstration of the Dirt Devil Kone Cordless Hand Vacuum in various home settings, showcasing its design and cleaning capabilities on different surfaces like kitchen counters, tables, and furniture. The video highlights its ease of use and aesthetic appeal in multiple colors.
6. Mantenimiento
Regular maintenance ensures your Dirt Devil Kone operates efficiently and extends its lifespan.
6.1 Vaciado del depósito de suciedad
The Kone features a bagless design with an easy-to-empty dirt cup.
- Asegúrese de que el vacío esté apagado.
- Twist the top section (handle) of the vacuum counter-clockwise to detach it from the lower dirt cup section.
- Carefully empty the contents of the dirt cup into a waste bin.
- Reattach the top section by aligning and twisting clockwise until secure.
6.2 Limpieza del filtro lavable
El filtro debe limpiarse periódicamente para mantener la potencia de succión.
- After emptying the dirt cup, remove the filter from inside the dirt cup.
- Tap the filter gently over a waste bin to remove loose dirt and dust.
- For a more thorough cleaning, rinse the filter under cool running water until the water runs clear.
- Allow the filter to air dry completely for at least 24 hours before reinserting it into the dirt cup. Do not use the vacuum with a wet filter.
- Once dry, place the filter back into the dirt cup and reassemble the vacuum.
7. Solución de problemas
If you encounter issues with your Dirt Devil Kone, refer to the following common problems and solutions:
| Problema | Posible causa | Solución |
|---|---|---|
| La aspiradora no se enciende | La batería no está cargada | Place the unit on the charging base and ensure it is plugged into a working outlet. Allow to charge for several hours. |
| Potencia de succión reducida | La taza de suciedad está llena | Vacíe el recipiente para polvo. |
| Potencia de succión reducida | El filtro está obstruido | Clean or replace the washable filter as described in the Maintenance section. Ensure it is completely dry before reinserting. |
| Potencia de succión reducida | La boquilla está bloqueada | Check the nozzle for any obstructions and remove them carefully. |
| La luz indicadora de carga no está encendida | Charging base not plugged in or faulty outlet | Ensure the charging base is securely plugged into a functional electrical outlet. Test the outlet with another appliance. |
8. Especificaciones del producto
Key technical details for the Dirt Devil Kone 0213BLU handheld vacuum:
- Nombre del modelo: 0213 azul
- Marca: Diablo de la suciedad
- Fuente de energía: Funciona con pilas
- Volumentage: 7.2 voltios
- Quétage: 7.2 vatios
- Característica especial: Sin bolsa
- Tipo de filtro: Filtro lavable
- Usos recomendados: Computer, Desk, Furniture, Hard Floor
- Color: Blue (other colors may be available for different models)
- Factor de forma: Portátil
- Peso del artículo: Approximately 0.01 Ounces (Note: This weight seems unusually low and may be a data entry error. Actual product weight may vary.)
- Dimensiones: Approximately 6-1/2 by 6 by 18 inches
- Método de control: Pulsar botón / Tocar
- GTIN/UPC: 046034892389
9. Garantía y atención al cliente
9.1 Garantía limitada
The Dirt Devil Kone 0213BLU Cordless Rechargeable Handheld Vacuum Cleaner carries a garantía limitada de tres años from the date of purchase. This warranty covers defects in material and workmanship under normal household use. For specific terms and conditions, please refer to the warranty card included with your product or visit the official Dirt Devil websitio.
9.2 Atención al cliente
If you have any questions, require assistance, or need to make a warranty claim, please contact Dirt Devil customer support. You can typically find contact information (phone number, email, or support website) on the product packaging, the official Dirt Devil website, or by searching for "Dirt Devil customer support" online.
