Datexx Smartech DS-638 Scientific Calculator User Manual

Introducción

This manual provides comprehensive instructions for the Datexx Smartech DS-638 Scientific Calculator. Designed for a wide range of mathematical, scientific, and engineering calculations, this unit features 136 functions to assist with complex problems. Please read this manual thoroughly to understand all functions and ensure optimal use of your calculator.

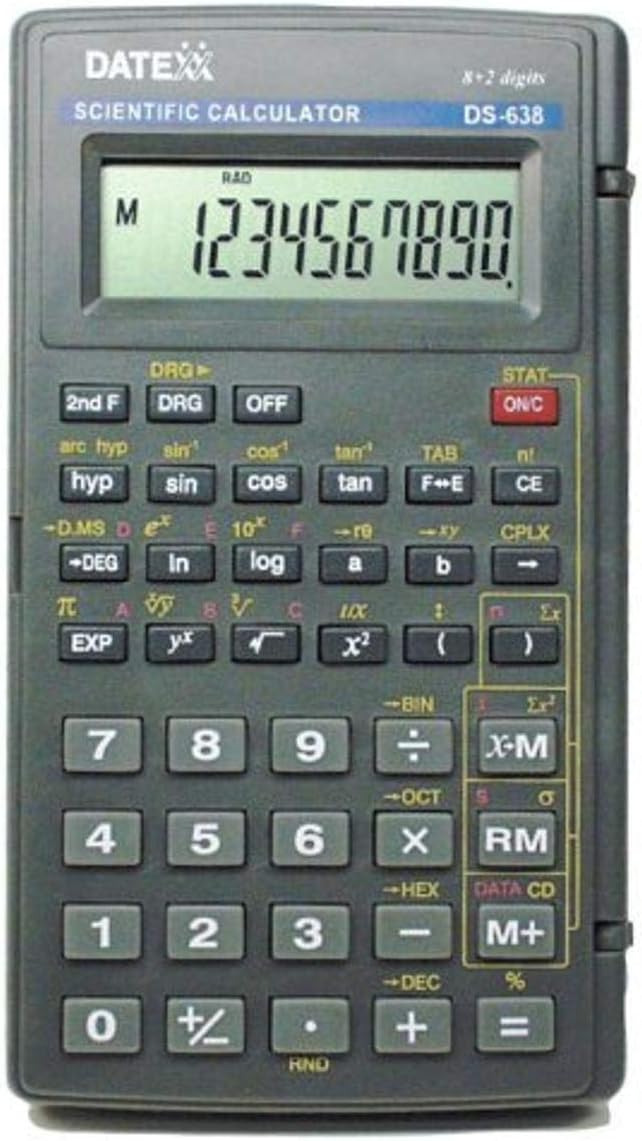

Figura 1: Frente view of the Datexx Smartech DS-638 Scientific Calculator. This image displays the calculator's LCD screen, numeric keypad, and various function buttons, including trigonometric, logarithmic, and statistical operations.

Configuración

1. Instalación de la batería

The Datexx DS-638 calculator comes with a battery pre-installed. If replacement is ever needed, ensure the calculator is turned off. Locate the battery compartment on the back of the unit. Use a small screwdriver to open the compartment, replace the old battery with a new one of the specified type (typically a button cell battery), and securely close the compartment.

2. Encendido inicial

Presione el ENCENDIDO/C button to turn on the calculator. The display should show "0" or a similar initial state. If the display is blank, check the battery installation.

3. Modos de visualización

The calculator may have different display modes (e.g., fixed decimal, scientific notation). Refer to the "Operating Instructions" section for details on how to adjust these settings to suit your calculation needs.

Instrucciones de funcionamiento

This section details the various functions and operations of the DS-638 scientific calculator.

Operaciones básicas

• Suma, resta, multiplicación, división: Introduzca números y utilice el +, -, x, ÷ llaves. Prensa = para el resultado.
• Entrada clara (CE): Prensa CE para borrar el último número u operación ingresada.
• All Clear (ON/C): Prensa ENCENDIDO/C to clear all calculations and reset the calculator.
• Porcentajetagmi (%): Utilice el % clave para porcentajetage cálculos.

Funciones científicas

• Trigonometric Functions (sin, cos, tan): Enter the angle value, then press pecado, porque, o broncearse. Ensure the correct angle mode (DEG, RAD, GRAD) is selected using the DRG llave.
• Inverse Trigonometric Functions (arcsin, arccos, arctan): Prensa 2do F entonces pecado, porque, o broncearse.
• Logarithmic Functions (log, ln): Usar registro for base-10 logarithm and ln for natural logarithm.
• Exponents (x², yˣ, 10ˣ, eˣ):
  • Square: Enter number, then x².
  • Power: Enter base, yˣ, then exponent.
  • 10 to the power of x: Press 2do F entonces registro.
  • e to the power of x: Press 2do F entonces ln.
• Roots (√, ³√): Usar √ for square root. For cube root or other roots, use the power function (e.g., x^(1/3)).
• Factorial (n!): Enter number, then 2do F entonces n!.

Funciones estadísticas

The calculator supports statistical calculations including mean, standard deviation, and regression. To enter statistical mode, press ESTADÍSTICA. Follow the on-screen prompts or manual instructions for data entry and calculation.

• Entrada de datos: Enter data points one by one, typically followed by a data entry key (e.g., CD DE DATOS).
• Mean (x̄), Standard Deviation (σ, s): After data entry, use the appropriate function keys (often accessed via 2do F or ESTADÍSTICA menu) to calculate these values.
• Regresión: The calculator can perform linear regression. Enter paired data (x, y) and then use the regression functions to find coefficients.
• CP, CPK Output: The calculator has the capacity for CP and CPK output, useful in quality control statistics. Consult specific key combinations for these advanced functions.

Cálculos en base N

The DS-638 can perform calculations in different number bases (binary, octal, decimal, hexadecimal).

• Selección de modo: Use keys like PAPELERA, OCT, DIC, MALEFICIO to switch between bases.
• Cálculos: Perform arithmetic operations within the selected base.

Polar/Rectangular Coordinate Transformation

This function allows conversion between polar coordinates (r, θ) and rectangular coordinates (x, y).

• Rectangular to Polar: Enter x, then y, and use the appropriate function key (e.g., 2do F entonces P→R o similar).
• Polar to Rectangular: Enter r, then θ, and use the appropriate function key (e.g., 2do F entonces R→P o similar).

Funciones de la memoria

• Store (M+): Agrega el valor mostrado a la memoria.
• Recall (RM): Recuerda el valor almacenado en la memoria.
• Clear Memory (M-): Clears the memory. (Often 2do F entonces M+ o similar).

Mantenimiento

• Limpieza: Use a soft, dry cloth to clean the calculator's exterior. Do not use liquid cleaners or abrasive materials.
• Almacenamiento: Guarde la calculadora en un lugar fresco y seco, alejado de la luz solar directa y de temperaturas extremas.
• Reemplazo de batería: If the display becomes dim or erratic, replace the battery as described in the "Setup" section.

Solución de problemas

• La calculadora no se enciende:
  • Verifique la instalación de la batería.
  • Reemplace la batería si es necesario.
• Resultados de cálculo incorrectos:
  • Ensure correct mode (e.g., DEG/RAD for trigonometric functions).
  • Verify data entry.
  • Clear all memory and calculations using ENCENDIDO/C.
• Display shows "Error":
  • An invalid operation was attempted (e.g., division by zero, square root of a negative number).
  • Prensa CE or ENCENDIDO/C para borrar el error.

Presupuesto

Figura 2: Datexx Smartech DS-638 Scientific Calculator showing its dimensions. The calculator measures approximately 19.81 cm in length and 10.92 cm in width.

Garantía y soporte

For warranty information and customer support, please refer to the documentation included with your purchase or contact Datexx customer service directly. Specific warranty terms may vary by region and retailer.

For further assistance, please visit the official Datexx websitio o comuníquese con sus canales de soporte.
