Einhell GH-EH 4245 Electric Hedge Trimmer User Manual

1. Introducción

This manual provides essential instructions for the safe and effective operation, maintenance, and care of your Einhell GH-EH 4245 Electric Hedge Trimmer. Please read these instructions carefully before using the product for the first time and keep them for future reference. Proper use and maintenance will ensure the longevity and optimal performance of your hedge trimmer.

The Einhell GH-EH 4245 is designed for trimming hedges, shrubs, and bushes in domestic gardens. It features a powerful 420 Watt motor, laser-cut and diamond-ground blades for precise cutting, and a lightweight design for comfortable handling.

2. Instrucciones de seguridad

ADVERTENCIA: Lea todas las advertencias de seguridad, instrucciones, ilustraciones y especificaciones proporcionadas con esta herramienta eléctrica. Si no se siguen todas las instrucciones enumeradas a continuación, se pueden producir descargas eléctricas, incendios y/o lesiones graves.

2.1 Seguridad general

• Utilice siempre el equipo de protección personal (EPP) adecuado, que incluya gafas de seguridad, guantes, calzado resistente y protección auditiva.
• Keep children and bystanders away while operating the hedge trimmer.
• No opere la herramienta en condiciones húmedas o en presencia de líquidos o gases inflamables.
• Inspect the hedge trimmer for damage before each use. Do not use if damaged.
• Asegúrese de que todos los protectores y dispositivos de seguridad estén instalados y funcionen correctamente.

2.2 Seguridad eléctrica

• Asegúrese de que la fuente de alimentación voltage coincide con la clasificación que figura en la placa de identificación de la herramienta.
• Use only extension cords suitable for outdoor use and rated for the tool's power consumption.
• Keep the power cord away from the cutting area. Always be aware of the cord's position.
• Never carry the tool by the power cord.
• Disconnect the power plug from the socket before cleaning, maintenance, or when the tool is not in use.

2.3 Operación segura

• Sujete siempre el cortasetos firmemente con ambas manos durante su uso.
• No se extralimite. Mantenga una postura adecuada y el equilibrio en todo momento.
• Avoid cutting near fences, walls, or other hard objects that could damage the blades.
• Be aware of hidden wires or other objects in the hedge.
• Never attempt to remove cut material from the blades while the tool is running.

3. Producto terminadoview

Familiarize yourself with the components of your Einhell GH-EH 4245 Electric Hedge Trimmer.

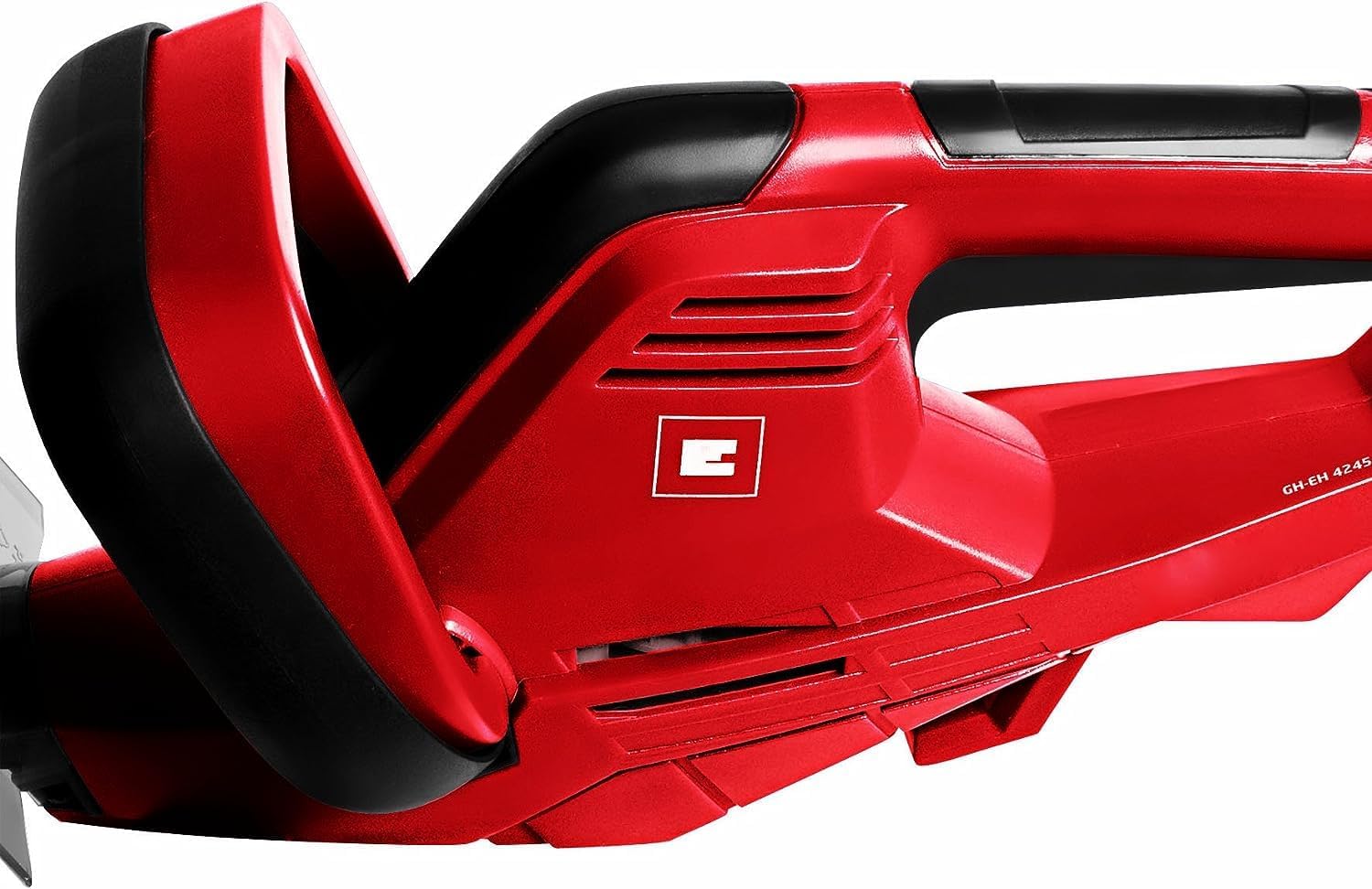

Figura 1: Principal view of the Einhell GH-EH 4245 Electric Hedge Trimmer, highlighting its ergonomic design and blade assembly.

Los componentes clave incluyen:

1. Front handle with safety switch
2. Rear handle with main switch
3. Protector de la hoja
4. Cuchillas de corte
5. Clip de alivio de tensión del cable
6. Cable de alimentación

4. Configuración

4.1 Desembalaje

Carefully remove the hedge trimmer and all accessories from the packaging. Dispose of packaging materials responsibly.

4.2 Inspecting for Damage

Before first use, inspect the tool for any signs of transport damage. If any damage is found, do not operate the tool and contact customer service.

4.3 Connecting to Power and Cable Management

Connect the hedge trimmer to a suitable power outlet. Ensure the power cord is securely routed through the cable strain-relief clip to prevent accidental disconnection during operation and reduce stress on the connection point.

Figure 2: The cable strain-relief clip ensures the power cord remains securely attached and prevents accidental disconnection.

4.4 cubierta de hoja

Remove the blade cover before use and always replace it after use for safe storage and transport.

5. Instrucciones de funcionamiento

5.1 Iniciar y detener

The Einhell GH-EH 4245 features a two-hand safety switch system. To start the hedge trimmer, you must simultaneously press both the safety switch on the front handle and the main switch on the rear handle. Release either switch to stop the tool.

Figure 3: Proper two-hand grip for safe operation, ensuring both safety switches are engaged.

5.2 Cutting Technique

• Sostenga el cortasetos firmemente con ambas manos.
• Mueva la recortadora de manera suave y uniforme a lo largo del seto.
• For horizontal cuts, sweep the trimmer in an arc. For vertical cuts, move it up and down.
• Avoid forcing the blades through thick branches. The 16 mm tooth spacing is designed for branches up to this diameter.
• Always cut away from your body and the power cord.

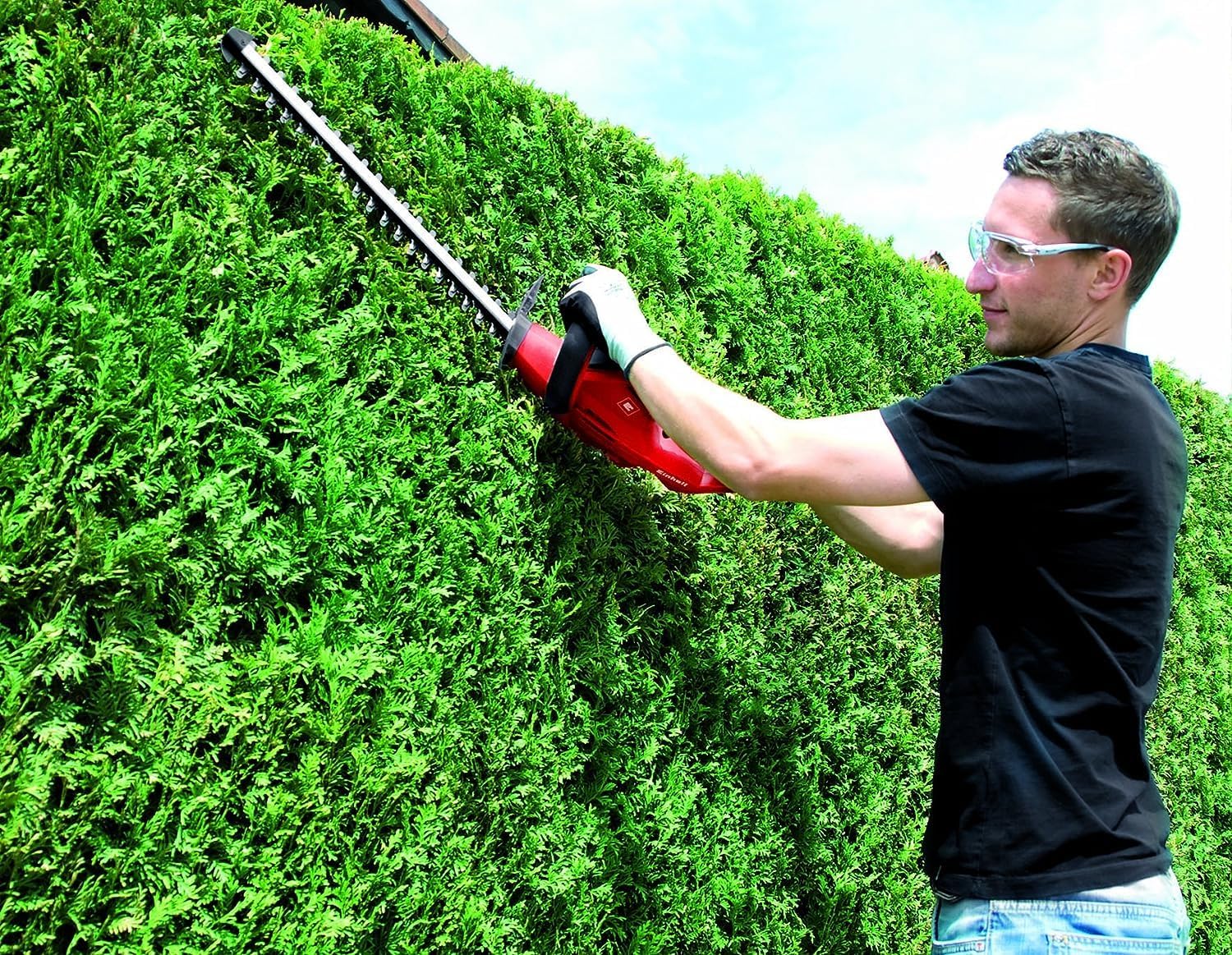

Figure 4: Demonstrating the hedge trimmer in use, showing a user maintaining a hedge.

5.3 Blade Performance

The hedge trimmer is equipped with laser-cut and diamond-ground steel blades, designed for long-lasting sharpness and precise cuts.

Figure 5: Illustration of the laser-cut and diamond-ground blade technology for enhanced cutting performance.

Figure 6: The cutting length of the blades is 450mm, suitable for various hedge sizes.

5.4 Avoiding Obstacles

When trimming, be mindful of the ground, stones, or other hard objects that could damage the blades. Maintain a safe distance to prevent blade impact.

Figure 7: Illustrates the hedge trimmer blade operating near ground level, emphasizing the need to avoid contact with hard surfaces.

6. Mantenimiento

Regular maintenance ensures the safety and extends the lifespan of your hedge trimmer.

6.1 Limpieza

• Desconecte siempre el enchufe de alimentación antes de limpiar.
• Remove any debris, leaves, or small branches from the blades and housing using a brush or cloth.
• Do not use water or harsh cleaning agents.

6.2 Cuidado de la cuchilla

• After each use, clean the blades and apply a light coat of blade oil or a suitable rust inhibitor to prevent corrosion.
• Periodically check the blades for sharpness. Dull or damaged blades should be sharpened by a qualified service technician or replaced.

6.3 Engranaje

The hedge trimmer features metal gearing for durable performance. This internal component requires no user maintenance.

Figura 8: Interna view illustrating the robust metal gearing designed for extended product life.

6.4 Almacenamiento

• Always replace the blade cover before storing.
• Guarde el cortasetos en un lugar seco y seguro, fuera del alcance de los niños.
• The included wall bracket allows for convenient and safe storage.

Figure 9: The hedge trimmer can be conveniently stored using a wall bracket, keeping it safe and organized.

7. Solución de problemas

Esta sección aborda problemas comunes que puede encontrar con su cortasetos.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Einhell customer support.

8. Especificaciones

9. Garantía y soporte

Einhell products are manufactured to high-quality standards and undergo strict quality controls. This product is covered by a manufacturer's warranty, subject to the terms and conditions applicable in your region of purchase. Please retain your proof of purchase for warranty claims.

For technical support, spare parts, or warranty inquiries, please contact your local Einhell service center or visit the official Einhell website. Contact information can typically be found in the separate warranty booklet or on the product packaging.

Online resources and FAQs may also be available on the official Einhell websitio: www.einhell.com
