Indesit ITW D 61252 W (EU) Top-Loading Washing Machine

Introducción

This manual provides essential information for the correct installation, safe use, and maintenance of your Indesit ITW D 61252 W (EU) top-loading washing machine. Please read these instructions carefully before using the appliance and keep them for future reference.

Información de seguridad

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Asegúrese de que el aparato esté correctamente conectado a tierra.
• No permita que los niños jueguen con el aparato.
• No toque el aparato con las manos o los pies mojados.
• Desenchufe el aparato antes de limpiarlo o realizar cualquier mantenimiento.
• No abra el dispensador de detergente mientras la máquina esté en funcionamiento.
• Do not force the lid open during a cycle.

Configuración

Desembalaje

Carefully remove all packaging materials. Check the appliance for any damage during transit. The washing machine weighs approximately 62 kg and measures 40 cm (width) x 60 cm (depth) x 90 cm (height). It is recommended to have two people for unpacking and positioning.

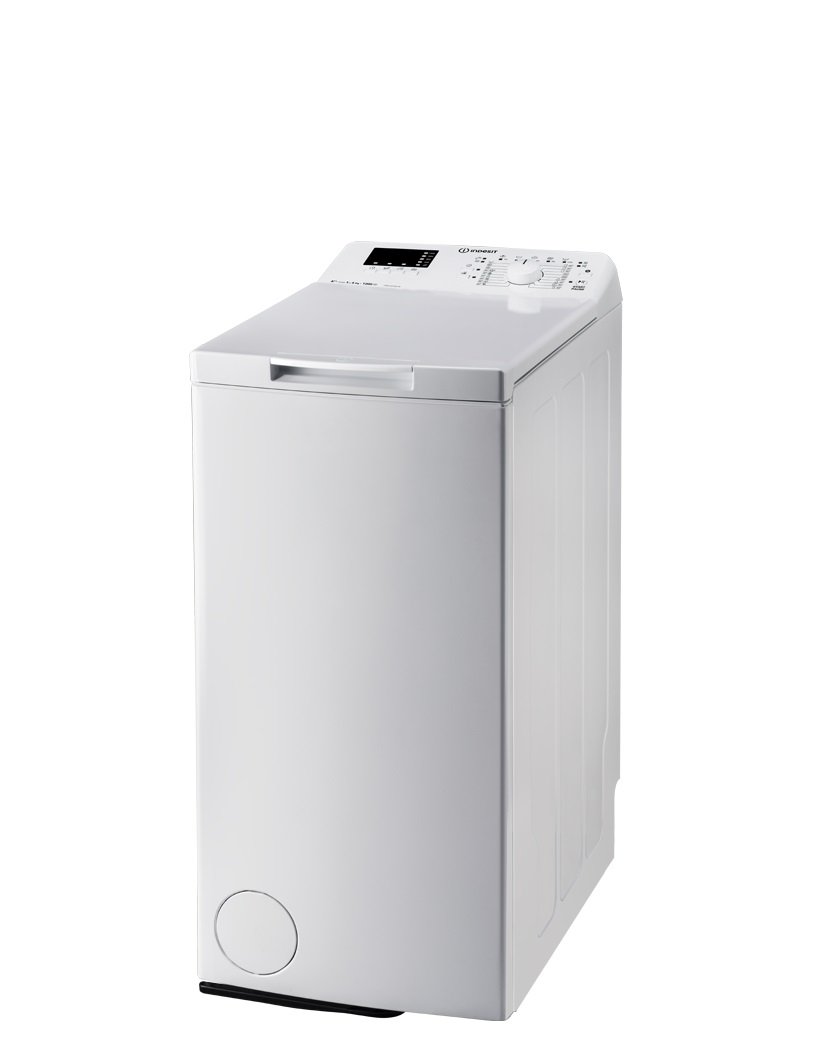

Image: Indesit ITW D 61252 W (EU) top-loading washing machine. This image shows the overall design of the appliance with its top-loading access.

Instalación

1. Posicionamiento: Coloque la lavadora sobre una superficie plana y estable. Asegúrese de que haya suficiente espacio alrededor del electrodoméstico para facilitar su ventilación y acceso.
2. Arrasamiento: Adjust the feet of the washing machine to ensure it is perfectly level. This prevents excessive vibration and noise during operation. Use a spirit level to verify.
3. Conexión de agua: Connect the water inlet hose to a cold water tap. Ensure the connections are tight to prevent leaks.
4. Drenaje: Position the drain hose into a suitable drain pipe or sink, ensuring it is securely fixed and not kinked. The end of the drain hose should be between 65 cm and 100 cm from the floor.
5. Conexión eléctrica: Conecte el cable de alimentación a una toma de corriente con conexión a tierra. No utilice alargadores ni adaptadores.

Estreno

Before washing laundry for the first time, run a short wash cycle without any laundry and with a small amount of detergent to clean the drum and remove any manufacturing residues.

Instrucciones de funcionamiento

Carga de ropa

Open the top lid and the drum flaps. Load laundry into the drum, ensuring not to exceed the maximum load capacity of 6 kg. Distribute the laundry evenly to maintain balance during the spin cycle. Close the drum flaps and the top lid securely.

Adición de detergente

Pull out the detergent dispenser drawer. Add the appropriate amount of detergent and fabric softener to the designated compartments according to the detergent manufacturer's instructions and the selected wash program. Close the dispenser drawer.

Seleccionar un programa

Turn the program selector knob to choose one of the 18 available wash programs. Common programs include Cotton, Synthetics, Delicates, Wool, and Quick Wash. Refer to the control panel for specific program details and recommended temperatures.

Comenzando un ciclo

Press the Start/Pause button to begin the selected wash cycle. The machine will automatically fill with water and start the washing process.

Poniendo fin a un ciclo

At the end of the cycle, the machine will signal completion. Open the top lid and remove your laundry promptly to prevent creasing and odors. Unplug the appliance from the power outlet when not in use.

Mantenimiento

Limpieza del dispensador de detergente

Regularly clean the detergent dispenser to prevent residue buildup. Remove the dispenser drawer and rinse it under running water. Use a brush to remove stubborn deposits. Reinsert the drawer.

Limpieza del filtro

Locate the drain pump filter, usually at the bottom front of the machine. Place a shallow container underneath to catch any residual water. Unscrew the filter cover and carefully remove any lint, coins, or foreign objects. Clean the filter under running water and screw it back in securely.

Limpieza del exterior

Limpie el exterior de la lavadora con un paño suave y seco.amp Paño. No utilice limpiadores abrasivos ni disolventes, ya que pueden dañar la superficie.

Almacenamiento de invierno

If the appliance is to be stored in an unheated area during winter, ensure all water is drained from the hoses and pump to prevent freezing and damage. Disconnect the water inlet hose and drain the remaining water. Run a drain cycle if possible.

Solución de problemas

Antes de ponerse en contacto con el servicio de atención al cliente, consulte la siguiente tabla para conocer los problemas más comunes y sus soluciones:

If the problem persists or an error code appears on the display, consult the full service manual or contact customer support.

Presupuesto

• Modelo: ITW D 61252 W (EU)
• Tipo: Top-Loading Washing Machine
• Capacidad: 6 kilogramos
• Velocidad máxima de centrifugado: 1200 RPM
• Clase de eficiencia energética: A++
• Consumo anual de energía: 173 kWh
• Consumo Anual de Agua: 8926 litros
• Dimensiones (An x Pr x Al): 40 cm x 60 cm x 90 cm
• Peso: 62 kilogramos
• Nivel de ruido (lavado): 59 dB
• Número de programas: 18
• Color: Blanco

Garantía y soporte

Your Indesit ITW D 61252 W (EU) washing machine comes with a manufacturer's warranty. Please refer to the warranty card provided with your appliance for details on coverage and terms. For technical assistance, spare parts, or to schedule a service appointment, please contact Indesit customer support. Contact information can typically be found on the Indesit official websitio o en la documentación suministrada con su producto.
