1. Introducción
The Chamberlain ML1000EV Comfort Garage Door Opener is designed for both up-and-over and sectional garage doors. This system offers innovative and energy-efficient automation, reducing standby power consumption by up to 85% compared to standard garage door openers. Its pre-assembled components facilitate quick installation, potentially reducing installation time by 50%. This manual provides essential information for safe and efficient operation, installation, and maintenance of your ML1000EV unit.
Información de seguridad importante: Always read and understand all safety warnings and instructions before installation and operation. Keep this manual for future reference.
2. Contenido del paquete
Antes de comenzar la instalación, asegúrese de que todos los componentes enumerados a continuación estén presentes en el paquete:
- Drive head unit
- Instrucciones de montaje
- Mounting and fastening material
- Unidad de control electrónico
- Two 2-channel handheld transmitters (remote controls)
- interruptor de pared inalámbrico
- Guide rail (3 pieces)
- 3 pilas CR2 (incluidas)
Video 2.1: Official video demonstrating the components and features of the Chamberlain garage door opener. This video provides a visual overview of what to expect in your package.
3. Configuración e instalación
The Chamberlain ML1000EV is designed for straightforward installation. However, it is recommended to have two people for certain steps, especially when mounting the motor unit to the ceiling. Ensure you have all necessary tools before starting.
Notas de instalación generales 3.1
- The pre-assembled elements of the drive line significantly reduce installation time.
- For up-and-over doors, a separate curved arm (e.g., Chamberlain Door Arm, product code 1703REV) is required for proper operation. This arm is not included in the standard package.
- Ensure the support for the rail head (opposite the motor) is securely fixed to a solid structure, not just a cover panel.
- The system is suitable for sectional doors up to 2.25m high and 5.5m wide, with a maximum weight of 130 kg and a pulling force of 1000 N.
3.2 Mounting the Drive Unit
Follow the detailed instructions provided in the assembly manual for mounting the drive head and guide rails. Pay close attention to the positioning of the head support relative to the garage door's center. The belt drive system is maintenance-free and ensures quiet operation.
3.3 External Quick Release System
An external quick release system is highly recommended, especially if your garage has no other entry point. This allows manual operation of the garage door in case of power failure or system malfunction.
Video 3.1: Official video demonstrating the installation and function of the Chamberlain external quick release system for garage doors. This accessory is crucial for emergency access.
4. Instrucciones de funcionamiento
4.1 Operación del control remoto

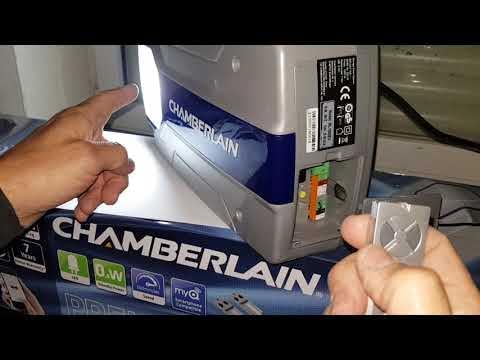

Your ML1000EV comes with two 2-channel handheld transmitters and a wireless wall switch for convenient operation. The remote controls are typically pre-programmed. If not, refer to the detailed programming steps in your assembly manual.
4.2 Establecer límites de viaje
The travel limits (open and close positions) are set electronically. This process involves using the UP, DOWN, and SET buttons on the drive unit. Start with the door fully closed. If you make a mistake, you can reset and repeat the configuration from the beginning.
4.3 Soft Start/Soft Stop
The opener features a soft start and soft stop function, ensuring smooth and quiet operation, which also extends the lifespan of the door and the opener mechanism.
4.4 MyQ Compatibility
The ML1000EV is compatible with MyQ technology, allowing you to monitor and operate your garage door from a smartphone or tablet. This functionality requires the purchase of a separate MyQ Starter Kit. The MyQ system can also integrate safety sensors and enable an auto-close function (adjustable from 10 seconds to 3 minutes).
5. Mantenimiento
The Chamberlain ML1000EV is designed for minimal maintenance. The belt drive system is maintenance-free, contributing to its quiet operation and longevity.
5.1 Controles periódicos
- Periodically inspect the guide rails and moving parts for any obstructions or signs of wear.
- Asegúrese de que todo el hardware de montaje permanezca seguro.
- Test the safety reversal system monthly. If the door does not reverse upon contact with an object, discontinue use and contact a qualified service technician.
- Check the functionality of the remote controls and wall switch regularly.
5.2 Limpieza
Keep the drive unit and sensors clean from dust and debris to ensure optimal performance.
6. Solución de problemas
This section addresses common issues you might encounter with your garage door opener. For more complex problems, consult the full instruction manual or contact customer support.
6.1 Door Does Not Open/Close
- Fuente de alimentación: Check if the unit is plugged in and if there is power to the outlet.
- Baterías de control remoto: Replace batteries in the handheld transmitters if they are not responding.
- Sensores de seguridad: Ensure the safety sensors are aligned and free of obstructions. A blinking light on a sensor usually indicates misalignment.
- External Release: Si hay un corte de energíatage, use the external quick release system to operate the door manually.
6.2 Door Reverses Unexpectedly
- Obstrucción: Compruebe si hay algún objeto en el camino de la puerta.
- Límites de viaje: The travel limits might need adjustment. Refer to the "Setting Travel Limits" section in your main manual.
- Configuración de fuerza: The force settings might be too low. Adjust them according to the main manual.
6.3 Funcionamiento ruidoso
- Lubricación: Although the belt system is maintenance-free, other moving parts of the garage door itself (hinges, rollers) may require lubrication.
- Hardware suelto: Check for any loose bolts or screws on the opener or door assembly.
7. Especificaciones
| Característica | Especificación |
|---|---|
| Número de modelo | ML1000EV |
| Tipo de puerta adecuado | Up-and-over and sectional garage doors |
| Max. Altura de la puerta | 2.25 metros |
| Ancho máximo de la puerta | 5.5 metros |
| Max. Peso de la puerta | 130 kilogramos |
| Fuerza de tracción | 1000 N |
| Vol de entradatage | 230-240 V, 50/60 Hz |
| Consumo de energía en modo de espera | Up to 85% lower than standard |
| Sistema de accionamiento | Maintenance-free belt system |
| Características especiales | 0.8 W LED lighting, Soft Start/Soft Stop, MyQ compatible (with optional kit) |
| Dimensiones del producto | 105 x 24 x 19 cm |
| Peso del artículo | 12 kilogramos |
| Pilas incluidas | 3 CR2 batteries (for remotes) |
8. Garantía y soporte
8.1 Información de garantía
Chamberlain products are manufactured to the highest quality standards. For specific warranty details, please refer to the warranty card included in your product packaging or visit the official Chamberlain webSitio. Conserve su comprobante de compra para reclamaciones de garantía.
8.2 Atención al cliente
If you encounter any issues not covered in this manual or require further assistance, please contact Chamberlain customer support. Contact details can be found on the official Chamberlain websitio web o en la documentación de su producto.
- Soporte en línea: www.chamberlain.com/support (exampPara obtener el enlace correcto, consulte la documentación del producto real. URL)
- Soporte telefónico: Consulte la documentación de su producto para obtener los números de contacto regionales.
