1. Introducción
Thank you for choosing the Moen 104466 M-Dura Showering 1/2" IPS Connection with Thermostatic Valve. This manual provides essential information for the proper installation, operation, and maintenance of your new valve. Please read these instructions thoroughly before beginning installation or use to ensure safe and efficient performance.
2. Información importante de seguridad
Always adhere to local plumbing and building codes. If you are unsure about any part of the installation process, consult a qualified professional plumber.
- Water Supply Shut-Off: Always turn the main water supply OFF before attempting any removal of existing fixtures or disassembling the valve.
- Alivio de la presión del agua: After shutting off the water supply, open the faucet handle to relieve any residual water pressure in the lines. This ensures a complete water shut-off.
- Equipo de protección: Utilice equipo de protección personal adecuado, como gafas de seguridad y guantes, durante la instalación.
- Seguridad del agua caliente: Exercise caution when working with hot water lines.
3. Producto terminadoview
The Moen 104466 is a commercial-grade M-Dura showering valve designed for reliable performance. It features a 1/2" IPS connection and thermostatic control for consistent water temperature. This valve is an authentic Moen replacement part, engineered for hassle-free installation and ideal for repairing existing plumbing fixtures.

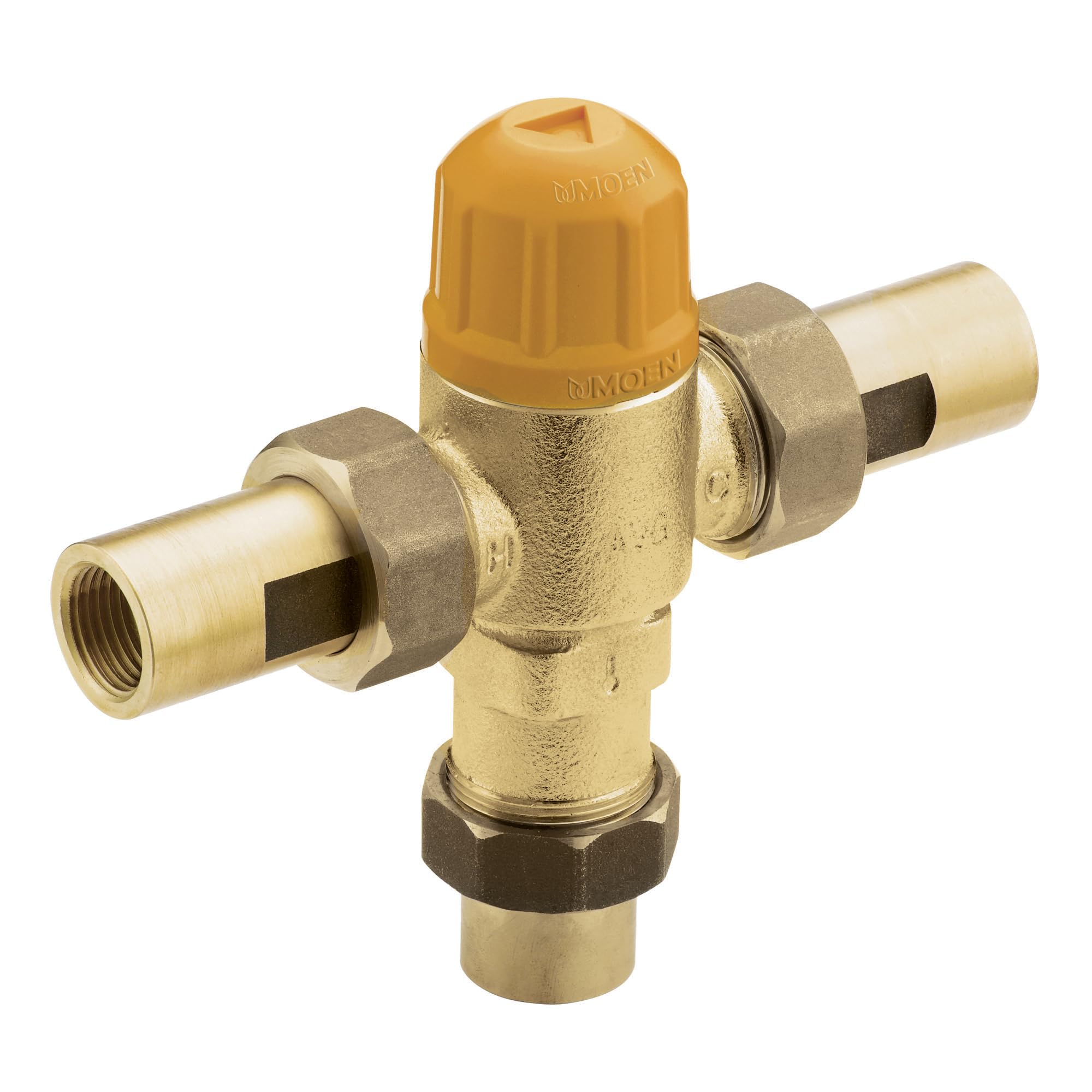

Figure 1: Moen 104466 M-Dura Showering Thermostatic Valve. This image shows the complete valve assembly, highlighting its robust construction and connection points.
Características principales:
- Replacement Commercial M-Dura showering 1/2" IPS connection.
- Authentic Moen replacement part.
- Diseñado para una instalación sin complicaciones.
- Ideal para reparar accesorios de plomería problemáticos sin la necesidad de reemplazarlos.
4. Configuración e instalación
This section outlines the general steps for installing the Moen 104466 thermostatic valve. Specific installation details may vary based on your existing plumbing configuration. It is recommended to consult a professional plumber for complex installations.
Pasos previos a la instalación:
- Ensure the main water supply to the showering area is completely shut off.
- Open existing shower handles to drain any remaining water and relieve pressure.
- Clear the work area and gather all necessary tools.
Procedimiento de instalación:
- Carefully remove the old valve assembly, if applicable.
- Prepare the plumbing connections for the 1/2" IPS inlets and outlets.
- Apply thread sealant or Teflon tape to all threaded connections as required.
- Connect the hot and cold water supply lines to the corresponding inlets on the Moen 104466 valve. Ensure connections are secure and watertight.
- Connect the shower outlet line to the valve.
- Mount the valve securely within the wall cavity according to standard plumbing practices.
- Once all connections are made, slowly turn the main water supply back on and check for leaks.
- Test the valve's operation to ensure proper water flow and temperature control.
Figura 2: Una vista detallada view of the Moen 104466 valve, showing its internal components and connection points for installation reference.
5. Instrucciones de funcionamiento
The Moen 104466 thermostatic valve is designed to provide a consistent water temperature for your showering experience. Once installed, operate the valve using the trim kit handles (sold separately) according to their specific instructions.
- Control de temperatura: Adjust the temperature handle to your desired setting. The thermostatic cartridge will automatically mix hot and cold water to maintain this temperature, even if there are pressure fluctuations in your water supply.
- Control de flujo: Use the flow control handle to turn the water on or off and adjust the water volume.
- Parada de seguridad: Many thermostatic trims include a safety stop to prevent accidental scalding. Refer to your trim kit's manual for details on adjusting this feature.
6. Mantenimiento
Proper care and maintenance will extend the life and preserve the finish of your Moen 104466 valve and associated fixtures.
Cleaning and Finish Care:
- To preserve the finish on the metallic parts of your Moen faucet, apply non-abrasive wax, such as car wax.
- Any cleaners should be rinsed off immediately after application.
- Mild abrasives are acceptable on Platinum and LifeShine® finishes, but generally, avoid harsh chemicals or abrasive cleaning pads, which can damage the finish.
- Limpie regularmente con un paño suave y húmedo.amp Paño y jabón suave.
Figura 3: Lado view of the Moen 104466 valve, illustrating its compact design and accessible surfaces for cleaning and maintenance.
Reemplazo del cartucho:
If you experience issues with temperature control or consistent water flow, the thermostatic cartridge may need to be replaced. Refer to Moen's official website or contact customer support for specific cartridge replacement instructions for your model.
7. Solución de problemas
This section provides solutions to common issues you might encounter with your thermostatic showering valve.
| Problema | Posible causa | Solución |
|---|---|---|
| Temperatura del agua inconsistente | Thermostatic cartridge issue, unbalanced water pressure, debris in lines. | Check water supply pressure. Clean or replace thermostatic cartridge. Flush water lines. |
| Bajo caudal de agua | Debris in valve or showerhead, partially closed shut-off valves. | Clean showerhead. Ensure shut-off valves are fully open. Inspect valve for obstructions. |
| El agua no se corta por completo | Faulty cartridge or worn seals. | Reemplace el cartucho de la válvula. |
| Leaks from Valve Body | Conexiones sueltas, sellos o juntas tóricas dañados. | Tighten connections. Inspect and replace damaged seals or O-rings. |
If these troubleshooting steps do not resolve the issue, please contact Moen customer support.
8. Especificaciones
Detailed specifications for the Moen 104466 M-Dura Showering Valve:
| Especificación | Detalle |
|---|---|
| Número de modelo | 104466 |
| Marca | Moen |
| Material | Latón |
| Tipo de conector | IPS |
| Tamaño de la rosca | 1/2" |
| Tipo de válvula | Cartridge, Thermostatic |
| Número de puertos | 3 |
| Dimensiones del artículo (largo x ancho x alto) | 4.71 x 4.48 x 1.87 pulgadas |
| Peso del artículo | 1.52 libras |
| Componentes incluidos | Válvula mezcladora |
| Código Postal | 026508267103 |
9. Garantía y soporte
Información de garantía:
The Moen 104466 M-Dura Showering Valve is backed by Moen's Garantía limitada de cinco años. This warranty covers defects in material and manufacturing workmanship under normal use and service. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, please visit the official Moen websitio.
Atención al cliente:
For technical assistance, replacement parts, or warranty inquiries, please contact Moen customer service. Contact information can typically be found on the official Moen websitio o en el embalaje del producto.
Recursos en línea: Visita www.moen.com for product registration, FAQs, and additional support documents.
10. Vídeos oficiales del producto
Explore more about Moen's commitment to water experiences through this official brand video.
Video 1: Moen Brand Video. This video provides an overview of the Moen brand, its philosophy, and its dedication to water solutions.
