APC Smart-UPS SRT 3000VA RM 230V (SRT3000RMXLI) Instruction Manual

1. Introducción

This manual provides essential instructions for the installation, operation, maintenance, and troubleshooting of your APC Smart-UPS SRT 3000VA RM 230V (SRT3000RMXLI). This Uninterruptible Power Supply (UPS) is designed to provide high-density, true double-conversion online power protection for critical electronic equipment, including servers, voice/data networks, medical labs, and light industrial applications. Please read this manual thoroughly before installing or operating the UPS to ensure proper and safe usage.

2. Información de seguridad

Observe all warnings and operating instructions in this manual. Failure to do so may result in injury or equipment damage. This UPS contains hazardous voltages. Do not attempt to disassemble the unit. There are no user-serviceable parts inside.

Seguridad general

• Este UPS está diseñado únicamente para uso en interiores.
• No opere este UPS bajo la luz solar directa, en contacto con líquidos o donde haya exceso de polvo o humedad.
• Ensure the ventilation openings on the UPS are not blocked. Maintain adequate clearance around the unit for proper airflow.
• Connect the UPS power cable directly to a grounded wall outlet. Do not use extension cords or surge suppressors.

Seguridad de la batería

• Batteries are heavy. Remove the battery module before installing the UPS in a rack or tower configuration.
• Battery service should be performed or supervised by personnel knowledgeable of batteries and the required precautions.
• No arroje las pilas al fuego, ya que podrían explotar.
• No abra ni destruya las baterías. El electrolito liberado es nocivo para la piel y los ojos. Puede ser tóxico.
• Replace batteries with the same type and number of batteries as originally installed.

3. Contenido del paquete

Carefully unpack the unit and inspect for shipping damage. If any damage is found, notify the carrier and dealer. The package should contain the following items:

• APC Smart-UPS SRT 3000VA RM 230V (SRT3000RMXLI) unit
• Battery module (may be pre-installed or separate)
• Rack-mounting hardware (rails, brackets)
• Tower stand (for tower configuration)
• Cable de comunicación USB
• Cable de comunicación serie
• CD de documentación
• Safety information and warranty guide

4. Producto terminadoview

The APC Smart-UPS SRT 3000VA RM 230V is a high-performance Uninterruptible Power Supply designed to protect your critical equipment from power disturbances. It features a rack/tower convertible form factor for flexible deployment.

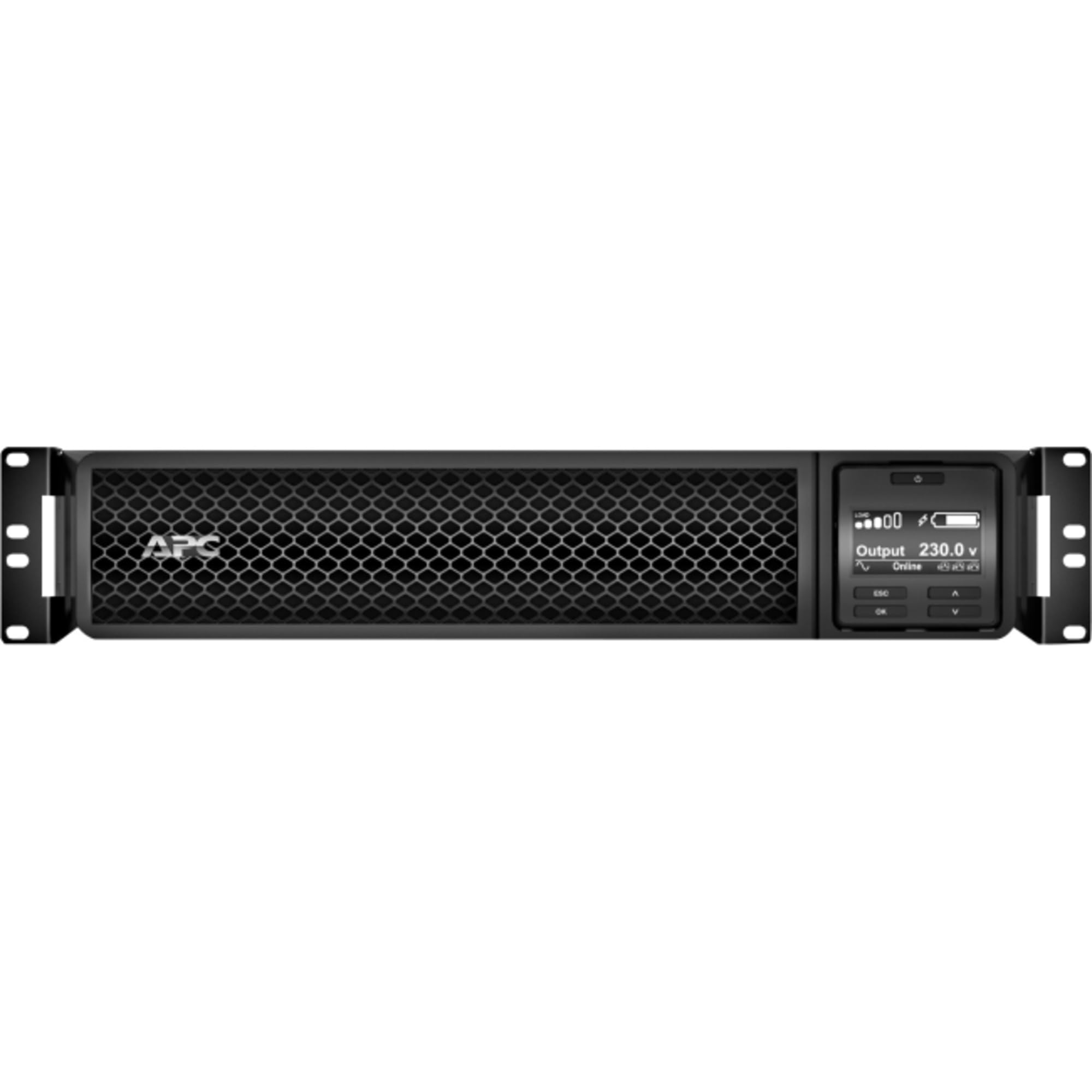

Figura 1: Frente view of the APC Smart-UPS SRT 3000VA RM 230V. This image displays the front panel with the LCD display, control buttons, and ventilation grilles.

Componentes clave

• Front Panel LCD Display: Provides real-time status information, configuration options, and alarm notifications.
• Botones de control: Used to navigate the LCD menu, power on/off the UPS, and perform self-tests.
• Módulo de batería: Proporciona energía de respaldo durante nuestratages. Hot-swappable for easy replacement.
• Conector de alimentación de entrada: Connects the UPS to the utility power source.
• Output Receptacles (IEC 320): Provide protected power to connected equipment.
• Communication Ports (USB, Serial): For connecting to a computer or network management card for monitoring and control.
• Puerto EPO (apagado de emergencia): Allows for remote emergency shutdown of the UPS.

5. Configuración

Follow these steps for initial setup of your UPS.

Paso 1: Elige una ubicación

• Place the UPS on a sturdy, level surface or install it in a standard 19-inch rack.
• Asegúrese de que la temperatura ambiente esté entre 0 °C y 40 °C (32 °F y 104 °F).
• Maintain at least 10 cm (4 inches) of clearance at the front and rear of the unit for proper ventilation.

Step 2: Install the Battery Module

If the battery module is not pre-installed, slide it into the battery bay until it clicks into place. Connect the battery cables as indicated by the labels.

Step 3: Connect to Utility Power

• Conecte el cable de alimentación de entrada del UPS a una toma de CA de 230 V con conexión a tierra.
• The UPS will perform a self-test and the LCD display will illuminate.

Paso 4: Conectar el equipo

• Connect your critical equipment (servers, network devices, etc.) to the output receptacles on the rear of the UPS.
• Ensure the total load does not exceed the UPS capacity (3000VA / 2700W).

Step 5: Connect Communication Cables (Optional)

• Connect the USB or serial cable from the UPS to your computer or server for monitoring and graceful shutdown capabilities.
• Install the PowerChute software (available from APC website) on your computer for advanced management.

6. Funcionamiento del SAI

Encendido del SAI

Press and hold the power button on the front panel until you hear a beep. The UPS will start up and provide power to connected equipment.

Apagado del SAI

Press and hold the power button until the UPS shuts down. Ensure all connected equipment is safely shut down before powering off the UPS.

Pantalla LCD y navegación

The LCD display provides detailed information about the UPS status, battery charge, load level, and various settings. Use the navigation buttons (up, down, enter, escape) to browse through the menus and adjust settings.

Autoprueba

Regularly perform a self-test to ensure the UPS battery and internal components are functioning correctly. This can typically be initiated via the LCD menu or PowerChute software.

7. Mantenimiento

Reemplazo de batería

The UPS batteries have a typical lifespan of 3-5 years. The UPS will indicate when the batteries need replacement. Refer to the safety information before attempting battery replacement. Use only APC-approved replacement battery modules (APCRBC152).

Limpieza

Limpie el exterior del UPS con un paño suave y seco.amp cloth. Do not use solvents or abrasive cleaners. Ensure ventilation openings are free from dust and debris.

Consideraciones ambientales

Store the UPS in a cool, dry place when not in use. Avoid extreme temperatures and humidity, which can shorten battery life.

8. Solución de problemas

Esta sección proporciona soluciones a problemas comunes que puede encontrar con su UPS.

9. Especificaciones

Detailed technical specifications for the APC Smart-UPS SRT 3000VA RM 230V (SRT3000RMXLI).

10. Garantía y soporte

Información de garantía

APC provides a standard warranty for this product. Please refer to the warranty card included in your package or visit the official APC webConsulte el sitio web para conocer los términos y condiciones detallados de la garantía de su región. Conserve su comprobante de compra para reclamaciones de garantía.

Apoyo técnico

For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact APC customer support. Support contact information can typically be found on the APC website or in the documentation provided with your unit. When contacting support, please have your model number (SRT3000RMXLI) and serial number ready.
