MONZANA Portable 4-in-1 Air Cooler, Humidifier, Fan, Ionizer User Manual

Introducción

Thank you for choosing the MONZANA Portable 4-in-1 Air Cooler. This device is designed to provide a comfortable indoor environment by offering cooling, humidification, ventilation, and air ionization functions. Please read this manual carefully before use to ensure proper operation and maintenance.

This 4-in-1 air conditioner offers multiple functions to create a perfect climate for your needs. It cleans, humidifies, and cools the air in the room. The ionizer binds individual dust particles, allowing for better filtration and neutralizing odors.

Image: The MONZANA Portable 4-in-1 Air Cooler positioned in a modern living room, demonstrating its compact design and mobility.

Información importante de seguridad

Warning! Follow all instructions. For indoor use only. Choking hazard: Keep small parts and packaging away from children.

• Coloque siempre la unidad sobre una superficie estable y nivelada.
• No sumerja la unidad en agua u otros líquidos.
• Ensure the power cord is not damaged and is kept away from heat sources.
• Desenchufe la unidad antes de limpiarla o realizar cualquier mantenimiento.
• No bloquee las entradas o salidas de aire.

Configuración y uso inicial

The MONZANA Portable Air Cooler is designed for immediate use without complex installation. Thanks to its integrated wheels and handles, you can easily move it to any room.

Desembalaje y Colocación

1. Retire con cuidado la unidad de su embalaje.
2. Place the air cooler on a flat, stable surface in the desired room.
3. Asegúrese de que haya suficiente espacio alrededor de la unidad para un flujo de aire adecuado.

Adding Water and Ice Packs

For optimal cooling performance, use cold water and the included ice packs.

1. Pull out the water tank located at the bottom of the unit.
2. Llene el tanque con agua limpia y fría. No exceda la línea de llenado máximo.
3. Place the provided ice packs (4 included) into the water tank. For continuous cooling, you can rotate between two sets of ice packs, keeping two frozen while two are in use.
4. Carefully push the water tank back into the unit until it is securely in place.

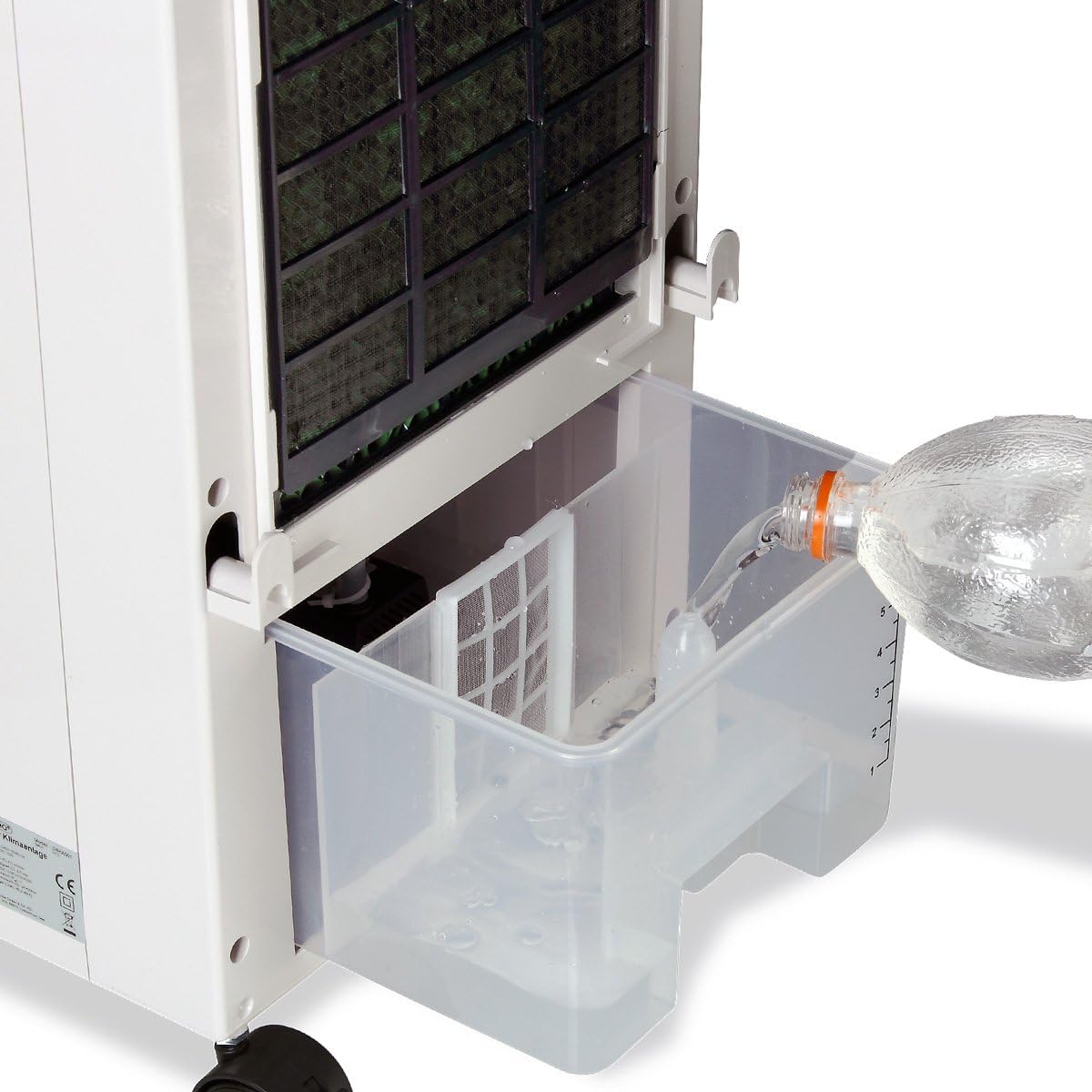

Image: A hand pouring water into the transparent water tank of the air cooler, showing the fill level markings.

Imagen: Un primer plano view of the water tank, showing one of the blue ice packs placed inside for enhanced cooling.

Instrucciones de funcionamiento

The MONZANA air cooler features intuitive controls for various functions. The unit can be operated via the control panel or the remote control.

Panel de control sobreview

Imagen: Detallada view of the control panel with buttons for OFF, 1, 2, 3 (fan speeds), COOL, SWING, ANION, and a timer knob.

Encendido/apagado y velocidad del ventilador

1. Conecte el cable de alimentación a una toma eléctrica adecuada.
2. Press the 'ON' button or turn the fan speed knob to '1', '2', or '3' to start the unit.
3. To turn off the unit, press the 'OFF' button or turn the fan speed knob to 'OFF'.

Modos de flujo de aire

The airflow can be adjusted to three levels: Natural, Dormir, y Normal. The 'Natural' mode simulates an irregular, natural breeze. These modes can be set via the oscillating fan controls.

Cooling and Humidification

Press the 'COOL' button to activate the cooling and humidification function. This circulates water from the tank over the cooling pads, releasing cooler, humidified air.

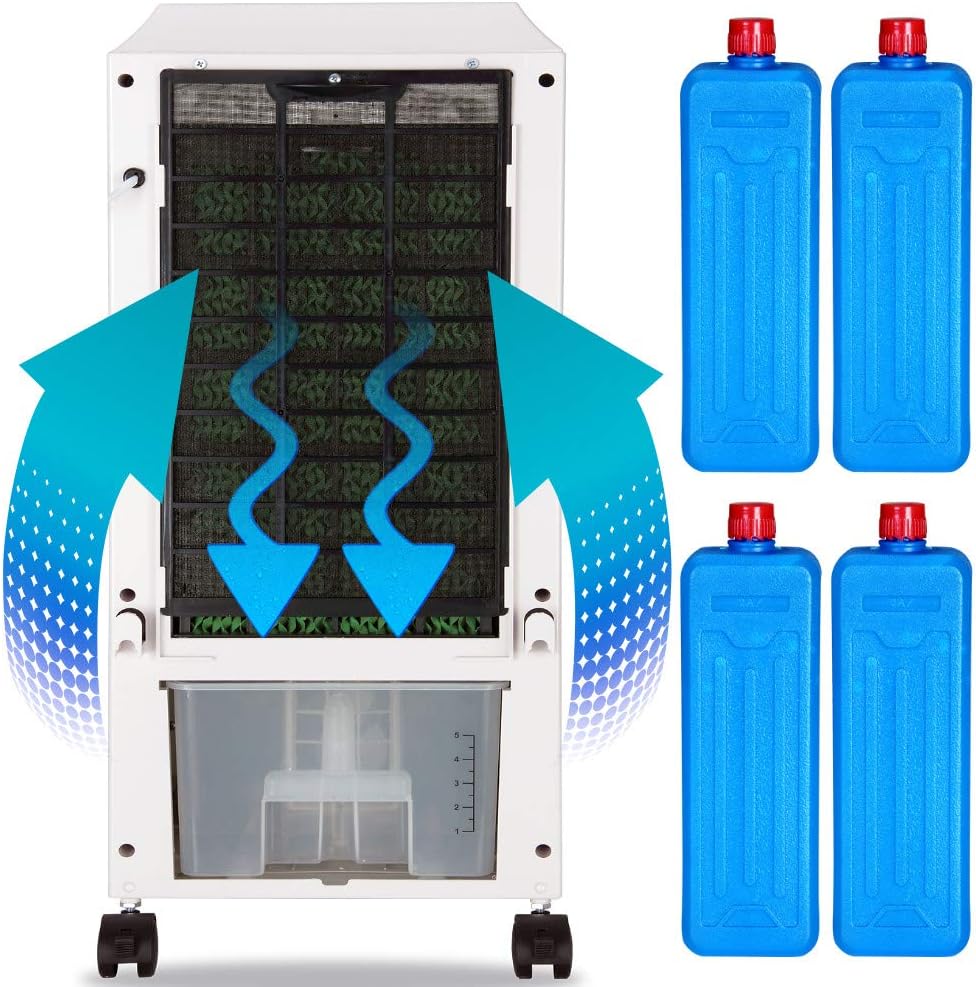

Imagen: Trasera view of the air cooler illustrating the airflow path (blue arrows) and the placement of the four ice packs for enhanced cooling.

Función ionizador

Press the 'ANION' button to activate the ionizer. This function helps to purify the air by binding dust particles and neutralizing odors.

Función de oscilación

Press the 'SWING' button to activate the oscillation function, which distributes air more widely across the room.

Función de temporizador

Use the timer knob to set the operating time for up to 120 minutes. The unit will automatically turn off once the set time has elapsed.

Image: Close-up of the timer knob on the control panel, indicating settings from 20 to 120 minutes.

Mantenimiento y limpieza

Regular cleaning ensures optimal performance and extends the lifespan of your air cooler.

Limpieza del filtro de polvo

The air cooler features an integrated dust filter that purifies the air. This filter can be easily removed for cleaning and reinserted.

1. Asegúrese de que la unidad esté desconectada de la toma de corriente.
2. Locate the dust filter at the back of the unit.
3. Gently pull the filter out of its slot.
4. Clean the filter with a soft brush or vacuum cleaner to remove accumulated dust. For thorough cleaning, you may rinse it under running water. Ensure it is completely dry before reinserting.
5. Slide the clean, dry filter back into its slot until it clicks into place.

Image: A hand demonstrating the removal of the black dust filter from the back of the air cooler, revealing the internal cooling pads.

Limpieza del tanque de agua

To prevent mold and odors, clean the water tank regularly.

1. Desconecte la unidad.
2. Retire el tanque de agua.
3. Vacíe el agua restante.
4. Limpie el tanque con agua y jabón suave. Enjuáguelo bien.
5. Seque completamente el tanque antes de volver a insertarlo.

Limpieza exterior

Limpie el exterior de la unidad con un paño suave yamp Paño. No utilice limpiadores abrasivos ni disolventes.

Solución de problemas

If you encounter issues with your MONZANA air cooler, please refer to the following common problems and solutions:

Presupuesto

Información de garantía

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in the packaging for specific terms and conditions, including warranty period and coverage details. Keep your proof of purchase for warranty claims.

Atención al cliente

For any questions, technical assistance, or service requests not covered in this manual, please contact Monzana customer support. Contact details can typically be found on the product packaging or the official Monzana websitio.
