Hauck iPro Kids Convertible Car Seat User Manual

1. Introducción

Thank you for choosing the Hauck iPro Kids Convertible Car Seat. This manual provides essential information for the correct installation, safe use, and maintenance of your car seat. Please read it thoroughly before use and keep it for future reference.

The iPro Kids car seat is designed to provide maximum safety and comfort for your child, complying with the flexible i-Size regulation R 129, suitable for body sizes of 40-105 cm.

2. Información importante de seguridad

• Always ensure the car seat is correctly installed and secured according to the instructions.
• Nunca deje a su hijo desatendido en el asiento del automóvil.
• Ensure the harness is properly adjusted and snug against your child's body.
• No utilice la silla de auto si ha estado involucrada en un accidente, incluso si no hay daños visibles.
• Only use the car seat with the separately available iPro Base for ISOFIX installation.
• The car seat features a Modular Side-Impact Protection System for enhanced safety.

3. Componentes sobreview

Familiarize yourself with the main components of your Hauck iPro Kids car seat:

• Reposacabezas: Adjustable for height.
• Arnés de 5 puntos: Secures your child.
• Inserto para recién nacidos: Provides extra support for infants.
• Seat Wedge: Removable for comfort.
• Palanca de ajuste de reclinación: For adjusting seat angle.
• Modular Side-Impact Protection: Integrated into the seat structure.
• Funda extraíble: Para fácil limpieza.

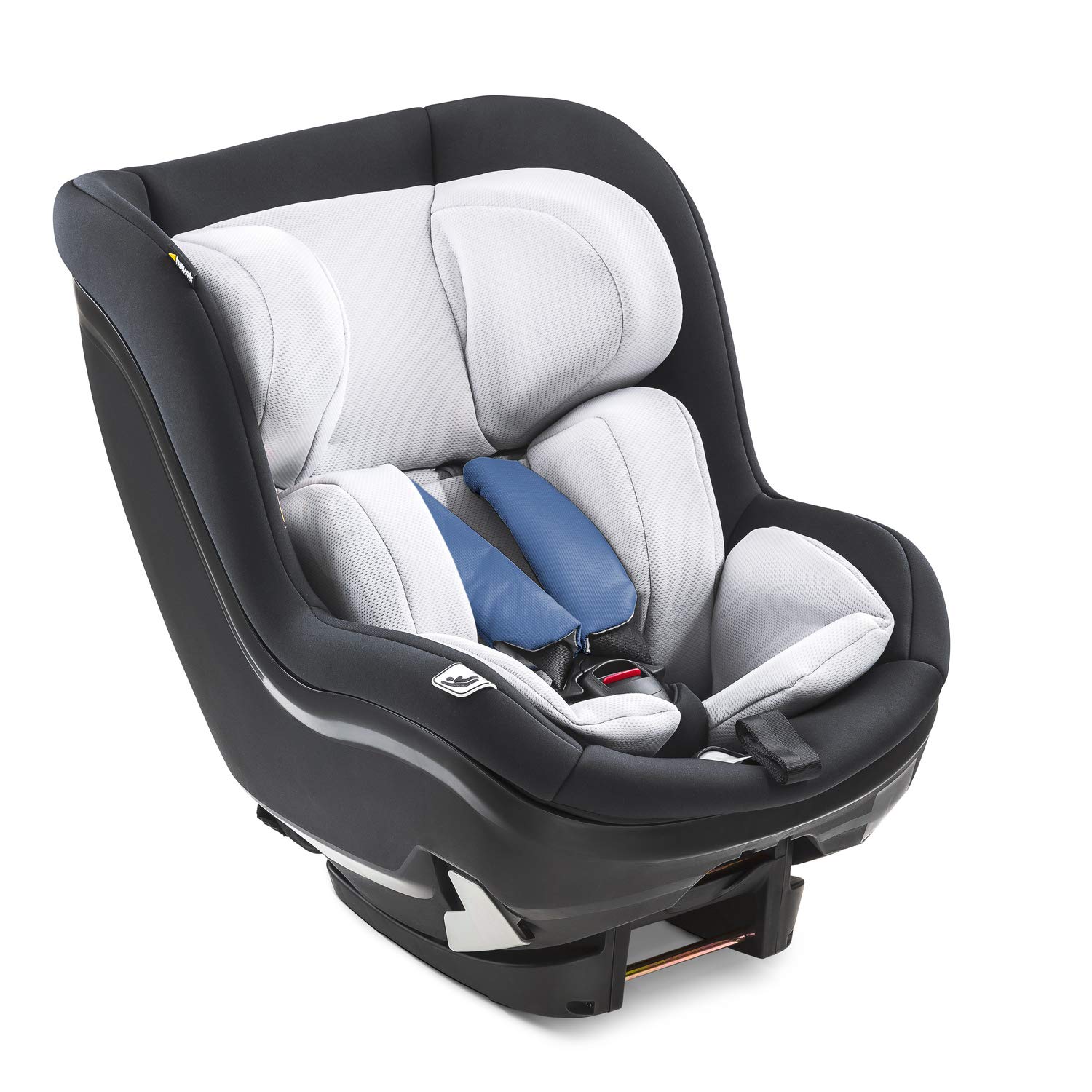

Figura 3.1: Lado view of the Hauck iPro Kids Car Seat, showing its robust design and integrated base.

Figura 3.2: Frente view of the Hauck iPro Kids Car Seat, highlighting the comfortable seating area.

4. Configuración e instalación

The Hauck iPro Kids car seat must be installed using the separately available iPro Base (ISOFIX). Ensure the base is securely attached to your vehicle's ISOFIX anchor points before attaching the car seat.

4.1 Rearward Facing Installation (40-105 cm)

For children with a body size of 40-105 cm (approximately 0 months to 4 years), the car seat must be installed in a rearward-facing position. This provides optimal protection for infants and toddlers.

1. Ensure the iPro Base is correctly installed in your vehicle.
2. Place the iPro Kids car seat onto the iPro Base, ensuring it clicks securely into place.
3. Verify the installation indicators on the base show green, confirming correct attachment.
4. For newborns, use the removable newborn insert and two-part insert for additional comfort and support.

Figure 4.1: A baby securely seated in the Hauck iPro Kids car seat in a rearward-facing position.

Figure 4.2: An infant sleeping comfortably in the rearward-facing Hauck iPro Kids car seat.

4.2 Forward Facing Installation (76-105 cm)

For children with a body size of 76-105 cm (approximately 1 to 4 years), the car seat can be installed in a forward-facing position. Always ensure your child meets the minimum height requirement before switching to forward-facing.

1. Ensure the iPro Base is correctly installed in your vehicle.
2. Place the iPro Kids car seat onto the iPro Base, ensuring it clicks securely into place in the forward-facing orientation.
3. Verify the installation indicators on the base show green, confirming correct attachment.
4. Adjust the inclination angle using the one-hand adjustment feature for your child's comfort.

Figure 4.3: A toddler seated in the Hauck iPro Kids car seat in a forward-facing position.

5. Instrucciones de funcionamiento

5.1 Ajuste del arnés de 5 puntos

The 5-point harness system is height-adjustable to grow with your child. Always ensure the harness straps are snug and lie flat against your child's body, with the chest clip at armpit level.

1. To loosen: Press the release button and pull the shoulder straps forward.
2. To tighten: Pull the adjustment strap at the front of the seat until the harness is snug.
3. To buckle: Insert both buckle tongues into the buckle until they click.
4. To unbuckle: Press the red button on the buckle.

Figure 5.1: Close-up of the 5-point harness buckle on the Hauck iPro Kids car seat.

5.2 Ajuste del reposacabezas

The headrest is adjustable in 6 heights, integrated with the belt system, to ensure proper head and neck support as your child grows.

1. Locate the headrest adjustment lever at the top rear of the car seat.
2. Squeeze the lever and simultaneously pull up or push down the headrest to the desired height.
3. Release the lever to lock the headrest in position. Ensure the shoulder straps are at or just below your child's shoulders when rear-facing, and at or just above when forward-facing.

Figure 5.2: Illustration of the headrest adjustment mechanism on the Hauck iPro Kids car seat.

5.3 Posiciones de reclinación

The car seat offers 4 inclination angle adjustments when forward-facing, allowing you to find the most comfortable position for your child.

1. Locate the recline adjustment lever at the front base of the car seat.
2. Pull the lever and adjust the seat to one of the four available recline positions.
3. Release the lever to lock the seat in the chosen recline position.

5.4 Newborn and Two-Part Inserts

The removable newborn insert and additional two-part insert provide extra cushioning and support for smaller infants, ensuring a snug and safe fit. Remove these inserts as your child grows and no longer requires the additional padding.

Figure 5.3: The removable newborn insert for the Hauck iPro Kids car seat, designed for infant comfort.

6. Mantenimiento

6.1 Cleaning the Car Seat

The car seat features a removable cover made of breathable fabric for easy cleaning.

1. Remove the fabric cover from the car seat. Refer to the care label on the fabric for specific washing instructions. Typically, machine wash on a gentle cycle with mild detergent.
2. Do not use harsh chemicals or abrasive cleaners on any part of the car seat.
3. Deje que todas las piezas se sequen al aire por completo antes de volver a montarlas.

6.2 Harness and Buckle Care

Inspect the harness straps and buckle regularly for any signs of wear or damage. Clean the harness straps with a damp cloth and mild soap. Do not lubricate the buckle.

7. Solución de problemas

• El asiento del automóvil se siente flojo después de la instalación: Recheck all installation steps, ensuring the ISOFIX connectors are fully engaged and the support leg (if applicable to the iPro Base) is correctly extended. Apply pressure to the seat while tightening.
• Las correas del arnés son difíciles de ajustar: Ensure the harness release button is fully pressed when loosening. Check for any twists in the straps behind the seat.
• La hebilla es difícil de activar y desactivar: Ensure no debris is obstructing the buckle mechanism. Clean the buckle with a damp paño.

8. Especificaciones

9. Garantía y soporte

For warranty information, product registration, or customer support, please refer to the documentation included with your purchase or visit the official Hauck webSitio. Conserve su comprobante de compra para cualquier reclamación de garantía.
