Tenda F6 11N 300Mbps Wireless Router Instruction Manual

1. Introducción

This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your Tenda F6 11N 300Mbps Wireless Router. The Tenda F6 is designed to provide a stable and high-speed wireless network for your home, supporting the 802.11n standard with speeds up to 300Mbps. Please read this manual carefully before using the device to ensure proper installation and optimal performance.

2. Contenido del paquete

Verifique que el paquete contenga todos los artículos. Si falta algún artículo o está dañado, contacte con su vendedor.

• Tenda F6 11N Wireless Router
• Adaptador de corriente
• Cable Ethernet
• Guía de instalación rápida

3. Producto terminadoview

3.1 Front Panel: LED Indicators

El panel frontal cuenta con indicadores LED que muestran el estado del enrutador:

• LED de encendido: Indica el estado de energía. Verde fijo cuando está encendido.
• LED de WAN: Indicates WAN port status. Solid green when connected, blinking when data is transmitted.
• LED de LAN (1-3): Indicate LAN port status. Solid green when connected, blinking when data is transmitted.
• LED de red inalámbrica: Indicates wireless network status. Solid green when Wi-Fi is active, blinking during data transmission.
• LED WPS: Indicates WPS function status. Blinks during WPS connection attempt.

3.2 Rear Panel: Ports and Buttons

El panel trasero proporciona todos los puertos de conexión y botones necesarios:

• WAN Port (10/100Mbps): Se conecta a la red de su módem o proveedor de servicios de Internet.
• LAN Ports (1-3, 10/100Mbps): Se conecta a dispositivos con cable, como computadoras, televisores inteligentes o consolas de juegos.
• Botón Restablecer/WPS: Press and hold for 8 seconds to restore factory default settings. A short press activates the WPS function for easy wireless connection.
• Entrada de energía: Se conecta al adaptador de corriente incluido.
• Antenas: Four external, non-detachable antennas for wireless signal transmission and reception.

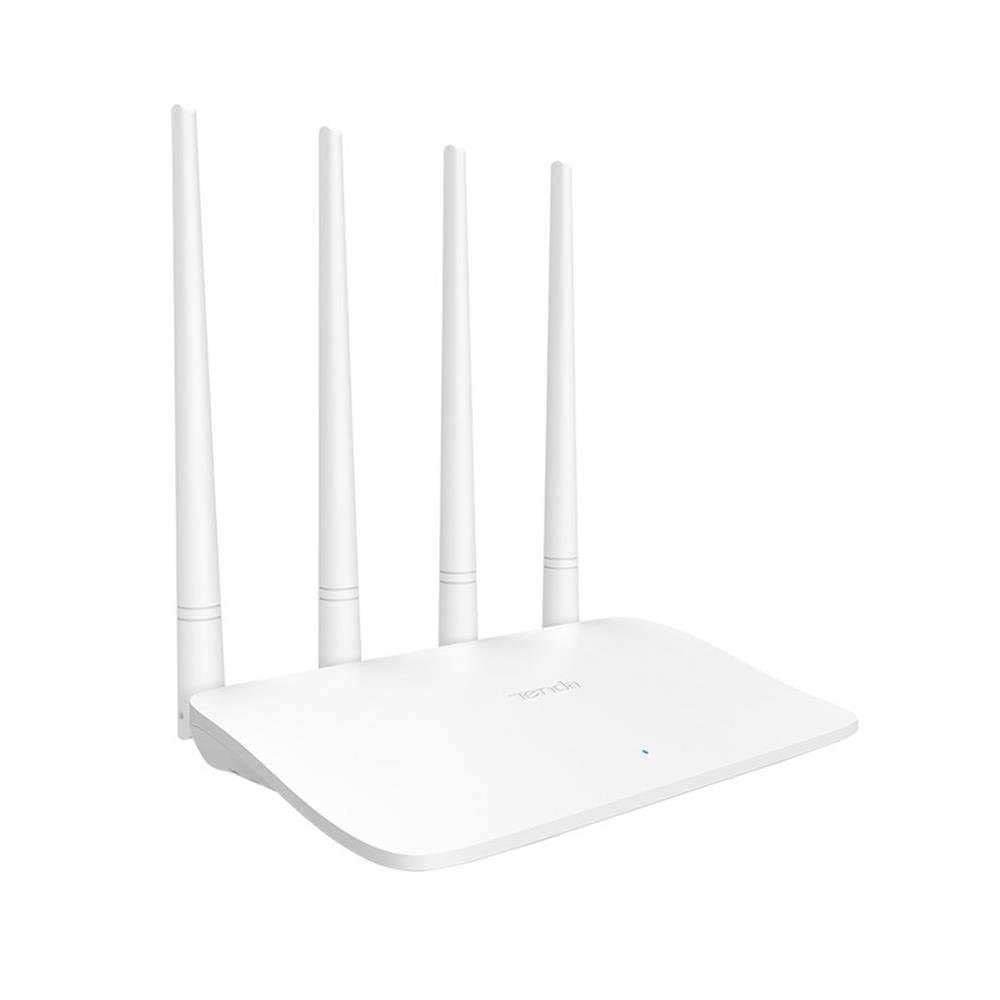

Image: Tenda F6 11N Wireless Router showing its compact design and four external antennas. The rear panel includes the WAN port, three LAN ports, the Reset/WPS button, and the power input.

4. Guía de configuración

4.1 Conexión de hardware

1. Coloque el enrutador: Place the router in a central location in your home, away from obstructions and devices that may cause interference (e.g., cordless phones, microwave ovens).
2. Conéctate al módem: Connect one end of the Ethernet cable to the WAN port (usually blue) on your Tenda F6 router and the other end to the LAN port on your modem.
3. Conectarse a la energía: Connect the power adapter to the router's power input and then plug the adapter into a power outlet. The Power LED should light up.
4. Conectar dispositivos (opcional): For initial setup or wired connections, connect an Ethernet cable from a LAN port (yellow) on the router to your computer's Ethernet port.

4.2 Configuración inicial

1. Acceda a la interfaz del enrutador: Abrir una web browser (e.g., Chrome, Firefox) on a connected computer or mobile device. In the address bar, type 192.168.0.1 or tendawifi.com y presione Enter.
2. Acceso: The default login password is usually admin or left blank for the first setup. Follow the on-screen prompts to set a new, strong login password.
3. Asistente de configuración de Internet: The router will typically launch a Quick Setup Wizard. Follow the steps to configure your internet connection type (e.g., PPPoE, Dynamic IP, Static IP). Your Internet Service Provider (ISP) will provide this information.
4. Configuración inalámbrica: Set your Wi-Fi Network Name (SSID) and a strong Wi-Fi password. It is recommended to use WPA2-PSK encryption.
5. Guardar configuración: Save your configurations. The router may reboot to apply the changes.

5. Instrucciones de funcionamiento

After initial setup, you can manage your network settings through the web interfaz.

5.1 Configuración de red inalámbrica

• Cambiar SSID: Navegar a Configuración inalámbrica to change your Wi-Fi network name.
• Cambiar la contraseña: Actualice su contraseña de Wi-Fi periódicamente por seguridad.
• Modo de seguridad: Ensure WPA2-PSK is selected for the strongest encryption.
• Función WPS: Briefly press the Reset/WPS button on the router or enable WPS in the web interface to connect WPS-compatible devices without entering a password.

5.2 Gestión de red

• Control parental: Acceder a la Control parental section to manage internet access times and content for specific devices.
• Control de ancho de banda: Usar Control de ancho de banda to allocate specific bandwidth to connected devices, ensuring fair usage.
• Herramientas del sistema: Bajo Herramientas del sistema, you can find options for:
  • Reiniciar: Reinicie el enrutador.
  • Restablecimiento de fábrica: Restore the router to its original factory settings (all configurations will be lost).
  • Registro del sistema: View eventos y actividades del sistema.
  • Contraseña de inicio de sesión: Change the password for accessing the router's web interfaz.

6. Mantenimiento

El mantenimiento regular ayuda a garantizar la longevidad y el rendimiento óptimo de su enrutador.

• Reinicio normal: Reboot your router periodically (e.g., once a month) to clear its memory and refresh network connections.
• Actualizaciones de firmware: Consulta el sitio oficial de Tenda webSitio para actualizaciones de firmware. Actualizar el firmware puede mejorar el rendimiento, añadir nuevas funciones y corregir errores.
• Limpieza física: Keep the router clean and free from dust. Ensure proper ventilation to prevent overheating.
• Colocación segura: Keep the router in a secure location, away from direct sunlight, moisture, and extreme temperatures.

7. Solución de problemas

Si encuentra problemas, consulte los siguientes problemas y soluciones comunes:

8. Especificaciones

9. Garantía y soporte

For warranty information and technical support, please refer to the warranty card included in your product package or visit the official Tenda website. Tenda provides customer support to assist with any product-related inquiries or issues.

Tenda oficial Websitio: www.tendacn.com
