vidaXL Retractable Awning Model 143759 Instruction Manual

Introducción

Thank you for choosing the vidaXL Retractable Awning. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your awning. Please read these instructions carefully before installation and retain them for future reference.

This versatile awning is designed to provide shade and weather protection for terraces, balconies, and gardens. It features a sturdy steel frame and weather-resistant fabric with a PA coating, ensuring durability and protection against UV rays.

Figure 1: The vidaXL Retractable Awning providing shade over an outdoor seating area.

Información de seguridad

ADVERTENCIA:

• This product should be installed on smooth and flat surfaces to prevent accidents.
• Keep children and pets away from the retractable mechanism to avoid injury.
• This product contains chemicals known to the state of California to cause cancer or reproductive harm. For more information, go to www.P65Warnings.ca.gov.
• Do not leave the awning extended during strong winds, heavy rain, or snow to prevent damage to the awning and property. Retract the awning in adverse weather conditions.

Contenido del paquete

Before beginning assembly, ensure all parts are present and undamaged. Refer to the assembly diagram (if provided in physical manual) for a complete list of components. Typically, your package will include:

• Awning fabric with roller tube
• Steel frame components (support bars, mounting brackets)
• Retraction mechanism (chain)
• Mounting hardware (screws, anchors - specific types may vary based on wall material)

Configuración e instalación

Installation of this retractable awning is designed to be straightforward. It is recommended that two people perform the installation for safety and ease.

1. Elegir la ubicación: Select a smooth, flat, and sturdy surface for mounting, such as a concrete or brick wall. Ensure there is sufficient clearance for the awning's dimensions (refer to specifications).
2. Medir y marcar: Carefully measure and mark the positions for the mounting brackets on your chosen surface. Use a level to ensure the brackets are perfectly aligned. The awning has a projection distance of 78.7 inches (200 cm).
3. Instale los soportes de montaje: Drill pilot holes according to your wall material and secure the mounting brackets using appropriate screws and anchors. Ensure they are firmly attached.
4. Attach Awning Frame: Carefully lift and attach the awning's main frame to the installed mounting brackets. Secure all connections as per the assembly instructions provided with your product.
5. Ajustar altura y ángulo: The awning's height and angle can be adjusted to your preference. Loosen the adjustment points on the support bars, set the desired angle for optimal shade, and then securely tighten them.

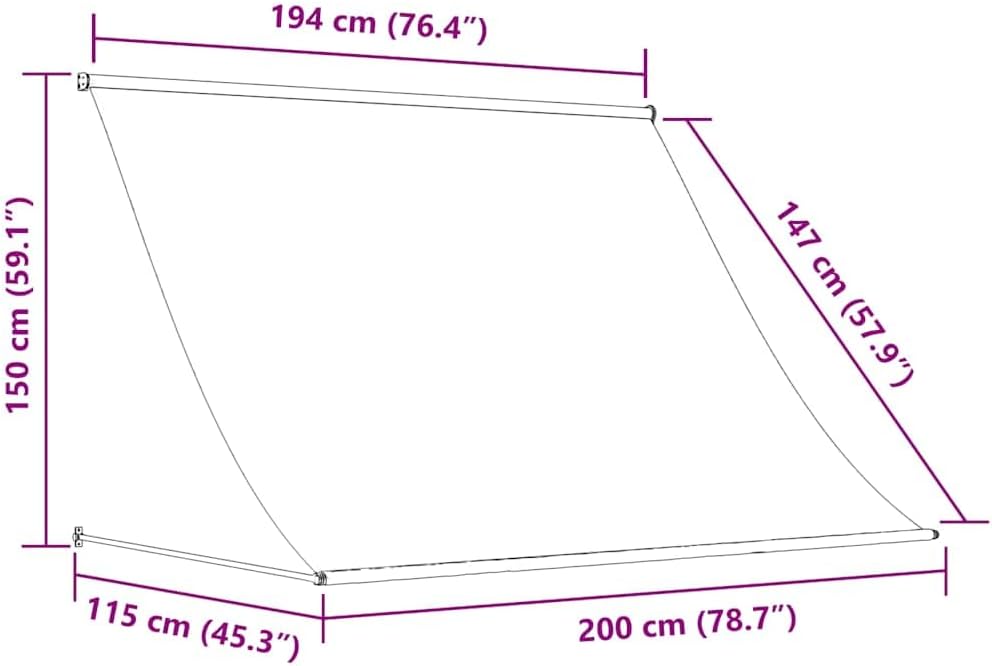

Figure 2: Awning dimensions for planning installation.

Figure 3: Awning extended, illustrating the angle and support structure.

Instrucciones de funcionamiento

The vidaXL Retractable Awning operates manually using a supporting bar and a bradde chain mechanism.

1. Para extender el toldo: Gently pull the bradde chain downwards. The awning fabric will unroll, and the support bars will extend outwards. Continue pulling until the awning reaches your desired extension or its maximum projection.
2. Para retraer el toldo: Gently pull the bradde chain upwards. The awning fabric will roll back onto the roller tube, and the support bars will retract. Continue pulling until the awning is fully retracted against the wall.

Ensure smooth and even operation. Do not force the mechanism if it encounters resistance.

Figure 4: Detail of the manual retraction chain mechanism.

Mantenimiento

El mantenimiento regular prolongará la vida y la apariencia de su toldo.

• Limpieza de la tela: Clean the awning fabric periodically with mild soap and water. Use a soft brush or sponge. Rinse thoroughly with clean water and allow it to air dry completely before retracting. Do not use harsh chemicals or abrasive cleaners.
• Inspección del marco: Periodically check all frame components and mounting hardware for tightness and signs of wear or corrosion. Tighten any loose screws.
• Protección contra la intemperie: Always retract the awning during strong winds, heavy rain, or snow to prevent damage. While the fabric is weather-resistant, extreme conditions can compromise the structural integrity.
• Almacenamiento de invierno: For prolonged periods of non-use, especially during winter, it is advisable to keep the awning fully retracted. Consider a protective cover if available, though the product description does not mention one.

Solución de problemas

If you encounter issues with your vidaXL Retractable Awning, refer to the following common solutions:

• Awning not retracting/extending smoothly:
  • Check for any obstructions in the path of the fabric or support arms.
  • Inspect the bradde chain for tangles or damage.
  • Asegúrese de que el mecanismo esté limpio y libre de residuos.
• Awning appears unstable after installation:
  • Verify that all mounting brackets are securely fastened to a suitable, flat, and sturdy surface.
  • Check all frame connections and ensure they are tightened.
  • Ensure the support bars are properly adjusted and locked into position.
• Tela caída o desigual:
  • Ensure the awning is fully extended and the fabric is taut.
  • Check if the roller tube is level.

Si los problemas persisten, comuníquese con el servicio de atención al cliente de vidaXL.

Presupuesto

Atención al cliente

For further assistance, technical support, or inquiries regarding your vidaXL Retractable Awning, please visit the official vidaXL webSitio web o contacte con su departamento de atención al cliente. Consulte la documentación de compra para obtener información de contacto específica.

Recursos en línea: Tienda de la marca vidaXL en Amazon
