Einhell AQUINNA 36/30 (Model 4180400)

Einhell AQUINNA 36/30 Cordless Garden Pump Instruction Manual

Model: AQUINNA 36/30 (4180400)

1. Introducción

The Einhell AQUINNA 36/30 Cordless Garden Pump is designed for efficient and environmentally friendly water transfer in your garden. It allows you to utilize rainwater, well water, or cistern water, contributing to water conservation and cost savings. This pump is part of the Power X-Change family, operating on two 18V Power X-Change batteries (not included). All batteries within the Power X-Change system are interchangeable with other tools in the range.

The pump features a two-level ECO switch for optimal performance, offering an energy-saving mode with reduced delivery pressure or full power mode. It boasts a maximum delivery height of 26 meters, a maximum suction height of 8 meters, and a maximum flow rate of 3,000 liters per hour. The suction connection is 42 mm (1 1/4" AG) and the pressure connection is 33.3 mm (R1 IG). For protection against frost, the pump includes a water filling screw and a water drain screw, allowing safe storage during colder seasons. Thermal protection safeguards the motor from overload. A practical carrying handle ensures easy transport to any location.

Einhell AQUINNA 36/30 Cordless Garden Pump, red and black, with hoses connected, ready for use.
Figure 1: Einhell AQUINNA 36/30 Cordless Garden Pump. This image shows the pump in its operational setup, highlighting its compact design and readiness for use in a garden environment.

2. Instrucciones de seguridad

Lea y comprenda siempre todas las advertencias de seguridad, instrucciones, ilustraciones y especificaciones que se incluyen con esta herramienta eléctrica. No seguir todas las instrucciones a continuación puede provocar descargas eléctricas, incendios o lesiones graves.

  • Seguridad general: Mantenga el área de trabajo limpia y bien iluminada. No utilice herramientas eléctricas en atmósferas explosivas, como en presencia de líquidos, gases o polvo inflamables.
  • Seguridad eléctrica: Evite el contacto corporal con superficies conectadas a tierra. No exponga las herramientas eléctricas a la lluvia ni a la humedad.
  • Seguridad personal: Manténgase alerta, preste atención a lo que hace y utilice el sentido común al utilizar una herramienta eléctrica. No utilice una herramienta eléctrica si está cansado o bajo los efectos de drogas, alcohol o medicamentos.
  • Uso y cuidado de herramientas eléctricas: No fuerce la herramienta eléctrica. Utilice la herramienta eléctrica correcta para su aplicación. Desconecte la batería de la herramienta eléctrica antes de realizar ajustes, cambiar accesorios o guardarla.
  • Uso y cuidado de la herramienta a batería: Recargue únicamente con el cargador especificado por el fabricante. Utilice herramientas eléctricas únicamente con baterías específicamente diseñadas.
  • Servicio: Haga que su herramienta eléctrica sea reparada por un técnico calificado utilizando únicamente piezas de repuesto idénticas.

3. Producto terminadoview

The Einhell AQUINNA 36/30 Cordless Garden Pump is designed for portability and ease of use. Key components include:

  • Compartimento de la batería: Houses two 18V Power X-Change batteries.
  • Interruptor de control: Allows selection between OFF, ECO, and BOOST modes.
  • Water Filling Screw: For priming the pump before operation.
  • Water Drain Screw: For emptying the pump to prevent frost damage.
  • Puerto de succión: Connects to the water source hose (42 mm / 1 1/4" AG).
  • Puerto de presión: Connects to the irrigation hose (33.3 mm / R1 IG).
  • Mango cómodo: Para facilitar el transporte.

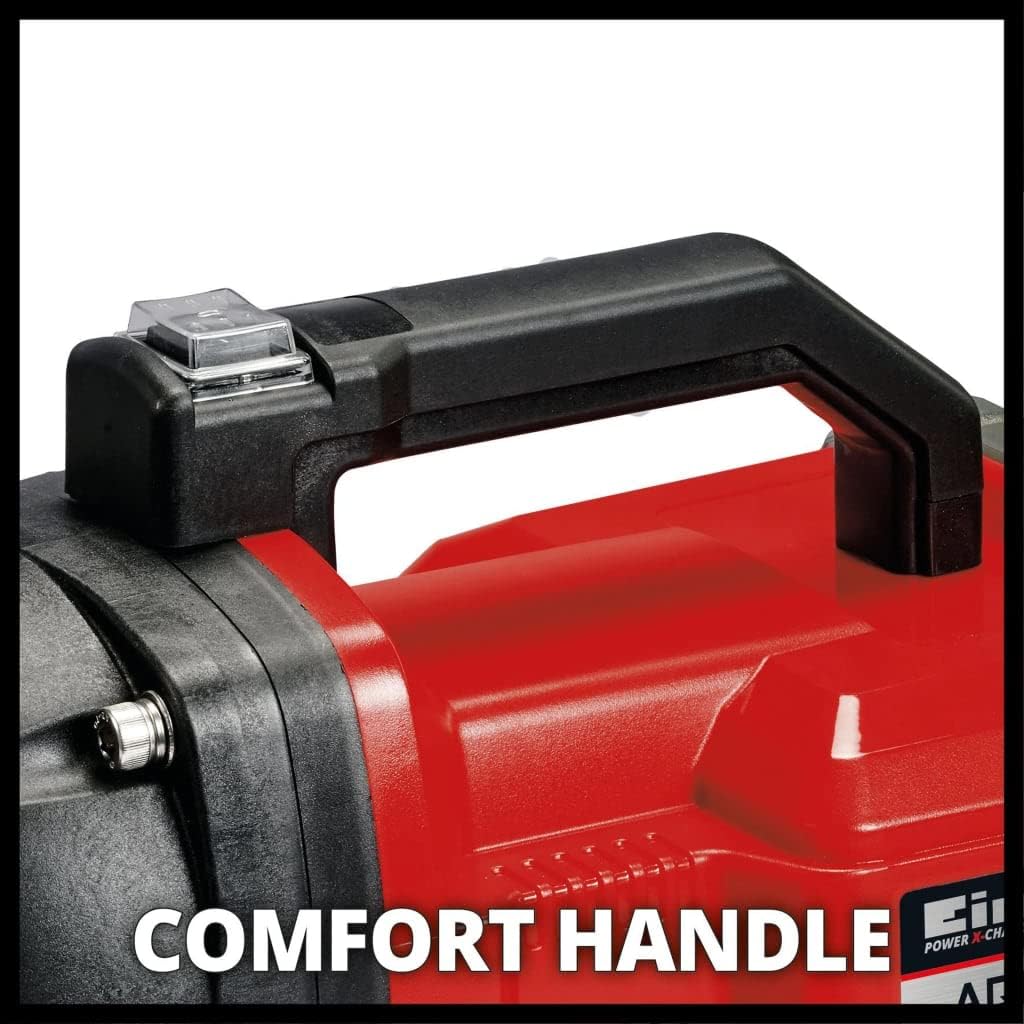

Close-up of the ergonomic comfort handle on the Einhell AQUINNA 36/30 pump.
Figure 2: Comfort Handle. The integrated handle provides a secure grip for easy portability of the pump.
De cerca view of the Einhell AQUINNA 36/30 pump's handle with the power and mode selection switch (BOOST, OFF, ECO).
Figure 3: Control Switch. This image details the power and mode selection switch, allowing users to choose between BOOST, OFF, and ECO settings.

4. Configuración

4.1. Instalación de la batería

  1. Ensure the pump is switched OFF.
  2. Abra la tapa del compartimiento de la batería.
  3. Insert two fully charged 18V Power X-Change batteries into their respective slots. Ensure they click into place securely.
  4. Cierre la tapa del compartimento de la batería.
Close-up of the Einhell AQUINNA 36/30 pump's battery compartment, showing two 18V Power X-Change batteries inserted.
Figure 4: Battery Insertion. This image shows the correct way to insert two 18V Power X-Change batteries into the pump's compartment.
A circular warning sticker indicating that batteries and charger are not included with the Einhell AQUINNA 36/30 pump.
Figure 5: Batteries and Charger Not Included. A reminder that these essential components are sold separately.

4.2. Conexiones de manguera

  1. Connect the suction hose to the 42 mm (1 1/4" AG) suction port. Ensure a tight, airtight connection to prevent air leaks.
  2. Connect the irrigation hose to the 33.3 mm (R1 IG) pressure port.
  3. Place the end of the suction hose into your water source (rain barrel, well, cistern).
Close-up of the suction port (42 mm / 1 1/4 inch AG) on the Einhell AQUINNA 36/30 pump.
Figure 6: Suction Port. This image highlights the connection point for the suction hose, crucial for drawing water into the pump.

4.3. Cebado de la bomba

Before first use or if the pump has run dry, it must be primed with water.

  1. Unscrew the water filling screw located on the top of the pump.
  2. Carefully fill the pump housing with water until it overflows.
  3. Replace and tighten the water filling screw securely.
Close-up of the water filling screw on the Einhell AQUINNA 36/30 pump.
Figure 7: Water Filling Screw. This image shows the location of the screw used to fill the pump with water for priming.

5. Operando

5.1. Arrancar la bomba

  1. Ensure batteries are installed, hoses are connected, and the pump is primed.
  2. Select the desired operating mode using the control switch:
    • Modo ecologico: Provides prolonged battery runtime (up to 90% longer) with slightly reduced pressure for equivalent flow. Ideal for general watering tasks.
    • Modo BOOST: Delivers full power and maximum pressure for demanding applications.
  3. The pump will start operating.

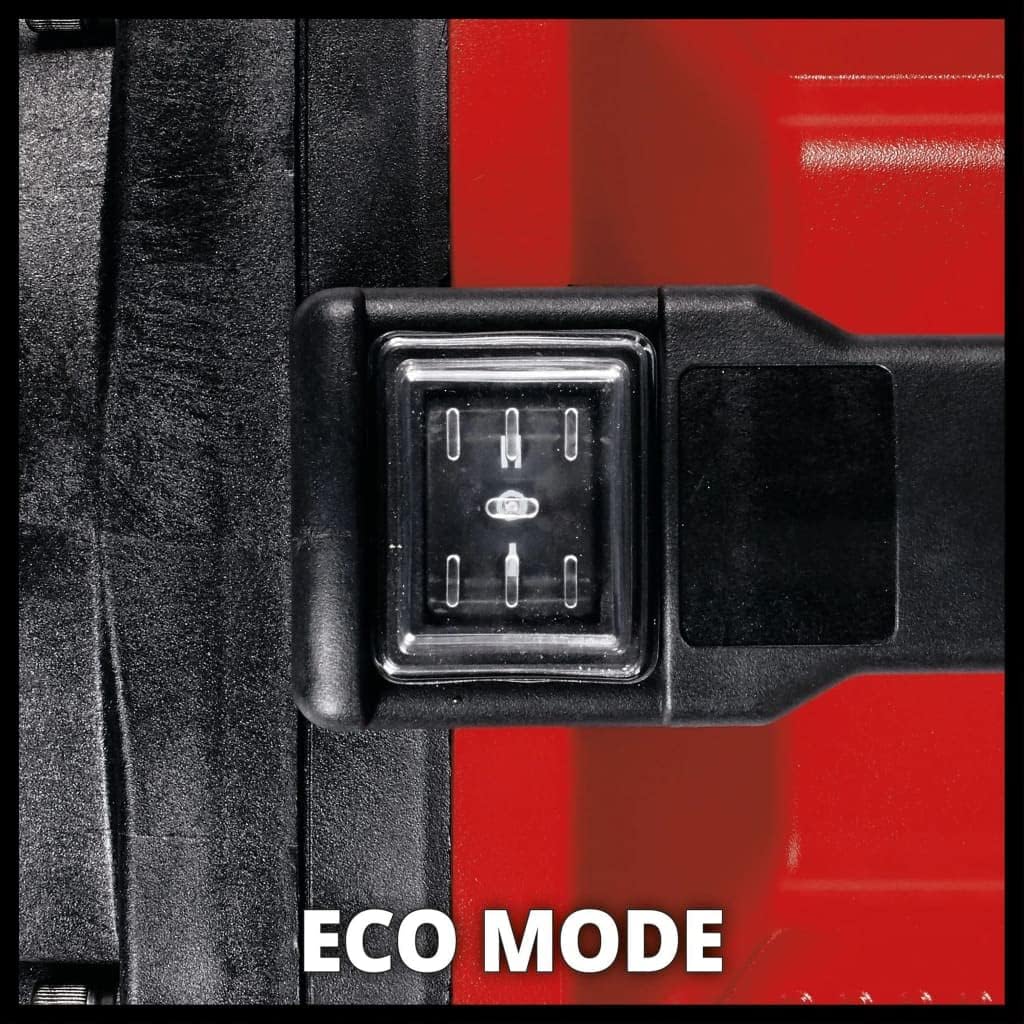

Close-up of the ECO mode switch on the Einhell AQUINNA 36/30 pump's handle.
Figure 8: ECO Mode Switch. This image highlights the switch for selecting the energy-efficient ECO mode.

5.2. Stopping the Pump

To stop the pump, simply move the control switch to the OFF position.

5.3. Battery Runtime Overview

The following tables provide approximate battery runtimes for various Power X-Change battery capacities in both ECO and BOOST modes. Runtimes may vary based on application and environmental conditions.

Table showing estimated battery runtimes for Einhell Power X-Change batteries in ECO mode, ranging from 30 minutes (1.5 Ah) to 100 minutes (6.0 Ah).
Figure 9: ECO Mode Battery Runtimes. This table illustrates the extended operating times achievable in ECO mode with different battery capacities.
Table showing estimated battery runtimes for Einhell Power X-Change batteries in BOOST mode, ranging from 12 minutes (1.5 Ah) to 50 minutes (6.0 Ah).
Figure 10: BOOST Mode Battery Runtimes. This table provides estimated operating times when the pump is used at full power in BOOST mode.

6. Mantenimiento

6.1. Frost Protection and Storage

To prevent damage from freezing temperatures, it is crucial to completely drain the pump before storing it for the winter season.

  1. Switch the pump OFF and remove the batteries.
  2. Desconecte todas las mangueras.
  3. Unscrew the water drain screw located at the bottom of the pump.
  4. Tilt the pump to ensure all water drains out.
  5. Once completely drained, replace and tighten the water drain screw.
  6. Guarde la bomba en un lugar seco y libre de heladas.

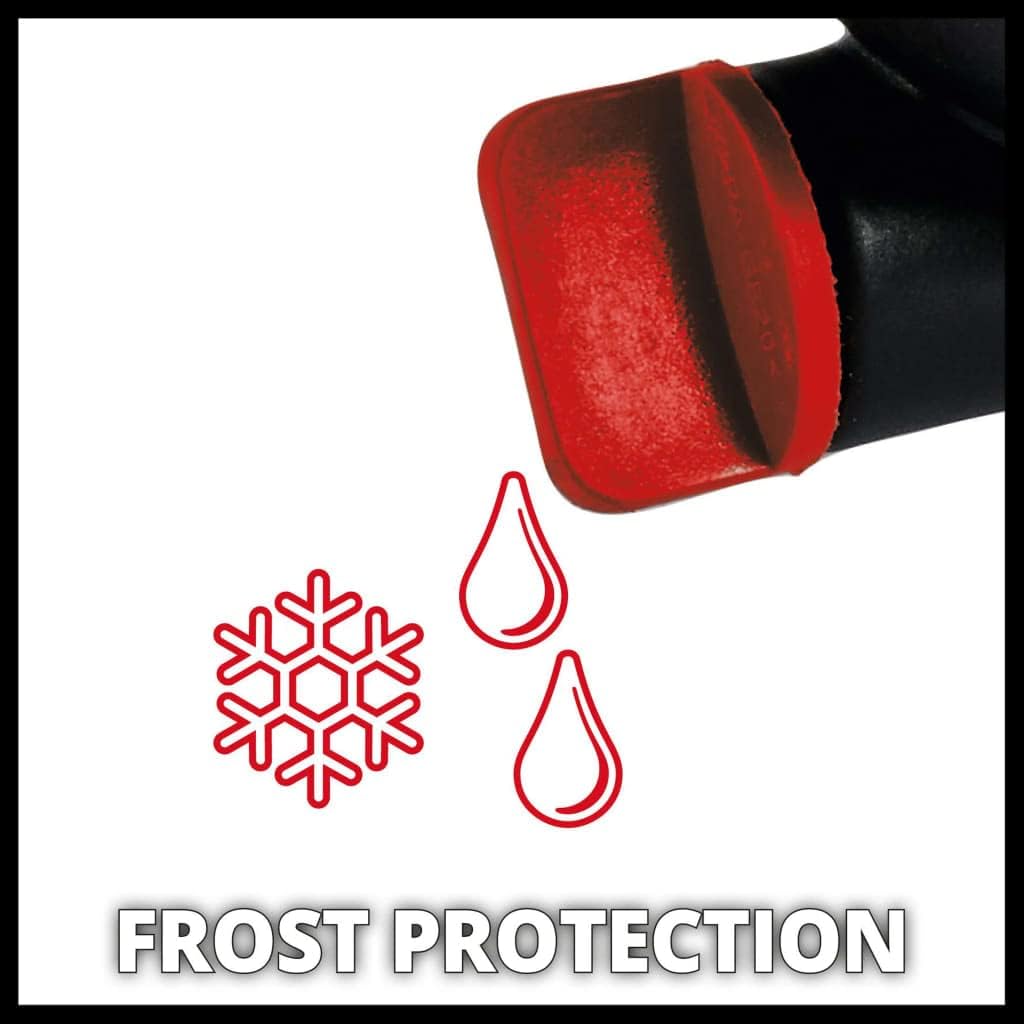

Close-up of the drainage screw on the Einhell AQUINNA 36/30 pump, indicating frost protection feature.
Figure 11: Frost Protection. This image shows the water drain screw, essential for emptying the pump to prevent freezing damage.
A hand opening the drainage screw on the Einhell AQUINNA 36/30 pump to empty water for frost protection.
Figure 12: Draining the Pump. A visual guide to opening the drain screw to remove water from the pump for winter storage.

6.2. Limpieza General

Limpie periódicamente el exterior de la bomba con adamp cloth. Do not use harsh detergents or solvents. Ensure no debris obstructs the suction or pressure ports.

7. Solución de problemas

This section addresses common issues you might encounter with your Einhell AQUINNA 36/30 pump.

ProblemaPosible causaSolución
La bomba no arrancaLas baterías no están cargadas o están insertadas incorrectamente.Check battery charge level and ensure they are correctly inserted. Recharge if necessary.
La bomba funciona pero no sale aguaPump not primed; air in suction line; suction hose not submerged; suction filter blocked.Prime the pump with water. Check all suction hose connections for airtightness. Ensure suction hose is fully submerged. Clean suction filter.
Low delivery pressureECO mode selected; partial blockage in hoses; pump not fully primed.Switch to BOOST mode. Check hoses for kinks or blockages. Re-prime the pump.
La bomba se detiene inesperadamenteBatteries depleted; thermal overload protection activated.Replace/recharge batteries. Allow pump to cool down if thermal protection was triggered. Check for blockages or excessive load.

8. Especificaciones

  • Marca: Un infierno
  • Número de modelo: 4180400
  • Dimensiones del producto (L x An x Al): 44.8 x 20.2 x 21.9 cm
  • Peso del artículo: 3.3 kilogramos
  • Material: Plástico
  • Color: Rojo; Negro
  • Fuente de energía: Battery Powered (36V, requires 2x 18V Power X-Change batteries)
  • Tasa de flujo máxima: 3000 litros por hora
  • Altura máxima de entrega: 26 metros
  • Maximum Suction Height: 8 metros
  • Conexión de succión: 42 mm (1 1/4" AG)
  • Conexión de presión: 33.3 mm (R1 IG)
  • Características especiales: ECO switch, Thermal protection, Water filling screw, Water drain screw, Carrying handle
  • País natal: Porcelana

9. Garantía y soporte

For warranty information, service, or technical support, please refer to the official Einhell website or contact your local authorized Einhell dealer. Keep your purchase receipt as proof of purchase for any warranty claims.
