Manual del usuario del cargador de batería Einhell CE-BC 1 M

1. Introducción y producto terminadoview

The Einhell CE-BC 1 M is an intelligent, microprocessor-controlled battery charger designed for various types of 6V and 12V vehicle and motorcycle batteries. This versatile charger is suitable for gel, AGM, maintenance-free, and low-acid batteries. It features a multi-stage charging cycle that is continuously monitored to optimize battery life. The charger is ideal for seasonal vehicles, providing a lasting and ideal charge state through its maintenance charging function. Its robust housing offers IP65 protection, making it dustproof and protected against water jets, suitable for workshop and garage use.

2. Información de seguridad

Lea y comprenda todas las instrucciones de seguridad antes de utilizar el cargador de batería. El incumplimiento de estas instrucciones podría provocar una descarga eléctrica, un incendio o lesiones graves.

• Seguridad eléctrica: Ensure the charger is connected to a grounded outlet. Do not expose the charger to rain or wet conditions. Never operate the charger if the power cord or clamps están dañados.
• Seguridad de la batería: Always wear eye protection and gloves when working with batteries. Batteries can produce explosive gases; ensure adequate ventilation. Do not smoke or allow sparks or flames near the battery.
• Conexión: Connect the battery charger to the battery terminals correctly (positive to positive, negative to negative). The charger includes electronic protection against overcharging, short circuits, and reverse polarity.
• Niños y mascotas: Mantenga el cargador y la batería fuera del alcance de los niños y las mascotas.
• Uso previsto: This charger is designed for charging 6V and 12V lead-acid batteries (gel, AGM, maintenance-free, low-acid). Do not use it for other battery types.

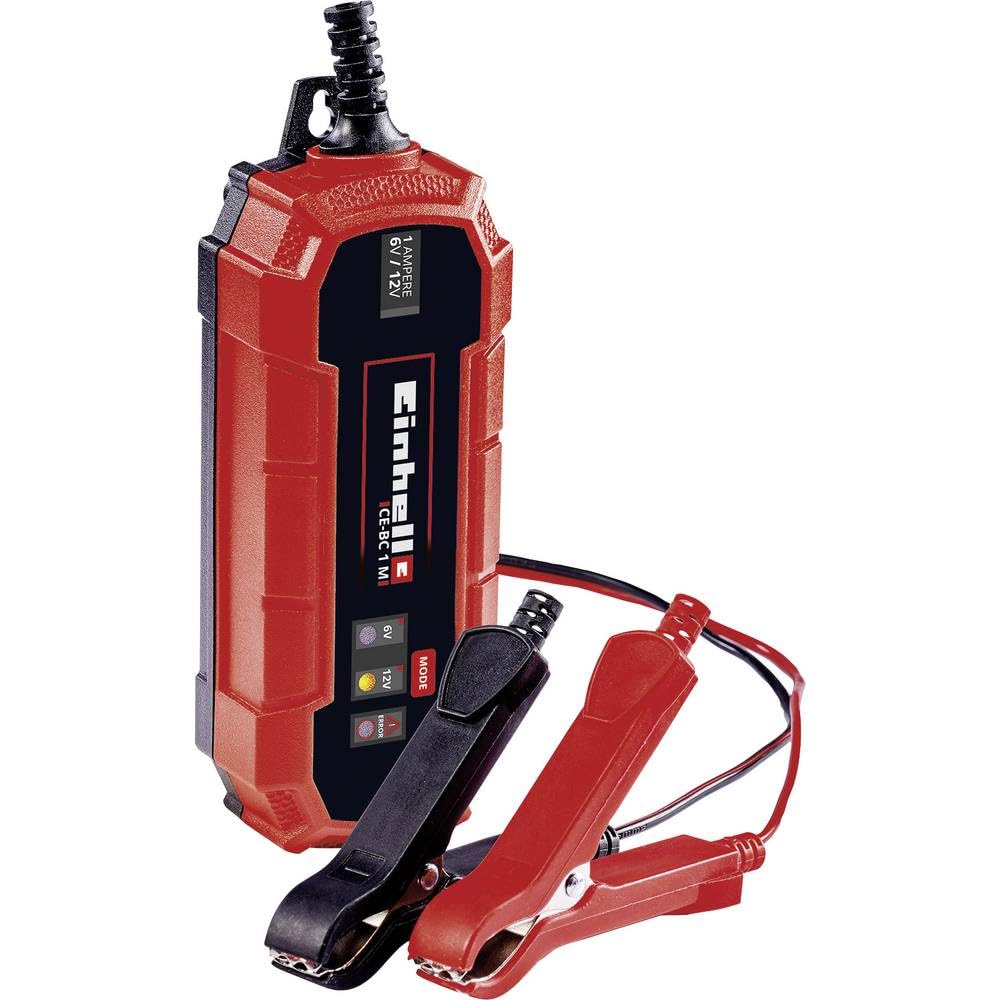

3. Componentes del producto

The Einhell CE-BC 1 M battery charger typically includes the following components:

• Main Charger Unit: The primary device housing the electronics and controls.
• Cable de energía: For connecting the charger to a 220-240V AC power supply.
• Batería Clamps: Two fully insulated clamps (red for positive, black for negative) for connecting to the battery terminals.
• Panel de control: Features a button for selecting 6V or 12V charging mode and indicator lights.
• Ojal para colgar: Integrated into the housing for convenient mounting.

4. Configuración

Siga estos pasos para configurar su cargador de batería Einhell CE-BC 1 M:

1. Prepare la batería: Ensure the battery is clean and free of corrosion. If it's a conventional lead-acid battery with removable caps, check the electrolyte level and top up with distilled water if necessary (do not overfill).
2. Ventilación: Place the battery in a well-ventilated area to allow any gases to dissipate.
3. Conectar a la batería:
   • Conectar el rojo positivo (+) clamp hacia terminal positivo (+) de la batería.
   • Conectar el negro negativo (-) clamp hacia terminal negativo (-) de la batería.

   Note: If the battery is still in the vehicle, connect the negative clamp al chasis del vehículo, lejos de la batería y la línea de combustible, si lo recomienda el fabricante del vehículo.

4. Conectarse a la energía: Plug the charger's power cable into a standard 220-240V AC wall outlet. The charger will perform a self-test and indicate its status.

5. Instrucciones de funcionamiento

The Einhell CE-BC 1 M charger features microprocessor control for an optimized charging process.

1. Seleccione Voltage: After connecting the charger to the battery and power, use the mode selection button on the charger to choose between 6V or 12V charging, depending on your battery type. The corresponding indicator light will illuminate.
2. Proceso de carga: The charger will automatically begin the multi-stage charging cycle. This cycle includes various phases such as desulfation, soft start, bulk charge, absorption, and float/maintenance charge. The charger continuously monitors the battery's condition and adjusts the charging current and voltage en consecuencia.
3. Indicadores de estado: Observe the indicator lights on the charger. These lights will show the current charging phase or any error conditions. Refer to the charger's display for detailed status.
4. Carga de mantenimiento: Once the battery is fully charged, the charger automatically switches to a maintenance charging mode (float charge). This keeps the battery at an optimal charge level without overcharging, making it ideal for long-term connection to seasonal vehicles.
5. Desconectando: To disconnect the charger, first unplug it from the AC power outlet. Then, remove the negative (-) clamp from the battery (or chassis), followed by the positive (+) clamp.

6. Mantenimiento

Proper maintenance ensures the longevity and safe operation of your battery charger.

• Limpieza: Disconnect the charger from both the power supply and the battery before cleaning. Wipe the housing with a dry or slightly damp paño. No utilice productos químicos agresivos ni limpiadores abrasivos.
• Almacenamiento: Store the charger in a dry, cool place, away from direct sunlight and moisture. Ensure the cables are neatly coiled and not kinked.
• Inspección: Inspeccione periódicamente el cable de alimentación, la batería y el cargador.amps, and charger housing for any signs of damage. Do not use the charger if any part is damaged.

7. Solución de problemas

Si tiene problemas con su cargador Einhell CE-BC 1 M, consulte los siguientes problemas y soluciones comunes:

• El cargador no se enciende:
  • Check if the power cable is securely plugged into a working AC outlet.
  • Ensure the outlet has power by testing it with another device.
• La batería no se carga:
  • Verifique que la batería estéampLos cables están conectados de forma correcta y segura a los terminales de la batería (rojo al positivo, negro al negativo).
  • Asegúrese de que el volumen correctotage (6V or 12V) has been selected on the charger.
  • Check if the battery is severely discharged or damaged. Some deeply discharged batteries may not be recognized by the charger.
• Error Indicator Lights Up:
  • An error light often indicates reverse polarity (clamps connected incorrectly), a short circuit, or an internal fault. Disconnect immediately and re-check connections.
  • If the error persists after re-connecting correctly, the battery might be faulty, or the charger may require service.
• Charger Gets Warm:
  • It is normal for the charger to become warm during operation, especially during the bulk charging phase. Ensure adequate ventilation around the charger.
  • If the charger becomes excessively hot or emits smoke/unusual odors, disconnect it immediately and cease use.

If these troubleshooting steps do not resolve the issue, please contact Einhell customer support.

8. Especificaciones

9. Garantía y soporte

Einhell products are manufactured with quality and care. This product is covered by the manufacturer's warranty, which typically covers defects in materials and workmanship under normal use. For specific warranty terms, duration, and conditions, please refer to the warranty card included with your product or visit the official Einhell websitio.

For technical support, spare parts, or service inquiries, please contact Einhell customer service. Contact information can usually be found on the Einhell websitio o en el embalaje del producto.

Oficial de Einhell Websitio: www.einhell.com
