BESTEK 300W Modified Sine Wave Car Inverter

1. Introducción

The BESTEK 300W Modified Sine Wave Car Inverter is designed to convert your vehicle's DC 12V power into household AC 100V power. This device allows you to power a wide range of electronic appliances and charge mobile devices while on the go. It features advanced Power Conversion Quick Charge (PowerCQC) technology, including USB-C PD 30W and USB-A QC 18W ports for rapid charging.

This inverter is suitable for various applications, from powering laptops and small appliances during car trips to serving as an emergency power source during outages.

2. Precauciones de seguridad

Lea atentamente todas las instrucciones de seguridad antes de usar para evitar lesiones o daños al producto.

• This product is designed exclusively for DC 12V negative ground vehicles. Do not use it with 24V systems.
• Do not connect any appliance that exceeds the inverter's rated power of 300W.
• If using appliances with a total power consumption exceeding 150W, you must use a separate battery connection cable (Model MRS301A, sold separately) for direct connection to the car battery.
• When connecting the battery clips, ensure correct polarity: connect the red clip to the positive (+) terminal and the black clip to the negative (-) terminal of the car battery. Incorrect connection can cause severe damage.
• Do not operate the vehicle while the inverter is connected directly to the car battery using battery clips.
• Mantenga el inversor alejado del agua, la humedad y materiales inflamables.
• Asegúrese de que haya una ventilación adecuada alrededor del inversor durante el funcionamiento para evitar el sobrecalentamiento.
• Do not disassemble or modify the inverter. Contact customer support for service.

Funciones de protección integradas:

The BESTEK 300W Car Inverter is equipped with six levels of protection to ensure safe operation:

• Protección contra sobrecarga: Automatically shuts down if connected devices exceed the rated power.
• Protección contra cortocircuitos: Protege contra cortocircuitos en la salida.
• Protección contra sobrecalentamiento: Se apaga si la temperatura interna supera los 85°C.
• Vol bajotagy Protección: Prevents damage to your car battery by shutting down if the input voltagy cae por debajo de 10 V.
• sobrevoltajetagy Protección: Shuts down if the input voltage excede 15V.
• Protección de conexión inversa: Protects against damage from incorrect battery polarity connection.

3. Características del producto

• PowerCQC Technology: Equipped with Power Conversion Quick Charge technology, featuring one USB-C PD 30W port and one USB-A QC 18W port for fast charging of compatible devices.
• Fuente de energía versátil: Converts DC 12V from your car to AC 100V, allowing you to power household appliances and charge various electronic devices like laptops, smartphones, tablets, and more.
• Preparación para emergencias: Ideal as a backup power source during natural disasters such as earthquakes or typhoons, providing essential power for communication and lighting.
• Diseño duradero y seguro: Features a heat-dissipating aluminum alloy casing and V0 flame-retardant materials for enhanced safety and durability.
• Sistema de enfriamiento eficiente: Incorporates an intelligent smart fan that adjusts its speed based on power consumption, ensuring optimal heat dissipation and quiet operation.
• Compacto y portátil: Designed with a compact form factor for easy placement and use within your vehicle.

4. Contenido del paquete

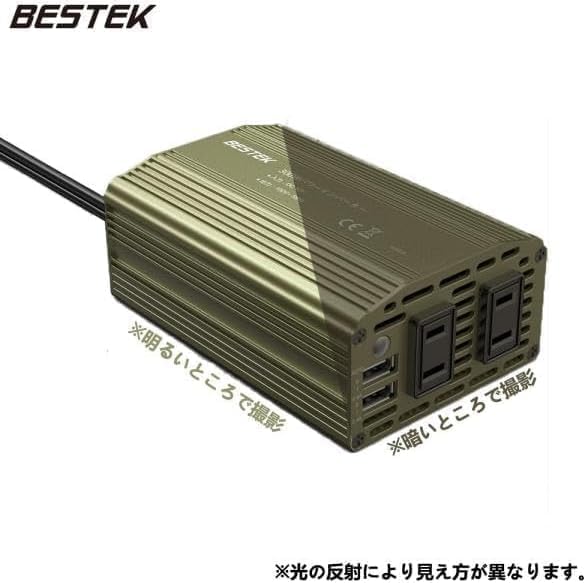

• BESTEK 300W Modified Sine Wave Car Inverter (MRI3010BU-GR-PD30W)
• Manual de instrucciones

5. Configuración e instalación

5.1. Connecting via Cigarette Lighter Socket (Up to 150W)

For devices with a total power consumption of 150W or less, use the integrated cigarette lighter plug.

1. Asegúrese de que el interruptor de encendido del inversor esté en la posición APAGADO.
2. Inserte firmemente el enchufe del encendedor de cigarrillos en el enchufe del encendedor de cigarrillos de 12 V de su vehículo.
3. Plug your AC or USB devices into the inverter.
4. Turn the inverter's power switch to the ON position. The power indicator light will illuminate.

Image: Cigarette lighter plug for connecting the inverter to the vehicle's 12V socket.

Image: BESTEK 300W Car Inverter providing power for a laptop and smartphone in a car.

5.2. Connecting via Battery Clips (Up to 300W)

For devices with a total power consumption exceeding 150W (up to 300W), use the optional battery connection cable (MRS301A, sold separately).

1. Asegúrese de que el interruptor de encendido del inversor esté en la posición APAGADO.
2. Connect the red battery clip to the positive (+) terminal of your car battery.
3. Connect the black battery clip to the negative (-) terminal of your car battery.
4. Connect the other end of the battery cable to the inverter's DC input terminals.
5. Plug your AC or USB devices into the inverter.
6. Turn the inverter's power switch to the ON position. The power indicator light will illuminate.

Image: Optional battery connection clips for direct battery connection.

Image: Battery clips connected to a car battery for higher power output.

6. Operación

Once the inverter is properly connected and powered on, you can begin using it to power and charge your devices.

1. Dispositivos de CA: Plug your AC-powered devices (e.g., laptop chargers, small fans) into the two AC 100V outlets.
2. Dispositivos USB: Connect your USB-powered devices (e.g., smartphones, tablets, gaming consoles) to the USB-C PD 30W port or the USB-A QC 18W port.
3. Indicador de encendido: El poder lamp on the inverter will indicate its operational status.

Image: BESTEK 300W Car Inverter powering multiple devices simultaneously.

7. Mantenimiento

To ensure the longevity and optimal performance of your BESTEK Car Inverter, follow these maintenance guidelines:

• Limpieza: Limpie periódicamente el exterior del inversor con un paño seco y suave. No utilice limpiadores líquidos ni disolventes.
• Ventilación: Keep the ventilation openings clear of dust and debris to ensure proper airflow for the smart fan.
• Almacenamiento: Cuando no esté en uso, guarde el inversor en un lugar fresco y seco, alejado de la luz solar directa y de temperaturas extremas.
• Inspección de cables: Periodically check the power cables and plugs for any signs of damage or wear. Replace if necessary.

8. Solución de problemas

If you encounter issues with your BESTEK Car Inverter, refer to the following common problems and solutions:

• Sin salida de potencia:
  • Check if the inverter's power switch is ON.
  • Ensure the cigarette lighter plug or battery clips are securely connected.
  • Verify that your vehicle's 12V power outlet is functioning.
  • Check if the connected device's power consumption exceeds the inverter's capacity (150W for cigarette lighter, 300W for battery clips).
  • The inverter may have entered a protection mode (e.g., low voltage, overload). Disconnect devices, turn the inverter off and on again, and re-evaluate the load.
• Inverter Shuts Down Automatically:
  • This indicates one of the built-in protection features has been activated (overload, overheat, low/over voltage, short circuit, reverse connection).
  • Review the Safety Precautions section and address the potential cause. Reduce the load, ensure proper ventilation, or check battery voltage.
• Ruido del ventilador:
  • The intelligent smart fan adjusts its speed based on the internal temperature and power load. Increased fan noise during high power usage is normal and indicates effective cooling.
• El dispositivo no se carga a través de USB:
  • Ensure your USB cable is functional and properly connected.
  • Verify your device is compatible with PD (Power Delivery) or QC (Quick Charge) for fast charging.

If the problem persists after following these steps, please contact BESTEK customer support.

9. Especificaciones

Image: Diagram illustrating power supply methods and power output.

10. Garantía y soporte

This BESTEK product comes with a 1 año de garantía from the date of purchase. If you encounter any quality issues or require assistance, please contact BESTEK customer support. As a Japanese company, BESTEK provides dedicated customer support.

For further information or support, please visit the official BESTEK websitio o póngase en contacto con nuestro equipo de atención al cliente.
