1. Información de seguridad
Read all instructions before use. Adult supervision is required at all times.
- Rango de edad: Apto para niños de 4 a 8 años.
- Peso máximo del usuario: No exceda las 121 libras (55 kg).
- Equipo de protección: Always wear a helmet and appropriate safety gear (e.g., knee and elbow pads) when operating the go-kart.
- Entorno operativo: Use on flat, smooth surfaces away from traffic, steep inclines, stairs, and water bodies. Avoid uneven terrain, sand, gravel, or wet surfaces.
- Frenado: Familiarize yourself with the 8-ball style brake system before riding. Ensure it functions correctly.
- Mantenimiento: Regularly inspect the go-kart for loose parts, damage, or wear before each use.
- Modificaciones: No modifique el kart de ninguna manera, ya que esto puede comprometer la seguridad y anular la garantía.
2. Producto terminadoview
The hauck Cyclone Junior Racing Go Kart is a pedal-powered ride-on toy designed to provide an authentic driving experience for young adventurers. It features a durable steel frame, EVA plastic wheels with 12-inch rims, and an advanced 8-ball style brake system for smooth stops. The ergonomic bucket seat is adjustable to accommodate different leg lengths, ensuring comfort and control.
Image: The hauck Cyclone Junior Racing Go Kart, showcasing its lime green and black design with 12-inch EVA plastic wheels.
3. Configuración y montaje
The hauck Cyclone Junior Racing Go Kart requires minimal assembly. Please ensure all components are present and undamaged before beginning. Refer to the included assembly guide for detailed steps.
3.1 Desembalaje
- Retire con cuidado todas las piezas del embalaje.
- Check the contents against the packing list to ensure all parts are accounted for.
- Deseche los materiales de embalaje de forma responsable.
3.2 Identificación de componentes

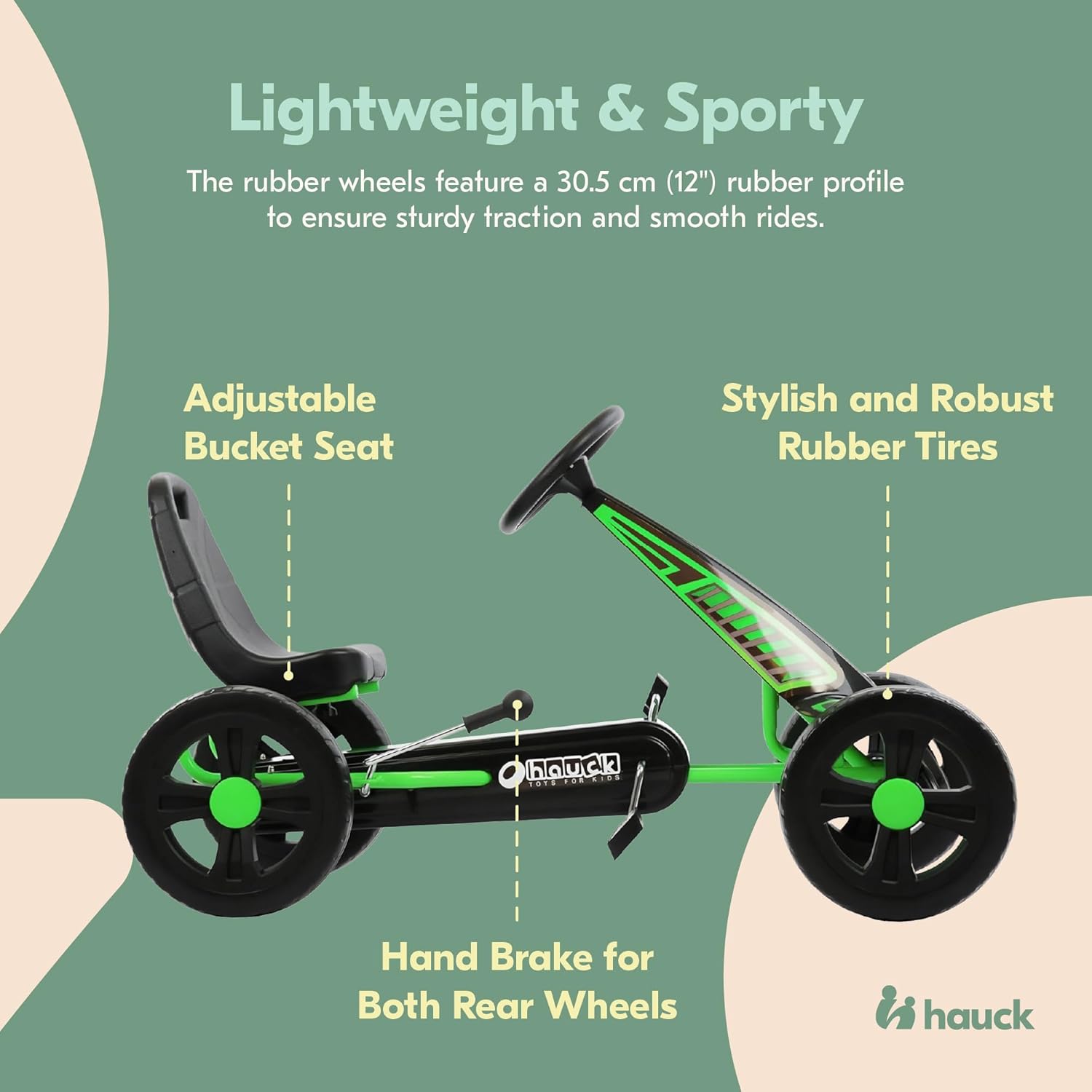

Imagen: Lateral view of the go-kart, highlighting the seat, steering wheel, pedals, and brake lever.
Identify the main components: frame, seat, steering wheel, pedals, and wheels. The go-kart is largely pre-assembled, focusing on quick setup to get started.
3.3 Ajuste del asiento
The ergonomic bucket seat is adjustable to suit the child's leg length. Locate the adjustment mechanism beneath the seat and slide the seat forward or backward until the child can comfortably reach the pedals with a slight bend in their knees.
4. Instrucciones de funcionamiento
4.1 Primeros pasos
- Ensure the child is wearing a helmet and appropriate safety gear.
- Adjust the seat to a comfortable position where the child can fully extend their legs to pedal and easily reach the steering wheel.
- Instruct the child on how to use the pedals and the hand brake.
4.2 Pedaling and Steering
The go-kart is pedal-powered. The child pushes the pedals forward to move the go-kart. The 3-point sporty steering wheel controls the direction of the front wheels. Encourage smooth and controlled steering movements.
Image: A child demonstrating proper riding posture and steering on the go-kart.
4.3 Frenado
The go-kart is equipped with an advanced 8-ball style hand brake that operates on both rear wheels. To brake, the child should firmly pull the hand brake lever located next to the seat. Practice braking in a safe, open area until the child is proficient.
Video: Official product video demonstrating the features and operation of the hauck Cyclone Junior Racing Go Kart. This video shows the go-kart in action, including pedaling and braking.
5. Mantenimiento
El mantenimiento regular garantiza la longevidad y el funcionamiento seguro de su kart.
5.1 Limpieza
- Limpia el kart con publicidadamp Paño y jabón suave.
- Evite el uso de limpiadores o disolventes abrasivos.
- Seque completamente después de limpiar.
5.2 Inspección
- Antes de cada uso: Check all nuts, bolts, and fasteners to ensure they are tight.
- Inspeccione las ruedas y los neumáticos para detectar desgaste o daños.
- Verify that the steering mechanism operates smoothly and freely.
- Test the brake system to ensure it engages effectively.
- Check the seat for secure attachment and proper adjustment.
5.3 Almacenamiento
Store the go-kart in a dry, sheltered area away from direct sunlight and extreme temperatures to prevent material degradation.
6. Solución de problemas
Si encuentra algún problema, consulte los siguientes problemas y soluciones comunes:
| Problema | Posible causa | Solución |
|---|---|---|
| El kart no se mueve al pedalear. | Pedals or chain mechanism is jammed or disconnected. | Inspect pedals and chain for obstructions or disconnections. Ensure proper assembly. |
| La dirección es rígida o no responde. | Steering components are loose or obstructed. | Check steering rod connections and ensure no debris is hindering movement. Tighten any loose bolts. |
| El freno no es efectivo. | Brake mechanism is loose or worn. | Inspect the brake lever and cable for proper tension and connection. Ensure brake pads are making contact with the wheels. |
| Ruidos inusuales durante el funcionamiento. | Piezas sueltas o fricción. | Check all connections for tightness. Lubricate moving parts if necessary (e.g., pedal axle). |
Si el problema persiste después de intentar estas soluciones, comuníquese con el servicio de atención al cliente.
7. Especificaciones
| Característica | Detalle |
|---|---|
| Número de modelo | T90605 |
| Marca | hauck |
| Rango de edad | 48 - 120 Months (4 - 10 Years) |
| Peso máximo del usuario | 55 kg (121 libras) |
| Peso del artículo | 14 kilogramos (30.86 libras) |
| Dimensiones (L x An x Al) | 46.1" de largo x 20.5" de ancho x 23.2" de alto (aprox. 117.1 cm x 52.1 cm x 58.9 cm) |
| Tipo de material | Acero aleado, plástico |
| Tipo de rueda | EVA Plastic Wheels (12-inch rims) |
| Sistema de frenos | 8-Ball Style Hand Brake |
| Requiere ensamblaje | No (Configuración mínima) |
Image: The go-kart with key dimensions (length, width, height) indicated.
8. Garantía y soporte
For warranty information or customer support, please refer to the documentation included with your purchase or visit the official hauck webSitio. Conserve su comprobante de compra para cualquier reclamación de garantía.
If you have questions or require assistance with your hauck Cyclone Junior Racing Go Kart, please contact hauck customer service directly.
