ZJchao Electronic Igniter Instruction Manual

Introducción

This manual provides essential information for the safe and effective use of your ZJchao Electronic Igniter. Designed for torch ignition, this compact and lightweight device is suitable for various applications including jewelry soldering and gas welding. Please read these instructions thoroughly before operation.

Figura 1: Frente view of the ZJchao Electronic Igniter.

Información de seguridad

• Always ensure the igniter is used in a well-ventilated area.
• Keep the igniter away from flammable materials and gases when not in use.
• Do not touch the electronic head immediately after use, as it may be hot.
• Store the igniter out of reach of children.
• Utilice únicamente el tipo de batería especificado y asegúrese de la polaridad correcta durante la instalación.

Producto terminadoview

The ZJchao Electronic Igniter features a durable metal shell and a simple, intuitive design for ease of use.

Figure 2: External components of the igniter.

Figure 3: Internal components and battery compartment.

Key components include the electronic head for spark generation, an ignition switch, a battery compartment, and protective rubber feet for stability.

Configuración

Instalación de la batería

The ZJchao Electronic Igniter requires two (2) AA batteries (not included) for operation. Follow these steps to install the batteries:

1. Locate the battery compartment cover on the bottom of the igniter.
2. Slide the cover open to reveal the battery slots.
3. Inserte dos pilas AA, asegurándose de la polaridad correcta (+/-) como se indica dentro del compartimento.
4. Cierre bien la tapa del compartimento de la batería.

Figure 4: Battery compartment with slots for two AA batteries.

Video: Battery Installation and Operation

Instrucciones de funcionamiento

To ignite a torch using the ZJchao Electronic Igniter:

1. Ensure batteries are correctly installed and the bottom switch is in the 'ON' position.
2. Position the tip of your gas torch (e.g., musket tip) directly over the electronic head of the igniter.
3. Press the ignition switch firmly. A spark will be generated, igniting the gas from your torch.
4. Once the torch is lit, release the ignition switch.

The igniter provides a reliable open flame, similar to a traditional lighter, but with enhanced safety and ease of use for torch applications.

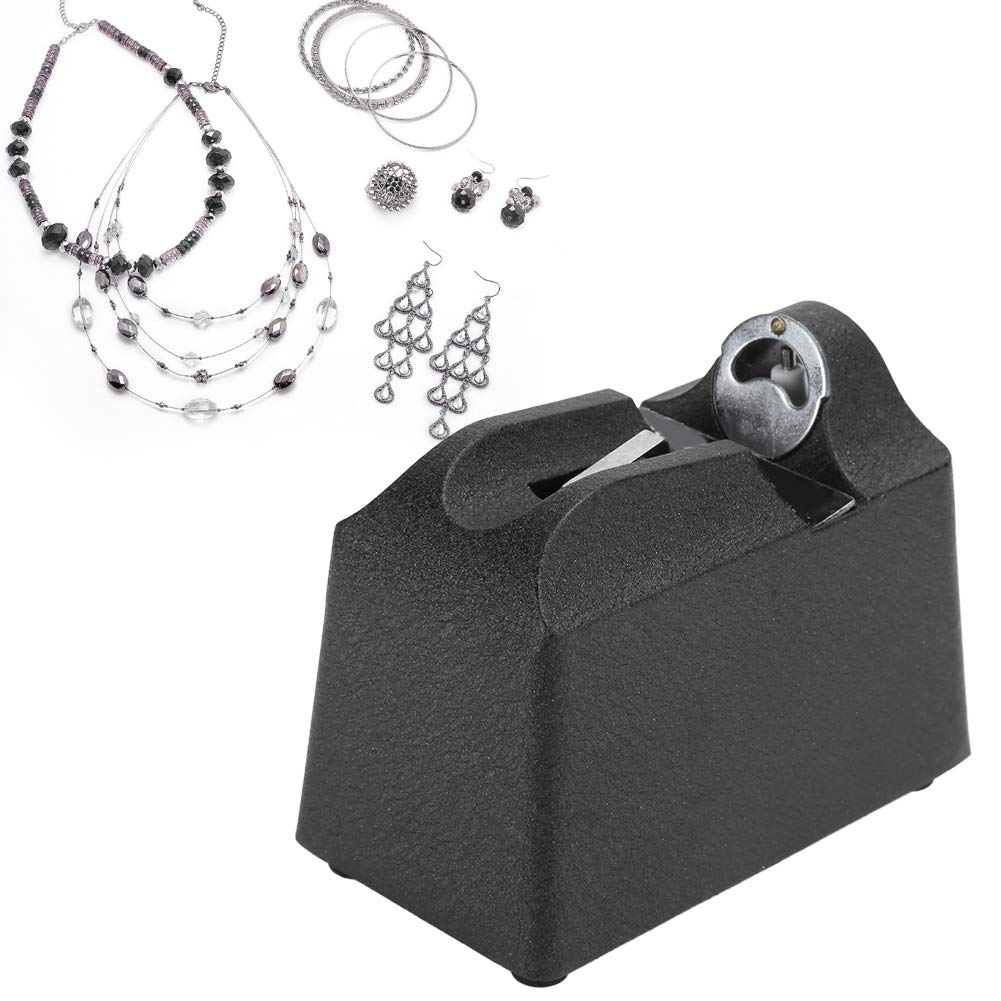

Figure 5: The igniter is ideal for precise work, such as jewelry applications.

Mantenimiento

• Keep the igniter clean and free from dust and debris. Use a dry cloth for cleaning.
• Replace batteries when the spark becomes weak or the device fails to ignite consistently.
• Avoid exposing the igniter to extreme temperatures or moisture.

Solución de problemas

• Igniter not sparking: Check if batteries are installed correctly and are not depleted. Ensure the bottom switch is in the 'ON' position.
• Weak spark: Reemplace las baterías por otras nuevas.
• Inconsistent ignition: Ensure the torch tip is positioned correctly over the electronic head. Clean any debris from the electronic head.

Presupuesto

Figure 6: Dimensions of the ZJchao Electronic Igniter.

Garantía y soporte

Para obtener información sobre la garantía o asistencia técnica, consulte el embalaje del producto o póngase en contacto con el vendedor donde lo adquirió. Conserve el comprobante de compra para cualquier reclamación de garantía.
