1. Introducción
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Symphony Siesta 70 XL Desert Air Cooler. Please read these instructions carefully before using the appliance and retain them for future reference.
The Symphony Siesta 70 XL is a high-performance desert air cooler designed for residential use, offering effective cooling for rooms up to 34 square meters. It features i-Pure Technology for clean air, a powerful dura pump, and honeycomb pads for superior cooling efficiency.
2. Características principales
- Área de cobertura: Suitable for rooms up to 34 square meters (365 sq ft) under ideal conditions.
- Tecnología i-Pure: multi-stage filters remove pollution, odor-causing microorganisms, and allergens for fresh, clean air.
- Refrigeración de alta eficiencia: Equipped with a powerful dura pump, high water retention capacity honeycomb pads, and a cool flow dispenser for even water distribution.
- Bajo consumo de energía: Operates at just 190 watts and is compatible with inverters, reducing electricity costs.
- Gran capacidad del tanque: Features a 70-liter water tank with a visible water level indicator.
- Controles fáciles de usar: Ergonomically designed knob control panel and adjustable air panels.
- Portabilidad: Includes castor wheels for easy movement.
- Ice Chamber: Integrated ice chamber for enhanced cooling.
3. Producto terminadoview
Image 1: The Symphony Siesta 70 XL cooler demonstrating its effective cooling coverage for a room up to 34 square meters.
Image 2: Product dimensions (61.8W x 50.5D x 111.5H cm) and 70-liter water tank capacity.
Image 3: Breakdown of the i-Pure Technology's multi-stage filtration system for clean air.
Image 4: Features emphasizing durability, low power, and clean air benefits.

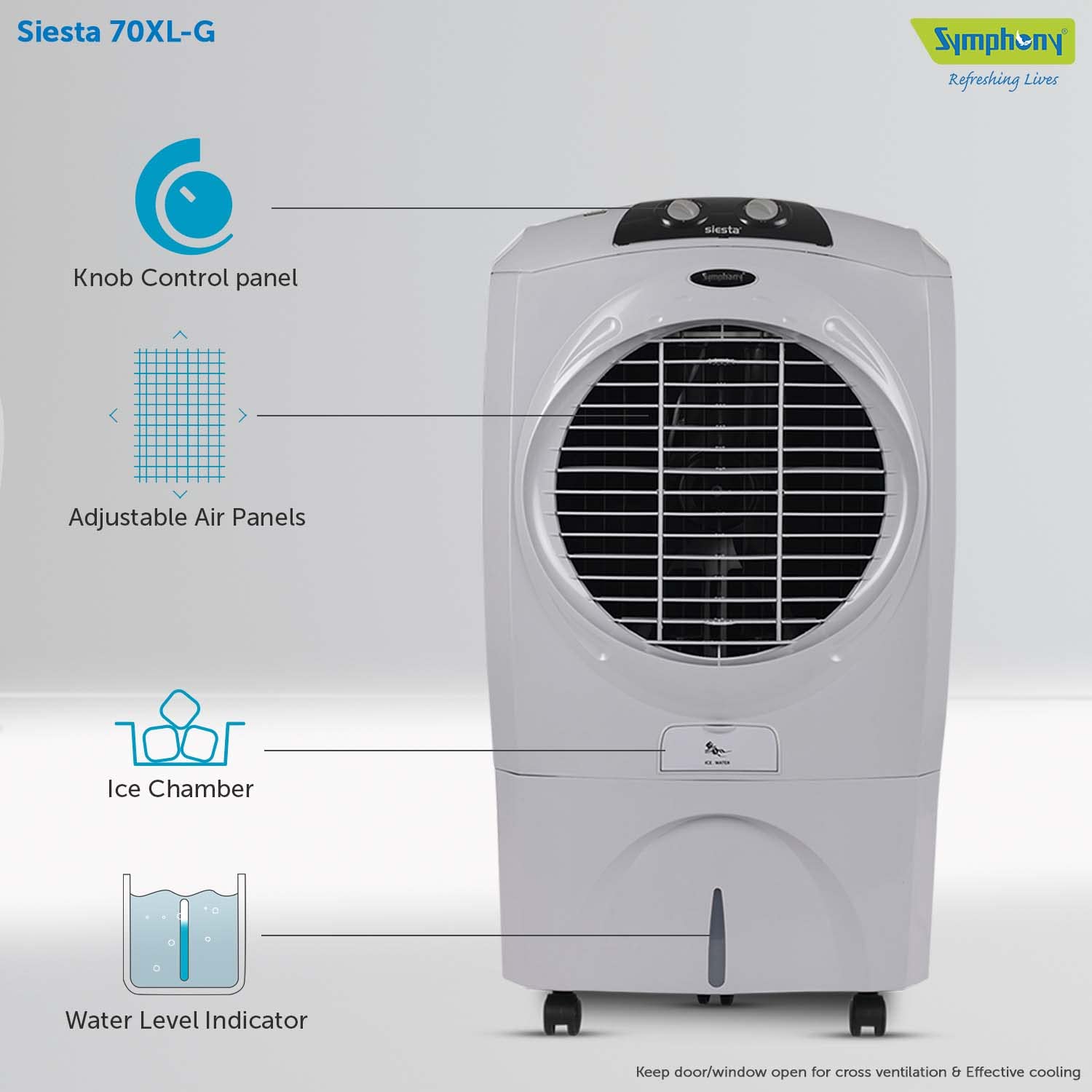

Image 5: Front panel details including controls, air panels, ice chamber, and water level indicator.

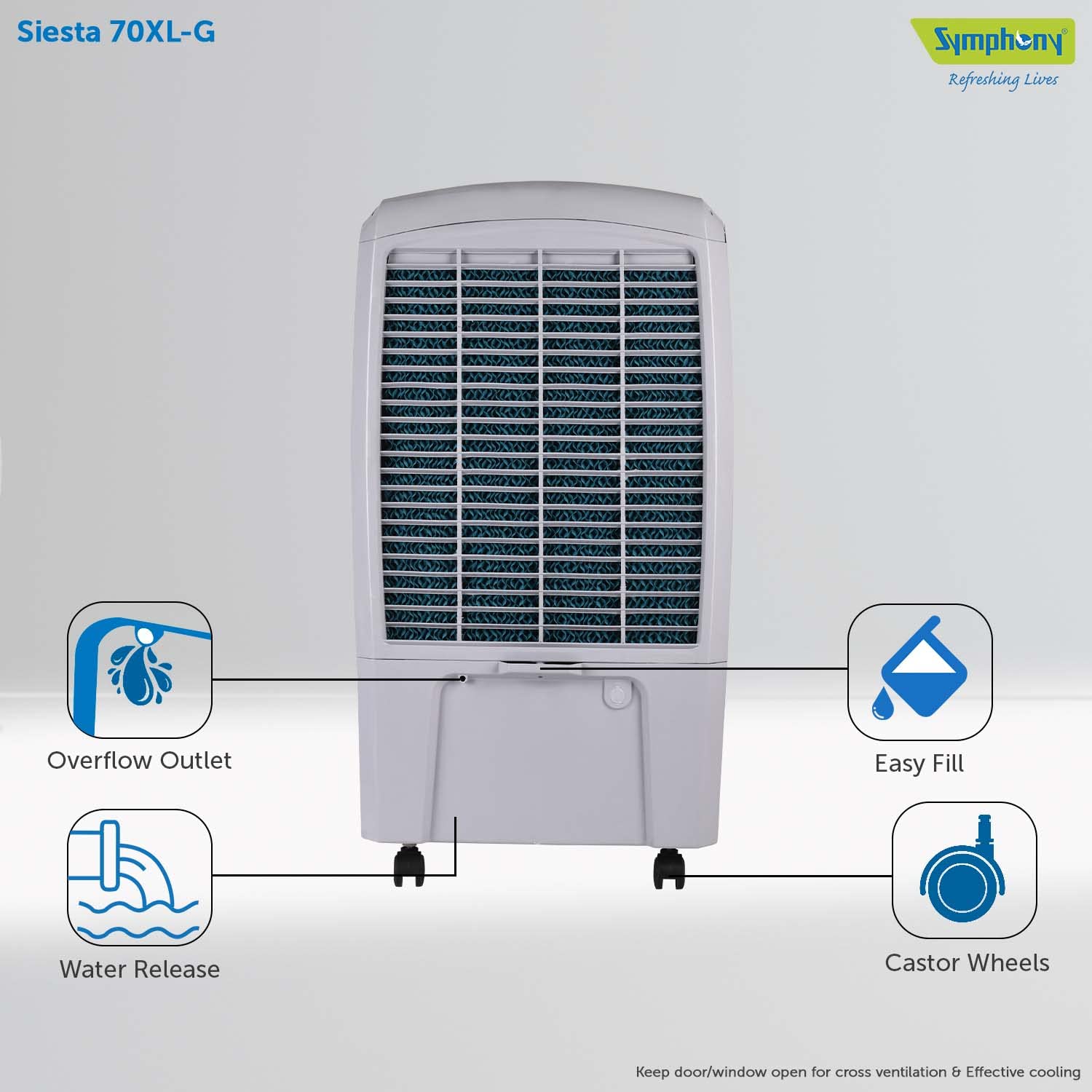

Image 6: Rear panel details including water management features and castor wheels.
Producto terminadoview Video
Vídeo 1: Un finalview of the Symphony Siesta 70 XL Desert Air Cooler, highlighting its features, coverage, and specifications.
4. Configuración
- Desembalaje: Carefully remove the air cooler from its packaging. Inspect for any damage.
- Instalación de la rueda: Attach the four castor wheels to the base of the cooler for easy mobility. Ensure they are securely fastened.
- Colocación: Position the cooler in a well-ventilated area. For optimal cooling performance, ensure doors and windows are kept open to allow for cross-ventilation.
- Llenado de agua: Open the easy fill port and pour clean water into the 70-liter tank. Monitor the water level indicator to avoid overfilling. For enhanced cooling, you may add ice to the dedicated ice chamber.
- Conexión de energía: Conecte el cable de alimentación a una toma de corriente adecuada. Asegúrese de que el volumentage matches the cooler's requirements.
5. Instrucciones de funcionamiento
- Encendido/apagado: Turn the main power knob to the 'ON' position to start the cooler.
- Ajuste de velocidad del ventilador: Use the fan speed knob to select one of the three available speeds (Low, Medium, High) according to your comfort.
- Función de enfriamiento: Activate the cooling function by turning the 'Cool' knob. This engages the water pump and cool flow dispenser, wetting the honeycomb pads for evaporative cooling.
- Función de oscilación: Use the 'Swing' knob to activate the oscillating louvers, distributing cool air across a wider area.
- Adjustable Air Panels: Manually adjust the vertical air panels to direct airflow as desired.
- Ice Chamber Usage: For extra cooling, place ice cubes into the ice chamber located at the top of the unit.
6. Mantenimiento
El mantenimiento regular garantiza un rendimiento óptimo y la longevidad de su enfriador de aire.
- Limpieza de tanques de agua: Regularly drain and clean the water tank to prevent algae and bacterial growth. Use the water release valve for easy draining.
- Almohadillas de nido de abeja: Periodically remove and clean the honeycomb pads. The i-Pure technology includes a PM 2.5 wash filter, which should also be cleaned or replaced as needed. Refer to the manufacturer's guidelines for cleaning frequency.
- Filtros: El multi-stage i-Pure filters (Bacteria, Allergy, Smell filters) should be inspected and cleaned or replaced according to usage and air quality.
- Limpieza exterior: Limpie el exterior del enfriador con un paño suave y húmedo.amp paño. No utilice productos químicos agresivos ni limpiadores abrasivos.
- Almacenamiento estacional: Before storing the cooler for an extended period, ensure the water tank is completely drained and dry, and all filters and pads are clean.
7. Solución de problemas
If you encounter issues with your Symphony Siesta 70 XL, refer to the following common troubleshooting steps:
- Sin energía: Check if the power cord is securely plugged into a working outlet. Verify the power switch is in the 'ON' position.
- Sin refrigeración: Ensure the water tank has sufficient water. Check if the water pump is operating. Clean the honeycomb pads if they appear clogged or dry.
- Flujo de aire débil: Inspect the fan for any obstructions. Clean the air filters and honeycomb pads. Ensure the adjustable air panels are not blocked.
- Olor desagradable: Drain and thoroughly clean the water tank and honeycomb pads. Replace water regularly.
- Fuga de agua: Check for proper installation of the water release valve. Ensure the tank is not overfilled. Inspect for any cracks in the body (if applicable, contact support).
Si el problema persiste después de realizar estas comprobaciones, póngase en contacto con el servicio de atención al cliente.
8. Especificaciones
| Característica | Especificación |
|---|---|
| Marca | Sinfonía |
| Nombre del modelo | Siesta 70 XL |
| Número de modelo | Siesta 70XL - G |
| Material | Plástico |
| Tipo de montaje | Freestanding |
| Color | Gris |
| Capacidad de flujo de aire | 3500 pies cúbicos por minuto (CFM) |
| Tipo de controles | Perilla |
| Capacidad del depósito | 70 litros |
| Peso del artículo | 12.1 kilogramos |
| Quétage | 190 vatios |
| Número de velocidades | 3 |
| Dimensiones del artículo (Pr. x An. x Al.) | 50.5D x 61.8W x 111.5H Centímetros |
| Componentes incluidos | Air Cooler, Wheels |
9. Garantía y soporte
Your Symphony Siesta 70 XL Desert Air Cooler comes with a Garantía de 1 años A partir de la fecha de compra. Conserve el recibo de compra para reclamaciones de garantía.
For any service requests, technical assistance, or warranty-related inquiries, please contact the manufacturer:
Fabricante: sinfonía limitada
DIRECCIÓN: Symphony House, FP12-TP50 Bodakdev, Ahmedabad 380059
Teléfono: +91 79 6621 1111
For further information regarding EMI options, replacement policy, or other product details, please visit the product detail page on the retailer's websitio.
