1. Introducción

This manual provides essential instructions for the safe and effective use of your Rockland VMI17 10,000 lb Off-Road 12 Volt DC Electric Winch. Designed for vehicle recovery in challenging off-road conditions, this winch features a 12-volt DC motor, a high-performance planetary gear system, and a durable wire rope. Proper installation, operation, and maintenance are crucial for ensuring the longevity and reliable performance of your winch.

Las características principales incluyen:

• Multi-Purpose Winch: Equipped with a Hawse fairlead and wire rope for vehicle recovery.
• Operación remota conveniente: Wired remote controller for precise rope retraction and extension.
• 12-Volt DC Motor: Series-wound motor designed to maintain cooler temperatures during extended use.
• High-Performance Gear System: 3-stage planetary gear system with free spooling for fast line speed.
• Características de seguridad: Volumentage detection and stall load protection with red and blue LED indicators.

Figura 1.1: The Rockland VMI17 10,000 lb Electric Winch, showing the main unit with wire rope, hook, and the wired remote control.

2. Información de seguridad

Read and understand all safety warnings and instructions before installing or operating this winch. Failure to follow these instructions may result in serious injury or property damage.

• Always wear heavy-duty gloves when handling the wire rope.
• Nunca exceda la capacidad nominal del cabrestante.
• Asegúrese de que el motor del vehículo esté funcionando durante las operaciones de cabrestante para mantener la carga de la batería.
• Mantenga las manos y la ropa alejadas del cable de acero, el gancho y el guía-cabos durante la operación.
• Never operate the winch with less than five wraps of wire rope on the drum.
• Inspect the winch, wire rope, and all rigging components before each use for damage or wear.
• Use a tree trunk protector or anchor strap when attaching to a tree to prevent damage.
• Siempre usa publicidadampener (e.g., a heavy blanket) over the wire rope during winching to absorb energy in case of breakage.
• Do not use the winch for lifting or hoisting people.
• Disconnect the winch from the power source when not in use or during maintenance.

3. Contenido del paquete

Verifique que todos los componentes estén presentes y sin daños al desembalarlo:

• Rockland VMI17 Electric Winch with pre-spooled wire rope
• Control remoto con cable
• Heavy-duty hook
• Hawse Fairlead (integrated or separate, depending on model)
• Power cables and mounting hardware (may vary)

4. Configuración e instalación

Proper installation is critical for safe and effective winch operation. If you are unsure about any step, consult a qualified professional.

4.1 Montaje del cabrestante

1. Select a suitable mounting location on your vehicle, typically a winch bumper or mounting plate, capable of supporting the winch's weight and pulling forces.
2. Ensure the mounting surface is flat and strong enough to prevent flexing under load.
3. Secure the winch using appropriate high-strength bolts and hardware. Ensure all bolts are tightened to the manufacturer's specifications.

4.2 Conexiones eléctricas

1. Desconecte la batería del vehículo antes de realizar cualquier conexión eléctrica.
2. Connect the heavy-gauge power cables from the winch to the vehicle's 12-volt battery. The red cable connects to the positive (+) terminal, and the black cable connects to the negative (-) terminal.
3. Asegúrese de que todas las conexiones estén limpias, ajustadas y libres de corrosión.
4. Route cables away from hot engine parts, sharp edges, and moving components.
5. Vuelva a conectar la batería del vehículo.

4.3 Activación y desactivación del embrague

The clutch lever allows you to manually spool out the wire rope (free spooling) or engage the gear system for powered winching.

• A carrete libre the wire rope, turn the clutch lever to the "Free Spool" position. This disengages the gear train, allowing the drum to rotate freely.
• A Comprometer the winch for powered operation, turn the clutch lever to the "Engage" position. This connects the gear train to the motor.

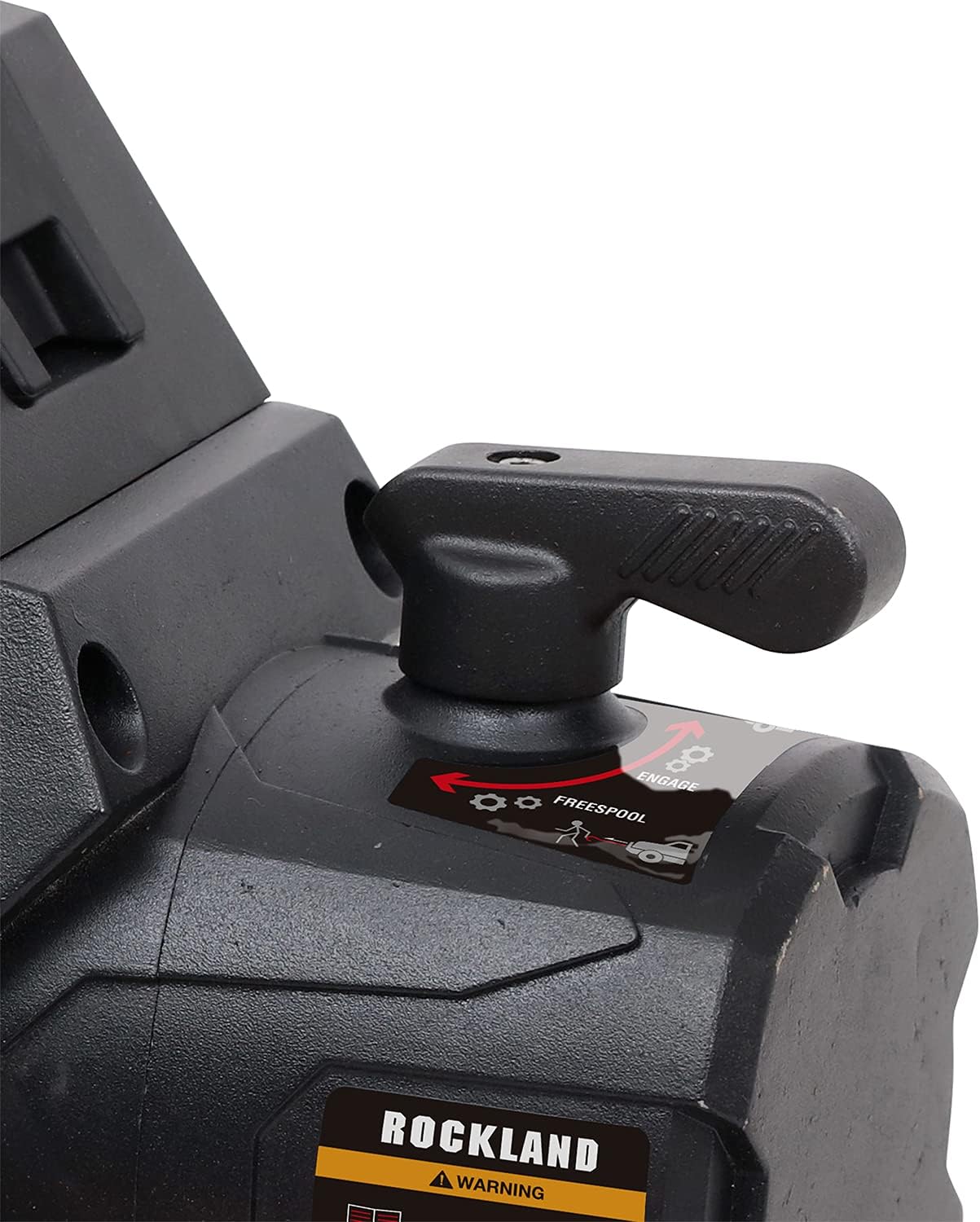

Figura 4.1: The clutch lever, used to switch between free spooling and engaged winching modes.

5. Instrucciones de funcionamiento

Always plan your recovery carefully before beginning. Ensure the area is clear of bystanders and obstacles.

5.1 Preparing for Winching

1. Ensure the vehicle's engine is running to provide maximum power to the winch.
2. Engage the vehicle's parking brake and block the wheels.
3. Turn the clutch lever to the "Free Spool" position.
4. Pull out the wire rope to the anchor point, ensuring at least five wraps remain on the drum.
5. Secure the hook to a suitable anchor point (e.g., tree trunk protector, recovery point on another vehicle).
6. Coloque un cabrestante dampener over the wire rope, midway between the winch and the anchor point.
7. Turn the clutch lever to the "Engage" position.

5.2 Uso del control remoto con cable

The wired remote control allows you to safely operate the winch from a distance.

Figura 5.1: The wired remote control for the Rockland VMI17 winch, featuring 'IN' and 'OUT' buttons for rope movement.

1. Connect the remote control to the winch's control box.
2. Stand clear of the wire rope and the vehicle.
3. Press the "IN" button to retract the wire rope and pull the load.
4. Press the "OUT" button to extend the wire rope.
5. Operate the winch in short bursts to prevent overheating. Allow the winch motor to cool between pulls.
6. Monitor the wire rope for proper spooling and ensure it does not pile up on one side of the drum.

5.3 After Winching

1. Once the recovery is complete, release tension on the wire rope.
2. Desconecte el gancho del punto de anclaje.
3. Carefully respool the wire rope onto the drum under light tension to ensure even layering.
4. Disconnect the remote control and store it safely.
5. Inspect the winch and wire rope for any damage before storing.

6. Mantenimiento

Regular maintenance ensures optimal performance and extends the life of your winch.

• Inspección de cables de acero: Regularly inspect the wire rope for kinks, frayed strands, broken wires, or corrosion. Replace damaged rope immediately.
• Conexiones eléctricas: Revise periódicamente todas las conexiones eléctricas para comprobar su firmeza y evitar la corrosión. Limpie los terminales según sea necesario.
• Lubricación: Consulte las instrucciones del fabricante para conocer los puntos de lubricación recomendados.
• Limpieza: Keep the winch clean from mud, dirt, and debris. Use a mild detergent and water, then dry thoroughly.
• Almacenamiento: Store the winch in a dry environment when not in use.

7. Solución de problemas

If you encounter issues with your Rockland VMI17 winch, refer to the following common troubleshooting steps:

If problems persist after attempting these solutions, contact Rockland customer support.

8. Especificaciones

9. Garantía y soporte

The Rockland VMI17 Electric Winch comes with a Garantía del fabricante de 1 añosEsta garantía cubre defectos de materiales y mano de obra en condiciones normales de uso.

For warranty claims, technical assistance, or further inquiries, please contact Rockland customer support. Ensure you have your product model number (VMI17) and proof of purchase available when contacting support.
