JOYING 10.1 Android Car Stereo Double Din Head Unit

1. Introducción

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your JOYING 10.1 Android Car Stereo Double Din Head Unit. Please read this manual thoroughly before using the product to ensure proper functionality and safety.

2. Características del producto

• Sistema operativo: Latest Android 10 OS for a faster and smoother user experience.
• Procesador y memoria: Powerful 1.8GHz Octa-core CPU with 4GB RAM and 64GB ROM.
• Calidad de audio: DSP sound effect processing chip with TDA7851 power amplifier output chip, supporting SPDIF digital audio output and 32-band EQ for customizable sound.
• Conectividad de teléfonos inteligentes: Built-in Carlink supporting wired/wireless Apple CarPlay (iOS 10.1 or later) and wired/wireless Android Auto (Android 7.0 or later, wireless for Android 11+ with 5G WiFi).
• Bluetooth: Upgraded Bluetooth 5.1 (v2.1 + EDR, v5.1 Low Energy) for enhanced transmission rate, effective working distance, audio streaming, automatic Phone Book transfer, and hands-free calls. Supports phone and OBD dongle connection.
• Salida de audio digital: Optical Fiber and Coaxial Digital Output for connection to external amplifiers, providing high-fidelity audio.
• Mostrar: 10.1-inch screen with 1920x1200 resolution, offering high definition and brightness.
• Conectividad de red: Supports 5GHz WiFi for stable network signals and a built-in 4G module (SIM card not included) for internet access.
• Navegación: Integrated GPS with pre-installed Google Maps, supporting online and offline navigation.
• Control del volante: Supports factory steering wheel controls for convenient operation.

3. Contenido del paquete

Los siguientes artículos están incluidos en el paquete de su producto:

• JOYING 10.1 Android Car Stereo Head Unit
• GPS Navigation Antenna
• 2 antenas 4G
• 2x cables USB
• Micrófono externo
• Arnés ISO
• 20-pin Harness
• Steering Wheel Control Decoder
• Externo AmpCable de conexión del elevador
• Radio Antenna Connection Cable
• Manual de usuario

4. Configuración e instalación

Professional installation is recommended for this product. Incorrect installation may damage the unit or your vehicle. Ensure the vehicle's power is disconnected before beginning installation.

4.1 Dimensiones físicas

Refer to the diagram below for the dimensions of the head unit and screen to ensure compatibility with your vehicle's dashboard.

4.2 conexiones de cableado

Use the provided ISO and 20-pin harnesses to connect the head unit to your vehicle's electrical system. Ensure all connections are secure and correctly matched according to your vehicle's wiring diagram.

4.3 Screen Mounting

The screen features a detachable design and adjustable fixed mount positions. Adjust the screen's position to avoid obstructing air-conditioning vents or control switches during installation.

5. Instrucciones de funcionamiento

Your JOYING car stereo runs on Android 10, providing a familiar and intuitive interface. The 10.1-inch touchscreen allows for easy interaction with all functions.

5.1 Interfaz básica y navegación

The main interface provides access to various applications and settings. Swipe left or right to navigate through app pages. The status bar at the top displays time, network status, and other system information.

5.2 Audio Features and Equalizer

The unit features a Digital Sound Processor (DSP) and a 32-band equalizer (EQ) to customize your audio experience. You can select from preset sound modes (e.g., Rock, Pop, Jazz, Cinema) or create a custom user profile. The DSP also allows for independent adjustment of front and rear speakers, surround sound control, and bass boost.

5.3 Smartphone Connectivity (Carlink, Bluetooth)

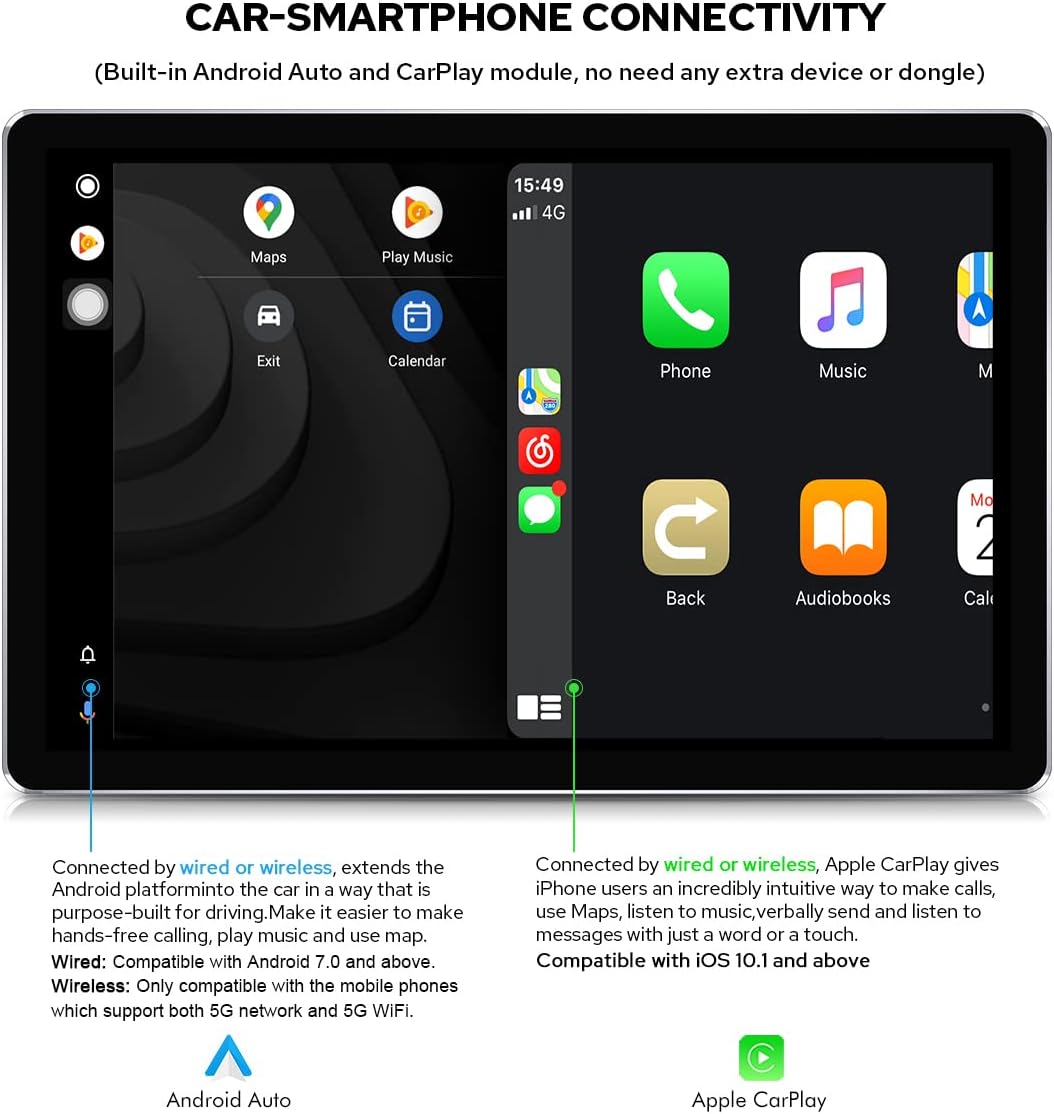

The built-in Carlink function enables seamless integration with your smartphone. Connect your iPhone for Apple CarPlay or Android phone for Android Auto to access navigation, make calls, listen to music, and use compatible apps directly from the stereo's display.

Bluetooth 5.1 allows for hands-free calling and audio streaming. Pair your phone with the head unit via Bluetooth settings to enjoy these features.

5.4 Network and GPS

The unit supports 5GHz WiFi for high-speed internet access and includes a built-in 4G module for mobile data connectivity (SIM card required). The integrated GPS module provides accurate positioning for navigation using pre-installed or downloaded map applications.

5.5 High-Resolution Display

The 10.1-inch screen boasts a 1920x1200 resolution, providing clear and vibrant visuals for navigation, video playback, and app usage. The high brightness ensures readability even in direct sunlight.

5.6 Vídeo de demostración

The following video demonstrates various functionalities of the JOYING 10.1 Android Car Stereo, including navigating the user interface, playing music, using the equalizer, tuning the radio, playing videos, and connecting via Bluetooth and Carlink.

6. Mantenimiento

Para garantizar la longevidad y el rendimiento óptimo de su estéreo para automóvil JOYING, siga estas pautas de mantenimiento:

• Limpieza de la pantalla: Utilice un paño suave y sin pelusa para limpiar suavemente la pantalla táctil. Para manchas difíciles, limpie ligeramenteampEnjuague el paño con agua o un limpiador de pantallas. Evite materiales abrasivos o productos químicos agresivos.
• Limpieza general: Mantenga la unidad libre de polvo y residuos. Utilice un cepillo suave o aire comprimido para limpiar las rejillas de ventilación y las grietas.
• Actualizaciones de software: Periodically check for and install software updates provided by JOYING to ensure the system runs efficiently and has the latest features and security patches.
• Evite temperaturas extremas: No exponga la unidad a calor o frío extremos durante períodos prolongados, ya que esto puede afectar el rendimiento y la vida útil.

7. Solución de problemas

If you encounter issues with your JOYING car stereo, refer to the following common troubleshooting steps:

• Sin energía: Revise todas las conexiones eléctricas y los fusibles. Asegúrese de que el encendido del vehículo esté activado.
• Sin sonido: Verify speaker connections, volume levels, and equalizer settings. Check if the mute function is active.
• Problemas de conexión Bluetooth: Asegúrate de que el Bluetooth esté activado tanto en el estéreo como en tu teléfono. Intenta desvincular y volver a vincular los dispositivos.
• Pérdida de señal GPS: Asegúrese de que la antena GPS esté correctamente instalada y tenga una vista clara. view del cielo. Revisa la configuración de la aplicación de mapas.
• La pantalla táctil no responde: Intente reiniciar la unidad. Si el problema persiste, podría ser necesario restablecer la configuración de fábrica (nota: esto borrará todos los datos del usuario).
• CarPlay/Android Auto no se conecta: Ensure your phone's operating system is compatible and that the connection (wired or wireless) is stable. Check app permissions on your phone.

If these steps do not resolve the issue, please contact JOYING customer support for further assistance.

8. Especificaciones

9. Garantía y soporte

JOYING products are designed for reliability and performance. For warranty information and technical support, please refer to the warranty card included in your package or visit the official JOYING website. Our customer service team is available to assist with any questions or concerns you may have regarding your product.

Para obtener recursos adicionales y preguntas frecuentes, visite: Tienda JOYING en Amazon
