1. Introducción
This manual provides essential information for the proper installation, operation, and maintenance of the Dieffematic Startec CMT1-E 230V Control Unit. This unit is designed to automate various access systems, including sliding gates, overhead doors, and road barriers. It features auto-learning capabilities, customizable slowdown, motor torque regulation, and support for limit switches and an optional encoder for precise control.
Please read this manual carefully before proceeding with installation or operation to ensure safety and optimal performance of your automation system.
2. Información de seguridad
WARNING: Improper installation or use can lead to serious injury or property damage.
- Installation and maintenance must be performed by qualified personnel only, in accordance with local electrical and safety regulations.
- Desconecte siempre la fuente de alimentación principal antes de realizar cualquier procedimiento de instalación, mantenimiento o solución de problemas.
- Asegúrese de que todas las conexiones eléctricas estén seguras y adecuadamente aisladas.
- Keep children and unauthorized persons away from the automation system during operation and maintenance.
- No modifique la unidad de control ni sus componentes. Utilice únicamente repuestos originales.
- Ensure all safety devices (e.g., photocells, safety edges) are correctly installed and functioning before operating the system.
3. Producto terminadoview
The Dieffematic Startec CMT1-E is a versatile 230V control unit engineered for reliable automation of various access points. Its advanced features ensure smooth, safe, and precise operation.
Características principales:
- Control universal: Compatible with sliding gates, overhead doors, and road barriers.
- Autoaprendizaje: Automatic acquisition of working times for simplified setup.
- Customizable Slowdown: Adjustable deceleration for smooth and quiet movement, extending system lifespan.
- Motor Torque & Amperostop Regulation: Protects the automation from overloads and ensures safety.
- Limit Switch Inputs: For precise opening and closing position control.
- Encoder Predisposition: Supports an optional encoder for enhanced precision and fine-tuned control.

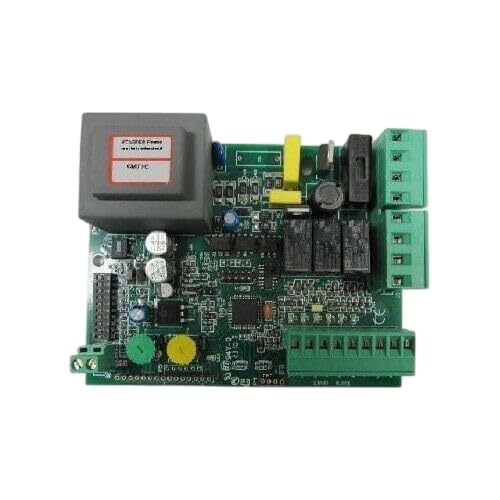

Figure 1: Dieffematic Startec CMT1-E 230V Control Unit. This image shows the compact design of the control unit, typically housed in a protective casing, with various connection terminals visible for power, motor, and accessory wiring.
4. Configuración e instalación
Installation should only be carried out by a qualified technician.
4.1 Montaje de la unidad de control
- Choose a suitable, protected location, away from direct weather exposure and potential mechanical damage.
- Mount the unit securely using appropriate fasteners. Ensure adequate ventilation if enclosed.
4.2 Conexiones eléctricas
Refer to the wiring diagram provided with the product packaging for detailed connection points. Ensure all connections are made with the power supply disconnected.
- Fuente de alimentación: Connect the 230V AC main power supply to the designated terminals. Ensure proper grounding.
- Conexiones de motores: Connect the motor wires (common, open, close) to the respective terminals.
- Dispositivos de seguridad: Connect photocells, safety edges, and other safety sensors to their dedicated inputs.
- Dispositivos de comando: Connect push buttons, key switches, or remote control receivers to the command inputs.
- Finales de carrera: Connect the opening and closing limit switches to ensure precise stopping points.
- Optional Encoder: If using an encoder, connect it to the designated encoder input terminals.
4.3 Initial Configuration and Auto-Learning
- After all connections are made and verified, restore power to the unit.
- Initiate the auto-learning procedure as described in the specific product documentation (usually via a dedicated button or sequence). The unit will perform a full open and close cycle to learn the working times.
- Adjust the slowdown parameters to achieve desired smooth acceleration and deceleration.
- Set the motor torque and amperostop sensitivity to provide adequate force while ensuring safety against obstructions.
- Test all safety devices to confirm they stop or reverse the gate/door movement correctly.
5. Instrucciones de funcionamiento
Once installed and configured, the Dieffematic Startec CMT1-E control unit operates the automation system based on the programmed settings.
5.1 Funcionamiento básico
- Mando a distancia: Press the designated button on your remote control to activate the gate/door. A single press typically cycles through open-stop-close-stop.
- Presionar el botón: Activate the external push button connected to the control unit for similar open-stop-close-stop functionality.
- Interruptor de llave: Turn the key in the external key switch to activate the system.
5.2 Indicadores de estado
The control unit may feature LED indicators to display its operational status (e.g., power on, motor active, safety device triggered). Consult the specific wiring diagram for interpretation of these indicators.
6. Mantenimiento
Regular maintenance ensures the longevity and safe operation of your automation system. Always disconnect power before performing any maintenance.
6.1 Controles de rutina (mensuales)
- Visually inspect the control unit for any signs of damage, loose connections, or moisture ingress.
- Check the functionality of all safety devices (photocells, safety edges) by intentionally triggering them during gate/door movement.
- Ensure the gate/door moves smoothly without excessive noise or resistance.
6.2 Inspección profesional (anual)
It is recommended to have a qualified technician perform a comprehensive inspection of the entire automation system at least once a year. This includes:
- Checking all electrical connections and wiring.
- Verifying motor performance and mechanical components.
- Re-calibrating settings if necessary.
- Checking for wear and tear on moving parts.
7. Solución de problemas
Before attempting any troubleshooting, ensure the main power supply is disconnected.
| Problema | Posible causa | Solución |
|---|---|---|
| System does not respond to commands. | No power supply; remote control battery flat; safety device activated; faulty command device. | Check power supply; replace remote battery; check safety devices for obstructions or faults; test command device. |
| Gate/door stops unexpectedly. | Obstruction detected; safety device triggered; motor overload; limit switch issue. | Remove obstruction; check safety devices; verify motor torque settings; inspect limit switches. |
| Gate/door does not open/close fully. | Limit switches misaligned; auto-learning parameters incorrect; mechanical resistance. | Adjust limit switches; re-run auto-learning procedure; check for mechanical issues in the gate/door mechanism. |
| Irregular or jerky movement. | Slowdown parameters incorrect; mechanical issues; encoder fault (if installed). | Adjust slowdown settings; inspect mechanical components; check encoder connections/functionality. |
Si el problema persiste después de intentar estas soluciones, comuníquese con un técnico calificado para obtener ayuda.
8. Especificaciones
- Modelo: CMT1-E
- Vol de entradatage: 230 V CA
- Fabricante: Dieffematic
- ASIN: B0B39LPWQF
- Solicitud: Sliding gates, overhead doors, road barriers
- Características principales: Auto-learning, adjustable slowdown, motor torque/amperostop regulation, limit switch inputs, encoder predisposition.
9. Garantía y soporte
For information regarding the warranty period and terms for your Dieffematic Startec CMT1-E control unit, please refer to the documentation provided at the time of purchase or contact your seller/installer. Keep your proof of purchase for warranty claims.
For technical support, troubleshooting assistance beyond this manual, or professional service, please contact your authorized Dieffematic dealer or a qualified automation technician.
