Herrfilk Electric Lunch Box Food Heater 100W (Model HD-J-0054) - User Manual

1. Producto terminadoview

The Herrfilk Electric Lunch Box Food Heater is a versatile 4-in-1 portable food warmer designed to heat your meals quickly and efficiently. It supports multiple power sources (12V/24V for vehicles, 110V/220V for home/office) and features a 100W PTC constant temperature heating system. The unit includes a removable stainless steel food container, a separate fruit container, and essential utensils, all housed within a leakproof design for convenient use on the go.

2. Contenido del paquete

• Electric Lunch Box main unit
• 1.8L 304 Stainless Steel Food Container
• 0.7L Food Grade PP Fruit Container
• Bolsa de transporte aislada
• Tenedor
• Cuchara
• 110V/220V Power Cable (for home/office use)
• 12V/24V Power Cable (for car/truck use)
• Manual de usuario (este documento)

Figura 1: Explosión view of the Electric Lunch Box showing its components: Lid Locks, Strong Handle, Steam Outlet, Spoon & Fork, Fruit Layer, Power Button, and Stainless Steel Lunch Box.

3. Configuración y montaje

1. Deshacer: Retire con cuidado todos los componentes del embalaje.
2. Limpieza inicial: Before first use, wash the stainless steel food container, the PP fruit container, fork, and spoon with warm soapy water. Rinse thoroughly and dry. Do not wash the main heating unit or immerse it in water.
3. Assemble Containers: Place your food into the 1.8L stainless steel container. If using, place fruits or other separate items into the 0.7L PP fruit container.
4. Insert Containers: Place the stainless steel container into the main heating unit. If using the fruit container, place it on top of the stainless steel container.
5. Tapa segura: Close the main lid, ensuring the lid locks are securely fastened on both sides.

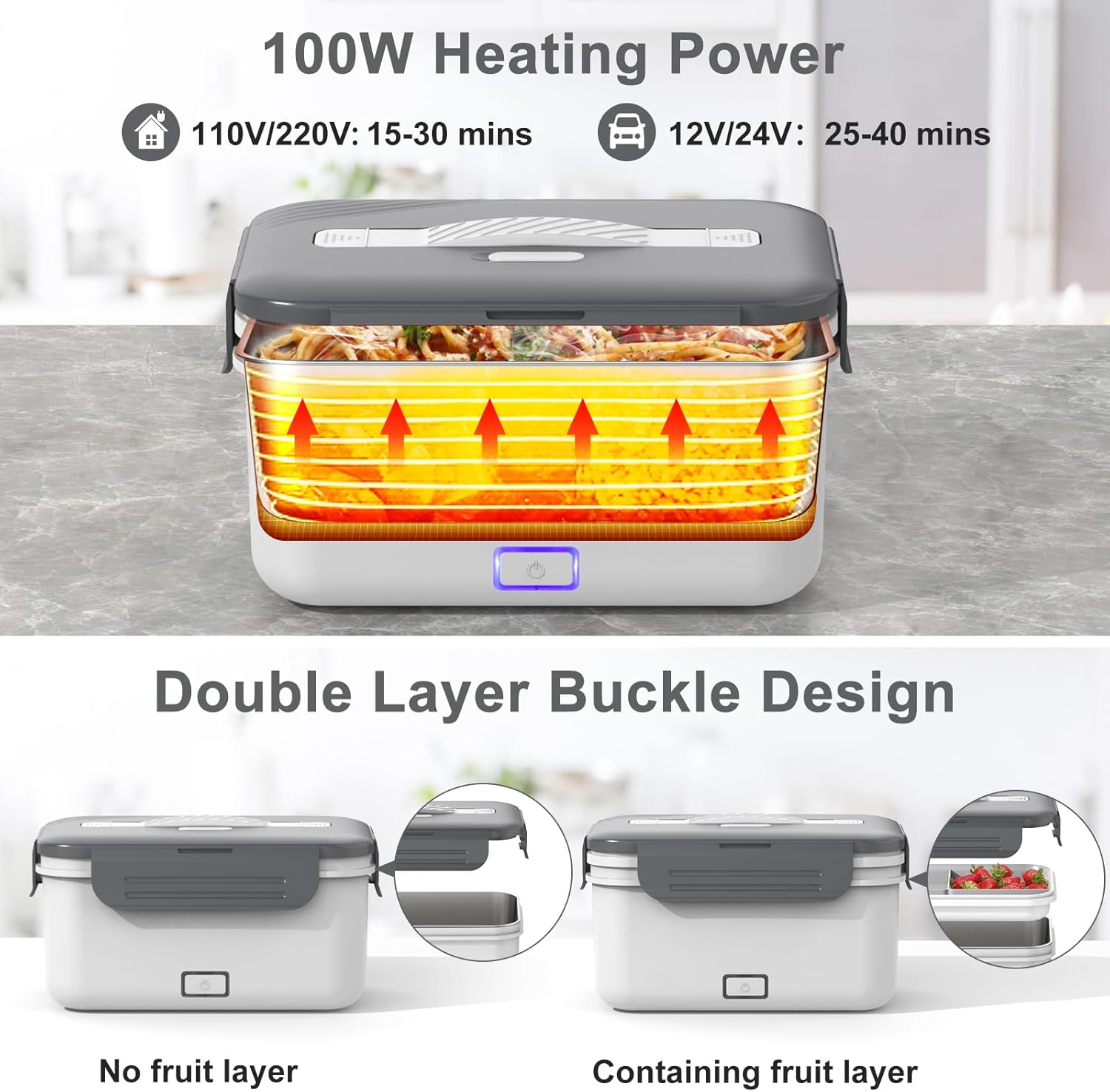

Figure 2: The double-layer buckle design allows for use with or without the fruit container.

4. Instrucciones de funcionamiento

4.1 Heating Your Meal

1. Prepara comida: Place your cooked food into the stainless steel container. For best results and to prevent drying, add a small amount of water (1-2 tablespoons) to your food, especially if it's rice or pasta.
2. Close and Vent: Secure the lid. Open the steam outlet on the lid to allow steam to escape during heating.
3. Conecte la electricidad:
   • For home/office (110V/220V): Use the provided AC power cable.
   • For car/truck (12V/24V): Use the provided DC car adapter cable.
   Plug the appropriate power cable into the designated port on the side of the lunch box, then into the power source. The indicator light on the front of the lunch box will illuminate, signaling that heating has begun.
4. Tiempo de calentamiento: The lunch box uses 100W high power PTC constant temperature heating.
   • 110V/220V: Approximately 15-30 minutes.
   • 12V/24V: Approximately 25-40 minutes.
   Heating times may vary based on food type, quantity, and initial temperature.
5. Disfrutar: Once heated, unplug the device, close the steam vent, and carefully open the lid to enjoy your warm meal.

Figure 3: Heating process: 1. Add food and some water. 2. Close the cover and plug in the power supply. 3. Press the power button and open the air outlet. 4. Heat for 20-30 minutes. 5. Enjoy your hot meal.

Figure 4: The lunch box supports 110V/220V for office/home and 12V/24V for car/truck use.

5. Mantenimiento y limpieza

1. Desenchufe antes de limpiar: Always ensure the lunch box is unplugged from the power source and has cooled down before cleaning.
2. Piezas desmontables: The 304 stainless steel food container, the PP fruit container, fork, and spoon are dishwasher safe. They can also be hand washed with warm soapy water.
3. Unidad de calefacción principal: The exterior of the main heating unit can be wiped clean with a damp paño. Nunca sumerja la unidad de calentamiento principal en agua ni en ningún otro líquido. Ensure the power port is dry before plugging in again.
4. Almacenamiento: Store the lunch box and its components in a clean, dry place when not in use.

Figure 5: The stainless steel container and removable plastic layer are easy to clean and dishwasher safe.

6. Solución de problemas

• La comida no se calienta:
  • Ensure the power cable is securely plugged into both the lunch box and the power source.
  • Verify the power source is active (e.g., car ignition is on, wall outlet is functional).
  • Check if the indicator light on the lunch box is illuminated. If not, try a different power cable or outlet.
• Uneven heating or scorching:
  • Add a small amount of water (1-2 tablespoons) to your food before heating to help distribute heat and prevent drying.
  • Stir the food halfway through the heating process if possible, to ensure more even heating.
  • Ensure the steam vent is open during heating to prevent excessive pressure buildup.
• La tapa no sella correctamente:
  • Check for any food debris or obstructions around the silicone seal.
  • Ensure the lid locks are fully engaged on both sides.

7. Especificaciones

Figure 6: Detailed dimensions of the lunch box and its accessories.

8. Garantía y soporte

Herrfilk provides a 30-day money-back guarantee and a 12-month replacement warranty for this Electric Lunch Box. If you encounter any issues with the product, such as it not heating or any other functional problems, please contact Herrfilk customer service for assistance. Contact information can typically be found on the product packaging or the official Herrfilk websitio.
