Auto Joe 24V Cordless Wet/Dry Handheld Vacuum

Introducción

The Auto Joe 24V Cordless Wet/Dry Handheld Vacuum is designed for efficient and convenient clean-ups in various environments, including homes, offices, vehicles, garages, workshops, boats, and RVs. This manual provides essential information for the safe and effective operation and maintenance of your vacuum cleaner.

Componentes del producto

The 24V Cordless Wet/Dry Handheld Vacuum comes with a comprehensive kit to address various cleaning needs. Please ensure all components are present upon unboxing.

Image: The Auto Joe 24V Cordless Wet/Dry Handheld Vacuum, its 2.0 Ah 24V lithium-ion battery, a carrying bag, and various attachments including an extension tube, crevice nozzle, water nozzle, wet + dry utility nozzle, and dust brush nozzle.

Accesorios incluidos:

• Tubo de extensión: For extended reach in tight spaces or on floors.
• Boquilla para rincones: Ideal para espacios estrechos y esquinas.
• Water Nozzle: Diseñado para recoger derrames de líquidos.
• Wet + Dry Utility Nozzle: A versatile nozzle for both wet and dry debris.
• Dust Brush Nozzle: For dusting delicate surfaces and upholstery.
• Bolsa de transporte: For convenient storage and transport of the vacuum and its accessories.
• 2.0 Ah 24V Lithium-Ion Battery: Provides cordless power for the vacuum.
• Cargador: Para recargar la batería de iones de litio.

Imagen: Un primer plano view of the six-piece accessory kit, including the extension tube, crevice nozzle, water nozzle, wet + dry utility nozzle, and dust brush nozzle.

Image: The convenient carrying bag, designed to store the vacuum and all its accessories.

Configuración

Before first use, ensure the battery is fully charged. The vacuum operates on the IONMAX 24V rechargeable battery system.

Instalación y carga de la batería:

1. Cargar la batería: Connect the charger to a power outlet and then connect the battery to the charger. Allow the battery to charge completely before initial use. Refer to the battery and charger manual for specific charging indicators and times.
2. Inserte la batería: Align the battery with the battery slot on the rear of the vacuum cleaner. Slide the battery firmly into place until it clicks, indicating it is securely locked.
3. Retire la batería: To remove the battery, press the battery release button (if present) and slide the battery out of the slot.

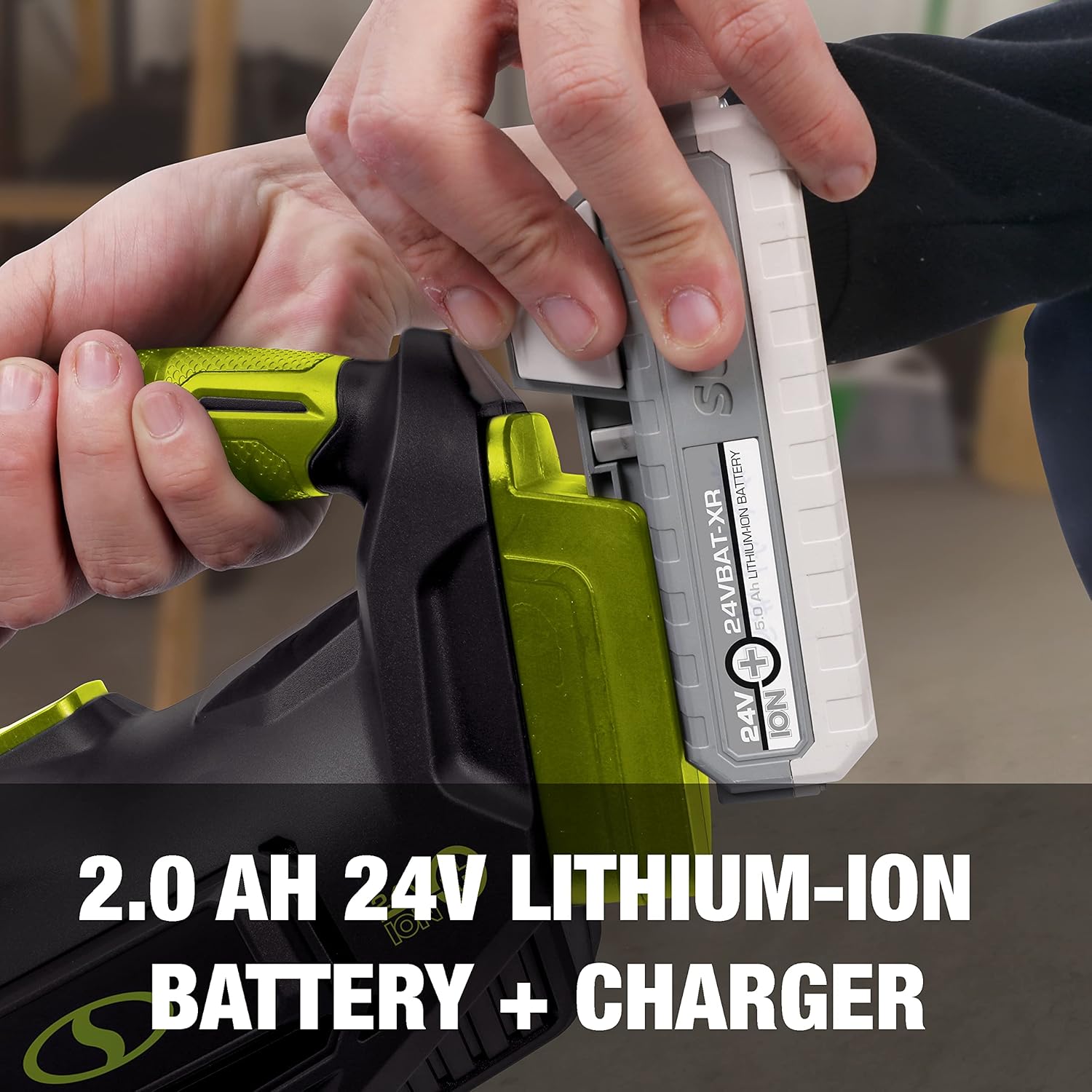

Image: A hand demonstrating the insertion of the 2.0 Ah 24V lithium-ion battery into the vacuum cleaner.

Instrucciones de funcionamiento

The Auto Joe handheld vacuum is designed for versatile cleaning. Follow these steps for optimal performance.

Operación general:

1. Seleccionar archivo adjunto: Choose the appropriate nozzle or attachment for your cleaning task. For general dry debris, the utility nozzle is suitable. For tight spaces, use the crevice nozzle. For liquids, use the water nozzle.
2. Encendido: Presione el botón de encendido ubicado en el mango para encender la aspiradora.
3. Aspirar: Move the vacuum slowly and steadily over the area to be cleaned. For wet spills, ensure the water nozzle is attached and empty the tank frequently to prevent overflow.
4. Apagado: Presione nuevamente el botón de encendido para apagar la aspiradora.

Image: The Auto Joe handheld vacuum being used to clean debris from a car seat, demonstrating its portability and convenience for auto cleaning.

The vacuum is powered by a 120-watt motor, providing 33 air-watt max suction power and 8 kPa max vacuum pressure for effective cleaning.

Image: The vacuum highlighting its powerful 120-watt motor.

Image: The vacuum highlighting its 33 air-watt max suction power.

Mantenimiento

Regular maintenance ensures the longevity and optimal performance of your vacuum cleaner. This includes emptying the dust tank and cleaning the HEPA filter.

Vaciado del depósito de polvo:

1. Detach Dust Tank: Locate the release button or latch for the dust tank, usually near the nozzle. Press or unlatch it and carefully pull the dust tank away from the main body of the vacuum.
2. Contenido vacío: Hold the dust tank over a trash receptacle and empty all collected debris. For wet spills, dispose of the liquid appropriately.
3. Reattach Dust Tank: Align the dust tank with the vacuum body and push it firmly until it clicks into place.

Limpieza del filtro HEPA:

The advanced HEPA filtration system traps pollen, dirt, sand, hair, dust, and other debris. The HEPA filter is washable and reusable.

1. Eliminar filtro: After detaching the dust tank, carefully remove the HEPA filter from its housing.
2. Filtro limpio: Tap the filter gently over a trash can to dislodge loose debris. For a more thorough cleaning, rinse the filter under cool, running water until the water runs clear. Do not use hot water or detergents.
3. Filtro seco: Deje que el filtro se seque completamente al aire durante al menos 24 horas antes de volver a colocarlo en la aspiradora. Asegúrese de que esté completamente seco para evitar la formación de moho o daños en la aspiradora.
4. Reinstalar filtro: Once dry, place the HEPA filter back into its housing within the dust tank, then reattach the dust tank to the vacuum body.

Image: A hand demonstrating the removal of the washable, reusable HEPA filter from the vacuum for cleaning.

Solución de problemas

If you encounter issues with your Auto Joe vacuum, refer to the table below for common problems and solutions.

Presupuesto

Garantía y soporte

The Auto Joe 24V Cordless Wet/Dry Handheld Vacuum is backed by a 2 año de garantía. For warranty claims, technical support, or replacement parts, please contact Auto Joe customer service. You can find contact information on the official Auto Joe websitio o a través de su minorista de compras.

The IONMAX battery system is designed for long-lasting performance and is interchangeable across over 100 tools within the JOE brands, offering versatility and convenience.

Para obtener más información, visite el Auto Joe Store on Amazon.
