1. Producto terminadoview
This manual provides essential information for the safe and efficient use of your EU-SOURCING 65W USB-C Laptop Charger. This high-quality power adapter is designed to provide reliable charging for a wide range of compatible devices, including laptops, tablets, and smartphones that utilize a USB-C port.

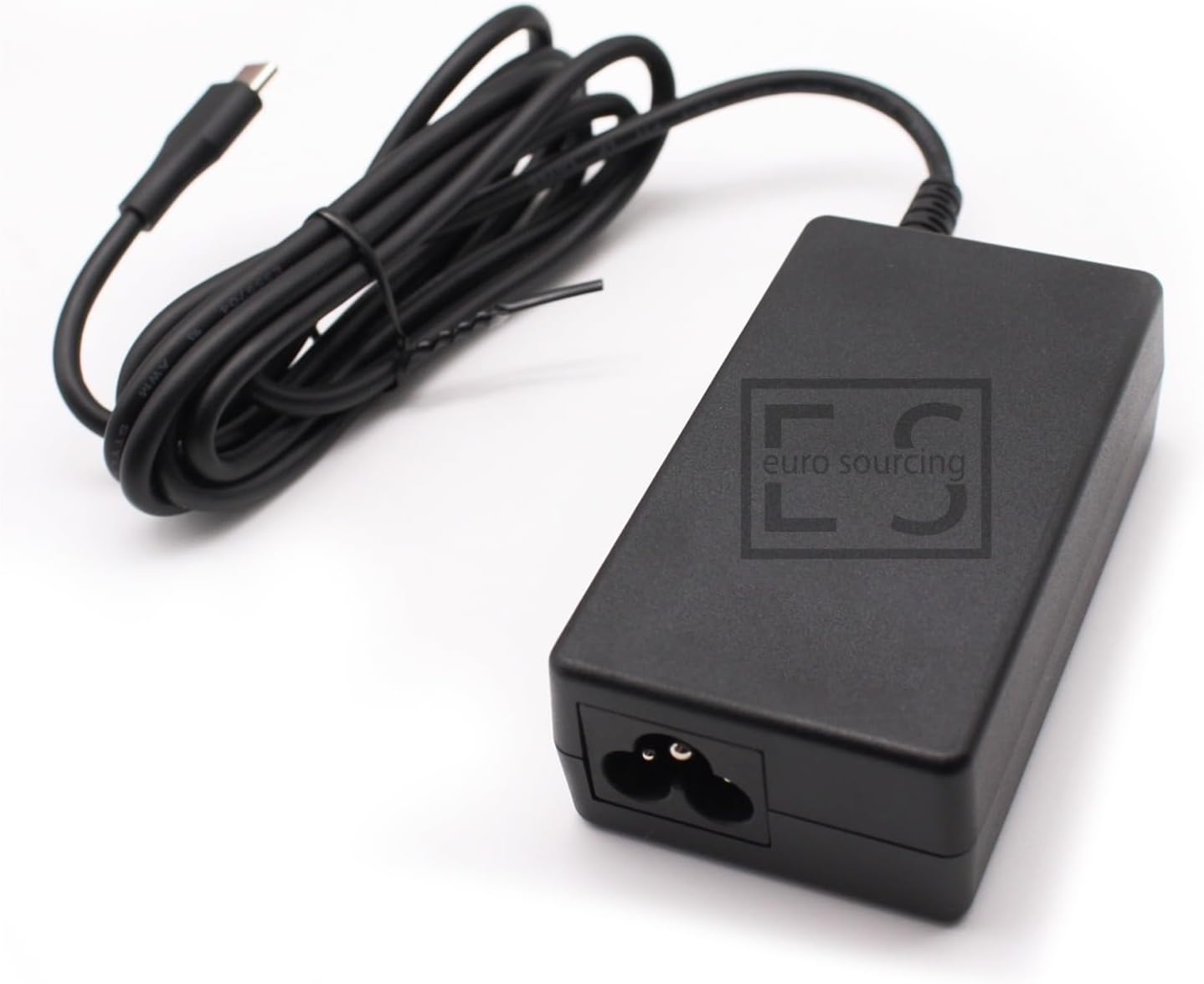

Image 1.1: The EU-SOURCING 65W USB-C Laptop Charger, showcasing su diseño compacto y cable USB-C integrado.
The charger features auto-adjustable voltage output, supporting 5V/3A, 9V/3A, 15V/3A, and 20V/3.25A, delivering up to 65W of power. It is an authentic Delta Electronics product, ensuring high quality and performance.
Imagen 1.2: Arriba view of the charger, featuring the EU-SOURCING brand logo.
2. Información de seguridad
Please read and understand all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or damage to the charger or your device.
- Use only the provided power cord and ensure it is fully inserted into the charger and the wall outlet.
- No exponga el cargador al agua, la humedad o temperaturas extremas.
- Evite dejar caer o someter el cargador a impactos fuertes.
- No intente desmontar ni modificar el cargador. Encargue cualquier reparación a personal cualificado.
- Always verify the compatibility of the charger with your device's power requirements before connecting. While this charger is auto-adjustable, ensure your device supports USB Power Delivery (PD) via its USB-C port.
Image 2.1: This image highlights the safety certifications of genuine Delta Electronics adapters (CE, UKCA, UL, EAC, Safety Mark) compared to uncertified replacements. Always prioritize certified products for safety.
3. Configuración
Follow these steps to set up your EU-SOURCING 65W USB-C Laptop Charger:
- Conecte el cable de alimentación: Take the included power cord and connect its figure-8 end firmly into the AC input port on the charger block.
- Enchufe al tomacorriente de pared: Insert the other end of the power cord (the wall plug) into a standard electrical wall outlet.
- Conectar al dispositivo: Plug the USB-C connector from the charger's integrated cable into the USB-C charging port of your laptop, tablet, or smartphone.
Image 3.1: The detachable power cord, which connects the charger to the wall outlet.
Asegúrese de que todas las conexiones sean seguras antes de su uso.
4. Instrucciones de funcionamiento
Once properly connected, the charger will automatically detect your device's power requirements and deliver the appropriate voltage and current (5V/3A, 9V/3A, 15V/3A, or 20V/3.25A) up to 65W. The charger is equipped with a charge indicator to show its operational status.
- Cargando: When connected to a compatible device and a power source, the charger will begin charging your device. The charge indicator light will illuminate to confirm power delivery.
- Desconectando: To disconnect, first unplug the USB-C connector from your device, then unplug the power cord from the wall outlet.
5. Mantenimiento
Un mantenimiento adecuado garantiza la longevidad y el rendimiento óptimo de su cargador:
- Limpieza: Disconnect the charger from all power sources and devices before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquid cleaners or aerosols.
- Almacenamiento: Store the charger in a cool, dry place away from direct sunlight and extreme temperatures. When storing, coil the cables loosely to prevent damage.
- Manejo: Avoid bending or crimping the cables excessively, especially near the connectors, as this can damage internal wires.
6. Solución de problemas
Si tiene problemas con su cargador, consulte los siguientes problemas y soluciones comunes:
| Problema | Posible causa | Solución |
|---|---|---|
| Charger not powering on / No charge indicator light | Loose connection, faulty outlet, damaged charger/cable | Ensure power cord is securely connected to charger and wall outlet. Try a different wall outlet. Inspect charger and cables for visible damage. |
| El dispositivo no se carga o se carga lentamente | Incompatible device, device drawing too much power, faulty device port, cable issue | Verify device compatibility with 65W USB-C PD. Ensure device's USB-C port is clean and undamaged. Try restarting your device. |
| Charger feels hot during use | Normal operation under load, poor ventilation, excessive load | It is normal for chargers to warm up during use. Ensure adequate ventilation around the charger. If excessively hot, disconnect and allow to cool. Ensure device is compatible and not drawing more than 65W. |
Si el problema persiste después de probar estas soluciones, comuníquese con el servicio de atención al cliente.
7. Especificaciones
Detailed technical specifications for the EU-SOURCING 65W USB-C Laptop Charger:
Image 7.1: The underside of the charger, displaying the model number (ADP-65KE B, which is similar to ADP-65SD B, and 60GQ42704BV) and detailed electrical input/output specifications.
Imagen 7.2: Una ampliación view of the charger's label, clearly showing the input and output voltagCalificaciones e/actuales.
| Característica | Detalle |
|---|---|
| Número de modelo | ADP-65SD B |
| Marca | EU-SOURCING (Delta Electronics) |
| Aporte | 100-240 V ~ 1.7 A, 50-60 Hz |
| Producción | 5.0V/3.0A, 9.0V/3.0A, 12.0V/3.0A, 15.0V/3.0A, 20.0V/3.25A (Auto-adjustable) |
| Potencia máxima de salida | 65 W |
| Tipo de conector | USB-C (Tipo-C) |
| Características especiales | Charge Indicator, Portable |
| Dispositivos compatibles | Samsung Galaxy Book Pro 360 (NP950QDB-KB2US, NP950QDB-KA2US), HP Chromebook X360 series (e.g., 11-AE, 14-CA), HP Google Chromebook series (e.g., 11 G1 EE, 14 G5), HP Spectre X360 series (e.g., X2 12-A000), and other laptops, tablets, and smartphones supporting USB-C Power Delivery (18W-65W). |
8. Garantía y soporte
Your EU-SOURCING 65W USB-C Laptop Charger comes with a comprehensive warranty and dedicated support.
- Garantía: Este producto está cubierto por un Garantía de 12 meses from the date of purchase. This warranty is applicable only for products sold by EU-SOURCING. Please retain your proof of purchase for warranty claims.
- Apoyo: For technical assistance, troubleshooting, or warranty inquiries, please contact EU-SOURCING customer support through the platform where you purchased the product.
