VISULAPEX 120 Inch Projection Screen with Stand User Manual

Introducción

This manual provides detailed instructions for the assembly, operation, and maintenance of your VISULAPEX 120 Inch Projection Screen with Stand. Designed for versatility, this 4K HD 16:9 foldable screen offers a 160° viewing angle and is suitable for various environments, including home cinema, office presentations, and outdoor events. Please read these instructions carefully before use to ensure proper setup and optimal performance.

Contenido del paquete

Verifique que todos los componentes enumerados a continuación estén incluidos en su paquete. Si falta alguna pieza o está dañada, comuníquese con atención al cliente.

1x Projection Screen (120 inches, 16:9 aspect ratio)
2x Tripod Stands
10x Iron Tubes (for frame assembly)
2x Elbow Connectors
2x Snap Connectors
4x Ground Nails
4x Ropes
1x Portable Carry Bag

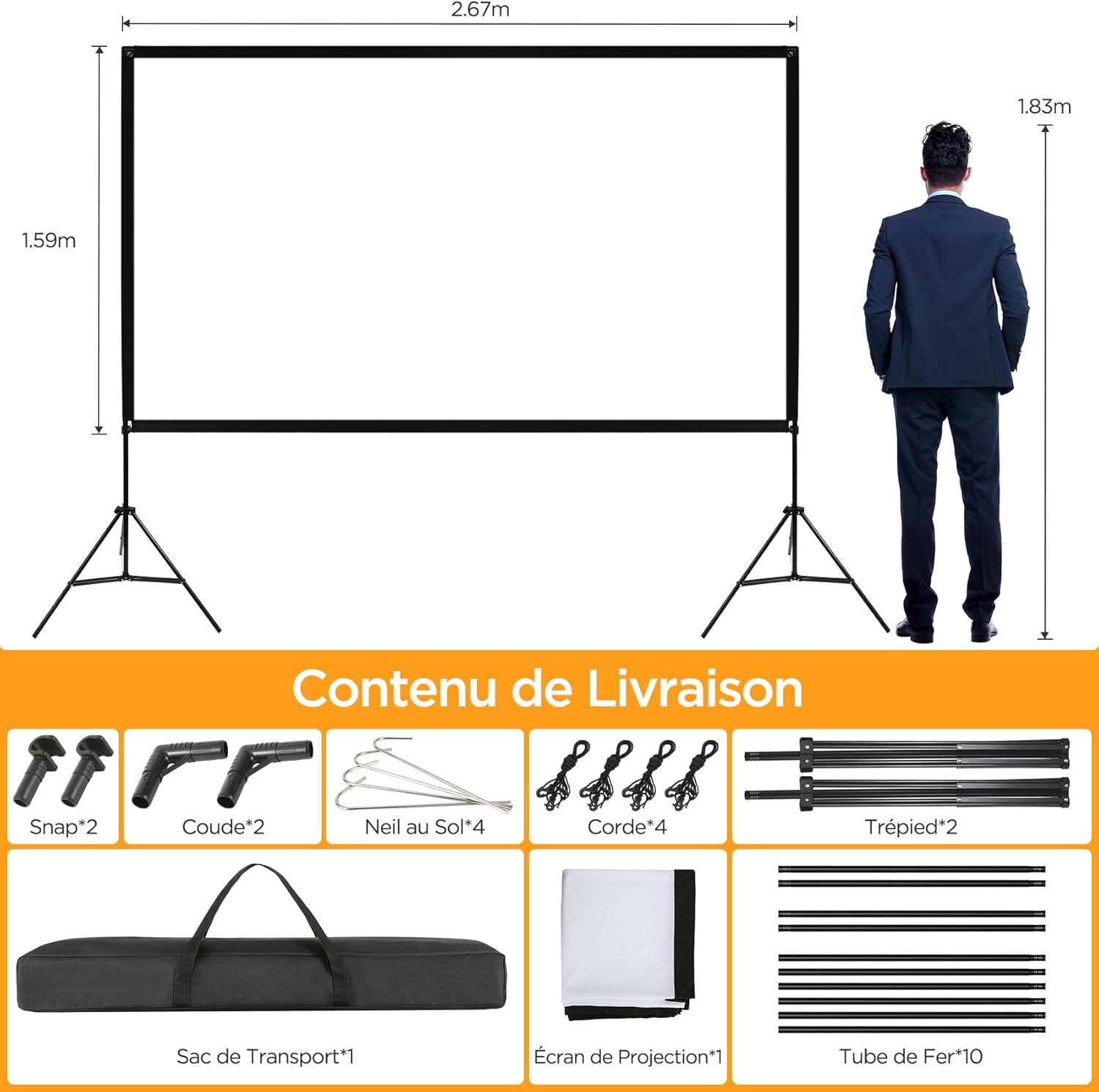

Diagram showing all components included in the VISULAPEX 120 Inch Projection Screen package: screen, two tripods, frame tubes, connectors, ground nails, ropes, and a carry bag. — Figure 1: Package Contents. This image displays all parts included with the projection screen, such as the screen fabric, tripod stands, frame poles, connectors, ground stakes, ropes, and the carrying bag.

Instrucciones de instalación

Follow these steps to assemble your projection screen. It is recommended to have two people for easier assembly.

Paso 1: Ensamble el marco

Connect the iron tubes to form the rectangular frame. Ensure all connections are secure. The tubes are designed to fit together easily.

Close-up image showing two black iron tubes connecting together to form part of the projection screen frame. — Figure 2: Joining Frame Tubes. This image illustrates how to connect the individual frame tubes to create the full screen frame.

Step 2: Set Up the Tripod Stands

Extend the legs of both tripod stands to the desired height and tighten the screws to secure them. Ensure the tripods are stable on a flat surface.

Image showing the process of extending and securing the tripod legs for the projection screen stand. — Figure 3: Adjusting Tripod Height. This image demonstrates how to extend the tripod legs and secure them at the desired height.

Step 3: Attach the Screen to the Frame and Tripods

Insert the assembled frame into the sleeves of the projection screen. Then, attach the screen frame to the top of the two tripod stands, securing them with the provided screws or connectors.

Image illustrating the attachment of the projection screen fabric to the assembled frame and then securing the frame onto the tripod stands. — Figure 4: Screen and Frame Assembly. This image shows the steps for attaching the screen fabric to the frame and mounting the entire assembly onto the tripod stands.

Step 4: Secure the Screen (Optional, for outdoor use)

For outdoor use or in windy conditions, use the ground nails and ropes to further stabilize the screen. Attach the ropes to the frame and secure them to the ground with the nails.

Diagram showing how to use Velcro fasteners on the screen and attach ropes with ground stakes for added stability, especially for outdoor use. — Figure 5: Securing the Screen. This diagram illustrates how to use the included ropes and ground nails to provide additional stability to the projection screen, particularly when used outdoors.

The screen also features Velcro fasteners along the edges to ensure a taut, wrinkle-free display surface.

A four-step visual guide demonstrating the assembly process of the projection screen, from connecting frame bars to attaching the screen to tripods and securing it. — Figure 6: Complete Assembly Steps. This image provides a comprehensive visual guide for the entire setup process of the projection screen.

Instrucciones de funcionamiento

Once assembled, the VISULAPEX projection screen is ready for use with your projector. Ensure your projector is positioned correctly to fill the screen area.

Colocación: Position the screen on a flat, stable surface. For optimal viewing, place the screen at a height where the bottom edge is comfortable for the audience.
Alineación del proyector: Align your projector lens with the center of the screen. Adjust the projector's keystone correction and zoom settings to fit the image perfectly within the screen borders.
Viewángulo de inclinación: The screen offers a wide 160° viewing angle, ensuring clear images from various positions.
Entornos de uso: This screen is suitable for indoor use (home cinema, office, training) and outdoor use (camping, parties, garden events).

A family watching a movie on the projection screen in a living room, highlighting the 160-degree wide viewángulo de ing. — Figura 7: Ancho Viewing Angle. This image demonstrates the broad 160-degree viewángulo de inclinación, lo que permite múltiples viewers to enjoy the projection clearly.

Four panels showing different usage scenarios for the projection screen: office, training, outdoor movie night, and party. — Figure 8: Versatile Usage. This image illustrates various applications for the projection screen, including office presentations, training sessions, outdoor entertainment, and parties.

Mantenimiento

Proper care and maintenance will extend the life of your projection screen.

Limpieza de la pantalla: The screen is made of natural polyester fabric and is wrinkle-free. To clean, gently wipe the surface with a soft, damp cloth. Do not use harsh chemicals or abrasive materials, as this may damage the screen surface.
Almacenamiento: When not in use, disassemble the screen and store all components in the provided portable carry bag. Store in a cool, dry place away from direct sunlight and extreme temperatures.
Prevención de arrugas: The screen material is designed to be wrinkle-free. If minor creases appear from prolonged storage, gently stretch the screen or allow it to hang for a period to naturally smooth out.

Image demonstrating the wrinkle-free and compressible nature of the projection screen material. — Figure 9: Wrinkle-Free Material. This image highlights the screen's natural polyester fabric, which resists wrinkles and can be compressed without creasing.

A man and woman loading the disassembled projection screen in its carry bag into a car trunk, showing its portability and compact storage. — Figure 10: Portable Storage. This image shows the compact size of the screen when packed into its carry bag, making it easy to transport and store.

Solución de problemas

If you encounter any issues with your projection screen, refer to the following common problems and solutions.

Problema	Posible causa	Solución
Screen is not stable.	Tripod legs not fully extended or tightened; uneven surface; windy conditions.	Ensure tripod legs are fully extended and screws are tightened. Place on a flat surface. For outdoor use, utilize ground nails and ropes for added stability.
Image appears distorted or not centered.	Projector not aligned with the screen; keystone correction needed.	Adjust projector position and use its keystone correction feature to square the image. Ensure the screen is facing the projector directly.
Screen surface has wrinkles.	Improper storage; screen not stretched tautly.	Ensure the screen is properly attached to the frame and stretched taut using the Velcro fasteners. For minor wrinkles, allow the screen to hang for a period or gently stretch it. Store the screen folded neatly in its bag.
Dificultad para montar el marco.	Tubes not aligned correctly.	Ensure each tube is inserted straight and fully into its connector. Apply gentle pressure and twist slightly if needed. Refer to the assembly diagrams.

Presupuesto

Característica	Detalle
Tamaño de pantalla	120 pulgadas (diagonal)
Relación de aspecto	16:9
Soporte de resolución	4K de alta definición
Viewángulo de ing	160 grados
Material de la pantalla	Natural Polyester Fabric (Wrinkle-free, Matte)
Material del marco	Hierro
Material del soporte	Iron (Tripod)
Dimensiones del producto (embalado)	Aproximadamente 84 cm (largo) x 17 cm (ancho) x 10 cm (alto)
Peso del artículo	3.9 kilogramos
Tipo de montaje	Trípode
Número de modelo	120 pulgadas
Código Postal	794697442679

Garantía y soporte

VISULAPEX is committed to providing high-quality products and customer satisfaction.

Política de devoluciones: This product is eligible for a 30-day return policy. Please refer to your purchase platform for specific return instructions.
Servicio al cliente: For any questions, technical support, or assistance with your product, please contact our customer service team.
Correo electrónico de contacto: servicio al cliente-visulapex@outlook.com
Disponibilidad de soporte: Nuestro objetivo es responder a las consultas dentro de las 24 horas.
