VIGBODY Exercise Bike User Manual

Introducción

Thank you for choosing the VIGBODY Exercise Bike. This manual provides essential information for the safe and efficient use of your new fitness equipment. Please read it thoroughly before assembly and operation, and retain it for future reference.

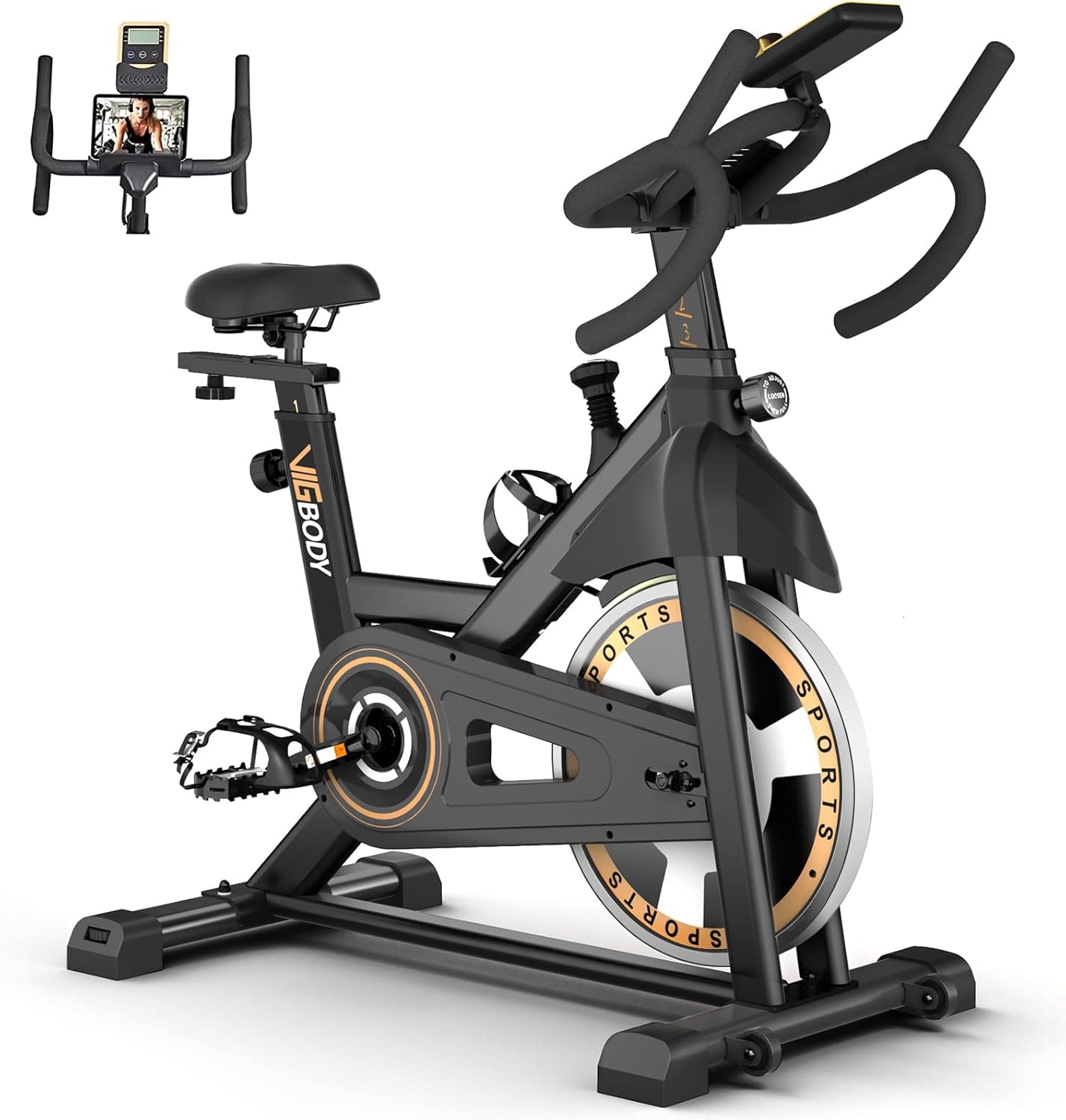

Figura 1: VIGBODY Exercise Bike. This image displays the complete VIGBODY stationary exercise bike, highlighting its robust frame, flywheel, pedals, seat, and multi-grip handlebars with an integrated device holder.

Información importante de seguridad

• Consulte a un médico antes de comenzar cualquier programa de ejercicios.
• Asegúrese de que todos los pernos y tuercas estén bien apretados antes de cada uso.
• Mantenga a los niños y las mascotas alejados del equipo durante el funcionamiento.
• Coloque la bicicleta estática sobre una superficie plana y estable.
• Use ropa y calzado deportivo adecuados.
• Deje de hacer ejercicio inmediatamente si se siente débil, mareado o experimenta dolor.
• La capacidad máxima de peso del usuario para esta bicicleta es de 350 libras.

Configuración y montaje

The VIGBODY Exercise Bike is designed for straightforward assembly. All necessary tools are included in the package. For detailed visual guidance, an online instruction video is available.

1. Desembalaje: Carefully remove all components from the packaging. Verify that all parts listed in the assembly manual are present.
2. Estabilización de la base: Attach the front and rear stabilizer bars to the main frame. Ensure they are securely fastened. The bike features floor levelers to adapt to uneven surfaces.
3. Instalación de pedales: Identifique los pedales izquierdo (L) y derecho (R). Enrosque el pedal izquierdo en sentido antihorario y el derecho en sentido horario en sus respectivas bielas. Apriételos firmemente.
4. Seat and Handlebar Post Installation: Insert the seat post and handlebar post into the main frame. Do not tighten fully yet, as adjustments will be made during operation setup.
5. Handlebar and Monitor Attachment: Secure the multi-grip handlebar to its post. Attach the LCD monitor to the designated slot on the handlebar post and connect any necessary sensor cables.
6. Comprobaciones finales: Una vez ensamblado, verifique nuevamente todos los pernos y conexiones para asegurarse de que estén ajustados y seguros.

Figura 2: Moving the Exercise Bike. This image demonstrates how to tilt and move the VIGBODY exercise bike using its integrated transport wheels, making it easy to reposition within a room.

Instrucciones de funcionamiento

Ajuste del asiento y del manillar

Proper adjustment of the seat and handlebar is crucial for comfort and effective exercise. The VIGBODY bike accommodates users from 4'5" to 6'2" tall.

• Ajuste del asiento: The seat offers 7 levels of vertical adjustment (inseam height 31.8-38.5 inches). Loosen the adjustment knob, slide the seat to the desired height, and re-tighten securely. The seat can also be adjusted horizontally.
• Ajuste del manillar: The handlebar provides 5 levels of vertical adjustment (height 43.6-47.3 inches). Loosen the adjustment knob, raise or lower the handlebar to a comfortable position, and re-tighten.

Figura 3: Adjustable Components. This image illustrates the adjustable seat and handlebar of the VIGBODY exercise bike, showing the range of height adjustments for both components to accommodate various user heights.

Control de resistencia

The bike features an adjustable resistance rotary knob to simulate different terrains and intensity levels.

• Incrementarasing Resistencia: Turn the rotary knob clockwise to increase the resistance.
• Decreasing Resistencia: Turn the rotary knob counter-clockwise to decrease the resistance.
• Parada de emergencia: Press down firmly on the resistance bar to engage the emergency brake and stop the flywheel immediately.

Funciones del monitor digital

The integrated LCD monitor tracks your workout data, helping you monitor progress.

Figura 4: Digital Monitor and Handlebar. This image highlights the digital monitor displaying workout metrics and the multi-grip handlebar, indicating different hand positions for various riding modes like climbing, off-road, and flatland.

• TIEMPO: Muestra la duración de su entrenamiento actual.
• VELOCIDAD: Muestra tu velocidad de ciclismo actual.
• DISTANCIA: Realiza un seguimiento de la distancia recorrida durante la sesión.
• CALORIAS: Calcula las calorías quemadas durante tu entrenamiento.
• CUENTAKILÓMETROS: Registra la distancia total acumulada.
• ESCANEAR: Recorre todas las funciones automáticamente.

Refer to the monitor's specific instructions for details on resetting values and mode selection.

Pedals and Device Holder

• pedales: The cage pedals feature adjustable straps to secure your feet, preventing slipping during intense workouts. Adjust the straps for a snug fit.
• Titular del dispositivo: An integrated holder is provided for your iPad or phone, allowing you to enjoy entertainment or follow workout programs while exercising.
• Titular de la botella de agua: A convenient holder is included to keep your water bottle within reach for hydration during your workout.

Figura 5: Upgraded Seat Cushion. This image details the ergonomic design of the VIGBODY exercise bike's seat cushion, emphasizing its comfortable material, large area, breathability, high elasticity, and shock absorption features for enhanced user comfort.

Mantenimiento

Regular maintenance ensures the longevity and safe operation of your VIGBODY Exercise Bike.

• Limpieza: Limpie la bicicleta con un anuncioamp Limpie el paño después de cada uso para eliminar el sudor y el polvo. Evite los limpiadores abrasivos.
• Inspección: Revise periódicamente todos los pernos, tuercas y piezas móviles para comprobar su apriete y desgaste. Apriete los sujetadores sueltos.
• Sistema de cinturones: The bike features a belt-driven system designed for quiet and smooth operation with minimal maintenance. No lubrication is typically required for the belt.
• Almacenamiento: Guarde la bicicleta en un lugar seco y fresco, alejado de la luz solar directa y de temperaturas extremas.

Figura 6: Silent Operation. This image highlights the VIGBODY exercise bike's silent riding features, including a quiet belt drive system and silent brake mechanism, ensuring minimal noise during use.

Solución de problemas

If you encounter any issues with your VIGBODY Exercise Bike, refer to the following common solutions:

• Bike is unstable: Ensure the bike is on a flat surface. Adjust the floor levelers on the stabilizer bars until the bike is stable.
• Squeaking or grinding noise: Check all bolts and nuts for tightness, especially around the pedals, crank arms, and flywheel. Ensure no foreign objects are interfering with moving parts.
• Monitor not displaying data: Check the battery in the LCD monitor. Ensure all sensor cables are securely connected.
• La resistencia no cambia: Verify that the resistance rotary knob is functioning correctly and the resistance mechanism is properly engaged with the flywheel.

For issues not covered here, or if problems persist, please contact VIGBODY customer support.

Presupuesto

Garantía y atención al cliente

VIGBODY stands behind the quality of its products. Your VIGBODY Exercise Bike comes with a Garantía de reemplazo de piezas de 12 meses.

For any questions, concerns, or warranty claims, please contact our customer service team. We aim to respond to all inquiries within 24 hours.

Cómo contactar con el servicio de asistencia:

• Inicie sesión en su cuenta de Amazon.
• Vaya a "Sus pedidos".
• Locate the order ID for your VIGBODY Exercise Bike.
• Haga clic en "Contactar al vendedor".

Additionally, factory engineer video guidance is available for professional assistance with assembly or operational queries.
