Introducción
Gracias por la compraasing the HIRESC 70-inch 3-Sided Electric Fireplace. This manual provides essential information for the safe operation, installation, and maintenance of your new electric fireplace. Please read this manual thoroughly before installation and use, and retain it for future reference.
Información importante de seguridad
Siga siempre las precauciones básicas de seguridad al utilizar aparatos eléctricos para reducir el riesgo de incendio, descarga eléctrica y lesiones a las personas.
- Lea todas las instrucciones antes de usar esta chimenea.
- Esta chimenea está caliente cuando está en uso. Para evitar quemaduras, no permita que la piel desnuda toque superficies calientes.
- Es necesario extremar las precauciones cuando cualquier calefactor sea utilizado por niños o inválidos o cerca de ellos y siempre que la chimenea se deje en funcionamiento y desatendida.
- Do not operate any fireplace with a damaged cord or plug or after the fireplace malfunctions or has been dropped or damaged in any manner.
- No utilizar en exteriores.
- Evite colocar el cable de alimentación debajo de alfombras o cubrirlo con tapetes, alfombras o cobertores similares.
- Conéctelo únicamente a tomas de corriente debidamente conectadas a tierra.
- No inserte ni permita que objetos extraños ingresen en ninguna abertura de ventilación o escape ya que esto puede provocar una descarga eléctrica o un incendio, o dañar la chimenea.
- Para evitar un posible incendio, no bloquee las entradas ni los escapes de aire de ninguna manera.
- Esta chimenea contiene piezas calientes que pueden producir arcos eléctricos o chispas. No la utilice en áreas donde se utilicen o almacenen gasolina, pintura o vapores o líquidos inflamables.
- Utilice esta chimenea solo como se describe en este manual. Cualquier otro uso no recomendado por el fabricante puede provocar incendios, descargas eléctricas o lesiones a las personas.
- Enchufe siempre los calentadores directamente a un tomacorriente de pared. Nunca los utilice con un cable de extensión o una toma de corriente reubicable (tomacorriente o regleta).
Contenido del paquete
Verifique que todos los componentes estén presentes y sin daños antes de comenzar la instalación.
- Unidad de chimenea eléctrica
- 3 Paneles de vidrio
- Mando a distancia
- Sparkling Crystals
- Firelog Set
- Hardware de instalación

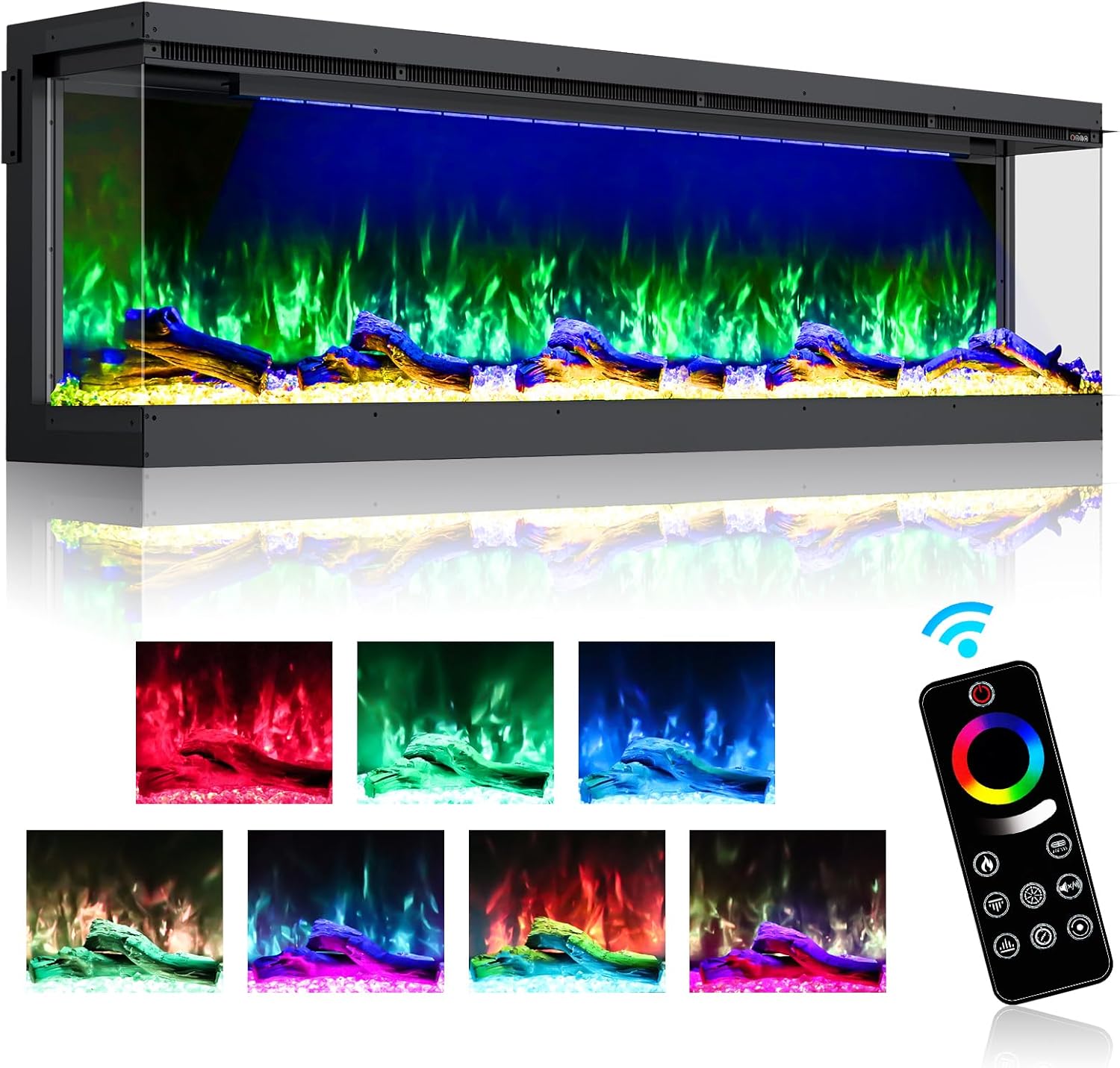

Image: The HIRESC 70-inch electric fireplace unit, showing its sleek black frame and vibrant flame effects. Below the main unit, smaller images display various flame color options and the included remote control.
Configuración e instalación
The HIRESC 70-inch electric fireplace offers versatile installation options to suit various room designs. It can be fully recessed or half-recessed into a wall or cabinet.
Dimensiones
Product Dimensions: 11"D x 70"W x 21"H. Ensure your chosen installation space accommodates these measurements.
Image: A table detailing the dimensions (Width, Depth, Height) for various fireplace sizes, with the 70-inch model highlighted. Below the table, a diagram illustrates the 70-inch fireplace's dimensions and how it fits into a wall opening, shown in a living room setting.
Tipos de instalacion
This fireplace supports multiple configurations:
- 3-Sided Installation: Allows visibility from the front, left, and right sides.
- 2-Sided Installation: Typically front and one side visible.
- Instalación de un solo lado: Only the front is visible.
- Partial-Sided Installation: A variation where part of the side is visible.
- Slide-in Cabinet Installation: Designed to fit seamlessly into custom cabinetry.
Image: Top panel shows a 2-sided installation where the fireplace is built into a wall, with the front and one side visible. Bottom panel shows a 3-sided installation, where the fireplace is placed on a low cabinet, allowing views from the front and both sides.
Image: Top panel shows a single-sided installation where the fireplace is fully recessed into a wall, with only the front visible. Bottom panel shows a partial-sided installation, where the fireplace is partially recessed into a stone wall, with the front and a portion of one side visible.
Image: The electric fireplace integrated into a modern wooden media cabinet, positioned below a television screen, demonstrating a slide-in cabinet installation.
Conexión eléctrica
The unit can be connected via a 3-prong outlet or hardwired. Consult a qualified electrician for hardwiring to ensure compliance with local electrical codes.
Instrucciones de funcionamiento
Your HIRESC electric fireplace offers multiple control methods for convenience.
Métodos de control
- Aplicación Smart Life: Connect your fireplace to the Smart Life app via WiFi for advanced control over flame colors, brightness, heating, and timer functions from your smartphone.
- Botones del panel: The fireplace unit features integrated touch screen buttons for direct control.
- Mando a distancia: Utilice el control remoto incluido para una operación conveniente a distancia.
Image: Top panel shows a close-up of the fireplace's control panel with touch buttons for Switch, Flame Brightness, Flame Color Combinations, Heater, and Reset. Bottom panel shows a person using the remote control to adjust the fireplace settings from a sofa.
Flame Effects and Lighting
The fireplace features 251 RGB LED flame combinations, offering a wide range of aesthetic options. The 3D flame effects can be used independently of the heating function.
- 251 colores RGB: Mix red, green, and blue basic colors to create diverse flame hues.
- Control separado: Flame, ember bed, and downlight can be controlled individually or together.
- 5 Levels Dimmer: Adjust flame brightness from 0-100% for desired ambiance.
Image: A visual demonstration of the 251 RGB Log & Crystal Lighting Show. It illustrates how three groups of lights (flame, ember bed, downlight) can work together or be controlled separately to create various color combinations and effects.
Funciones de calefacción
The integrated heater provides warmth for rooms up to 400 square feet.
- Temperatura ajustable: Set temperature from 62℉ to 82℉ (17℃ to 28℃).
- Configuración de energía: Choose between 750W and 1500W for energy-efficient heating.
- Funcionamiento silencioso: Designed for minimal noise, ideal for restful environments.
- Modo temporizador: Configure un temporizador de apagado automático de 1 a 8 horas.
Image: A child sleeping peacefully in a bed with the electric fireplace in the background, illustrating its quiet operation. Icons indicate a low noise level (≤28 dB) and a timer function (1 Hour to 8 Hours Timed).
Image: A family enjoying a cozy living room with the electric fireplace providing warmth. An icon indicates a large heating range of up to 400 sq ft, with temperature control from 62℉ to 82℉.
Opciones de medios
The fireplace comes with both a premium log set and sparkling crystals, allowing you to customize the ember bed appearance.
Video: This video demonstrates the various features of the 3-Sided Electric Fireplace, including its Smart WiFi and remote control capabilities, showcasing the dynamic RGB flame effects, adjustable brightness, and the realistic appearance of the log set and sparkling crystals.
Mantenimiento
El mantenimiento regular garantiza un rendimiento óptimo y la longevidad de su chimenea.
- Limpieza: Desenchufe siempre la chimenea antes de limpiarla. Utilice un paño suave y seco.amp Paño para limpiar las superficies. No utilice limpiadores ni aerosoles abrasivos.
- Paneles de vidrio: Clean glass panels with a soft cloth and glass cleaner. Avoid harsh chemicals that may scratch the surface.
- Rejillas de ventilación: Periodically check and clean the air vents to ensure proper airflow and prevent overheating. Use a vacuum cleaner with a brush attachment to remove dust.
- Almacenamiento: If storing the fireplace for an extended period, ensure it is clean and dry. Store in a cool, dry place, preferably in its original packaging.
Solución de problemas
Si tiene problemas con su chimenea, consulte los siguientes problemas y soluciones comunes:
| Problema | Posible causa | Solución |
|---|---|---|
| La chimenea no se enciende. | No hay energía, disyuntor disparado, conexión suelta. | Verifique la conexión del cable de alimentación, asegúrese de que el tomacorriente funcione y reinicie el disyuntor. |
| Sin salida de calor. | Heater function not activated, thermostat setting too low, overheating protection activated. | Activate heater function, increase thermostat setting, allow unit to cool down if overheated. |
| El efecto de llama no funciona. | Flame function not activated, LED lights malfunction. | Activate flame function via remote or panel. If issue persists, contact customer support. |
| El control remoto no funciona. | Baterías agotadas, control remoto fuera de rango, sensor bloqueado. | Replace batteries, ensure remote is within range and pointed at the fireplace, clear any obstructions. |
| Problemas de conexión WiFi. | Incorrect network password, weak signal, router issues. | Verify WiFi password, move fireplace closer to router, restart router. Refer to Smart Life app instructions for detailed setup. |
Presupuesto
- Marca: CONTRATAR
- Nombre del modelo: Electric Fireplace HSL - 70"
- Dimensiones del producto: 11" de profundidad x 70" de ancho x 21" de alto
- Material: Premium Metal, Tempered Glass
- Tipo de acabado: Negro pulido
- Tipo de instalación: Recessed in
- Fuente de energía: Corded Electric (3 Prong Outlet, Hardwired Option)
- Salida de calor: 5118 unidades térmicas británicas (BTU)
- Consumo de energía: 750 W / 1500 W
- Cobertura de calefacción: Hasta 400 pies cuadrados
- Rango de temperatura: 62 ℉ a 82 ℉
- Características especiales: 251 RGB LED Flame Colors, 5-level Dimmer, Smart WiFi Control (Smart Life App), Remote Control, Timer (1-8 hours), Quiet Operation, Log Set, Crystals
- Peso del artículo: 131.6 libras
- Certificaciones: Certificado ETL
Información de garantía
This HIRESC electric fireplace comes with a limited warranty. Please refer to the warranty card included with your product or contact HIRESC customer support for specific details regarding coverage and duration. Keep your purchase receipt as proof of purchase for warranty claims.
Atención al cliente
For any questions, technical assistance, or warranty inquiries, please contact HIRESC customer support. You can also visit the official HIRESC store on Amazon for more information and resources:
