AXI Lucas Container Enclosure Instruction Manual

1. Introducción

Thank you for choosing the AXI Lucas Container Enclosure. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor storage solution. This enclosure is designed to discreetly store up to three standard waste containers, each with a maximum capacity of 240 liters, offering a tidy and aesthetically pleasing solution for your outdoor space.

Please read these instructions carefully before beginning assembly and retain them for future reference.

Image 1: The AXI Lucas Container Enclosure for three waste bins, shown in an outdoor garden environment.

2. Información de seguridad

• Siga siempre atentamente todas las instrucciones de montaje. Un montaje incorrecto puede provocar inestabilidad y posibles lesiones.
• Asegúrese de que todos los sujetadores estén bien apretados durante el montaje. Revíselos periódicamente y ajústelos según sea necesario.
• Mantenga a los niños y las mascotas alejados del área de montaje para evitar accidentes.
• Use appropriate personal protective equipment (e.g., gloves) during assembly to avoid cuts or pinches.
• Do not overload the enclosure or place excessively heavy items on the lids.
• Be aware of pinch points when opening and closing the lids and doors, especially with the gas springs.
• Position the enclosure on a level, stable surface to prevent tipping.

3. Contenido del paquete

Before starting assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

Los componentes esperados incluyen:

• Frame components (metal profiles)
• Side panels, back panel, and front door panels (anthracite/wood-look)
• Top lids with integrated handles
• Gas springs and shock absorbers
• Door locks with keys
• Pestillos magnéticos
• Connecting chains for waste bin lids
• Assembly hardware (screws, bolts, nuts, washers, pins)

4. Configuración y montaje

Assembly typically requires two people. Ensure you have adequate space and the necessary tools (e.g., screwdriver, wrench) before beginning.

4.1 Desembalaje e identificación de piezas

1. Desempaquete con cuidado todos los componentes del embalaje.
2. Lay out all parts and compare them against the package contents list to ensure everything is present.
3. Identify the different frame sections, panels, and hardware.

4.2 Montaje del marco

1. Begin by assembling the base frame using the provided bolts and nuts. Do not fully tighten all fasteners until the entire frame is assembled.
2. Attach the vertical frame posts to the base.
3. Connect the top frame sections to the vertical posts. Ensure the frame is square and stable before tightening all connections.

4.3 Instalación de paneles

1. Slide or attach the side and back panels into the designated grooves or mounting points on the frame.
2. Install the front door panels. Ensure they swing freely and align correctly.
3. Attach the door locks and magnetic latches as per the detailed diagrams in the manufacturer's specific assembly guide (not provided here).

Image 2: Detail of an assembly pin or stopper, used to secure components during construction.

4.4 Lid and Gas Spring Attachment

1. Attach the top lids to the frame using the provided hinges.
2. Install the gas springs according to the instructions. These assist in smooth opening and closing of the lids.
3. Connect the small chains from the enclosure lid to the lid of your waste bins. This allows the bin lid to open automatically when the enclosure lid is lifted.

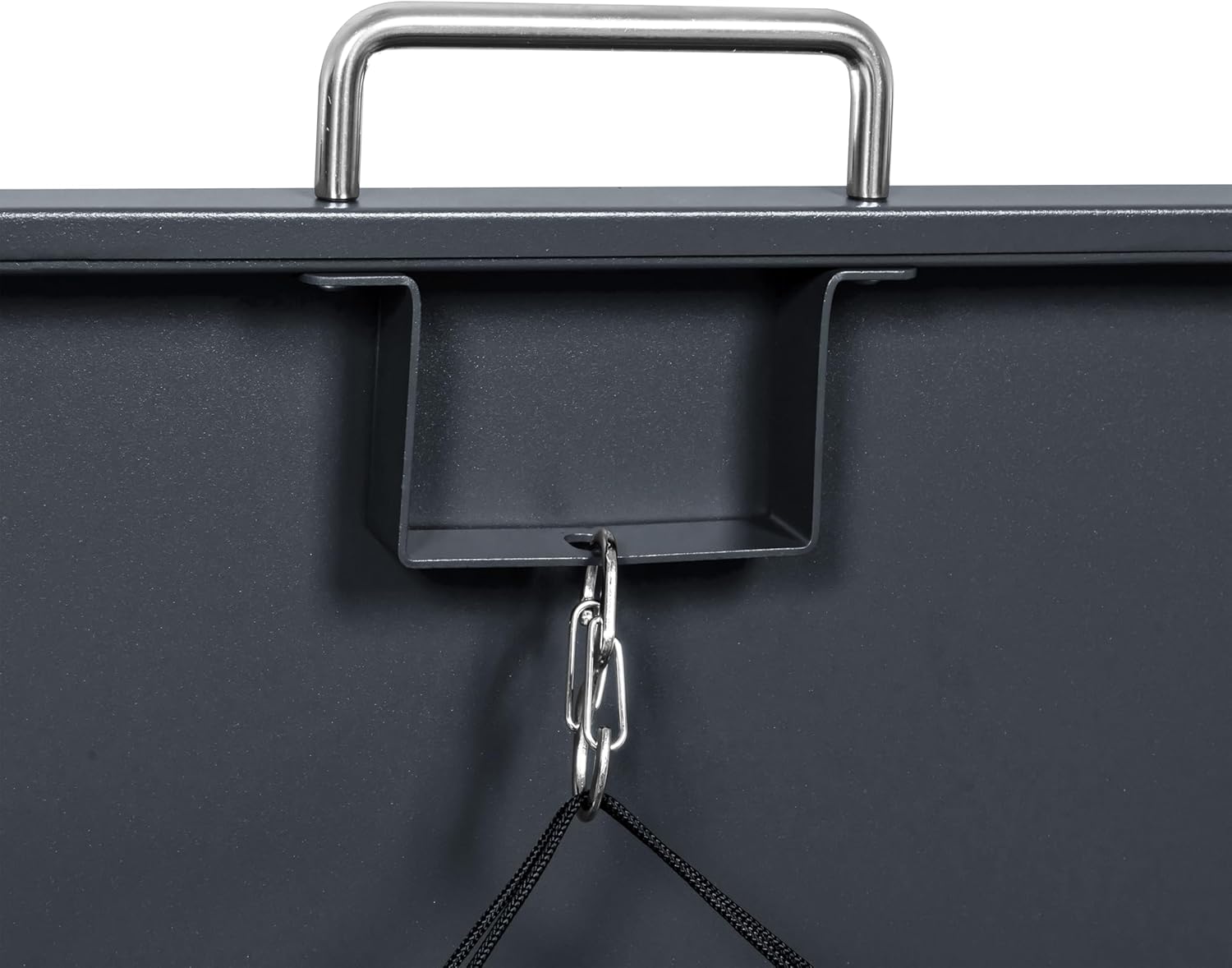

Image 3: The chain mechanism, designed to link the enclosure lid with the waste bin lid for synchronized opening.

4.5 Comprobaciones finales

1. Ensure all screws, bolts, and fasteners are fully tightened.
2. Check that all doors and lids open and close smoothly without obstruction.
3. Verify the enclosure is stable and level on its intended surface.

5. Instrucciones de funcionamiento

5.1 Placing Waste Containers

1. Unlock the front door(s) using the provided key.
2. Open the door(s) fully.
3. Roll your waste container(s) into the enclosure. Ensure they are positioned centrally.
4. Close and lock the door(s). The magnetic latch will help keep the door closed even before locking.

Image 4: Detail of the door lock, showing the key insertion point for securing the enclosure.

Image 5: The magnetic latch mechanism, providing additional security and keeping the door closed when unlocked.

5.2 Eliminación de residuos

1. Lift the top lid of the enclosure. The gas springs will assist in opening and holding it open.
2. If the chain is connected, the waste bin lid inside will also open.
3. Dispose of your waste into the container.
4. Gently lower the enclosure lid until it closes securely.

5.3 Removing Waste Containers

1. Unlock and open the front door(s).
2. Roll the waste container(s) out for collection.
3. After collection, roll the container(s) back into the enclosure.
4. Close and lock the door(s).

6. Mantenimiento

• Limpieza: Clean the enclosure regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder coating or wood-look finish. Rinse thoroughly and dry.
• Comprobación del hardware: Periodically inspect all screws, bolts, and hinges for tightness. Re-tighten any loose fasteners to ensure structural integrity.
• Gas Springs: Check the gas springs for smooth operation. If they become stiff or fail to hold the lid open, they may need replacement.
• Locks and Latches: Ensure the locks and magnetic latches function correctly. Lubricate locks with a suitable graphite lubricant if they become stiff.
• Drenaje: Ensure the area around the enclosure allows for proper water drainage to prevent standing water.

7. Solución de problemas

• Lids do not open smoothly or stay open: Check the gas springs for proper installation and function. Ensure no obstructions are preventing full movement.
• Las puertas no cierran correctamente: Verify that the enclosure is on a level surface. Check hinges for damage or misalignment. Ensure the magnetic latch and lock mechanism are aligned and free of debris.
• El recinto se siente inestable: Re-check all frame connections and ensure all fasteners are securely tightened. Confirm the enclosure is placed on a firm, level surface.
• Waste bin lid not opening with enclosure lid: Ensure the connecting chain is properly attached to both the enclosure lid and the waste bin lid. Check for tangles or obstructions.

8. Especificaciones

Image 6: Technical drawing illustrating the overall dimensions of the 3-container enclosure.

9. Garantía y soporte

For warranty information, please refer to the terms and conditions provided at the point of purchase or visit the official AXI webSitio. Conserve su comprobante de compra para cualquier reclamación de garantía.

If you require further assistance, have questions about assembly, or need to report a missing/damaged part, please contact AXI customer support. You can often find support contact details on the manufacturer's websitio o a través del minorista donde compró el producto.

You can also visit the AXI Store for more product information: AXI Store on Amazon
