EcoFlow ZMS331-2-AKIT-2 100W Rigid Solar Panel User Manual

1. Introducción

This manual provides detailed instructions for the installation, operation, and maintenance of your EcoFlow ZMS331-2-AKIT-2 100W Rigid Solar Panel. This high-efficiency monocrystalline solar panel is designed for durability and versatile applications, offering up to 23% conversion efficiency. Please read this manual thoroughly before using the product to ensure proper function and safety.

The EcoFlow 100W Rigid Solar Panel is built with robust materials to withstand various weather conditions, providing reliable power generation for years. Its universal compatibility, featuring an MC4 connector, allows it to integrate seamlessly with EcoFlow Power Kits and other third-party solar systems.

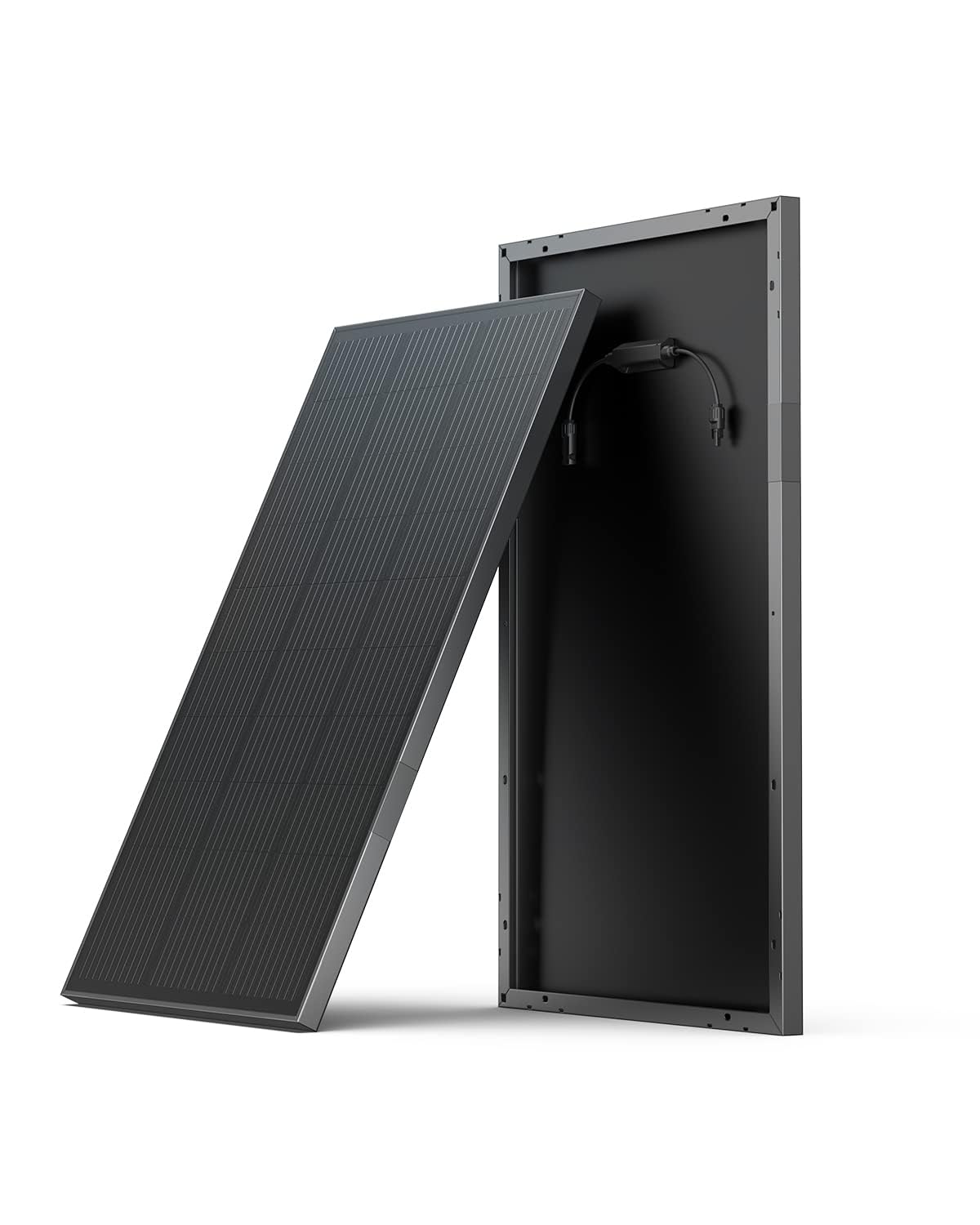

Image 1.1: EcoFlow 100W Rigid Solar Panel (2-pack shown)

2. Producto terminadoview

The EcoFlow 100W Rigid Solar Panel is engineered for optimal performance and longevity. Key features include:

• Alta eficiencia: Up to 23% conversion efficiency thanks to advanced monocrystalline cell technology.
• Construcción duradera: Made with aluminum, monocrystalline silicon, and tempered glass for robust weather resistance.
• Resistente a la intemperie: IP68 rated for protection against dust, dirt, debris, and water.
• Fácil instalación: Pre-drilled slots for secure mounting.
• Compatibilidad universal: Equipped with an MC4 connector for broad system integration.

2.1 Panel Structure

The panel features a multi-layered design for enhanced durability and performance:

Image 2.1: High-End and Durable Design. The panel consists of highly protective lamination and tempered glass, EVA film, a monocrystalline solar cell, another layer of EVA film, a weather-reinforced back plate, and an anodized aluminum frame.

2.2 Dimensiones y peso

Image 2.2: Panel dimensions are approximately 98 cm x 58.6 cm x 3 cm (38.58"L x 23.07"W x 1.18"H), and it weighs 6.21 kg.

3. Configuración e instalación

The EcoFlow 100W Rigid Solar Panel is designed for straightforward installation. It features pre-drilled slots for secure mounting on various surfaces.

3.1 opciones de montaje

The panel can be securely mounted using tiltable supports and Z-brackets. The pre-drilled mounting holes ensure a perfect fit for installation.

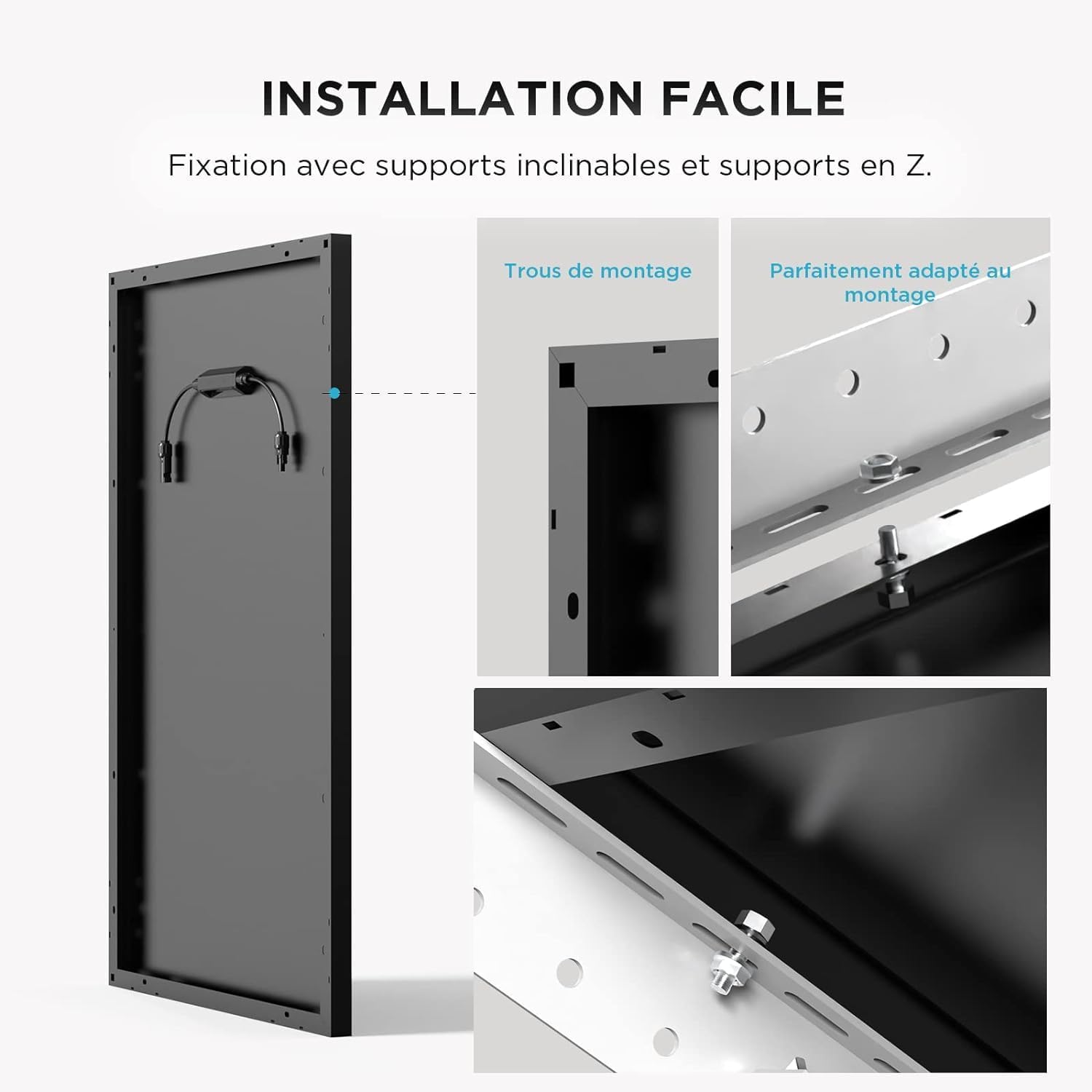

Image 3.1: Easy Installation. The panel features mounting holes and is perfectly adapted for attachment with tiltable supports and Z-brackets.

3.2 Aplicaciones recomendadas

The rigid design makes these panels suitable for permanent or semi-permanent installations in various environments:

• Autocaravanas y Campfurgonetas
• Building Roofs (e.g., homes, sheds, cabins)
• Boats and Marine Applications
• Off-grid Cabins and Small Homes

Image 3.2: Adapted to Your Environment. Examples include RVs, roofs, boats, and small houses.

Nota: Solar panel cables (e.g., XT60 charging cable, 3m solar extension cable, parallel connection cable) are not included with this product and must be purchased separately.

4. Instrucciones de funcionamiento

To operate your EcoFlow 100W Rigid Solar Panel, connect it to a compatible power station or solar system.

4.1 Connecting to a Power System

1. Ensure the solar panel is positioned in direct sunlight for maximum efficiency.
2. Connect the MC4 connector from the solar panel to the appropriate input port on your power station or solar charge controller.
3. Verify that the power station or charge controller indicates active charging.

The panel's high efficiency of up to 23% ensures rapid charging of your connected batteries.

Image 4.1: High Efficiency. Thanks to high-purity silicon, the conversion efficiency reaches 23%.

4.2 Integration with EcoFlow Power Kits

The EcoFlow 100W Rigid Solar Panel is ideal for integration with EcoFlow Power Kits, providing a seamless and efficient power solution.

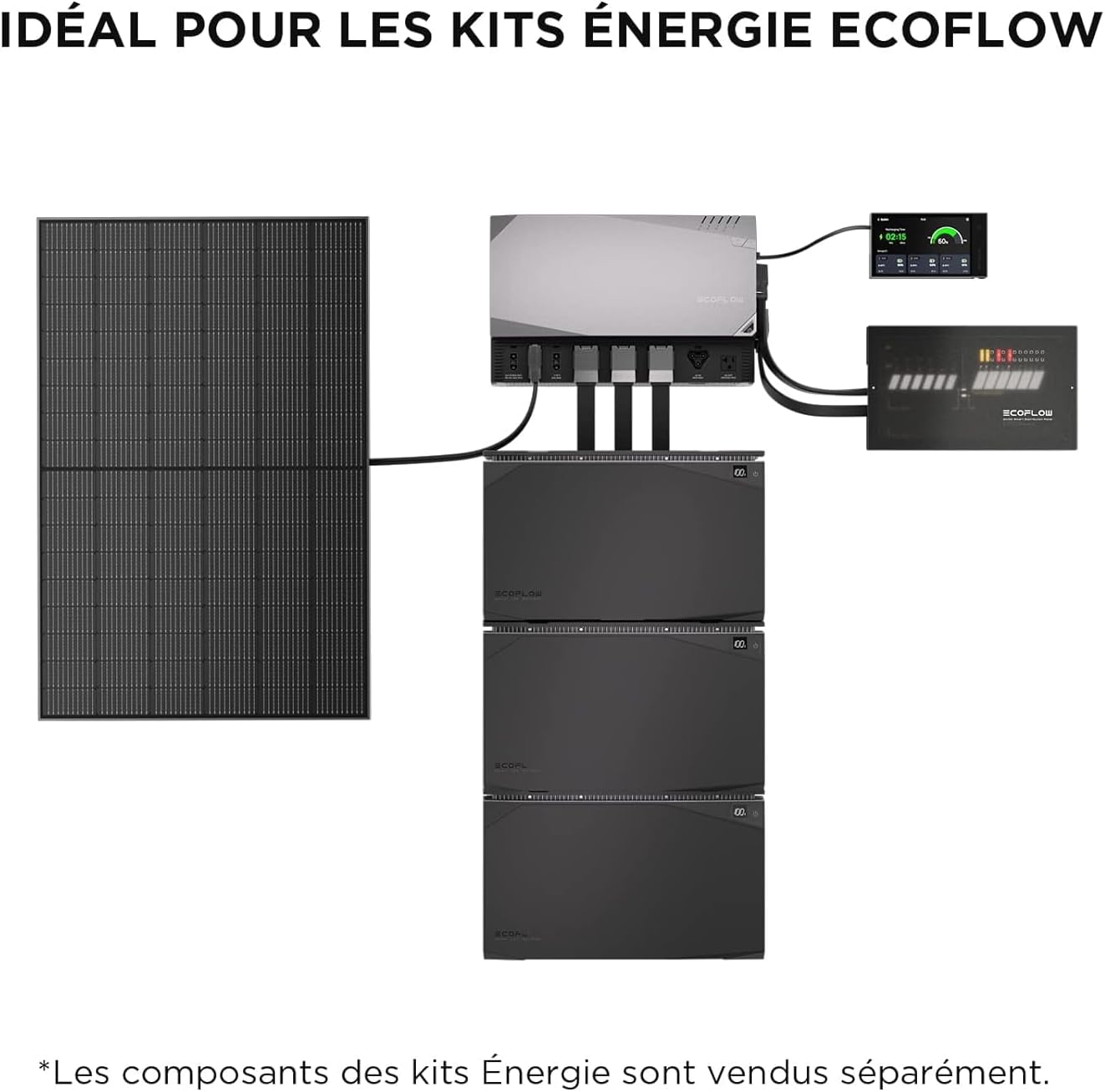

Image 4.2: Ideal for EcoFlow Power Kits. The solar panel connects to an EcoFlow Power Kit system. Note: Power Kit components are sold separately.

5. Mantenimiento

El mantenimiento regular garantiza la longevidad y el rendimiento óptimo de sus paneles solares.

5.1 Limpieza

• Periodically inspect the panel surface for dirt, dust, leaves, or other debris that may obstruct sunlight.
• Clean the panel surface with a soft cloth and mild, non-abrasive cleaning solution. Avoid harsh chemicals or abrasive materials that could scratch the tempered glass.
• Enjuagar con agua limpia y dejar secar al aire.

5.2 Resistencia a la intemperie

The EcoFlow 100W Rigid Solar Panel is designed to be weather-resistant with an IP68 rating, protecting it from dust and water ingress.

Image 5.1: Ready for All Weather. The IP68 rating ensures resistance to dirt, dust, debris, and is waterproof.

5.3 Inspección

• Compruebe periódicamente todas las conexiones para comprobar su estanqueidad y ausencia de corrosión.
• Inspect the panel frame and mounting hardware for any signs of damage or wear.

6. Solución de problemas

If your solar panel is not performing as expected, consider the following common issues and solutions:

• Sin salida de potencia:
  • Asegúrese de que el panel esté expuesto a la luz solar directa y no a la sombra.
  • Verifique que todas las conexiones de cables estén correctamente asentadas y no presenten daños.
  • Verify that the connected power station or charge controller is functioning correctly.
• Baja potencia de salida:
  • Limpie la superficie del panel para eliminar cualquier suciedad o residuo.
  • Adjust the panel's angle to optimize exposure to the sun.
  • Ensure no partial shading is occurring (even small shadows can significantly reduce output).
• Daño físico:
  • If the tempered glass is cracked or the frame is bent, contact EcoFlow support for assistance. Do not attempt to repair it yourself.

7. Especificaciones

8. Garantía y soporte

For warranty information and customer support, please refer to the official EcoFlow webSitio web o contacte directamente con el servicio de atención al cliente. Conserve su recibo de compra como comprobante para cualquier reclamación de garantía.

If you require additional accessories such as XT60 charging cables, solar extension cables, or parallel connection cables, these can typically be purchased from authorized EcoFlow retailers or their online store.
