Baseus A5 16000Pa Cordless Car Vacuum Cleaner User Manual

Introducción

Thank you for choosing the Baseus A5 16000Pa Cordless Car Vacuum Cleaner. This compact and powerful device is designed for efficient cleaning of car interiors and other small spaces. Featuring a robust 16000Pa suction, a washable HEPA filter, and versatile nozzles, it provides a convenient solution for maintaining cleanliness. Please read this manual carefully to ensure proper use, maintenance, and optimal performance of your vacuum cleaner.

¿Qué hay en la caja?

Upon unboxing your Baseus A5 Cordless Car Vacuum Cleaner, please verify that all components listed below are present:

• Baseus A5 Cordless Car Vacuum Cleaner Unit
• Boquilla para grietas
• Boquilla de succión
• Brush + Suction Nozzle
• Air Pumping Nozzle
• Cable de carga USB
• Manual de usuario (este documento)

Image: Contents of the Baseus A5 package, showing the main unit, multiple nozzles, and charging cable.

Configuración

Carga del dispositivo

Before first use, fully charge the vacuum cleaner. Connect the provided USB charging cable to the charging port on the device and to a compatible USB power source (e.g., car USB port, wall adapter). The charging indicator will show the charging status. A full charge typically takes approximately 30 minutes and provides up to 30 minutes of runtime.

Colocación de boquillas

To attach a nozzle, align the desired nozzle with the suction opening of the vacuum cleaner and push firmly until it clicks into place. Ensure a secure connection for optimal suction.

Image: The Baseus A5 vacuum cleaner connected to a USB charging cable.

Instrucciones de funcionamiento

Modos de encendido/apagado y succión

Press the power button to turn on the vacuum cleaner. The device may have multiple suction modes. Press the power button again to cycle through available modes (e.g., standard, ECO mode). Press and hold the power button to turn off the device.

Uso de las boquillas

• Boquilla para rincones: Ideal for reaching tight spaces, corners, and gaps in car seats or upholstery.
• Boquilla de succión: Suitable for general dust cleaning on various surfaces like seats, sofas, and cabinet corners.
• Brush + Suction Nozzle: Best for removing dust from cushion surfaces, carpeted areas, air conditioning vents, and other textured surfaces.
• Air Pumping Nozzle: Install this nozzle to use the vacuum cleaner for vacuum compression, such as for storage bags or inflatables, saving space.

Image: Illustration of the different nozzles and their recommended uses for the Baseus A5 vacuum cleaner.

Image: The Baseus A5 vacuum cleaner demonstrating its 12000Pa suction power in ECO mode.

Image: The Baseus A5 vacuum cleaner utilizing its air pumping nozzle for vacuum compression, useful for storage.

Mantenimiento

Vaciar el cubo de basura

To maintain optimal suction and prevent blockages, empty the dustbin regularly. Press the release button to detach the dustbin from the main unit. Dispose of the collected debris and reattach the dustbin securely.

Limpieza del filtro HEPA

The Baseus A5 features a washable and reusable HEPA filter. After emptying the dustbin, remove the HEPA filter. Rinse it under running water until clean. Ensure the filter is completely dry before reinserting it into the vacuum cleaner. Regular cleaning of the filter is crucial for maintaining high filtration efficiency.

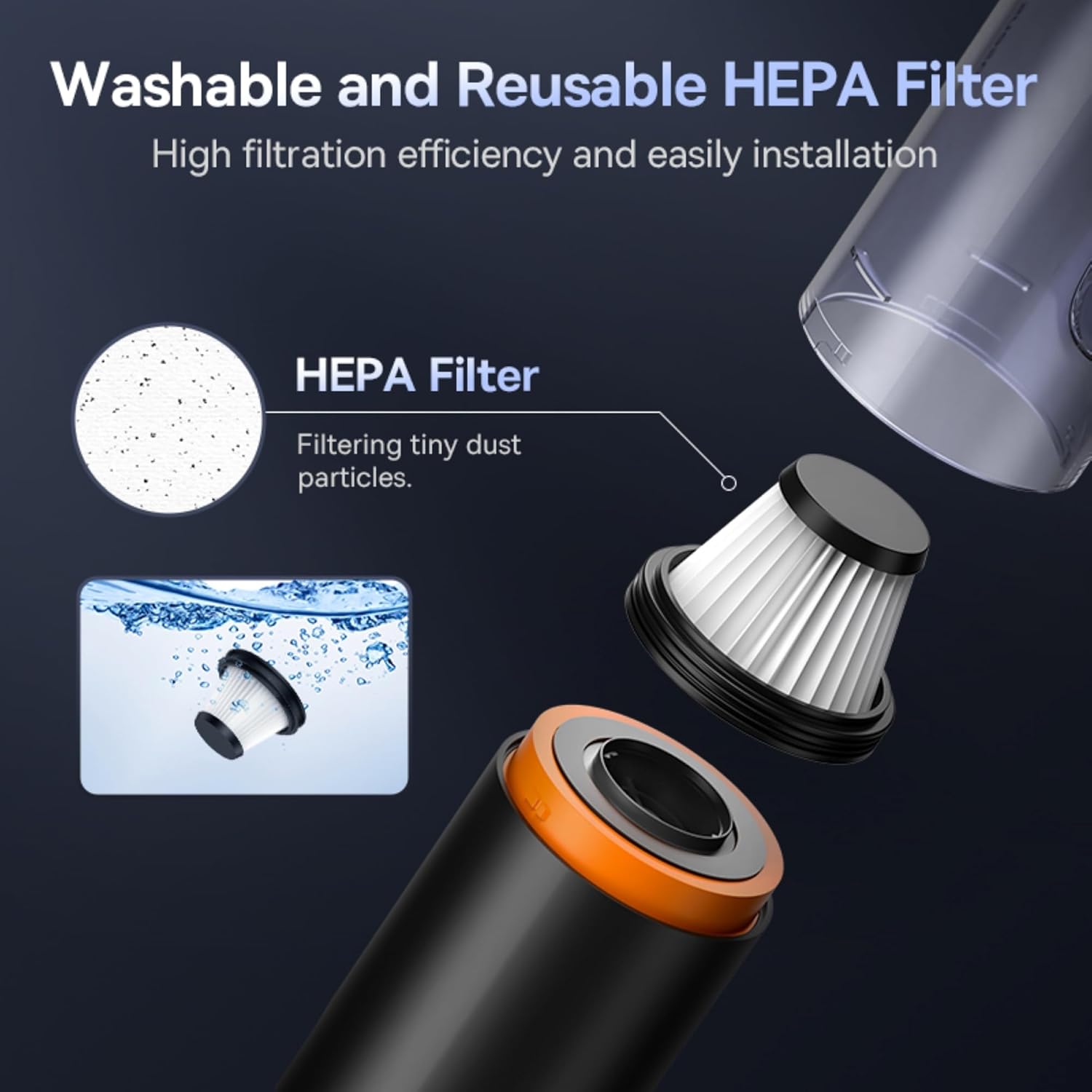

Image: The washable HEPA filter of the Baseus A5, demonstrating its easy removal and cleaning process.

Image: The dust-air separate design of the Baseus A5, which exhausts dust and air separately to avoid secondary pollution.

Solución de problemas

• Baja potencia de succión: Check if the dustbin is full and empty it if necessary. Ensure the HEPA filter is clean and properly installed. Verify that no nozzles or the main suction inlet are blocked.
• Duración corta de la batería: Ensure the device is fully charged before use. Battery performance can vary based on the selected suction mode and age of the battery.
• El dispositivo no se enciende: Confirm the battery is charged. If the device still does not turn on, ensure the power button is pressed correctly.
• Smart Blockage Alert: If the device indicates a blockage, immediately turn it off. Inspect the dustbin, filter, and nozzles for any obstructions and clear them before resuming operation.

Image: The Baseus A5 vacuum cleaner highlighting its easy dust emptying mechanism and smart blockage alert system.

Presupuesto

Garantía y soporte

The Baseus A5 16000Pa Cordless Car Vacuum Cleaner comes with a Garantía del fabricante de 2 años. For warranty claims, technical support, or any product-related inquiries, please refer to the contact information provided in your product packaging or visit the official Baseus store on Amazon: Tienda Baseus en Amazon.
