1. Introducción
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Luminous Ultra Charge UCTT-18066 Tall Tubular Inverter Battery. Please read this manual thoroughly before using the product and retain it for future reference. This battery is designed to provide reliable power backup for residential and commercial applications.
Figure 1: Luminous Ultra Charge UCTT-18066 Tall Tubular Inverter Battery. This image shows the overall design of the battery unit.
2. Información de seguridad
Observe siempre las siguientes precauciones de seguridad para evitar lesiones o daños a la batería y al equipo conectado:
- Use equipo de protección: Always wear safety glasses and gloves when handling the battery, especially during installation or maintenance.
- Ventilación: Install the battery in a well-ventilated area to allow for the dissipation of gases produced during charging. Avoid enclosed spaces.
- Materiales inflamables: Keep the battery away from open flames, sparks, and flammable materials. Batteries produce hydrogen gas, which is highly flammable.
- Choque eléctrico: Do not touch the battery terminals with bare hands or metal objects. High voltage can cause severe electrical shock.
- Conexiones adecuadas: Ensure all connections are tight and correct (positive to positive, negative to negative) to prevent short circuits and damage.
- Niños y mascotas: Mantenga la batería fuera del alcance de los niños y las mascotas.
- Spill-Proof Tray: Utilize the spill-proof tray provided to contain any electrolyte leakage.
Figure 2: The battery features pure lead plates, a ribbed durable container, DSIR approved design, and a spill-proof tray for enhanced safety and durability.
3. Configuración
3.1 Desembalaje e inspección
- Retire con cuidado la batería de su embalaje.
- Inspect the battery for any visible damage during transit. Contact your supplier immediately if any damage is found.
- Ensure all accessories, such as terminal caps and the spill-proof tray, are present.
3.2 Colocación
- Place the battery on a flat, level, and sturdy surface.
- Ensure the location is well-ventilated and away from direct sunlight, heat sources, and moisture.
- Mantenga un espacio libre adecuado alrededor de la batería para que circule el aire.
3.3 Conexión de la batería
Before connecting, ensure the inverter is turned off and disconnected from the main power supply.
- Connect the positive (+) terminal of the battery to the positive (+) terminal of the inverter using the appropriate cable. Ensure a secure and tight connection.
- Connect the negative (-) terminal of the battery to the negative (-) terminal of the inverter using the appropriate cable. Ensure a secure and tight connection.
- Apply petroleum jelly or a suitable anti-corrosion grease to the terminals to prevent corrosion.
- Place the terminal caps securely over the connections.
3.4 Carga inicial
After connecting, turn on the inverter and allow the battery to undergo an initial full charge cycle. This ensures optimal performance from the start.
4. Instrucciones de funcionamiento
4.1 Understanding Load Capacity
The 150 Ah capacity of this battery provides significant backup power. The actual backup time will depend on the total load connected to your inverter and the inverter's capacity. Avoid overloading the inverter to ensure efficient operation and prolong battery life.
Figure 3: Illustrates common appliances and their typical load, helping users understand the battery's capacity in relation to their power needs. Load capacity is dependent on inverter capacity and concurrent load.
4.2 Uso general
- Ensure the inverter is always connected to the main power supply when available to keep the battery charged.
- Durante el poder outages, the inverter will automatically switch to battery power.
- Monitor the inverter's display for battery charge status and load levels.
- Avoid deep discharge of the battery frequently, as this can reduce its lifespan. Allow the battery to recharge fully after each discharge cycle.
4.3 Inverter and Battery Buying Guide
Refer to the following guide for typical backup times based on common household setups:

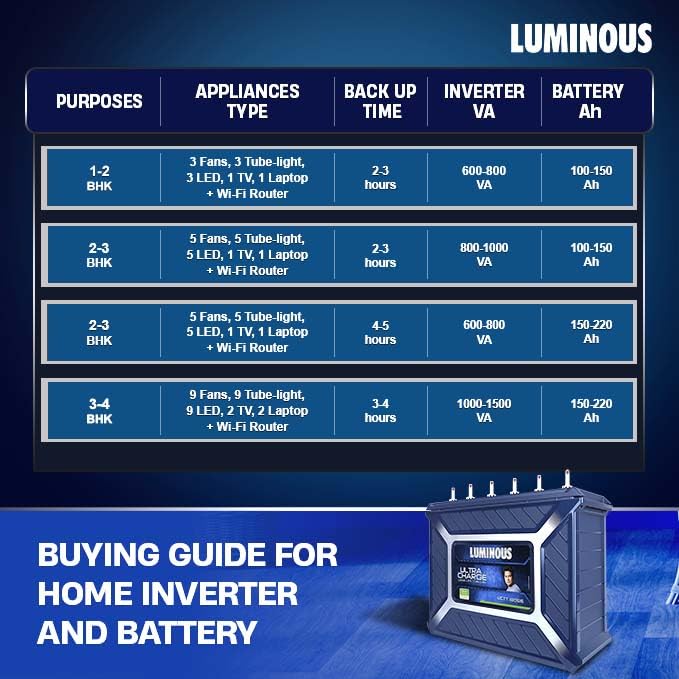

Figure 4: This table provides a buying guide for home inverter and battery combinations, showing estimated backup times for different appliance types and room configurations (BHK).
5. Mantenimiento
Regular maintenance ensures optimal performance and extends the lifespan of your Luminous Ultra Charge battery.
5.1 Water Level Check (Every 2-3 Months)
- Ensure the inverter is off and disconnected from the mains.
- Carefully remove the vent caps.
- Check the electrolyte level in each cell. It should be between the maximum and minimum level indicators.
- If the level is low, top up with only agua destilada. Do not use tap water or acid.
- Replace the vent caps securely.
5.2 Terminal Cleaning (Every 6 Months or as needed)
- Ensure the inverter is off and disconnected from the mains.
- Desconecte los terminales de la batería.
- Clean any corrosion or dirt from the terminals and cable connectors using a wire brush and a solution of baking soda and water.
- Enjuague con agua limpia y seque bien.
- Reconnect the terminals and apply petroleum jelly or anti-corrosion grease.
5.3 Ventilación
- Ensure the battery area remains well-ventilated at all times.
- Keep the area around the battery clean and free from obstructions.
5.4 Prácticas de carga
- Allow the battery to fully charge after each discharge cycle.
- Evite períodos prolongados de descarga profunda.
6. Solución de problemas
If you encounter issues with your battery, perform the following basic checks before contacting customer support:
| Problema | Posible causa | Solución |
|---|---|---|
| La batería no se carga | Loose connections, inverter fault, power outage | Check all cable connections. Verify inverter operation. Ensure main power supply is active. |
| Low backup time | Overload, low electrolyte level, battery aging | Reduce connected load. Check and top up electrolyte levels. If battery is old, consider replacement. |
| Corrosión en terminales | Lack of maintenance, acid fumes | Clean terminals as per maintenance section. Apply petroleum jelly. Ensure proper ventilation. |
| Olor o calor inusual | Overcharging, internal fault | Immediately disconnect the battery from the inverter and mains. Contact customer support. |
7. Especificaciones
Key technical specifications for the Luminous Ultra Charge UCTT-18066 Tall Tubular Inverter Battery:
- Nombre del modelo: UCTT-18066
- Marca: Luminoso
- Tipo de batería: Tall Tubular
- Capacidad de la batería: 150 Amp Horas (ah)
- Usos recomendados: Home, Shop
- Fuente de energía: Funciona con pilas
- Electrical Output Waveform (Inverter Dependent): De onda sinusoidal pura
- Frequency (Inverter Dependent): 50 Hz
- Cantidad de unidades: 1.00 Conteo
8. Garantía y soporte
8.1 Información de garantía
The Luminous Ultra Charge UCTT-18066 Tall Tubular Inverter Battery is backed by a Garantía de 66 meses. This warranty includes both pro-rata and free replacement terms. Please refer to your warranty card for detailed terms and conditions regarding coverage and claims.
8.2 Atención al cliente
For any technical assistance, service requests, or warranty claims, please contact Luminous customer support. Have your product model number (UCTT-18066) and purchase details ready when you call.
Contact information for Luminous customer support can typically be found on the product packaging, warranty card, or the official Luminous websitio.
