1. Producto terminadoview
The Generic Aquaguard Nova is an advanced water purification system designed to provide clean and safe drinking water for your home or office. It incorporates multiple purification stages including RO, UV, UF, and MTDS technologies to effectively remove impurities and enhance water quality. This manual provides essential information for the proper installation, operation, and maintenance of your water purifier.
Características principales:
- Water Saving RO Technology: Minimizes water wastage durante el proceso de purificación.
- UV E-Boiling+: Ensures sterilization of water, making it as safe as boiled water.
- Ultra Filtration (UF): Provides crystal-clear water by removing fine suspended particles.
- 4-in-1 Active Copper*#: Infuses water with beneficial minerals.
- Taste Adjuster: Allows adjustment of water taste based on source water.
- Zero Pressure Pump (ZPP): Ensures efficient operation even with low water pressure.
- Health Protect Technology: Designed for comprehensive water safety.

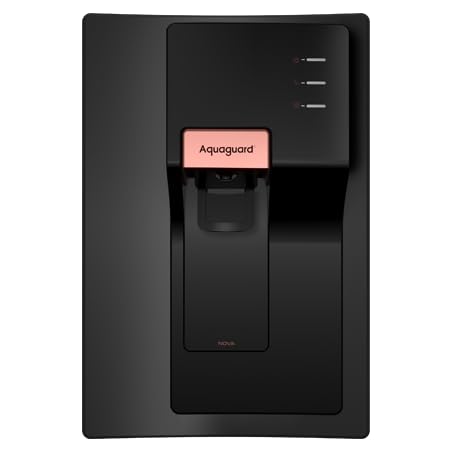

Imagen 1.1: Frente view of the Generic Aquaguard Nova Water Purifier, showcasing its sleek black design and dispenser.
2. Instrucciones de seguridad
Lea atentamente todas las instrucciones de seguridad antes de utilizar el aparato para evitar lesiones o daños. Conserve este manual para futuras consultas.
- Ensure the power supply matches the specifications (240 Volts AC, 45 Watts).
- No sumerja el aparato en agua ni en otros líquidos.
- Mantenga el purificador alejado de la luz solar directa, fuentes de calor y productos químicos corrosivos.
- Only use genuine replacement filters and parts.
- No intente reparar el aparato usted mismo. Contacte con personal de servicio técnico autorizado.
- Asegure una ventilación adecuada alrededor de la unidad.
- Este aparato está diseñado únicamente para uso en interiores.
3. Desempaquetado y contenido del paquete
Carefully unpack the water purifier and check for all included components. Retain the packaging for future transport or service needs.
El paquete incluye:
- Generic Aquaguard Nova Water Purifier Unit
- Kit de instalacion
- Manual de usuario (este documento)
4. Configuración e instalación
The Aquaguard Nova water purifier can be installed as a tabletop unit or wall-mounted. Professional installation is recommended.
Pasos de instalación:
- Elegir la ubicación: Select a clean, dry, and well-ventilated location near a water source and power outlet. Ensure the surface is flat and stable for tabletop installation, or a sturdy wall for mounting.
- Montaje en pared (opcional): If wall-mounting, use the provided template (if any) to mark drilling points. Drill holes and insert wall plugs. Secure the mounting bracket (if separate) or the unit directly using appropriate screws.
- Conectar la entrada de agua: Connect the raw water supply to the purifier's inlet port using the provided tubing and connectors. Ensure all connections are tight to prevent leaks.
- Conecte la línea de drenaje: Connect the reject water drain line to a suitable drainage point.
- Conexión de energía: Enchufe el cable de alimentación a una toma eléctrica con conexión a tierra.
- Descarga inicial: Before first use, allow the purifier to run for 10-15 minutes to flush out any manufacturing residues. Discard the first few liters of purified water.

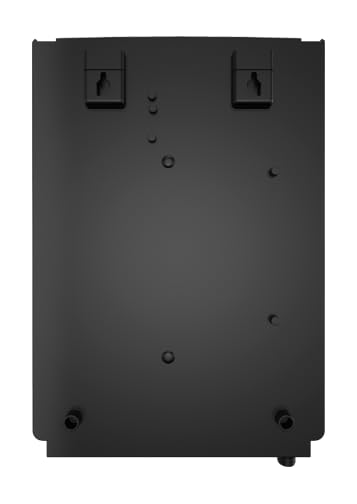

Imagen 4.1: Espalda view of the Aquaguard Nova Water Purifier, illustrating the wall mounting points and connection ports.
5. Instrucciones de funcionamiento
Once installed and flushed, your Aquaguard Nova water purifier is ready for use.
Operación básica:
- Encendido: Switch on the main power supply to the purifier. The indicator lights will illuminate, indicating the unit is active.
- Dispensación de agua: Place a clean container under the dispenser tap. Push or turn the tap to dispense purified water. Release to stop.
- Tanque de almacenamiento: The purifier features an internal storage tank (6 litres capacity). It will automatically refill as water is consumed.
- Ajuste de TDS: If your model includes a taste adjuster, consult a service technician for initial adjustment based on your source water TDS levels.
Image 5.1: The Aquaguard Nova Water Purifier positioned on a kitchen counter, ready for use.
6. Mantenimiento
El mantenimiento regular garantiza un rendimiento óptimo y la longevidad de su purificador de agua.
Programa de mantenimiento:
- Reemplazo del filtro: Filters (I-Filter, RO Cartridge, UF, etc.) have a limited lifespan. Replace them as recommended by the manufacturer or when the purification efficiency decreases. Refer to the indicator lights for filter change alerts.
- Limpieza del exterior: Limpie el exterior del purificador con un paño suave y húmedo.amp paño. No utilice productos químicos agresivos ni limpiadores abrasivos.
- Storage Tank Cleaning: Periodically clean the internal storage tank. This should ideally be done by a qualified service technician during routine maintenance.
- Service Check-up: Schedule regular professional service check-ups at least once a year to ensure all components are functioning correctly.
7. Solución de problemas
Refer to this section for common issues and their potential solutions. If the problem persists, contact customer support.
| Problema | Posible causa | Solución |
|---|---|---|
| No hay dispensación de agua | No power; Water supply off; Storage tank empty; Clogged filters | Check power connection; Turn on water supply; Wait for tank to fill; Contact service for filter check/replacement |
| Flujo de agua lento | Low water pressure; Clogged filters; Airlock in system | Check water pressure; Contact service for filter check/replacement; Contact service to release airlock |
| Sabor/olor inusual | Expired filters; Contaminated storage tank | Replace filters; Contact service for tank cleaning/sanitization |
| Fuga de agua | Loose connections; Damaged components | Check all connections and tighten; Immediately turn off water supply and power, then contact service |
8. Especificaciones
Technical details of the Generic Aquaguard Nova Water Purifier.
| Característica | Detalle |
|---|---|
| Marca | Genérico |
| Nombre del modelo | Aquaguard Nova |
| Característica especial | Reduce TDS |
| Dimensiones del producto (L x An x Al) | 29L x 36W x 48H Centímetros |
| Tipo de instalación | Table top & Wall mounted |
| Fuente de poder | Eléctrico con cable |
| Volumentage | 240 voltios (CA) |
| Quétage | 45 vatios |
| Peso del artículo | 10 kilogramos |
| Material | Acrilonitrilo butadieno estireno |
| Capacidad | 6 litros |
| Rango de temperatura de funcionamiento | 10 a 40 grados Celsius |
9. Garantía y soporte
Información de garantía:
This Generic Aquaguard Nova Water Purifier comes with a Garantía de 1 años from the date of purchase. The warranty covers manufacturing defects and faulty components under normal use conditions. It does not cover damage due to improper installation, misuse, neglect, or unauthorized repairs. Consumable parts like filters are typically not covered under the standard warranty and require periodic replacement at the user's expense.
Atención al cliente:
For any service requests, technical assistance, or to purchase genuine spare parts and filters, please contact the manufacturer's customer service. Refer to your purchase documentation or the product packaging for specific contact details.
