YELUFT DC 6-60V 400W BLDC Three-Phase Brushless Motor Controller Instruction Manual

1. Introducción

This manual provides detailed instructions for the installation, operation, and maintenance of the YELUFT DC 6-60V 400W BLDC Three-Phase Brushless Motor Controller. This controller is designed for use with DC brushless Hall motors with an electric angle of 120 degrees, offering wide voltage compatibility (6-60V) and high power output up to 400W. It supports various control methods including PLC 0-5V analog signal and PWM control, and features forward, reverse, stop, and brake functions.

Image 1.1: The YELUFT DC 6-60V 400W BLDC Three-Phase Brushless Motor Controller board with included wires.

2. Información de seguridad

• Always disconnect power before making any connections or disconnections to prevent electric shock or damage to the device.
• Ensure proper ventilation to prevent overheating, especially during high-power operation.
• Verify all wiring connections are correct and secure before applying power. Incorrect wiring can cause damage to the controller, motor, or power supply.
• This controller is designed for 120-degree electric angle DC brushless Hall motors only. Using it with other motor types may result in malfunction or damage.
• Mantenga el dispositivo alejado de la humedad, el polvo y ambientes corrosivos.
• No exceda el volumen máximotage (60V) or power (400W) ratings.

3. Producto terminadoview

The YELUFT BLDC motor controller features a compact design with clearly labeled terminals for easy integration. It includes a heatsink for thermal management and a wiring harness for Hall sensor connections.

Imagen 3.1: Frente view of the controller showing terminals and components, and the back view showing the heatsink.

Contenido del paquete:

• 1 x YELUFT DC 6-60V 400W BLDC Three-Phase Brushless Motor Controller (Dimensions: 2.48" x 1.77" x 1.22")
• 1 x Hall Sensor Wiring Harness (Length: 4.1")

4. Especificaciones

Image 4.1: Visual representation of key product parameters and the essential note regarding Hall sensor requirement.

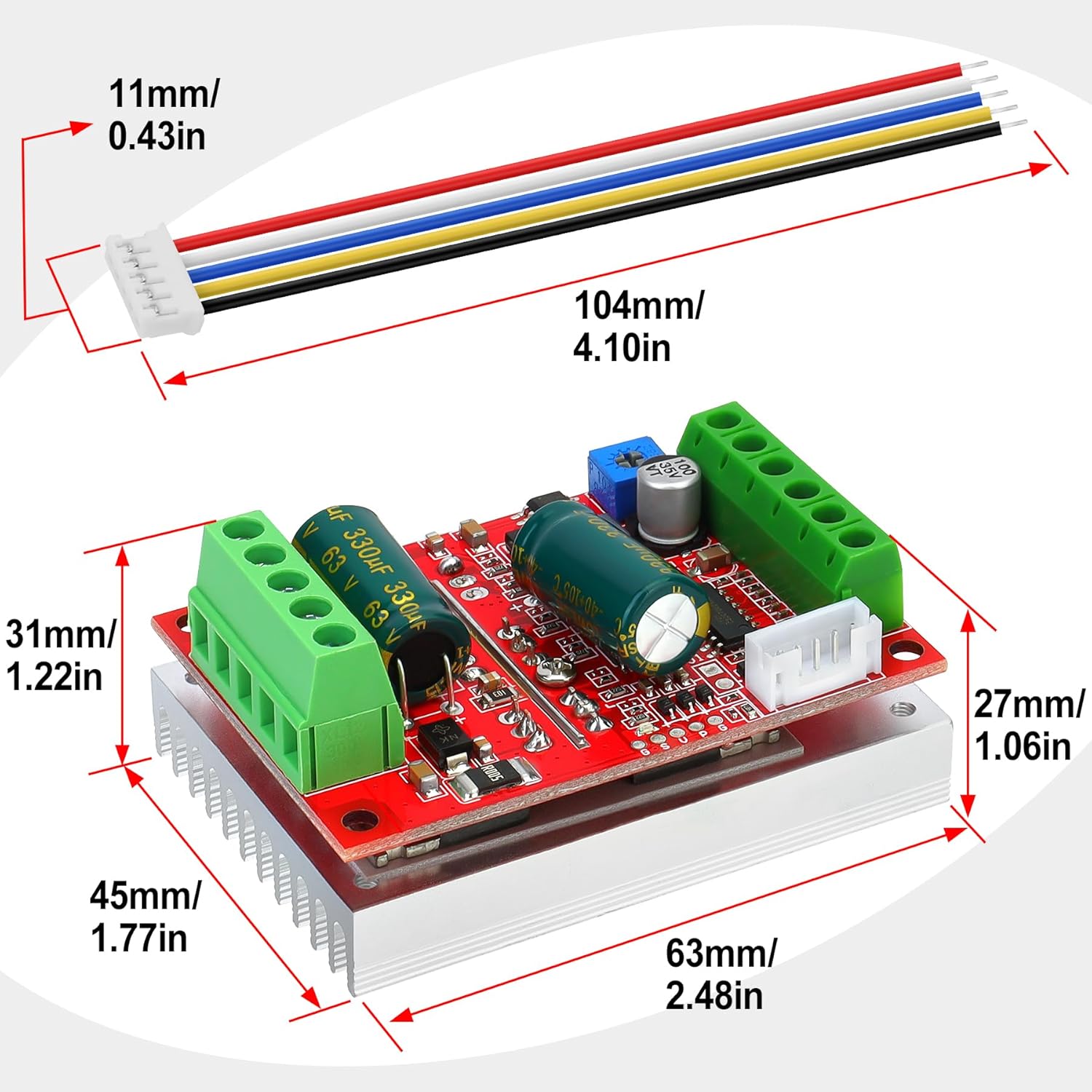

Image 4.2: Detailed dimensions of the controller board and the included Hall sensor wiring harness.

5. Configuración y cableado

Carefully follow the wiring diagram to ensure correct connections. Incorrect wiring can damage the controller or motor.

Diagrama de cableado terminadoview:

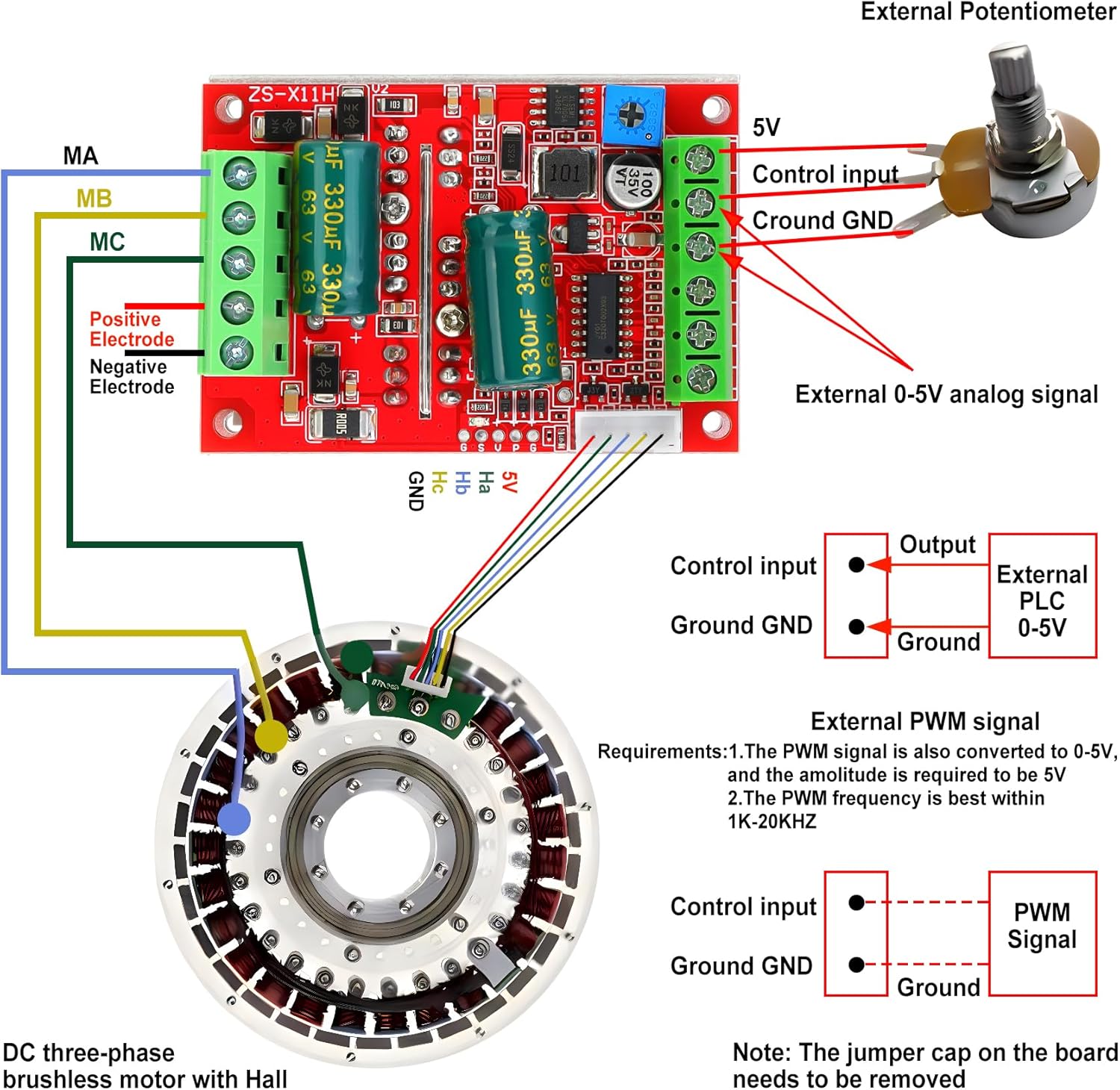

Image 5.1: Comprehensive wiring diagram illustrating connections for power, motor phases, Hall sensors, and control inputs (potentiometer, PLC, PWM).

Pasos de conexión:

1. Power Supply (VCC, GND): Connect your DC power supply (6-60V) to the VCC (positive) and GND (negative) terminals on the controller. Ensure the polarity is correct.
2. Motor Phase Lines (MA, MB, MC): Connect the three phase wires from your brushless motor to the MA, MB, and MC terminals on the controller. The order of these connections may affect motor rotation direction.
3. Hall Sensor Connections (Ha, Hb, Hc, +5V, GND):
   • Connect the +5V and GND wires from the Hall sensor harness to the corresponding +5V and GND pins on the controller's Hall sensor interface.
   • Connect the Ha, Hb, Hc signal wires from the Hall sensor harness to the Ha, Hb, Hc pins on the controller. Ensure these correspond correctly to the motor's Hall sensor outputs.
   • Nota: This controller requires a Hall sensor motor to function. If your motor does not have Hall sensors, this controller will not operate.
4. Speed Control Input:
   • External Potentiometer (0-5V Analog): Connect the potentiometer's output to the 'Control input' terminal and its ground to the 'Ground GND' terminal. The controller provides a 5V supply for the potentiometer.
   • External PLC 0-5V Analog Signal: Connect the PLC output to the 'Control input' terminal and its ground to the 'Ground GND' terminal.
   • External PWM Signal: Connect the PWM signal to the 'Control input' terminal and its ground to the 'Ground GND' terminal. The PWM signal should have an amplitude of 2.5-5V and a frequency between 1K-20KHz.
   • Nota: If using an external speed control signal, the jumper cap on the board for the on-board potentiometer must be removed.
5. Control de dirección (DIR): Connect a switch or control signal to the 'DIR' terminal. Shorting 'DIR' to ground will typically reverse the motor direction.
6. Stop Control (STOP): Connect a switch or control signal to the 'STOP' terminal. Shorting 'STOP' to ground will stop the motor.
7. Control de freno (FRENO): Connect a switch or control signal to the 'BRAKE' terminal. Shorting 'BRAKE' to ground will activate the motor brake function.
8. SC Speed Pulse Signal Output: This terminal provides a speed pulse signal output, which can be used for external speed monitoring.

6. Instrucciones de funcionamiento

Once all connections are securely made and verified, power on the controller. The motor should be ready for operation based on your control inputs.

Funciones:

• Control de velocidad: Adjust the connected potentiometer or provide the appropriate 0-5V analog/PWM signal to the 'Control input' to vary the motor speed.
• Control de dirección (DIR): Toggle the 'DIR' input (e.g., connect to ground) to switch between forward and reverse rotation.
• Stop Function (STOP): Activate the 'STOP' input (e.g., connect to ground) to bring the motor to a halt.
• Brake Function (BRAKE): Activate the 'BRAKE' input (e.g., connect to ground) to engage the motor's braking mechanism.
• Protección contra la sobretensión: The controller is equipped with overcurrent protection to safeguard against excessive current draw.

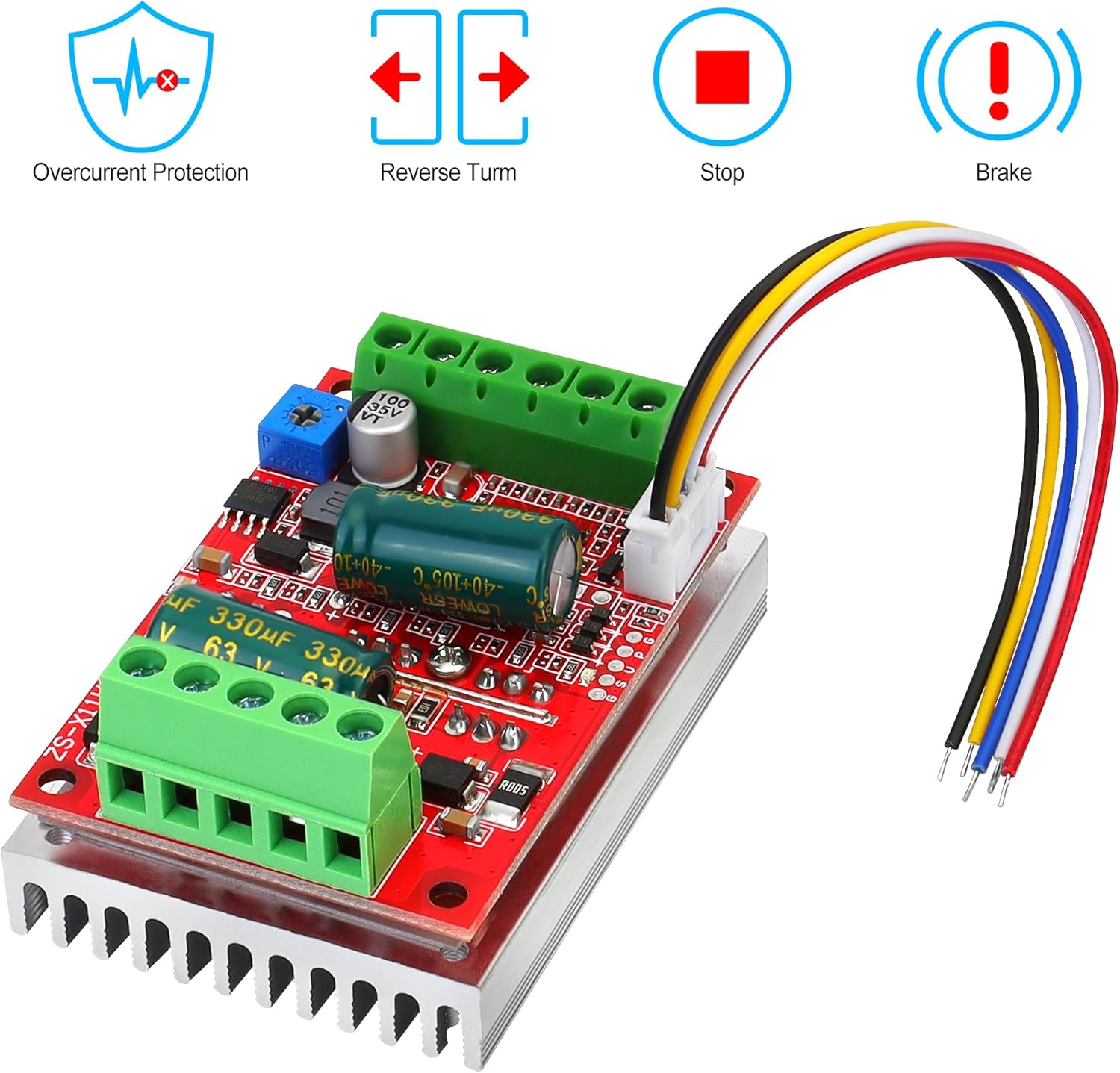

Image 6.1: Visual indicators for key operational features: Overcurrent Protection, Reverse Turn, Stop, and Brake.

7. Mantenimiento

• Mantenga el controlador limpio y libre de polvo y residuos. Utilice un paño suave y seco para limpiarlo.
• Regularly inspect all wiring connections for looseness or damage. Tighten any loose connections.
• Ensure adequate airflow around the heatsink to maintain optimal operating temperature.
• Avoid exposing the controller to extreme temperatures or humidity.

8. Solución de problemas

• El motor no gira:
  • Verifique las conexiones y el volumen de la fuente de alimentación.tage.
  • Verify all motor phase (MA, MB, MC) and Hall sensor (Ha, Hb, Hc, +5V, GND) connections are correct and secure.
  • Ensure the motor is a 120-degree electric angle DC brushless Hall motor.
  • Confirm the speed control input is active and providing a valid signal (0-5V or PWM).
• Motor spins slowly or inconsistently:
  • Check the quality and stability of the speed control input signal.
  • Inspect Hall sensor connections for intermittent contact.
  • Ensure the motor is not overloaded.
• Motor does not stop or brake properly:
  • Verify the 'STOP' or 'BRAKE' control input connections are functioning correctly (e.g., shorting to ground).
  • If using a Hall throttle, ensure its minimum output voltage allows the motor to fully stop. Some Hall throttles may require external modification (e.g., adding diodes) to achieve a true 0V equivalent at idle.
• Controller overheating:
  • Ensure adequate ventilation around the heatsink.
  • Check if the motor is drawing excessive current, potentially indicating an overload or fault.

9. Garantía y soporte

YELUFT products are designed for reliability and performance. For technical support, warranty claims, or further assistance, please contact your retailer or the manufacturer directly through the contact information provided at the point of purchase. Please have your product model number and purchase details ready when contacting support.
