Manual del usuario de la pala quitanieves eléctrica inalámbrica SOYUS de 20 V y 12 pulgadas

1. Información importante de seguridad

Always adhere to general safety guidelines when operating snow removal equipment. This includes wearing appropriate protective gear, exercising caution around moving parts, and ensuring proper handling of electrical components.

• Lea atentamente todas las instrucciones antes de usar.
• Wear eye protection and appropriate footwear.
• Mantenga las manos, los pies y la ropa alejados de las piezas giratorias.
• Ensure the work area is clear of debris and other individuals.
• No lo utilice en condiciones de humedad o lluvia.
• Store the device and battery in a dry, secure location.

2. Producto terminadoview

The SOYUS 20V 12-Inch Cordless Electric Snow Shovel is designed for efficient and convenient snow removal from various surfaces. It features a powerful motor, a rechargeable lithium-ion battery, and user-friendly controls.

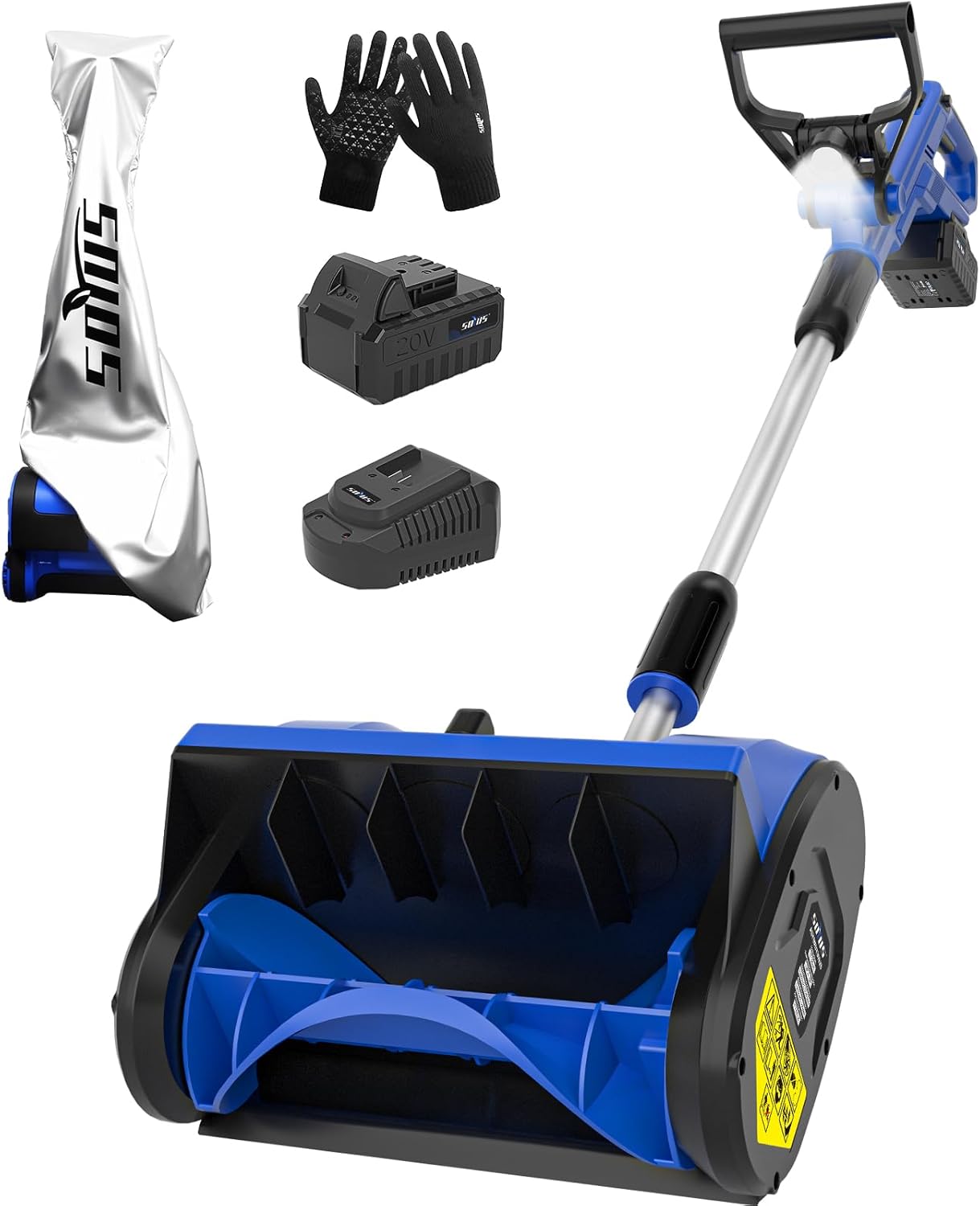

Figure 2.1: SOYUS 20V 12-Inch Cordless Electric Snow Shovel

Características principales:

• Potente motor de 20 V: Provides efficient snow clearing.
• Batería de iones de litio de 4.0 Ah: Offers up to 20-30 minutes of operation.
• Ancho de limpieza de 12 pulgadas y profundidad de limpieza de 6 pulgadas: Ideal for steps, patios, decks, walkways, and driveways.
• Durable Dual-Curved Spiral Blades: Designed for effective snow cutting.
• Adjustable Handle with LED Light: Enhances ergonomics and visibility.
• Interruptor de seguridad doble: Previene arranques accidentales.
• Adjustable Directional Plate: Allows for precise snow throwing direction (+/- 30 degrees).
• Diseño liviano: Pesa sólo 12 libras para un fácil manejo.

3. Configuración y montaje

The SOYUS Electric Snow Shovel is designed for quick and tool-free assembly.

Pasos de montaje:

1. Conecte el eje: Align the two sections of the telescopic shaft and twist to secure them together. Ensure a firm connection.
2. Coloque el mango: Secure the adjustable handle to the main shaft. Adjust to a comfortable height and angle using the locking mechanism.
3. Inserte la batería: Slide the fully charged 20V 4.0Ah lithium-ion battery into the battery compartment until it clicks into place.

Figura 3.1: Pasos de montaje

Carga de la batería:

Before first use, fully charge the 4.0Ah lithium-ion battery using the provided 2.2A fast charger. Refer to the charger's instructions for proper charging procedures. A fully charged battery provides approximately 20-30 minutes of runtime.

4. Instrucciones de funcionamiento

Puesta en marcha de la pala de nieve:

1. Asegúrese de que la batería esté instalada de forma segura.
2. Agarre el mango firmemente.
3. Engage the dual safety switch (typically a button that must be pressed before pulling the trigger).
4. Apriete el gatillo para arrancar el motor.

Limpieza de nieve:

• Push the snow shovel forward into the snow. The 12-inch clearing width and 6-inch clearing depth allow for efficient removal.
• For deeper snow, clear in multiple passes.
• The shovel can throw snow up to 16.5 feet.

Figure 4.1: Clearing Depth and Width

Control direccional:

Use the adjustable directional plate to control where the snow is thrown. The plate can be rotated +/- 30 degrees to direct snow away from cleared areas or obstacles.

Figure 4.2: Adjustable Directional Plate

Uso de luz LED:

The integrated LED light provides increased visibility during low-light conditions. Activate the light as needed for safer operation.

Figure 4.3: LED Lights for Visibility

Vídeo operativo:

Video 4.1: Demonstrating the SOYUS 20V 12-Inch Electric Snow Shovel in action, highlighting its cordless operation and snow clearing capabilities.

5. Mantenimiento

• Limpieza: After each use, remove any snow, ice, or debris from the shovel, especially around the blades and motor housing. Use a damp Paño para limpieza. No utilice productos químicos agresivos.
• Cuidado de la batería: Store the battery in a cool, dry place. Do not expose it to extreme temperatures. Charge the battery fully before long-term storage.
• Almacenamiento: Disassemble the shovel for compact storage if desired. Store the unit and battery in a dry, protected area away from direct sunlight and moisture. Use the provided dust cover to protect the unit.
• Inspección de la hoja: Periodically inspect the dual-curved spiral blades for wear or damage. Replace if necessary to maintain optimal performance.

6. Solución de problemas

This section addresses common issues you might encounter with your SOYUS Electric Snow Shovel.

7. Especificaciones

8. Garantía y atención al cliente

For warranty information, product registration, or technical assistance, please contact SOYUS customer service. Keep your purchase receipt as proof of purchase.
