eSituro SCD0229 Desk with 5 Drawers - Instruction Manual

1. Introducción

Thank you for choosing the eSituro SCD0229 Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new desk. Please read these instructions carefully before beginning assembly and retain them for future reference.

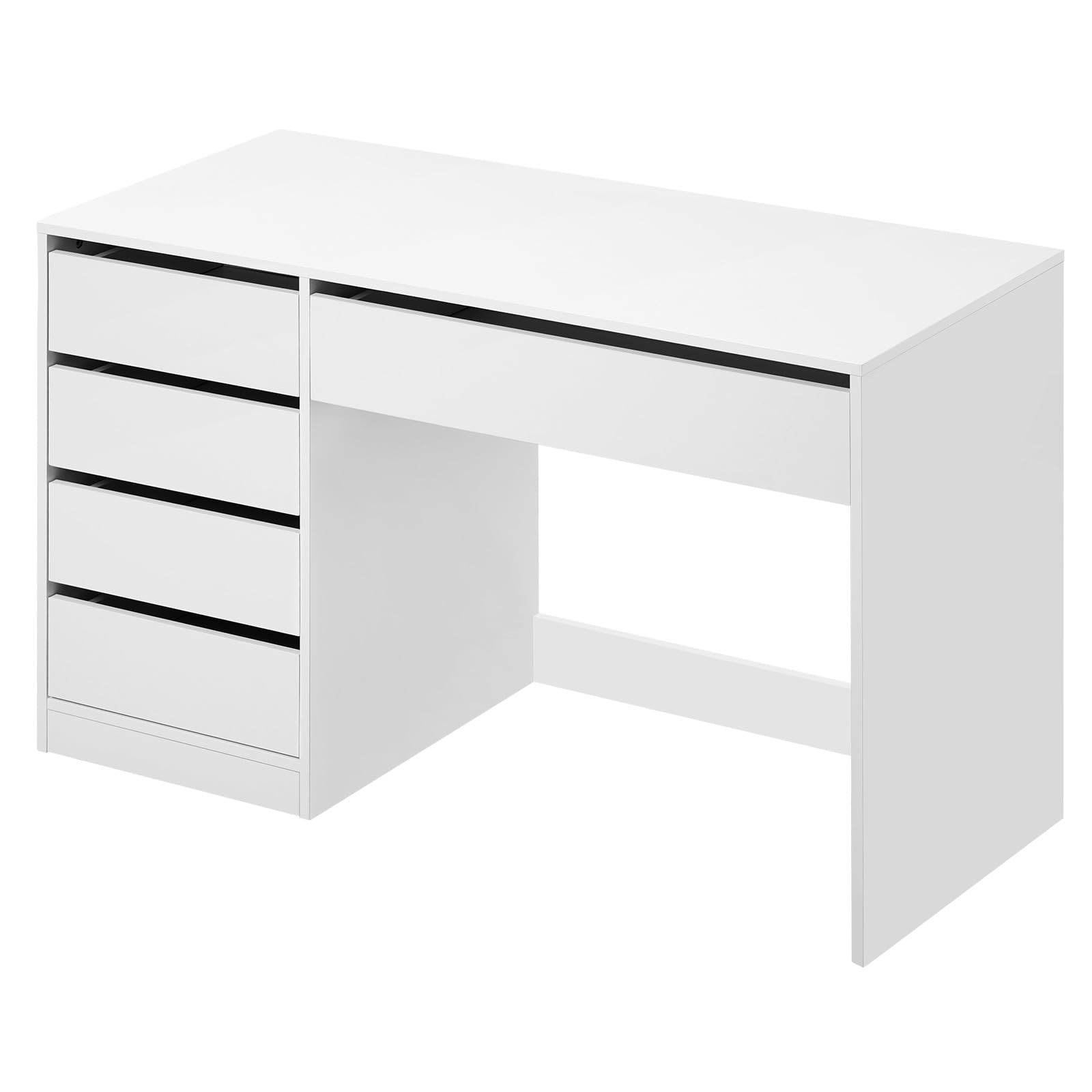

The eSituro SCD0229 is a versatile white desk featuring a spacious tabletop and five integrated drawers, designed for various uses including a computer desk, study desk, dressing table, or sewing table. Its modern design complements various room styles.

Image 1.1: The eSituro SCD0229 Desk in a typical room setup, showcasing its clean white finish and integrated drawers. Note: Mirror and accessories shown are for illustration only and are not included with the desk.

2. Instrucciones de seguridad

• Monte siempre el producto sobre una superficie limpia y suave (por ejemplo, una alfombra) para evitar rayones.
• Asegúrese de que todas las piezas estén presentes y sin daños antes del montaje. No continúe con el montaje si alguna pieza falta o está dañada.
• Follow the assembly instructions step-by-step. Incorrect assembly can lead to instability and potential injury.
• No apriete demasiado los tornillos ya que esto puede dañar el material.
• Mantenga las piezas pequeñas y los materiales de embalaje fuera del alcance de los niños y las mascotas para evitar riesgos de asfixia.
• No exceda la capacidad de carga máxima de 50 kg (110 lbs) para la mesa.
• Periodically check all connections and tighten them if necessary to maintain stability.

3. Contenido del paquete

The eSituro SCD0229 desk is shipped in two separate packages. Please ensure you have received both packages before starting assembly. Each package contains a detailed instruction manual and a complete kit of accessories and tools required for assembly.

Upon opening, verify that all components listed in the instruction manual are present. Typical components include:

• Paneles de mesa
• Side panels and support panels
• Paneles de cajones (frontal, trasero, laterales, inferior)
• Correderas/rieles para cajones
• Herrajes de montaje (tornillos, tacos, cierres de leva, etc.)
• Reinforced rear crossbar
• Herramientas de montaje (por ejemplo, llave Allen)

4. Instrucciones de montaje

Assembly of the eSituro SCD0229 desk is designed to be straightforward with the provided detailed manual. For an experienced individual, assembly typically takes approximately 3 hours. We recommend having a second person assist during certain steps for easier handling and stability.

4.1. Preparación

1. Unpack all components from both packages and lay them out on a soft, clean surface to prevent damage.
2. Identify each part by comparing it with the parts list in your included instruction manual.
3. Gather all necessary tools, including those provided and any additional tools like a screwdriver (Phillips head recommended).

4.2. Montaje paso a pasoview

Refer to the detailed 18-page A5 format instruction manual included in your package for precise, illustrated steps. The general assembly sequence involves:

1. Constructing the Drawer Units: Assemble the individual drawer boxes first, attaching the drawer runners to the sides.
2. Assembling the Main Frame: Connect the side panels and the reinforced rear crossbar to form the basic structure of the desk.
3. Installing Drawer Slides: Attach the corresponding drawer slides to the interior of the desk frame.
4. Attaching the Tabletop: Secure the main tabletop panel to the assembled frame.
5. Inserting Drawers: Deslice con cuidado los cajones ensamblados en sus respectivas ranuras.

Image 4.1: Dimensional diagram of the eSituro SCD0229 desk, illustrating overall measurements and individual drawer sizes. This image can assist in understanding the structure during assembly.

5. Características y uso del producto

5.1. Spacious Tabletop

The desk offers a generous surface area of 120 x 55 cm, providing ample space for various activities. You can comfortably place a computer monitor, keyboard, laptop, books, documents, or makeup and skincare products, creating an organized and comfortable workspace or vanity area.

Image 5.1: The spacious tabletop of the eSituro SCD0229 desk, shown with a computer setup, demonstrating its capacity for work or study essentials.

5.2. Ampel espacio de almacenamiento

The desk is equipped with four side drawers and one large central drawer, offering extensive storage for stationery, office supplies, documents, and personal items. This design helps maintain a clean and organized desk surface.

• Silent Runners: All drawers feature silent runners, ensuring smooth, quiet opening and closing without disturbing your environment.
• Diseño sin tiradores: The drawers are designed without external handles, providing a sleek, modern aesthetic and preventing accidental bumps.

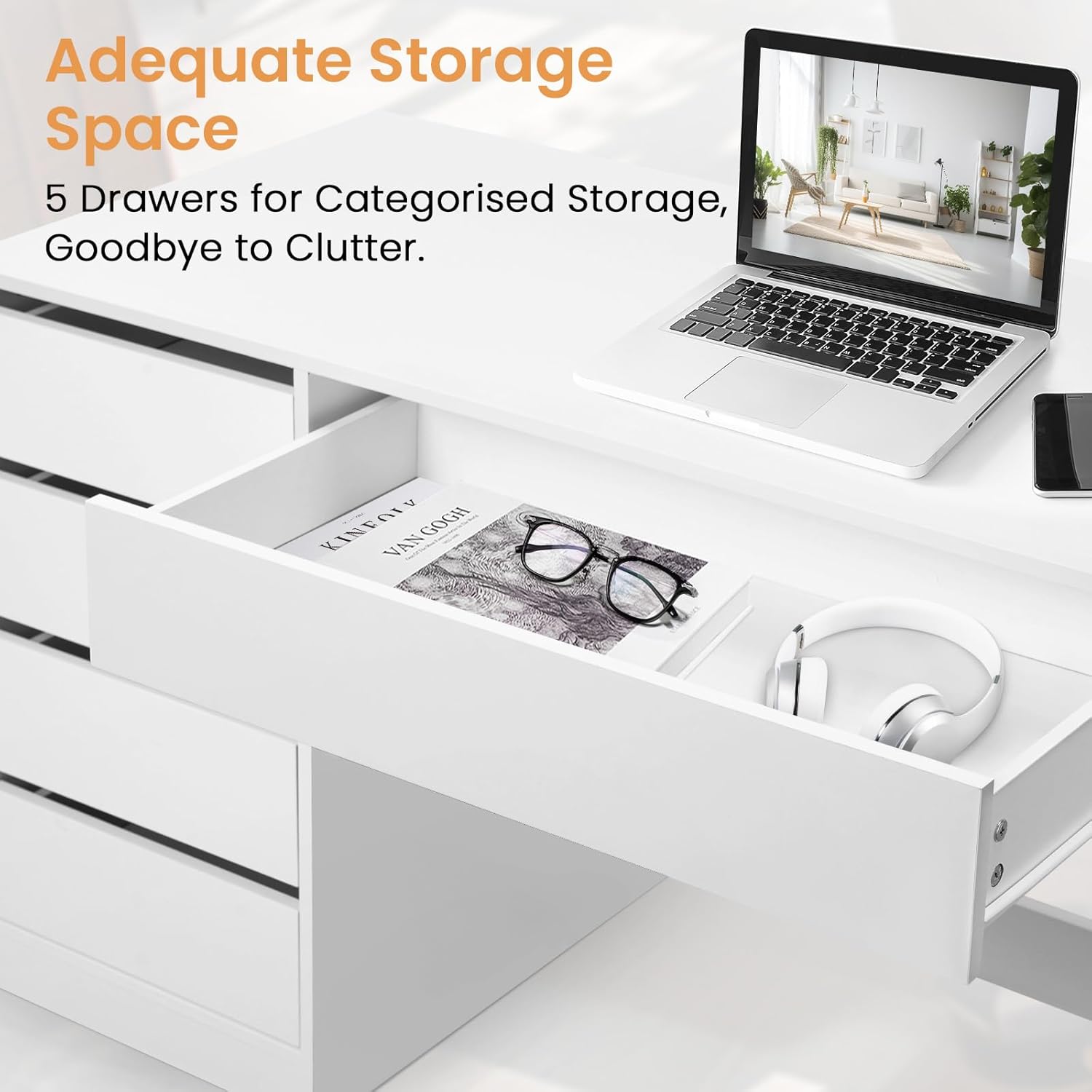

Image 5.2: An open drawer of the eSituro SCD0229 desk, demonstrating its internal storage capacity for various items.

Image 5.3: Details of the silent drawer runners (left) and the handle-less design (right) for smooth and safe operation.

5.3. Stable Construction and Quality Material

The desk is constructed from high-quality E1 particle board, known for its durability and environmental standards. This material is resistant to water and scratches, making the surface easy to clean and maintain. The design incorporates a wide base and a reinforced rear crossbar to ensure exceptional stability and a load capacity of up to 50 kg.

Image 5.4: Visual representation of the desk's robust construction and material properties, including resistance to water and scratches, and structural reinforcements.

Imagen 5.5: Detallada views showing the water-resistant surface (top left), scratch-resistant surface (top right), wide cabinet base (bottom left), and reinforced rear crossbar (bottom right).

5.4. Multipurpose Use

The modern and simple design of this white desk allows it to seamlessly integrate into various settings and serve multiple functions:

• Escritorio de oficina: Ideal for home offices, providing a dedicated space for computers and work materials.
• Dressing Table: Perfect for bedrooms or dressing areas, offering space for makeup and accessories.
• Children's Study Desk: Suitable for children's rooms, providing a comfortable area for homework and creative activities.
• Sewing Table: Can be used in craft rooms for sewing machines and supplies.

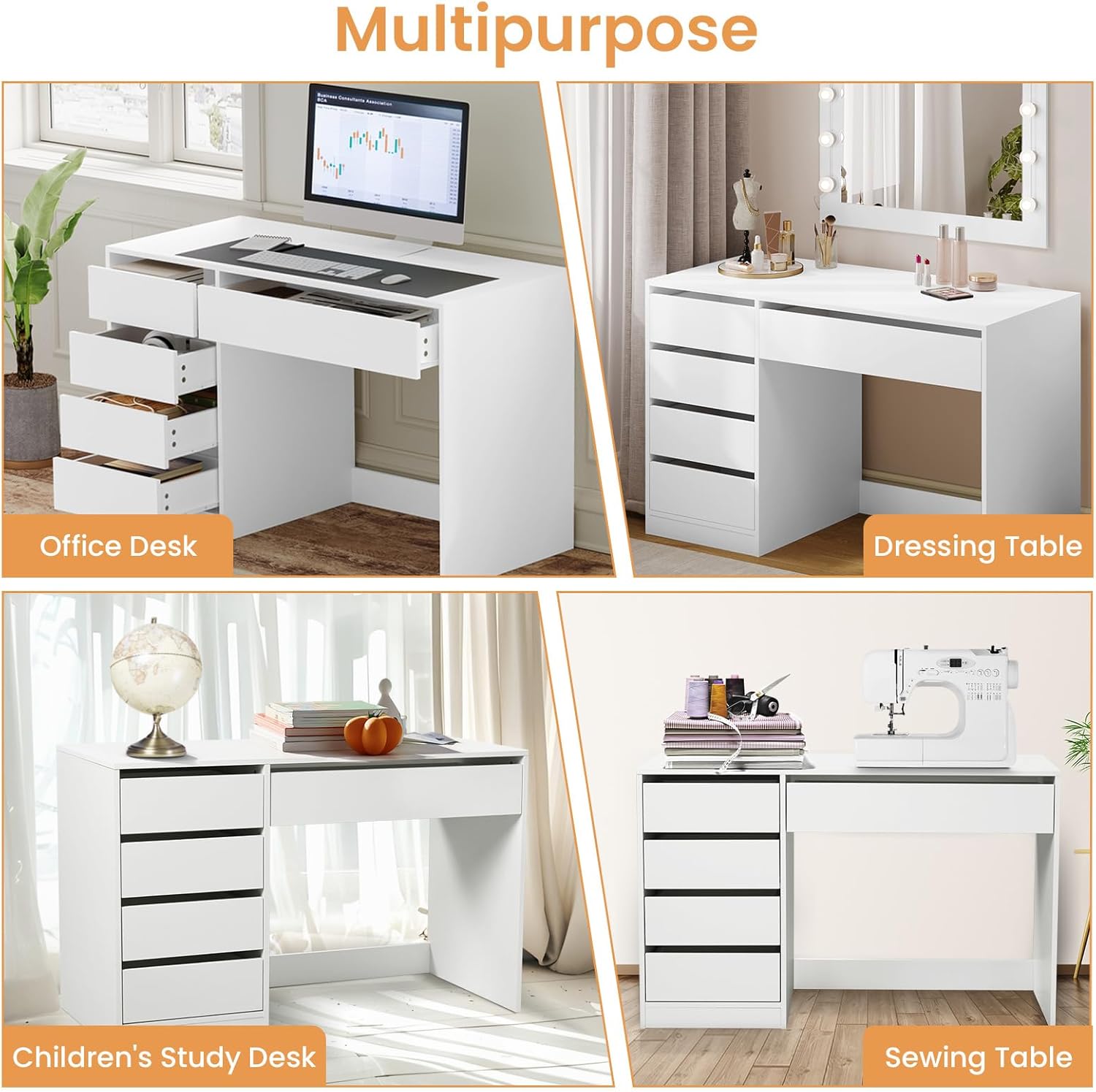

Imagen 5.6: Examples of the eSituro SCD0229 desk's versatile applications in different room settings and for various purposes.

6. Cuidado y mantenimiento

• Limpieza: Limpie la superficie con un paño suave, damp paño. Evite utilizar productos químicos fuertes o limpiadores abrasivos, ya que pueden dañar el acabado.
• Derrames: Immediately wipe up any spills to prevent water damage, especially on the edges.
• Calor: Evite colocar objetos calientes directamente sobre la superficie. Utilice posavasos o almohadillas protectoras.
• Luz del sol: Prolonged exposure to direct sunlight may cause discoloration over time.
• Comprobación de estabilidad: Revise periódicamente todos los tornillos y accesorios para asegurarse de que estén bien apretados. Vuelva a apretarlos si es necesario.

Image 6.1: Demonstrating the ease of cleaning the desk surface with a soft cloth.

7. Solución de problemas

8. Especificaciones

9. Garantía y soporte

For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your retailer. If you encounter any issues or require assistance with your eSituro SCD0229 desk, please contact eSituro customer support through the retailer's platform or the official eSituro websitio.

When contacting support, please have your model number (SCD0229) and purchase details readily available.
