Introducción
This manual provides comprehensive instructions for the safe installation, configuration, and operation of the THKFMSRC Smart Light LED Dimmer 1/2 Way Switch. Please read this manual thoroughly before installation and retain it for future reference.
Información importante de seguridad
Electrical installations should only be performed by qualified personnel. Incorrect installation can lead to electric shock or fire. Always observe local regulations and safety standards.
- Desconectar la energía: Apague siempre el suministro eléctrico principal en el disyuntor antes de realizar cualquier trabajo eléctrico.
- VolumentagCompatibilidad: Ensure the dimmer's input voltage (90V~250V/50/60Hz) matches your electrical system.
- Capacidad de carga: Do not exceed the maximum load power of 150W for LED lighting. Overloading can cause damage or fire.
- Cableado adecuado: Follow the wiring diagram precisely. Incorrect wiring can damage the device or connected lights.
- Uso exclusivo en interiores: Este dispositivo está diseñado para uso en interiores en lugares secos.
Producto terminadoview

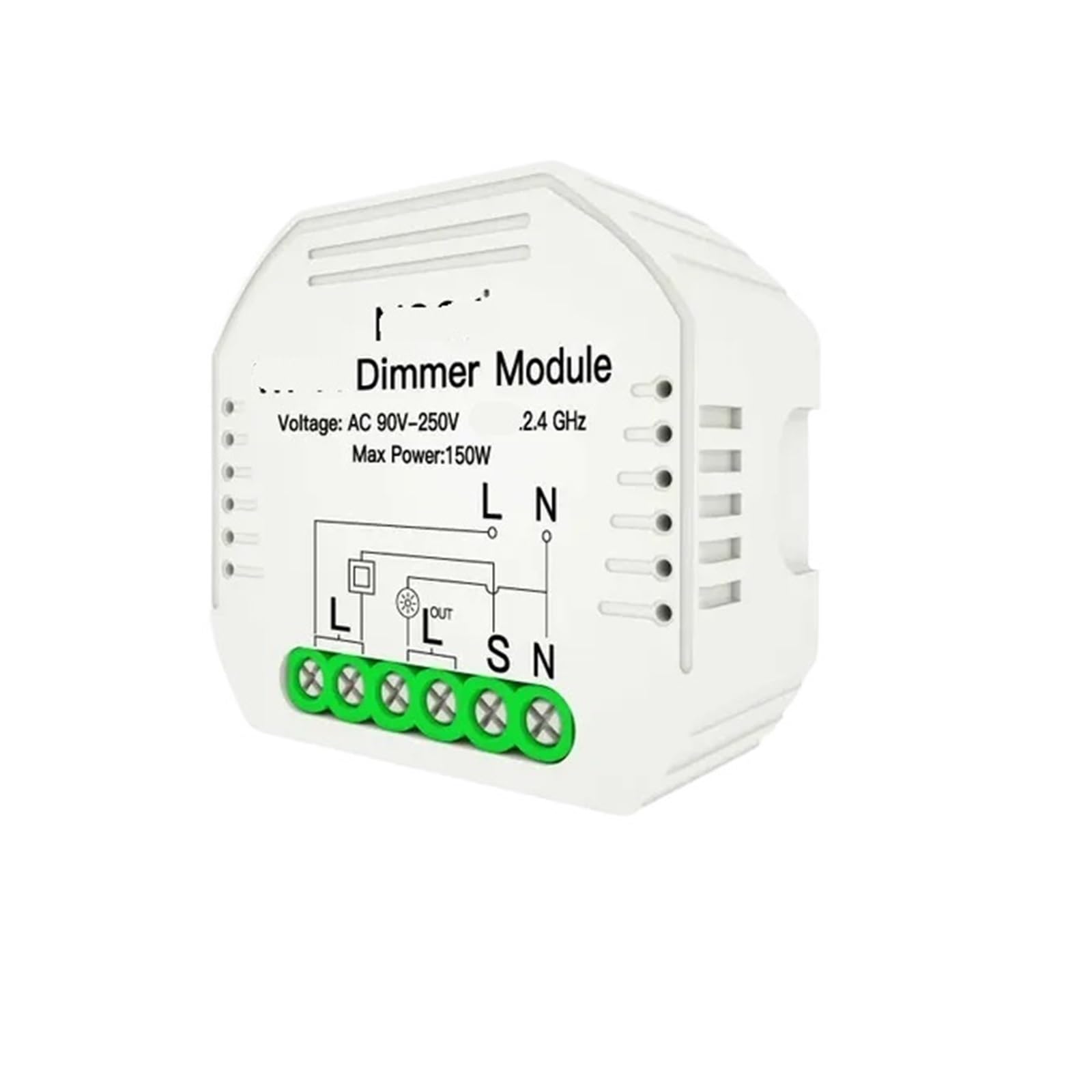

The THKFMSRC Smart Light LED Dimmer is a compact module designed to convert traditional light switches into smart dimmers, allowing for both manual and smart control of LED lighting. It supports 1-way and 2-way switching configurations.
Especificaciones técnicas
| Característica | Especificación |
|---|---|
| Vol de entradatage | 90V~250V/50/60Hz |
| Alambrado | Vivo y neutral |
| Maximum Load Power (LED) | 150 W |
| Vida laboral | 100,000 operaciones |
| Dimensiones (L x An x Al) | 53 mm x 48 mm x 18 mm (aprox. 2.09 x 1.89 x 0.71 pulgadas) |
| Peso del artículo | 1.76 onzas |
| Número de modelo | THKFMSRC |
Guía de instalación
1. Diagrama de cableado
Consulte el diagrama a continuación para ver el cableado correcto. Asegúrese de que todas las conexiones estén seguras y aisladas.
- Paso 1: Turn off the power at the circuit breaker before starting installation.
- Paso 2: Connect the Live (L) wire from your mains supply to the 'L' terminal on the dimmer module.
- Paso 3: Connect the Neutral (N) wire from your mains supply to the 'N' terminal on the dimmer module.
- Paso 4: Connect the Live wire going to your light fixture to the 'OUT' terminal on the dimmer module.
- Paso 5: For 1-way switching, connect the existing wall switch's output to the 'S' terminal. For 2-way switching, connect the common wire from the second switch to the 'S' terminal.
- Paso 6: Securely place the dimmer module within the switch box or ceiling rose, ensuring no wires are pinched.
- Paso 7: Restablezca la energía en el disyuntor.
2. Montaje
The compact design of the THKFMSRC dimmer module allows it to be installed behind existing wall switches or within ceiling rose enclosures. Ensure adequate space and ventilation for proper operation.
Instrucciones de funcionamiento
1. Control manual
Once installed, the connected light can be turned ON/OFF using the existing wall switch. The dimmer module will retain its last dimming state when turned back on.
2. Smart Control / Pairing
This smart dimmer module is designed to integrate with compatible smart home systems (e.g., Tuya Smart, Smart Life app). Follow these general steps to pair your device:
- Paso 1: Ensure your smartphone or tablet is connected to a 2.4GHz Wi-Fi network.
- Paso 2: Download and open the compatible smart home application (e.g., Tuya Smart or Smart Life).
- Paso 3: Put the dimmer module into pairing mode. This is typically done by rapidly toggling the connected light switch ON/OFF several times (e.g., 3-5 times) until the connected light blinks, indicating pairing mode. Refer to your smart home app's instructions for specific pairing sequences.
- Paso 4: In the app, select 'Add Device' or the '+' icon, then choose 'Lighting' or 'Dimmer Switch'.
- Paso 5: Siga las instrucciones en pantalla de la aplicación para completar el proceso de emparejamiento.
3. Función de atenuación
Once paired, you can control the brightness of the connected LED lights through the smart home application. The app will provide a slider or buttons to adjust the dimming level from 0% to 100%.
Mantenimiento
The THKFMSRC Smart Light LED Dimmer requires minimal maintenance. Ensure the device is kept dry and free from dust. Do not attempt to open or repair the module yourself, as this will void any warranty and may pose a safety risk. Clean the exterior with a soft, dry cloth if necessary, ensuring power is disconnected.
Solución de problemas
- La luz no se enciende ni se apaga:
- Compruebe si la fuente de alimentación principal está encendida.
- Verify all wiring connections are secure according to the diagram.
- Asegúrese de que la bombilla conectada funcione.
- Dimmer not responding to app control:
- Confirm the dimmer is successfully paired with the app.
- Check your Wi-Fi connection and ensure it is 2.4GHz.
- Reinicie su enrutador Wi-Fi e intente emparejarlo nuevamente.
- Asegúrese de que la aplicación esté actualizada a la última versión.
- La luz parpadea o zumba:
- Ensure the connected light is a dimmable LED bulb. Non-dimmable bulbs may flicker or be damaged.
- Verificar el agua totaltage of connected lights does not exceed the 150W maximum load.
- Dimmer module feels warm:
- It is normal for the module to feel slightly warm during operation. If it becomes excessively hot, immediately disconnect power and check for overloading or short circuits.
Atención al cliente
If you encounter issues not covered in this manual or require further assistance, please contact THKFMSRC customer support through your retailer or the official product website. Provide your product model number (THKFMSRC) and a detailed description of the problem for efficient service.
