ABUS Combination Lock 165 User Manual

1. Introducción

Thank you for choosing the ABUS Combination Lock 165. This manual provides essential instructions for setting your personal combination, operating the lock, and maintaining it for optimal performance and security. Please read these instructions carefully before first use and retain them for future reference.

2. Producto terminadoview

The ABUS Combination Lock 165 is a robust 3-digit combination padlock designed for securing bags, suitcases, and lockers. Its durable construction features a solid brass body and a hardened steel shackle, offering reliable protection against low theft risks. The individually adjustable code allows for personalized security without the need for keys.

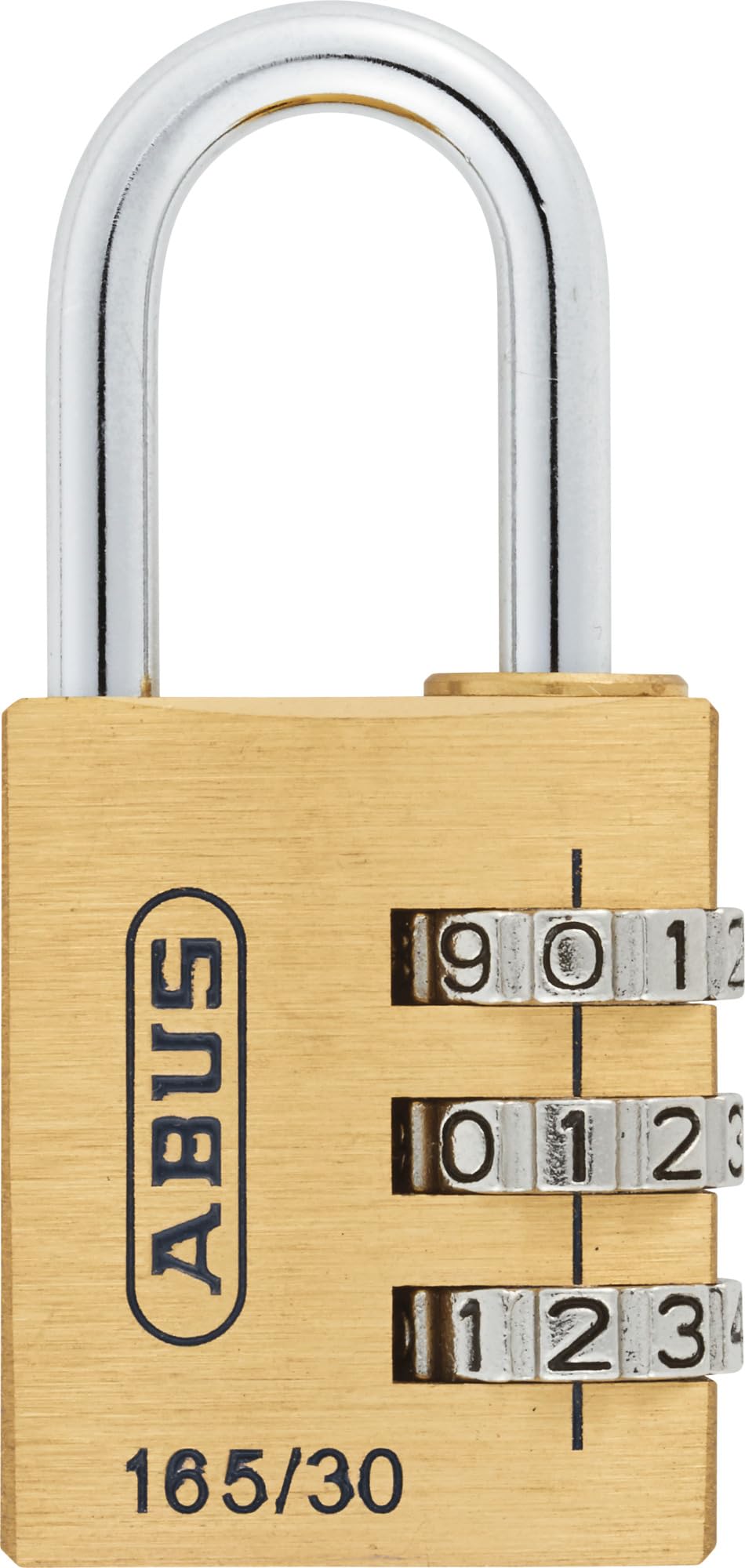

Imagen: Frente view of the ABUS Combination Lock 165, highlighting its brass body and the three numerical dials for setting the combination.

3. Configuración de su combinación personal

The ABUS Combination Lock 165 comes with a factory preset combination, usually 0-0-0. Follow these steps to set your own unique 3-digit combination:

1. Abra la cerradura: Ensure the lock is set to the current combination (factory default is 0-0-0) and pull the shackle upwards to open it.
2. Gire el grillete: With the shackle in the open position, rotate it 180 degrees counter-clockwise (or clockwise, depending on the specific model, but 180 degrees is key) until it aligns with the notch in the lock body.
3. Presione el grillete hacia abajo: Firmly press the shackle downwards into the lock body. Hold it in this depressed position.
4. Set Your New Code: While holding the shackle down, rotate the three number wheels to your desired personal 3-digit combination. Make sure the numbers are clearly aligned with the indicator marks.
5. Release and Lock: Release the shackle. It should spring back up slightly.
6. Return Shackle to Locked Position: Rotate the shackle back 180 degrees to its original open position. Then, push the shackle down to close the lock.

Your new combination is now set. Scramble the dials to lock the padlock. Always test your new combination before securing valuables.

Image: Step-by-step visual guide for changing the 3-digit combination on the ABUS 165 lock. This diagram illustrates the sequence of shackle manipulation and dial adjustment.

4. Funcionamiento de la cerradura

To open the ABUS Combination Lock 165:

1. Rotate the number wheels to your personal 3-digit combination.
2. Pull the shackle upwards to release it from the lock body.

To close and secure the lock:

1. Align the shackle with the opening in the lock body.
2. Push the shackle firmly downwards until it clicks into place.
3. Scramble the number wheels to a random combination to secure the lock.

5. Mantenimiento

To ensure the longevity and smooth operation of your ABUS Combination Lock 165, consider the following maintenance tips:

• Limpieza: Periodically wipe the lock body and shackle with a soft, dry cloth to remove dust and grime. Avoid harsh chemicals.
• Lubricación: If the dials become stiff or the shackle movement is not smooth, apply a small amount of graphite powder or a silicone-based lubricant to the moving parts. Do not use oil-based lubricants as they can attract dirt.
• Almacenamiento: Cuando no esté en uso durante períodos prolongados, guarde la cerradura en un ambiente seco para evitar la corrosión.

6. Solución de problemas

• La cerradura no se abre:
  • Ensure the correct 3-digit combination is entered and the numbers are perfectly aligned.
  • Try wiggling the shackle gently while pulling it up.
  • If the lock feels stiff, apply a small amount of lubricant as described in the Maintenance section.
• No se puede establecer una nueva combinación:
  • Verify that the shackle is fully depressed and held down during the code-setting process.
  • Asegúrese de que el grillete esté girado exactamente 180 grados antes de presionarlo hacia abajo.
• Combinación olvidada:

  Unfortunately, if you forget your combination, there is no master key or reset function without knowing the current code. You may need to try common combinations or consider replacing the lock.

7. Especificaciones

8. Garantía y soporte

ABUS products are manufactured to high-quality standards and undergo strict quality control. For information regarding warranty terms and conditions, or for technical support, please refer to the official ABUS webSitio web o contacte con su distribuidor local de ABUS. Conserve el recibo de compra como comprobante.

For further assistance, you may visit the official ABUS websitio: www.abus.com
