Klarstein SmartSlim 45 cm Built-in Oven

1. Introducción

Thank you for choosing the Klarstein SmartSlim 45 cm Built-in Oven. This appliance is designed to offer efficient and versatile cooking for your kitchen. With a generous 49-liter capacity and 9 distinct functions, it is suitable for preparing meals for the entire family. Key features include steam cleaning for easy maintenance, a removable glass door, and an Energy Class A rating for energy efficiency. This manual provides essential information for safe installation, operation, and care of your new oven.

2. Instrucciones de seguridad

Lea atentamente estas instrucciones de seguridad antes de usar el aparato y consérvelas para futuras consultas. El uso incorrecto puede provocar lesiones o daños.

• Seguridad eléctrica: Ensure the oven is correctly earthed and connected to a power supply that matches the specifications (220-240V, 50Hz). Do not use extension cords or adapters.
• Instalación: Installation must be performed by a qualified technician in accordance with local regulations. Ensure adequate ventilation around the appliance.
• Superficies calientes: El horno y sus partes accesibles se calientan durante el uso. Tenga cuidado de no tocar los elementos calefactores. Mantenga a los niños alejados.
• Limpieza: Always disconnect the appliance from the power supply before cleaning. Allow the oven to cool down completely.
• Supervisión: Nunca deje el horno desatendido durante su funcionamiento, especialmente cuando cocine con aceite o grasa.
• Daño: Do not operate the oven if it is damaged. Contact customer service for repairs.

3. Producto terminadoview

The Klarstein SmartSlim oven combines a compact design with powerful performance, making it an ideal choice for modern kitchens. It features a spacious interior, intuitive controls, and multiple cooking functions.

Figure 3.1: Klarstein SmartSlim 45 cm built-in oven, white, with digital display and control knobs.

Características principales:

• Capacidad de 49 litros: The enameled cavity provides ampEl espacio para comidas familiares.
• 9 funciones de cocción: Includes top grill, turbo cooking, and fan-assisted grilling for versatile meal preparation.
• Función de limpieza con vapor: Simplifies maintenance by softening grime.
• Puerta de vidrio extraíble: Facilitates easy and thorough cleaning.
• Temporizador digital: Ensures precise cooking control.
• Clase energética A: Efficient operation minimizes energy consumption.

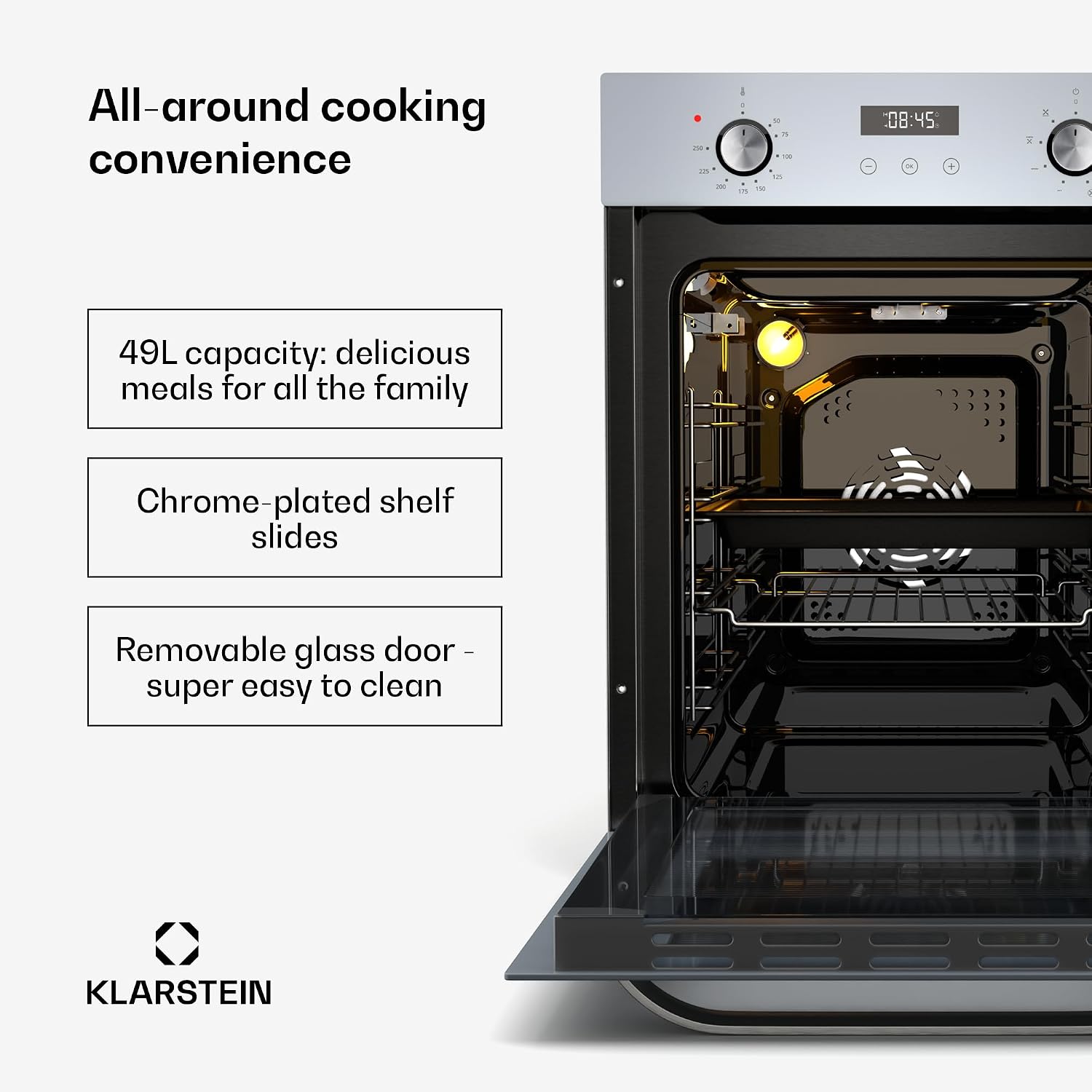

Figura 3.2: Interior view of the Klarstein SmartSlim oven, showing the 49-liter capacity and chrome-plated shelf slides.

Figure 3.3: Close-up of the oven's control panel, featuring a digital timer display and rotary knobs.

4. Configuración e instalación

The Klarstein SmartSlim oven is designed for built-in installation. Proper installation is crucial for safety and optimal performance. Refer to the diagram below for dimensions and ensure your cabinet opening meets the requirements.

Pasos de instalación:

1. Desembalaje: Carefully remove the oven from its packaging. Inspect for any damage.
2. Preparación del Gabinete: Ensure the cabinet opening dimensions match the oven's requirements. The oven dimensions are approximately 55 cm (depth) x 45 cm (width) x 59.5 cm (height).
3. Conexión eléctrica: Connect the oven to a suitable earthed power outlet (220-240V, 50Hz). This should be done by a qualified electrician.
4. Cómo asegurar el horno: Slide the oven into the cabinet opening and secure it using the provided screws.
5. Estreno: Before cooking, operate the empty oven at maximum temperature for approximately 30 minutes to burn off any manufacturing residues. Ensure good ventilation during this process.

Figure 4.1: Dimensions of the oven and recommended cabinet cutout.

5. Instrucciones de funcionamiento

Your Klarstein SmartSlim oven offers 9 versatile cooking functions to suit various culinary needs. Use the control knobs and digital timer for precise temperature and time settings.

Funciones de cocción:

• Cocina Convencional: Elementos calefactores superiores e inferiores para hornear y asar de forma tradicional.
• Parrilla superior: Ideal for grilling smaller items or browning dishes.
• Fan-Assisted Grilling: Combines grilling with fan circulation for even browning and faster cooking. Heat is circulated evenly throughout the cavity and distributed more evenly onto the food, making it faster to grill and avoiding food burning or overcooking.
• Cocción turbo: Utilizes a fan with a circular heating element for rapid and even cooking, suitable for multiple dishes simultaneously.
• Descongelar: Gentle fan circulation without heat to thaw frozen foods.
• Additional functions may include bottom heat, fan-assisted conventional, etc. Refer to the specific symbols on your control panel.

Usando el temporizador digital:

The digital timer allows you to set cooking duration or program delayed starts. Consult the control panel diagram (Figure 3.3) for button layout. Typically, you will press a timer button, adjust the time using '+' and '-' buttons, and confirm with 'OK' or a similar button.

Figure 5.1: Oven interior during fan-assisted grilling, ensuring even heat distribution.

6. Mantenimiento y limpieza

Regular cleaning and maintenance will prolong the life of your oven and ensure hygienic cooking. Always ensure the oven is cool and disconnected from the power supply before cleaning.

Función de limpieza con vapor:

The steam cleaning function helps to soften baked-on food residues, making them easier to wipe away without harsh chemicals.

1. Pour approximately 200 ml of water into the bottom of the oven cavity.
2. Select the steam cleaning function (refer to your control panel for the specific symbol).
3. Ejecute el ciclo durante la duración recomendada (normalmente entre 15 y 20 minutos).
4. Una vez completado el ciclo y el horno enfriado, limpie el interior con un paño suave.

Figure 6.1: Steam cleaning in progress, softening grime for easy removal.

Puerta de vidrio extraíble:

For thorough cleaning, the inner glass panels of the oven door can be removed. Consult the specific instructions in your full manual for the exact procedure, as it varies by model. Typically, this involves opening the door fully, releasing clips, and carefully sliding out the glass panels.

Limpieza general:

• Limpiar el exterior con un suave, damp paño y detergente suave. Evite los limpiadores abrasivos.
• Clean oven racks and accessories with warm soapy water.
• Wipe down the interior after each use to prevent food buildup.

7. Solución de problemas

Si encuentra algún problema con su horno, consulte los siguientes problemas y soluciones comunes antes de comunicarse con el servicio de atención al cliente.

8. Especificaciones

Para obtener información más detallada del producto, puede consultar la base de datos EPREL: https://eprel.ec.europa.eu/qr/2247979

9. Garantía y soporte

Your Klarstein SmartSlim oven comes with a manufacturer's warranty. For warranty claims, technical support, or spare parts, please contact Klarstein customer service.

Información del contacto:

• Vendedor: Klarstein Deutschland
• Websitio: https://www.elektronik-star.de/info/impressum/
• Correo electrónico: info@electronic-star.de
• Teléfono: +493001385500

Please have your model number (SmartSlim) and part number (OV15-KL-SS-45Slm-Wh) ready when contacting support.
