Introducción
This manual provides essential instructions for the installation, operation, and maintenance of your new Generic replacement icemaker, designed for compatibility with KitchenAid KSCS25FTMS02 refrigerator models. Please read this manual thoroughly before proceeding with installation or use to ensure proper function and safety.
Contenido del paquete
Before beginning, verify that all components are present and undamaged. The package should contain:
- 1 x Replacement Icemaker Assembly (1 Set ONLY)
If any parts are missing or damaged, please contact your seller immediately.
Comprobación de compatibilidad
It is crucial to confirm that this replacement part is compatible with your refrigerator model before installation. This icemaker is designed for KitchenAid KSCS25FTMS02 refrigerators. Please compare the provided images and model numbers carefully with your original icemaker.

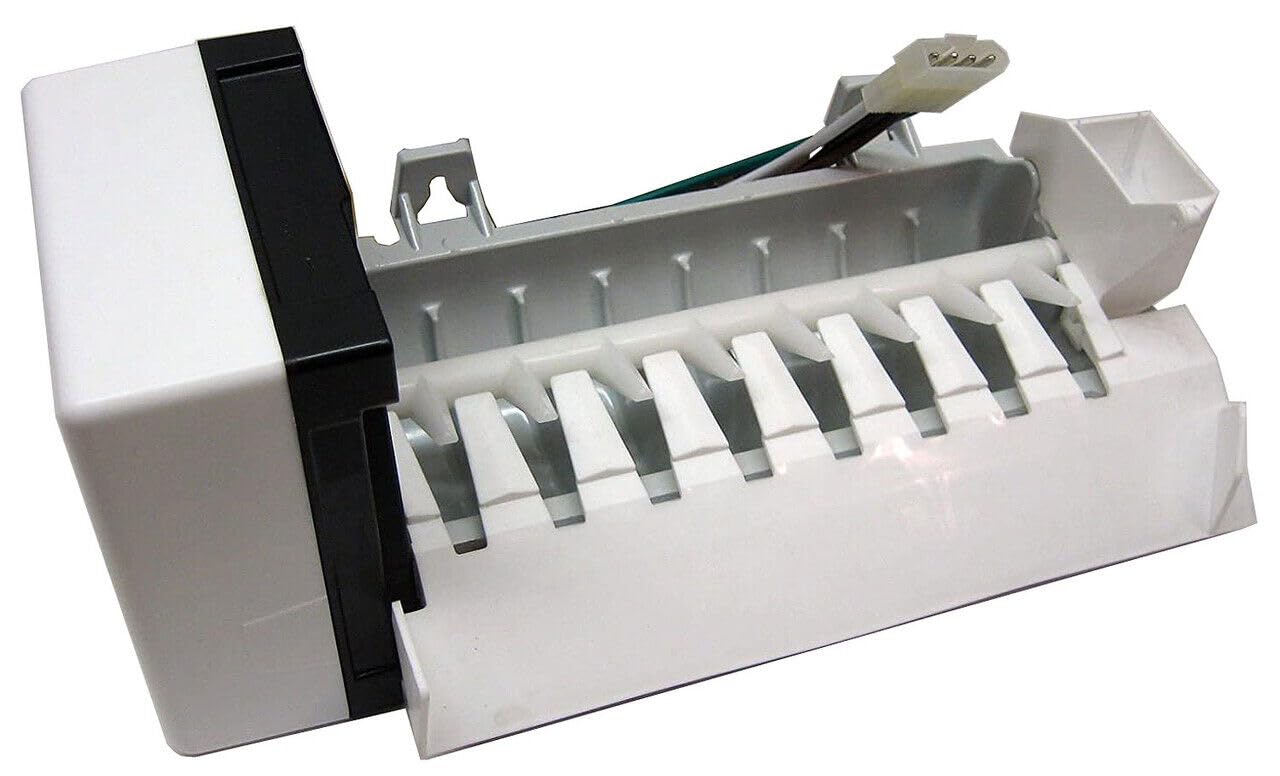

Imagen 1: The complete replacement icemaker assembly. This image shows the main body of the icemaker, including the ice mold, the motor housing on the left, and the water fill cup on the right, with a wiring harness visible at the top.
Configuración e instalación
Seguridad ante todo: Always disconnect power to the refrigerator before attempting any installation or repair. Failure to do so can result in electric shock or injury.
- Desconectar la energía: Desconecte el refrigerador del tomacorriente de pared o apague el disyuntor que suministra energía al refrigerador.
- Access Old Icemaker: Open the freezer door and locate the existing icemaker. Depending on your refrigerator model, you may need to remove an ice bucket or shelf to gain full access.
- Remove Old Icemaker:
- Locate and disconnect the wiring harness connected to the old icemaker. This usually involves pressing a tab and pulling the connector apart.
- Unscrew any mounting screws that secure the icemaker to the freezer wall. There are typically 2-3 screws.
- Carefully remove the old icemaker assembly from the freezer compartment.
- Install New Icemaker:
- Align the new icemaker assembly with the mounting brackets in the freezer.
- Secure the new icemaker with the mounting screws previously removed. Ensure it is firmly in place.
- Connect the wiring harness from the refrigerator to the new icemaker. Ensure the connection is secure and clicks into place.
- Restaurar energía: Vuelva a enchufar el refrigerador a la toma de corriente o encienda el disyuntor.
- Prueba inicial: After restoring power, the icemaker will typically perform a self-test cycle. It may take several hours for the first batch of ice to be produced. Discard the first few batches of ice to ensure cleanliness.
Instrucciones de funcionamiento
Once installed and powered, the icemaker operates automatically. It will fill with water, freeze the water into ice cubes, and then eject them into the ice bucket.
- Estreno: Allow 24 hours for the icemaker to reach full ice production capacity.
- Brazo de nivel de hielo: Most icemakers have a shut-off arm that senses the ice level in the bucket. When the bucket is full, the arm rises, and the icemaker stops producing ice. Lowering the arm will resume ice production.
- Suministro de agua: Ensure your refrigerator's water supply line is connected and the water valve is open for the icemaker to function.
Mantenimiento
Regular maintenance helps ensure optimal performance and longevity of your icemaker.
- Cubo de hielo limpio: Periodically empty and wash the ice bucket with mild soap and water. Rinse thoroughly and dry before returning it to the freezer.
- Compruebe el filtro de agua: If your refrigerator has a water filter, replace it according to the manufacturer's recommendations to ensure clean water for ice production.
- Inspeccionar la línea de agua: Revise ocasionalmente la línea de suministro de agua para detectar torceduras o fugas.
- Uso estacional: If you will be away for an extended period, it is advisable to turn off the icemaker and empty the ice bucket to prevent ice from clumping or developing odors.
Solución de problemas
Refer to the following common issues and their solutions before contacting a service technician.
| Problema | Posible causa | Solución |
|---|---|---|
| La máquina de hielo no produce hielo. |
|
|
| Los cubitos de hielo son pequeños o huecos. |
|
|
| Icemaker making unusual noises. |
|
|
Presupuesto
| Característica | Detalle |
|---|---|
| Marca | Genérico |
| Nombre del modelo | icepart#24129288 |
| Dimensiones del producto | 0.01"D x 0.01"W x 0.01"H (Note: These dimensions appear to be placeholder values and may not reflect the actual size of the icemaker.) |
| Capacidad | 0.01 Milliliters (Note: This capacity appears to be a placeholder value and does not represent ice production capacity.) |
| Modelo de refrigerador compatible | KitchenAid KSCS25FTMS02 |
Note: Some specifications provided by the manufacturer appear to be generic or placeholder values. Please refer to the product images and your refrigerator's specifications for accurate physical dimensions and performance expectations.
Garantía y soporte
For information regarding warranty coverage or technical support, please refer to the documentation provided with your purchase or contact the seller directly. As this is a replacement part, warranty terms may vary.
