Introducción
This manual provides essential information for the installation, operation, and maintenance of your replacement shift actuator, compatible with Whirlpool washer model 7MWTW1812AW0. Please read these instructions carefully before proceeding with any installation or repair to ensure safe and correct usage.
Advertencia de seguridad:
- Always disconnect power to the washing machine before attempting any repairs or installations. Failure to do so can result in serious injury or electrical shock.
- Utilice equipo de protección personal adecuado, como guantes y gafas de seguridad.
- Si no está seguro de algún paso, consulte con un técnico de reparación de electrodomésticos calificado.
Producto terminadoview
The shift actuator is a critical component in your washing machine, responsible for controlling the shifting mechanism between agitation and spin cycles. A malfunctioning actuator can lead to issues such as the washer not spinning, not agitating, or making unusual noises.

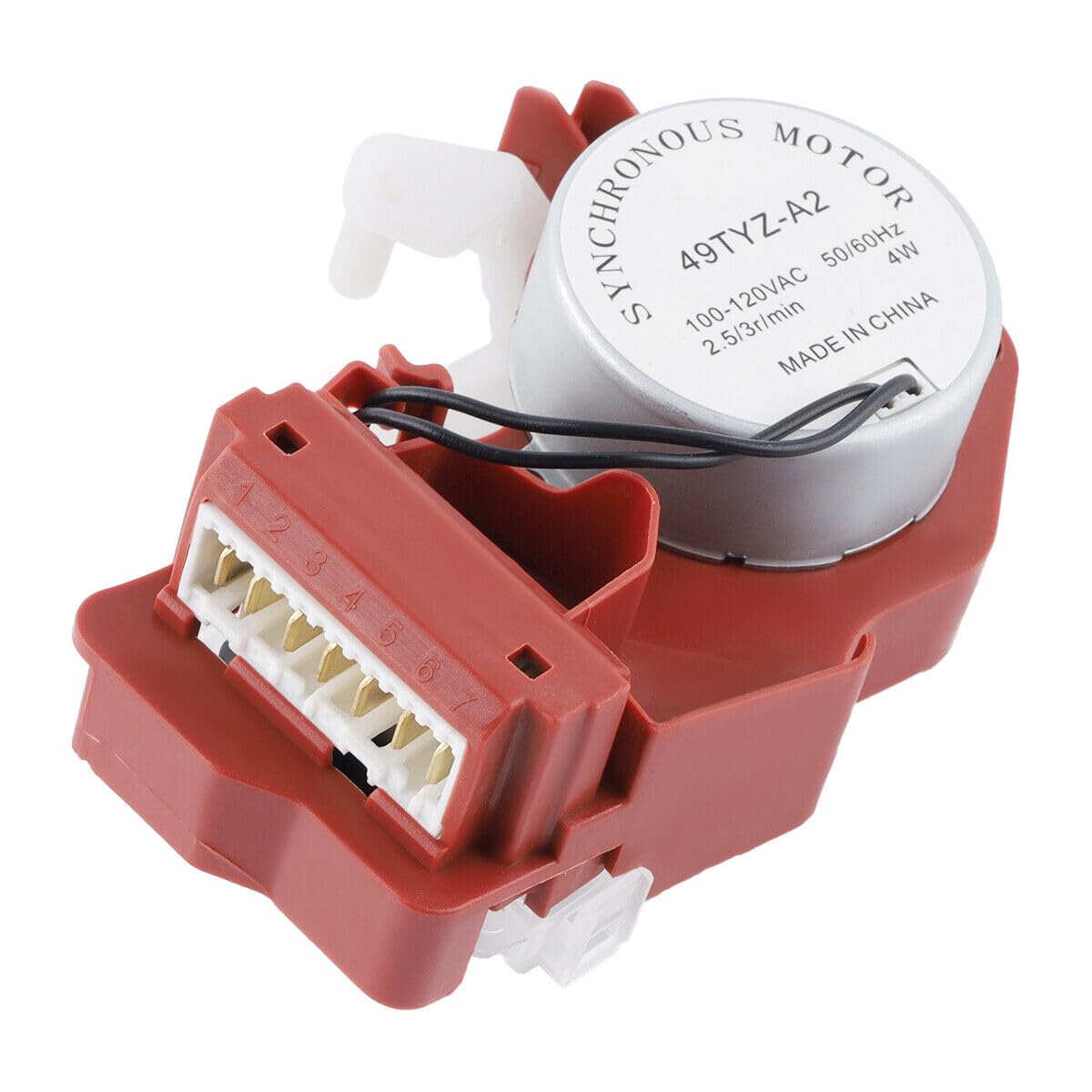

Figura 1: Whirlpool Washer Shift Actuator Replacement Part. This image displays the replacement shift actuator. It features a red plastic housing with a silver synchronous motor attached. The motor label indicates specifications such as 100-120VAC, 50/60Hz, 4W, and 2.5/3r/min, with model number 49TYZ-A2 and 'MADE IN CHINA'.
Configuración e instalación
This section outlines the general steps for replacing a washer shift actuator. Specific procedures may vary slightly depending on your exact washer model. Refer to your washer's service manual for detailed instructions if available.
- Desconectar la energía: Unplug the washing machine from the electrical outlet or turn off the circuit breaker supplying power to the washer.
- Access the Actuator: Depending on your washer model, you may need to tilt the washer back, remove the back panel, or access the underside of the machine to locate the shift actuator. It is typically found near the transmission.
- Desconectar el cableado: Carefully disconnect the electrical connector(s) from the old actuator. Note the orientation of the wires if there are multiple connections.
- Retire el actuador antiguo: Unbolt or unclip the old shift actuator from its mounting bracket. Keep track of any screws or fasteners.
- Instalar nuevo actuador: Position the new replacement actuator in the same location as the old one. Secure it with the original screws or fasteners. Ensure it is firmly mounted.
- Conectar el cableado: Reconnect the electrical connector(s) to the new actuator. Ensure connections are secure and correctly oriented.
- Volver a montar la lavadora: Reattach any panels or components that were removed to access the actuator.
- Restaurar energía y probar: Plug the washing machine back into the electrical outlet or turn on the circuit breaker. Run a test cycle to verify proper operation of the washer, ensuring it agitates and spins correctly.
Instrucciones de funcionamiento
Once the shift actuator is correctly installed, the washing machine should resume normal operation. The actuator functions automatically during wash cycles, engaging the appropriate mechanisms for agitation and spin. No direct user interaction with the actuator itself is required during normal operation.
- Ensure the washer completes full cycles without interruption.
- Listen for any unusual noises during agitation or spin cycles, which could indicate further issues.
Mantenimiento
The shift actuator is generally a sealed unit and does not require routine maintenance. However, periodic inspection of its mounting and wiring connections can help ensure long-term reliability.
- Inspección visual: Periodically (e.g., annually), with the power disconnected, inspect the actuator for any signs of physical damage, loose wiring, or corrosion.
- Limpieza: Keep the area around the actuator free from lint, debris, and moisture.
Solución de problemas
If your washing machine exhibits problems after replacing the shift actuator, consider the following troubleshooting steps:
| Síntoma | Posible causa | Solución |
|---|---|---|
| Washer does not agitate or spin | Incorrect installation, faulty wiring connection, or other component failure. | Verify all wiring connections are secure. Recheck installation steps. If problem persists, other components (e.g., motor, control board) may be at fault. |
| Unusual noises during cycle | Actuator not properly seated, foreign object, or other mechanical issue. | Ensure actuator is securely mounted. Inspect for any obstructions around the actuator or transmission. |
| Washer stops mid-cycle | Electrical issue, control board problem, or intermittent actuator failure. | Check power supply. If the issue is intermittent, the actuator might be failing, or there could be a control board issue. |
Si los pasos de solución de problemas no resuelven el problema, se recomienda contactar a un técnico de reparación de electrodomésticos calificado.
Presupuesto
- Tipo de pieza: Washer Shift Actuator
- Modelo de lavadora compatible: 7MWTW1812AW0
- Replacement Part Model (as per product details): 7MWTW1899BQ0
- Actuator Motor Model: 49TYZ-A2
- Volumentage: 100-120 V CA
- Frecuencia: 50/60 Hz
- Fuerza: 4W
- Velocidad de rotación: 2.5/3r/min
- Color: Black (as per product details)
- Fabricante: Partes de Actome
- ASIN: B0F1Y2Q2C2
- Fecha de primera disponibilidad: 19 de marzo de 2025
Garantía y soporte
This product is a replacement part. For specific warranty information, please refer to the terms provided by the seller at the time of purchase. Warranty coverage typically applies to manufacturing defects.
For technical support or further assistance, please contact the seller directly through your purchase platform or consult a professional appliance repair technician.
