CLP Laflin I Swivel Work Stool User Manual

1. Introducción

Thank you for choosing the CLP Laflin I Swivel Work Stool. This manual provides essential information for the safe and efficient use of your new stool. Please read these instructions carefully before assembly and use, and retain them for future reference.

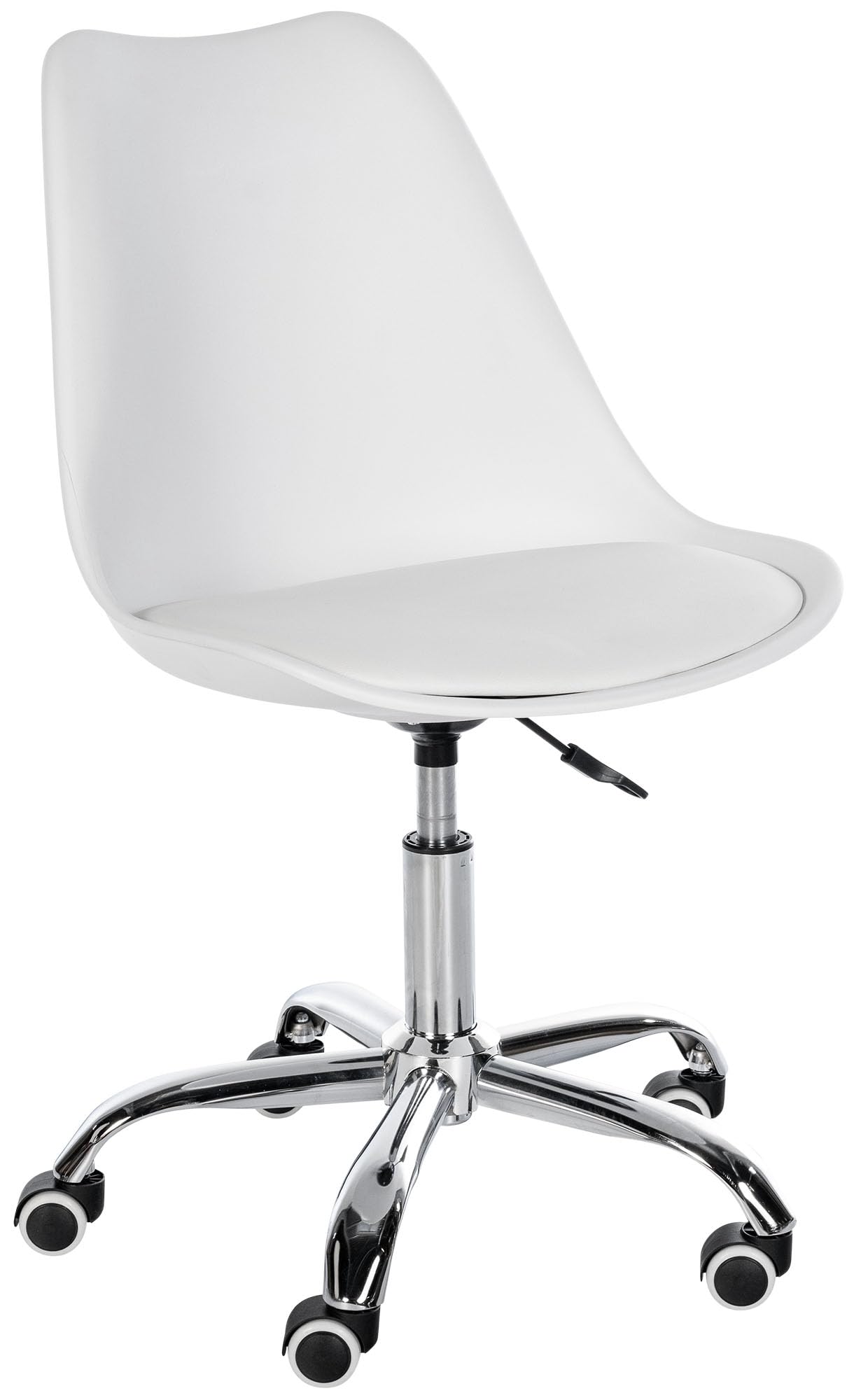

Image 1: The CLP Laflin I Swivel Work Stool, featuring a white upholstered seat and chrome base with casters.

2. Información de seguridad

• Capacidad máxima de peso: This stool is designed to support a maximum weight of 130 kg (286 lbs). Do not exceed this limit.
• Ensure all components are securely fastened before and during use. Periodically check all screws and connections for tightness.
• No se suba al taburete. Úselo solo para sentarse.
• Mantenga las manos y los dedos alejados de las piezas móviles, especialmente durante el ajuste de altura.
• Utilice el taburete sobre una superficie plana y estable para evitar que se vuelque.
• Keep children away from the stool during assembly and ensure they do not play with it unsupervised.

Image 2: Visual representation of the stool's maximum weight capacity of 130 kg.

3. Contenido del paquete

Verifique que todos los componentes estén presentes antes de comenzar el ensamblaje. Si alguna pieza falta o está dañada, comuníquese con atención al cliente.

• 1x Seat with upholstered cushion and backrest
• 1x Gas lift cylinder
• 1x Star base (with 5 arms)
• 5x Casters (wheels)
• Mounting hardware (screws, washers, Allen key - if applicable)

4. Configuración y montaje

Assembly of the CLP Laflin I stool is straightforward, though some steps may require careful alignment. Follow these steps:

1. Coloque las ruedas: Insert each of the five casters firmly into the holes at the end of each arm of the star base until they click into place.
2. Insertar elevador de gas: Place the gas lift cylinder into the central hole of the assembled star base. Do not remove the protective cap from the top of the gas lift until instructed.
3. Adjuntar asiento: Carefully align the mechanism under the seat with the top of the gas lift cylinder. Remove the protective cap from the gas lift. Gently lower the seat onto the gas lift, applying slight pressure until it is securely seated.
4. Secure Seat (if applicable): If your model includes screws to attach the seat to the mechanism, use the provided hardware and Allen key to firmly secure them. Ensure the seat is properly aligned before tightening.

Note: Some users have reported that securing the seat cushion to the base may require firm pressure or careful alignment. Ensure all parts are correctly positioned before tightening any screws.

5. Instrucciones de funcionamiento

The CLP Laflin I stool offers adjustable height and 360-degree swivel functionality for optimal comfort and flexibility.

• Ajuste de altura: To raise the seat, lift the lever located under the right side of the seat while standing up. To lower the seat, lift the lever while seated, allowing your weight to push the seat down. Release the lever at your desired height. The seat height can be adjusted between approximately 43 cm and 53 cm.
• Función giratoria: The seat is designed to rotate 360 degrees, allowing for easy movement and access to different areas without needing to reposition the entire stool.
• Movilidad: The smooth-rolling casters allow you to move the stool effortlessly across various floor surfaces.

Image 3: Illustration of the stool's 360-degree swivel and adjustable height features.

6. Mantenimiento

Regular maintenance will help prolong the life and appearance of your work stool.

• Limpieza del asiento: Wipe the faux leather upholstered seat with a soft, damp Paño. Para manchas difíciles, use una solución jabonosa suave y seque inmediatamente. Evite productos químicos fuertes o limpiadores abrasivos.
• Cleaning the Base and Casters: Clean the chrome metal base and casters with a soft, dry cloth. For dirt on casters, you may use a slightly damp cloth. Ensure no hair or debris is tangled in the caster wheels.
• Comprobación del hardware: Revise periódicamente (por ejemplo, cada 3 a 6 meses) todos los tornillos y pernos para asegurar su correcto apriete. Vuelva a apretarlos si es necesario para mantener la estabilidad.

7. Solución de problemas

If you encounter any issues with your CLP Laflin I stool, refer to the following common problems and solutions:

• Stool is Wobbly or Unstable:
  • Asegúrese de que todos los tornillos de montaje estén completamente apretados.
  • Verify that the gas lift cylinder is properly seated in both the base and the seat mechanism.
  • Check that the casters are fully inserted into the star base.
• El ajuste de altura no funciona:
  • Asegúrese de que la palanca de ajuste de altura esté completamente enganchada cuando intente realizar el ajuste.
  • Verifique si hay obstrucciones alrededor del mecanismo de elevación de gas.
  • If the gas lift is completely unresponsive, it may need replacement. Contact customer support.
• Las ruedas no giran con suavidad:
  • Inspeccione las ruedas para ver si tienen pelos enredados, pelusa o residuos. Límpielas a fondo.
  • Ensure casters are securely inserted into the base.

8. Especificaciones

Image 4: Detailed dimensions of the CLP Laflin I Swivel Work Stool, including height, width, and depth measurements.

9. Información de garantía

CLP products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region. Please refer to the warranty card included with your purchase or visit the official CLP websitio para obtener información detallada sobre la garantía.

Conserve su comprobante de compra para cualquier reclamo de garantía.

10. Atención al cliente

For further assistance, questions, or to report missing/damaged parts, please contact CLP customer support.

• En línea: Visit the official CLP webSitio de preguntas frecuentes y formularios de contacto.
• Correo electrónico: Consulte la documentación de compra para obtener la dirección de correo electrónico de atención al cliente.
• Teléfono: Check the CLP webSitio o embalaje del producto para obtener números de contacto regionales.

When contacting support, please have your product model (Laflin I) and purchase details ready.
