Instruction Manual: Generic 6-Fin Blender Blade Assembly

1. Producto terminadoview

This document provides instructions for the Generic 6-Fin Blender Blade Assembly, a replacement part designed for specific Nutri Ninja blender models. This blade assembly is constructed from durable stainless steel and plastic, ensuring efficient blending performance.

Características:

• 6-Fin Blade Design: Engineered for effective blending and pulverizing ingredients.
• Construcción duradera: Made from stainless steel blades and a robust plastic base for longevity.
• Fácil instalación: Designed for straightforward attachment and removal from compatible blender cups.

Image 1: The 6-fin blender blade assembly, showing its overall dimensions. The assembly has a total height of 3 inches, a diameter of 3.38 inches, and the blade section measures 1 inch in height.

Imagen 2: De arriba hacia abajo view of the 6-fin blade assembly, highlighting the sharp stainless steel blades.

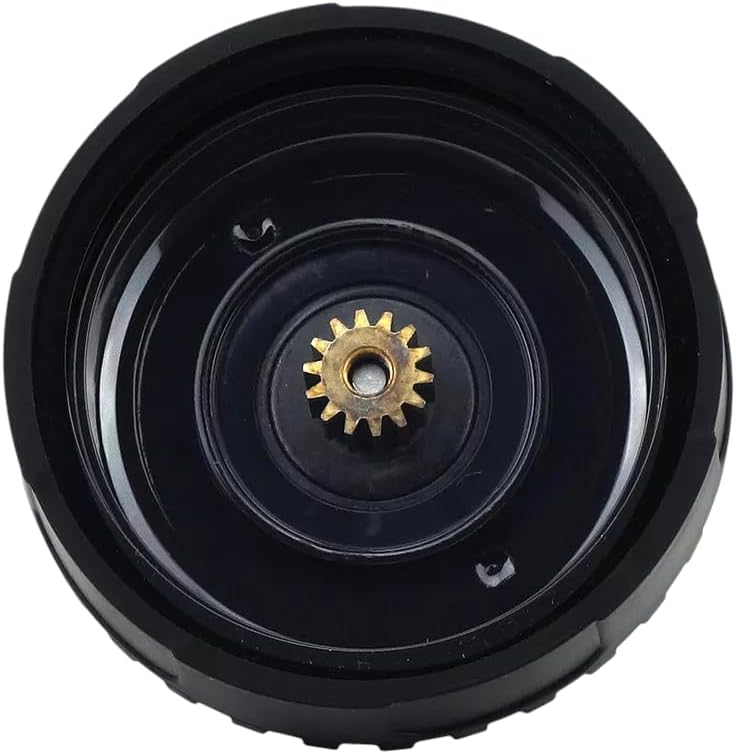

Imagen 3: Abajo view of the blade assembly, displaying the central drive gear that connects to the blender motor base.

2. Compatibilidad

This 6-fin blender blade assembly is specifically designed for use with Nutri Ninja blender models BL810, BL810C, BL810Q, BL820, and BL830. It is compatible with 18oz, 24oz, and 32oz blender cups. It is NOT compatible with 16oz cups. Please verify your blender model and cup size before installation.

3. Información de seguridad

• Cuchillas afiladas: The blades are extremely sharp. Handle with extreme care to prevent injury.
• Desenchufe antes de manipular: Always ensure the blender base is unplugged from the power outlet before attaching, detaching, or cleaning the blade assembly.
• Adjunto seguro: Ensure the blade assembly is securely tightened onto the blender cup before placing it on the motor base.
• No llene demasiado: Do not fill the blender cup beyond the maximum fill line to prevent leaks and potential damage.
• Supervisión: Keep out of reach of children. Adult supervision is required when operating the blender.

4. Configuración e instalación

1. Preparar Ingredientes: Place your desired ingredients into a compatible Nutri Ninja blender cup (18oz, 24oz, or 32oz). Do not exceed the MAX FILL line.
2. Fijar el conjunto de cuchillas: Place the 6-fin blade assembly onto the open end of the blender cup. Twist clockwise until it is securely tightened. Ensure there are no gaps.
3. Colocar en la base del motor: Invert the assembled cup and blade, then place it onto the Nutri Ninja motor base. Align the tabs on the cup with the slots on the base and twist clockwise until it locks into place.

5. Instrucciones de funcionamiento

1. Encendido: Plug the blender motor base into a power outlet.
2. Seleccionar función: Choose your desired blending function (e.g., BLEND, MAX BLEND, PULSE) on the blender's control panel.
3. mezclar: Press the appropriate button to start blending. The blender will operate according to the selected program.
4. Stop: Press the START/STOP button to halt the blending process, or allow the program to complete automatically.
5. Quitar la taza: Once blending is complete, twist the cup counter-clockwise to unlock it from the motor base, then lift it off.
6. Quitar la cuchilla: Carefully twist the blade assembly counter-clockwise to remove it from the cup.

6. Cuidado y mantenimiento

• Limpieza: After each use, immediately rinse the blade assembly under running water. Use a brush to carefully clean around the blades.
• Apto para lavavajillas: The blade assembly is top-rack dishwasher safe.
• El secado: Ensure the blade assembly is completely dry before storing to prevent rust or odor.
• Almacenamiento: Store the blade assembly in a safe place where the sharp blades cannot cause accidental injury.

7. Solución de problemas

• La licuadora no arranca: Ensure the cup with the blade assembly is securely locked onto the motor base. The blender has safety features that prevent operation if not properly assembled.
• Fugas: Check that the blade assembly is tightly screwed onto the blender cup. Ensure the gasket is properly seated and not damaged. Do not overfill the cup.
• Poor Blending: Ensure the ingredients are not packed too tightly. Add more liquid if necessary. For tough ingredients, use the PULSE function first.
• Ruido/vibración inusual: Stop the blender immediately. Check for any foreign objects in the cup or blade assembly. Ensure the blade is not damaged.

8. Especificaciones

9. Garantía y soporte

For warranty information or customer support regarding this product, please refer to the seller's policies or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
