Lubluelu L15 Vacuum Replacement Parts Set User Manual

Introducción

This manual provides detailed instructions for the installation, maintenance, and replacement of the Lubluelu L15 Vacuum Replacement Parts Set. This set includes a main roller brush, side brushes, filters, and mop cloths, designed to maintain the optimal performance of your Lubluelu L15 robot vacuum cleaner.

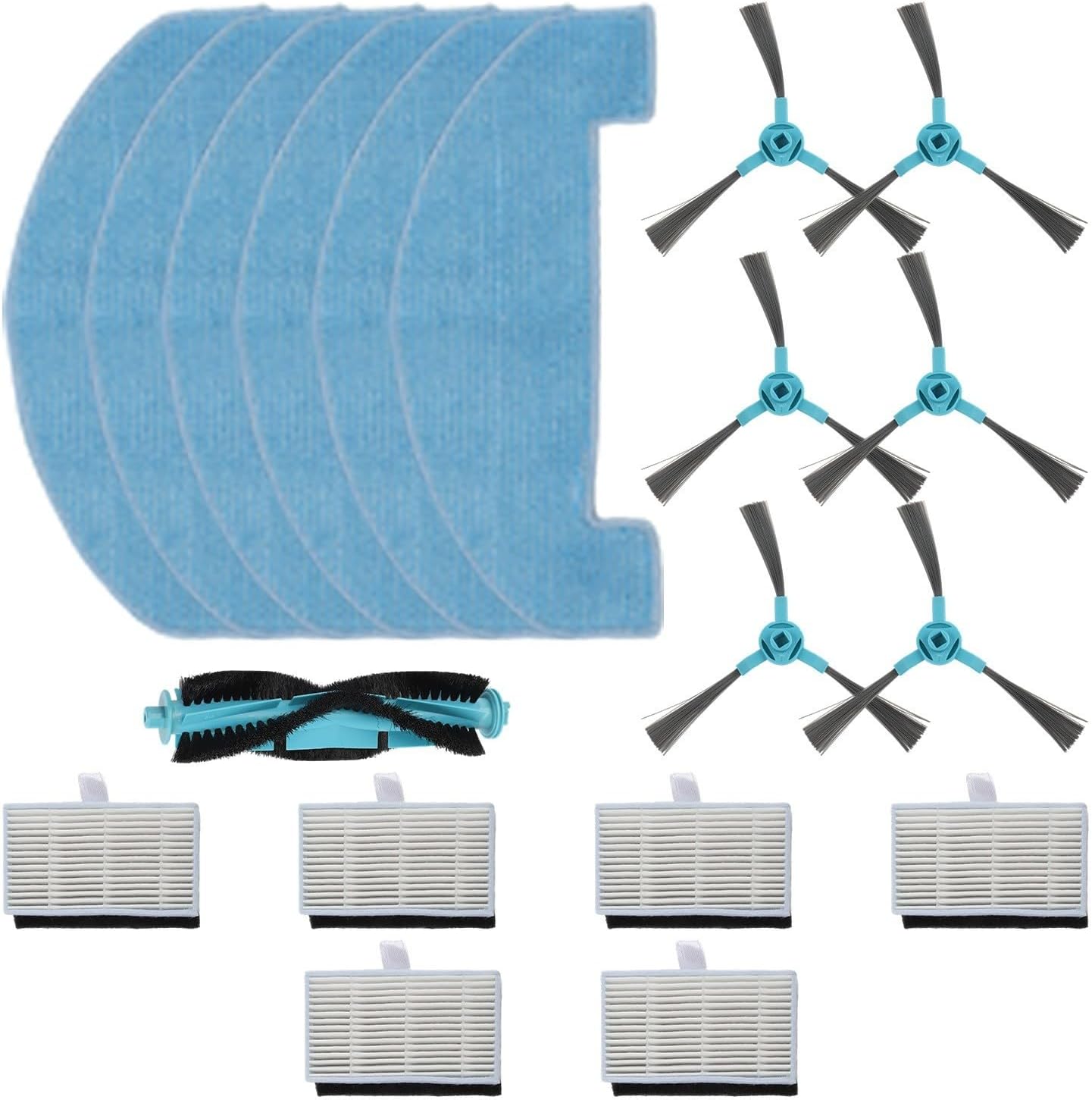

Imagen: Más alláview of the Lubluelu L15 Replacement Parts Set. This image displays all components included in the kit: one main roller brush, six side brushes, six filters, and six mop cloths.

Instrucciones de instalación

Before installing any replacement parts, ensure your Lubluelu L15 robot vacuum cleaner is powered off and disconnected from its charging base. Refer to your vacuum's original user manual for specific compartment access instructions.

1. Instalación del cepillo del rodillo principal

1. Ponga el robot aspirador boca abajo.
2. Locate the brush guard cover, usually secured by latches or screws. Open or remove it.
3. Remove the old main roller brush.
4. Insert the new main roller brush into its designated slot, ensuring the ends align with the gears/slots.
5. Cierre bien la cubierta protectora del cepillo.

Image: Components for installation. This image shows the main roller brush, side brushes, filters, and mop cloths, ready for replacement in the vacuum cleaner.

2. Instalación del cepillo lateral

1. Ponga el robot aspirador boca abajo.
2. Localice los cepillos laterales. Normalmente se fijan con un tornillo.
3. Desatornille y retire el cepillo lateral viejo.
4. Place the new side brush onto the post and secure it with the screw. Ensure it is firmly attached but can rotate freely.

3. Instalación del filtro

1. Abra el compartimento del depósito de polvo de su robot aspirador.
2. Retire el cubo de basura.
3. Localice el conjunto del filtro dentro del depósito de basura. Retire el filtro usado.
4. Insert the new filter into the dustbin, ensuring it fits snugly to prevent dust leakage.
5. Reinstall the dustbin into the vacuum cleaner.

4. Instalación del paño de fregona

1. Locate the mop cloth attachment or water tank on your robot vacuum.
2. Remove the old mop cloth, typically attached with hook-and-loop fasteners or by sliding it off.
3. Attach the new mop cloth, ensuring it is flat and securely fastened.

Maintenance and Replacement Guidelines

Regular maintenance of these replacement parts is crucial for the longevity and efficiency of your Lubluelu L15 robot vacuum cleaner.

Cepillo de rodillo principal

• Limpieza: Remove hair and debris tangled around the brush ends and bristles regularly (e.g., weekly). Use the cleaning tool provided with your vacuum, if available.
• Reemplazo: Replace every 3-6 months, or when bristles show significant wear or damage.

Cepillos laterales

• Limpieza: Remove any hair or debris tangled around the brushes weekly.
• Reemplazo: Replace every 3-6 months, or if bristles are bent, broken, or excessively worn, affecting cleaning performance.

Filtros

• Limpieza: Tap the filter gently over a trash can to remove accumulated dust after each cleaning cycle. Do not wash filters with water unless specified by the vacuum's original manual, as this can damage them.
• Reemplazo: Replace every 1-3 months, depending on usage frequency and household environment (e.g., pets, allergies). A clogged filter reduces suction power.

Trapeadores

• Limpieza: Remove and wash the mop cloth after each use. Hand wash with mild detergent and air dry.
• Reemplazo: Replace every 1-3 months, or when the cloth shows signs of wear, reduced absorbency, or is no longer effectively cleaning.

Solución de problemas

Si experimenta problemas después de reemplazar piezas, considere lo siguiente:

• Rendimiento de limpieza reducido:
  • Ensure the main roller brush and side brushes are free of tangles and debris.
  • Check if the filter is clean and not clogged.
  • Verify that the mop cloth is clean and properly attached.
  • Confirm all parts are installed correctly and securely.
• Ruidos inusuales:
  • Inspect the main roller brush for any foreign objects or hair caught in its mechanism.
  • Ensure side brushes are not bent or obstructed.
  • Verify all covers and compartments are closed properly.
• Piezas que no encajan:
  • Double-check that you have the correct replacement parts for the Lubluelu L15 model.
  • Ensure parts are oriented correctly during installation.

Presupuesto

Garantía y soporte

For warranty information or product support, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
