Cecotec Bolero CoolMarket 4D 474 Refrigerator Instruction Manual

1. Producto terminadoview

The Cecotec Bolero CoolMarket 4D 474 is a 4-door Total No Frost refrigerator designed for optimal food preservation and energy efficiency. It features a spacious 474-liter capacity, an ultra-silent operation at 35 dB, and advanced cooling technologies to maintain ideal conditions for your food.

Figura 1: Frente view of the Cecotec Bolero CoolMarket 4D 474 refrigerator.

2. Información de seguridad

Before operating the appliance, please read this manual carefully to ensure safe and proper use. Keep this manual for future reference.

• Asegúrese de que el refrigerador esté colocado sobre una superficie estable y nivelada.
• No bloquee las aberturas de ventilación en el gabinete del aparato ni en la estructura incorporada.
• No utilice dispositivos mecánicos ni otros medios para acelerar el proceso de descongelación, distintos de los recomendados por el fabricante.
• No dañe el circuito refrigerante.
• No utilice aparatos eléctricos dentro de los compartimentos de almacenamiento de alimentos del aparato, a menos que sean del tipo recomendado por el fabricante.
• Este aparato no está diseñado para ser utilizado por personas (incluidos niños) con capacidades físicas, sensoriales o mentales reducidas, o con falta de experiencia y conocimientos, a menos que hayan recibido supervisión o instrucciones sobre el uso del aparato por parte de una persona responsable de su seguridad.
• Se debe supervisar a los niños para garantizar que no jueguen con el aparato.
• Si el cable de alimentación está dañado, deberá ser reemplazado por el fabricante, su agente de servicio o persona igualmente calificada para evitar un peligro.

3. Configuración e instalación

3.1 Desembalaje

Retire con cuidado todo el material de embalaje. Inspeccione el aparato para detectar posibles daños. Mantenga el material de embalaje fuera del alcance de los niños.

3.2 Colocación

Place the refrigerator in a well-ventilated area, away from direct sunlight and heat sources. Ensure sufficient space around the appliance for proper air circulation. The appliance dimensions are 83.3 cm (width) x 65.3 cm (depth) x 177.5 cm (height).

Figura 2: Dimensiones del refrigerador para la planificación de la instalación.

3.3 Nivelación

Adjust the leveling feet to ensure the refrigerator is stable and level. This helps prevent vibrations and ensures proper door sealing.

3.4 Conexión de alimentación

Connect the appliance to a grounded power outlet (220 Volts, Type E/F: 2 pins). Allow the refrigerator to stand for at least 2-4 hours before plugging it in to allow refrigerants to settle.

4. Instrucciones de funcionamiento

4.1 Panel de control

The refrigerator features an external digital display for easy and intuitive adjustment of settings. You can customize temperature and other functions as needed.

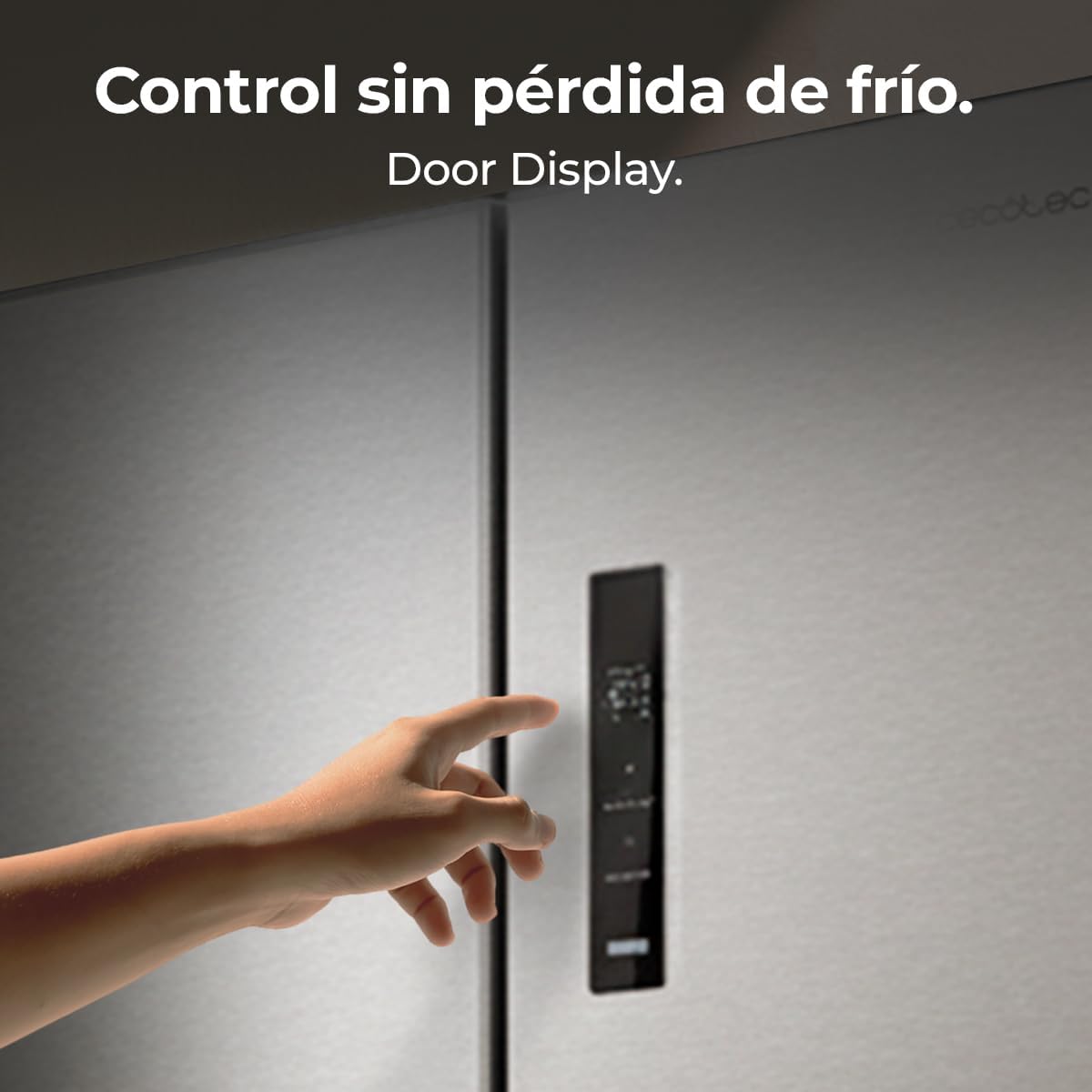

Figure 3: External digital control panel.

4.2 configuraciones de temperatura

Use the control panel to set the desired temperature for the refrigerator and freezer compartments. The intelligent sensors automatically optimize performance by controlling the internal temperature at all times.

Figura 4: Interior view showing cooling distribution.

4.3 Fresh Flex Variable Temperature Drawer

The exclusive Fresh Flex variable temperature drawer extends the freshness of your food with 3 adjustable temperatures specific for fruits and vegetables, beverages, or meats and fish. This allows you to maintain each product at its optimal temperature.

Figure 5: Fresh Flex variable temperature drawer.

4.4 Special Functions: Fast Cooling and Fast Freezing

• Congelación rápida: Quickly freezes food to preserve freshness and nutrients, ideal for large purchases and perishable items.
• Enfriamiento rápido Rapidly cools food and beverages, perfect for cooling items after shopping or before an event.

Figure 6: Fast Cooling and Fast Freezing in action.

4.5 Sistema de flujo de aire múltiple

The Multi Air Flow system uses internal ventilation to distribute cold air correctly, ensuring homogeneous conditions throughout all compartments for optimal food preservation.

Figure 7: Multi Air Flow system for even cooling.

4.6 90° Door Opening

The refrigerator doors open at a 90-degree angle, improving accessibility to all corners and facilitating organization and access to your food without obstruction.

Figure 8: 90-degree door opening for full access.

5. Mantenimiento

5.1 Total NoFrost System

The Total NoFrost system prevents ice accumulation, eliminating the need for manual defrosting and ensuring optimal and efficient performance of the refrigerator at all times.

Figure 9: Total NoFrost system prevents ice buildup.

5.2 Limpieza

Regularly clean the interior and exterior of the refrigerator with a soft cloth and mild detergent. Avoid abrasive cleaners or solvents. Ensure the appliance is unplugged before cleaning.

6. Solución de problemas

If you experience any issues with your refrigerator, please refer to the following common troubleshooting tips before contacting customer support.

• El aparato no enfría: Check if the power cord is securely plugged in. Ensure the temperature settings are correct. Verify that the door is closed properly.
• Ruidos inusuales: Ensure the appliance is level. Check for any objects touching the back or sides of the refrigerator.
• Fuga de agua: Check if the drain hole is blocked. Ensure the water dispenser tray is correctly positioned (if applicable).
• Excessive frost (despite NoFrost): Ensure the door seals are intact and the doors are closing completely. Avoid frequently opening the doors for extended periods.

7. Especificaciones

Figure 10: Energy Efficiency Label. For more details, visit the Base de datos EPREL.

Figura 11: Hoja de datos detallada del producto.

8. Garantía y soporte

This Cecotec refrigerator comes with a 3-year warranty. For technical assistance, spare parts, or any inquiries, please contact Cecotec customer support. The availability of spare parts in the EU is guaranteed for 10 years.

Para más información visita la página oficial de Cecotec website or refer to the contact details provided in the included manual.

9. Componentes incluidos

El paquete del producto incluye:

• Cecotec Bolero CoolMarket 4D 474 Refrigerator
• Manual de instrucciones
