The Integy Billet Machined Rear Body Mount Support (Model T3140S) is an upgrade component designed for Traxxas 1/10 Revo models (5310, 5309, 5308). This precision-engineered part is crafted from billet aluminum, offering enhanced durability and a refined aesthetic compared to stock components. It is intended to provide robust support for the vehicle's rear body, contributing to overall structural integrity and performance. The part is CNC machined to ensure a precise fit and exceptional strength.

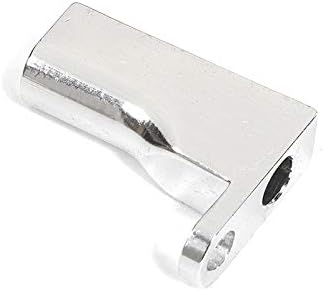

Figura 1: Frente view of the Billet Machined Rear Body Mount Support.
Características principales
- Billet Machined Construction: Manufactured from high-grade billet aluminum for superior strength and precision.
- Mayor durabilidad: Designed to withstand rigorous RC use, improving the longevity of your vehicle's body mounting system.
- Aesthetic Upgrade: Provides a sleek, anodized finish (color may vary) that enhances the visual appearance of your RC car.
- Compatibilidad directa: Engineered as a direct replacement part for Traxxas 1/10 Revo models 5310, 5309, and 5308.
- Performance Improvement: Contributes to a more stable and secure body mount, potentially improving handling characteristics.
Configuración e instalación
This section outlines the general steps for installing the Billet Machined Rear Body Mount Support. Basic tools such as a hex wrench set and possibly a small screwdriver will be required. Ensure your vehicle is powered off and the battery is disconnected before beginning any installation.
Herramientas necesarias:
- Hex Wrench Set (appropriate sizes for Traxxas Revo)
- Small Phillips Head Screwdriver (if applicable)
Pasos de instalación:
- Preparar el vehículo: Place your Traxxas 1/10 Revo on a clean, stable surface. Remove the vehicle's body shell.
- Locate Existing Body Mount: Identify the rear body mount assembly on your vehicle.
- Quitar el soporte antiguo: Carefully unfasten any screws or pins securing the existing rear body mount support. Keep track of all hardware.
- Instalar nuevo soporte: Position the Integy Billet Machined Rear Body Mount Support (T3140S) in place of the old component.
- Secure New Support: Use the original hardware (or new hardware if provided and specified by Integy) to securely fasten the new body mount support. Ensure all screws are tightened appropriately, but do not overtighten to avoid stripping threads.
- Inspeccionar: Gently test the stability of the newly installed support. Ensure it is firmly attached and does not wobble.
- Volver a colocar el cuerpo: Once the support is secure, reattach the vehicle's body shell.
Figura 2: Lado view of the body mount support, showing mounting points.
Instrucciones de funcionamiento
Once the Billet Machined Rear Body Mount Support is correctly installed, it functions passively as a structural component. No specific operational steps are required beyond ensuring it is securely fastened before each use of your RC vehicle. Its primary role is to provide a stable and durable mounting point for the vehicle's body shell during operation.
Mantenimiento
Regular maintenance of the body mount support will ensure its longevity and optimal performance:
- Inspección: Periodically inspect the body mount support for any signs of damage, bending, or loose connections, especially after heavy use or impacts.
- Limpieza: Clean the support as needed to remove dirt, dust, and debris. A soft brush or cloth can be used. Avoid harsh chemicals that may damage the anodized finish.
- Comprobación del sujetador: Ensure all screws and fasteners holding the body mount support are tight. Retighten if necessary, but avoid overtightening.
Solución de problemas
While the Billet Machined Rear Body Mount Support is a robust component, minor issues can arise:
| Problema | Posible causa | Solución |
|---|---|---|
| Body shell feels loose or wobbly. | Loose mounting screws; damaged body clips; incorrect installation. | Check and tighten all mounting screws. Ensure body clips are properly seated. Re-verify installation steps. |
| Visible damage to the support. | Impact during use; material fatigue. | Inspect the extent of damage. If structural integrity is compromised, replace the part. |
Presupuesto
| Atributo | Detalle |
|---|---|
| Número de modelo | T3140S |
| Marca | Integy |
| Modelos compatibles | Traxxas 1/10 Revo (5310, 5309, 5308) |
| Material | Billet Machined Alloy |
| Peso del artículo | 1.6 onzas |
| Edad recomendada por el fabricante | 15 años y más |
Información de garantía
Specific warranty details for the Integy Billet Machined Rear Body Mount Support (T3140S) are not provided in this manual. For comprehensive warranty information, including terms, conditions, and claim procedures, please refer to the official Integy website or contact Integy customer support directly.
You can visit the Integy store page for more information: Integy Official Store
Atención al cliente
For technical assistance, replacement parts, or any inquiries regarding your Integy product, please contact Integy customer support through their official channels. Contact information is typically available on the manufacturer's websitio.
Please have your model number (T3140S) and purchase details ready when contacting support.
