The Extech DL150 is a True RMS AC voltage and current data logger designed for precise measurement and recording of electrical parameters. It is capable of logging up to 100,000 readings of TRMS AC Voltage (up to 600V) or Current (up to 200 Amp). This device features a user-programmable sample rate ranging from 1 second to 24 hours, providing flexibility for various monitoring needs. The integrated LCD displays real-time data including time/date, current readings, and minimum/maximum values. It also indicates if user-settable high/low alarms have been exceeded. Data can be easily downloaded to a PC via the USB interface for analysis using the included software or for export to a spreadsheet. The DL150 supports Normal, Peak, and Capture (user-specified trigger level) recording modes, making it a versatile tool for electrical diagnostics and monitoring.
¿Qué hay en la caja?

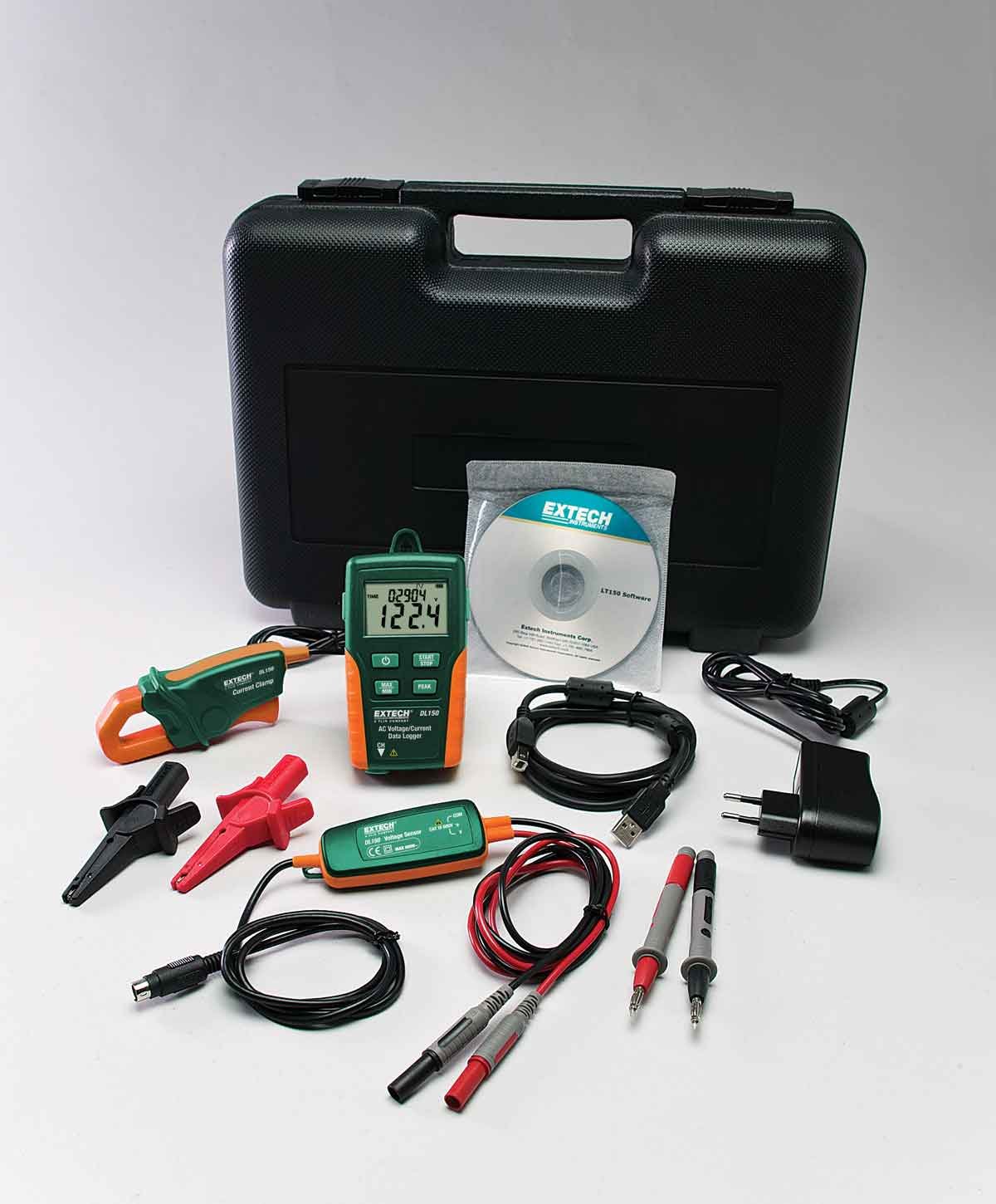

Image: The Extech DL150 Datalogger shown with all its included accessories, neatly laid out. This includes the main unit, current clamp, test leads, alligator clips, software CD, USB cable, 110-Volt AC Adapter, and a 3.6V Lithium Battery.
Al abrir el paquete, verifique que estén presentes todos los siguientes componentes:
- Extech DL150 Volumen de CA de verdadero valor eficaztage/Current Datalogger Unit
- Cl actualamp
- Cables de prueba
- Pinzas de cocodrilo
- Software (on CD or available for download)
- Cable USB
- Adaptador de CA de 110 voltios
- Batería de litio de 3.6 V
If any items are missing or damaged, please contact Extech customer support immediately.
Configuración
1. Instalación de la batería
The DL150 requires 4 AAA batteries (included). To install, locate the battery compartment on the rear of the unit. Open the compartment cover, insert the batteries observing the correct polarity (+/-), and then securely close the cover. Ensure the battery is properly seated for continuous operation.
2. Instalación del software
Before connecting the datalogger to your computer, install the provided software. Insert the software CD into your computer's drive and follow the on-screen instructions. If a CD drive is not available, the software can typically be downloaded from the official Extech website. This software is essential for configuring the datalogger, downloading recorded data, and analyzing measurements.
3. Connecting the Datalogger
Connect the DL150 to your computer using the supplied USB cable. The USB port is located on the side of the datalogger. Once connected, the computer should recognize the device, and you can launch the Extech software to begin configuration.
4. Attaching Test Leads and Current Clamp
Por voltage measurements, connect the test leads to the appropriate input jacks on the DL150. For current measurements, connect the current clamp to its designated input. Ensure all connections are secure before proceeding with any measurements.
Operación
Image: The Extech DL150 Datalogger showing its LCD screen with a clear voltage reading and time/date information. The device's buttons for power, Min/Max, Start/Stop, and Peak are visible.
1. Encendido / apagado
Presione el Fuerza button to turn the DL150 on or off. The LCD will illuminate, displaying the current time and date, along with measurement readings.
2. Configuring Datalogging Parameters
Use the Extech software on your PC to configure the datalogging parameters. This includes setting the sample rate (from 1 second to 24 hours), selecting the measurement type (AC Voltage or AC Current), and defining high/low alarm thresholds. You can also choose between Normal, Peak, and Capture recording modes.
3. Inicio y detención del registro de datos
Once configured, press the INICIAR/DETENER button on the device to begin data logging. The LCD will indicate that logging is active. Press the same button again to stop logging. The device can store up to 100,000 readings.
4. Viewing Min/Max and Peak Readings
During or after logging, press the MÁXIMO/MÍNIMO button to cycle through the minimum and maximum recorded values. Press the CIMA botón para view the peak reading captured during the logging session.
5. Descarga de datos
Connect the DL150 to your PC via the USB cable. Open the Extech software and follow the instructions to download the logged data. The software allows you to view the data graphically, export it to various formats (e.g., CSV for spreadsheets), and generate reports.
Mantenimiento
1. Limpieza de la unidad
Wipe the exterior of the DL150 with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the unit is dry before storage or further use.
2. Reemplazo de la batería
When the battery indicator on the LCD shows low power, replace the 4 AAA batteries promptly to ensure accurate readings and continuous operation. Refer to the "Battery Installation" section under Setup for detailed steps.
3. Almacenamiento
When not in use for extended periods, store the DL150 in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to remove the batteries if storing for more than one month to prevent leakage.
Solución de problemas
This section provides solutions to common issues you might encounter with your Extech DL150.
- El dispositivo no se enciende:
- Compruebe si las baterías están instaladas correctamente con la polaridad apropiada.
- Reemplace las baterías por otras nuevas.
- Asegúrese de que el botón de encendido esté presionado firmemente.
- No data logging:
- Verify that the START/STOP button was pressed to initiate logging.
- Check if the memory is full (the device can log up to 100,000 readings). Download data to clear memory.
- Asegúrese de que el sample rate is correctly configured in the software.
- Cannot connect to PC / Software issues:
- Ensure the USB cable is securely connected to both the DL150 and the PC.
- Verify that the Extech software drivers are correctly installed. You may need to reinstall the software or download the latest drivers from the Extech websitio.
- Pruebe con un puerto USB diferente en su computadora.
- Lecturas inexactas:
- Ensure test leads and current clamp are properly connected and making good contact with the circuit.
- Verify that the correct measurement type (AC Voltage or AC Current) is selected.
- Verifique el nivel de la batería; las baterías bajas pueden afectar la precisión.
For more detailed troubleshooting or issues not covered here, please refer to the full user manual PDF or contact Extech customer support.
Presupuesto
| Característica | Especificación |
|---|---|
| Número de modelo | DL150 |
| Tipo de medida | Verdadero RMS AC Voltage / Actual |
| Volumentage Rango | Hasta 600 VCA |
| Rango actual | Hasta 200 A CA |
| Capacidad de registro de datos | 100,000 lecturas |
| Samptasa | Programmable from 1 second to 24 hours |
| Mostrar | LCD with time/date, current reading, Min/Max, alarm indicators |
| Interfaz | USB |
| Modos de grabación | Normal, Peak, Capture (user-specified trigger level) |
| Fuente de poder | Funciona con pilas (4 pilas AAA incluidas) |
| Dimensiones del producto | 2.5 x 1.3 x 4.5 pulgadas |
| Peso del artículo | 8.82 onzas (0.25 kilogramos) |
| Fabricante | Extec |
Garantía y soporte
Extech products are designed for reliability and performance. For detailed warranty information, including terms, conditions, and duration, please refer to the official user manual PDF provided with your product or available for download from the Extech webSitio. La garantía generalmente cubre defectos de materiales y mano de obra en condiciones normales de uso.
For technical support, service, or to purchase accessories, please visit the official Extech websitio o contacte con su departamento de atención al cliente. Puede encontrar información de contacto y recursos adicionales en el Extech Brand Store on Amazon or directly through the Extech corporate websitio.
