HUDORA Hornet 205 Scooter Instruction Manual

1. Introducción

Thank you for choosing the HUDORA Hornet 205 Scooter. This manual provides important information regarding the assembly, safe operation, and maintenance of your scooter. Please read these instructions carefully before first use and retain them for future reference. Proper use and maintenance will ensure the longevity and safe performance of your scooter.

The HUDORA Hornet 205 Scooter is designed for recreational use, featuring 205 mm wheels for enhanced stability, a reliable foot brake, and a robust frame constructed from high-quality aluminum and steel. Its handlebar is adjustable in height and incorporates a secure folding mechanism for convenient transport and storage.

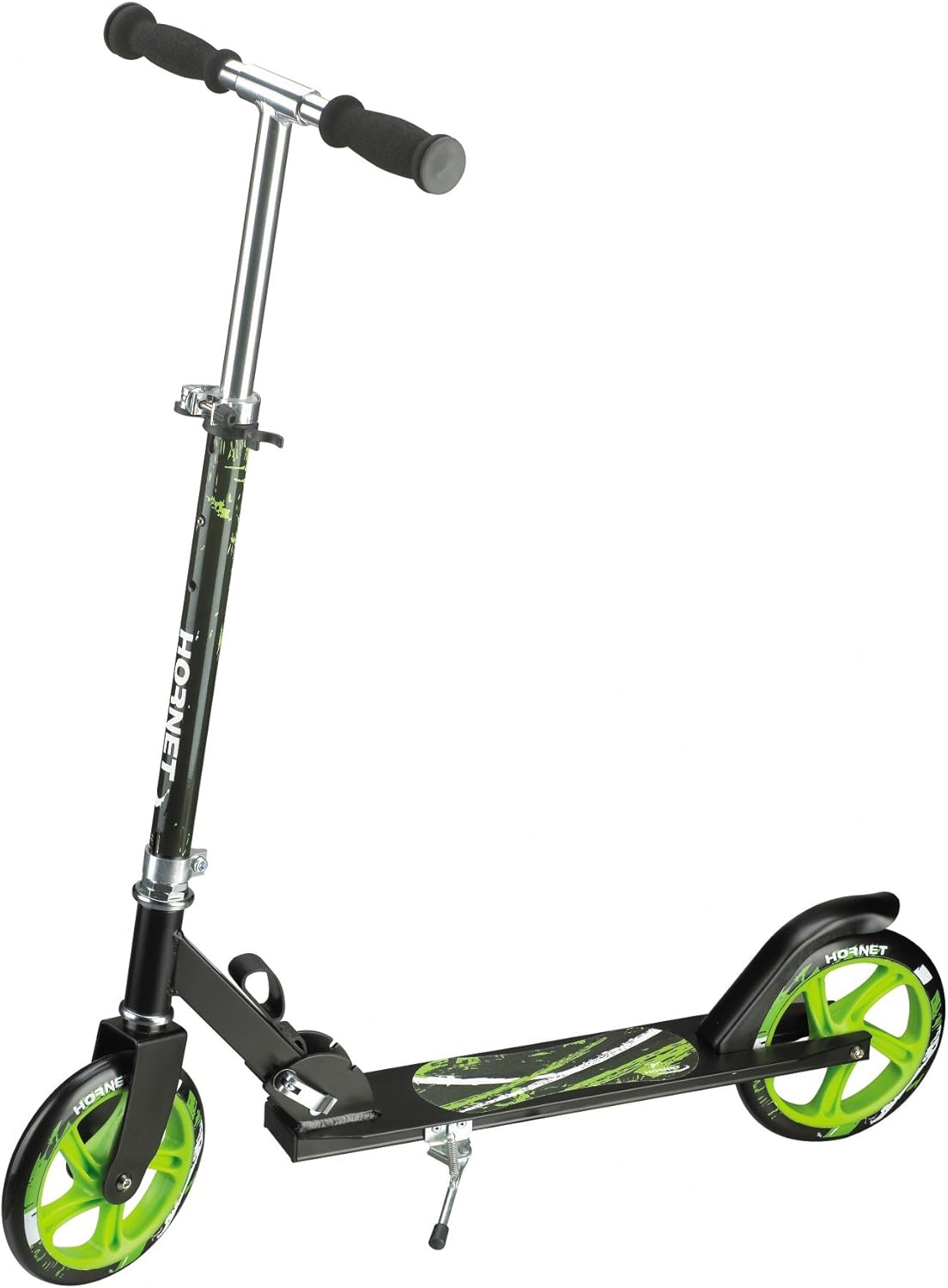

Image 1.1: The HUDORA Hornet 205 Scooter, showcasing its black frame, neon green wheels, and adjustable handlebar. This image provides a full view of the scooter in its upright, ready-to-ride configuration.

2. Información de seguridad

Su seguridad es primordial. Siga las siguientes pautas para evitar lesiones y garantizar una experiencia de conducción segura:

• Utilice siempre casco, rodilleras, coderas y muñequeras cuando conduzca el scooter.
• Asegúrese de que todos los clamps, bolts, and fasteners are securely tightened before each use.
• No exceda la capacidad máxima de peso de 100 kg (220 lbs).
• This scooter is intended for youth and adults.
• Ride on smooth, paved surfaces away from motor vehicles. Avoid riding on wet, oily, sandy, or uneven surfaces.
• Esté atento a su entorno y a otros peatones o vehículos.
• No conduzca de noche o en condiciones de poca visibilidad.
• Familiarícese con las leyes y regulaciones de tránsito locales con respecto al uso del scooter.
• Braking can cause the wheel to lock and the rider to fall. Practice braking in a safe, open area.

3. Contenido del paquete

Al desembalar, verifique que todos los componentes estén presentes y sin daños:

• HUDORA Hornet 205 Scooter (partially assembled)
• Manual de instrucciones

If any parts are missing or damaged, do not use the scooter. Contact your retailer for assistance.

4. Configuración y montaje

The HUDORA Hornet 205 Scooter comes partially assembled. Follow these steps to prepare your scooter for use:

4.1 Despliegue del scooter

1. Coloque el scooter sobre una superficie plana y estable.
2. Locate the folding mechanism near the front wheel.
3. Release the safety latch and pull the handlebar stem upwards until it locks securely into the upright position. Ensure the locking pin engages fully.

4.2 Ajuste de la altura del manillar

1. Abra el cl de liberación rápidaamp en el vástago del manillar.
2. Adjust the handlebar to a comfortable height. The handlebar should be approximately at hip level when standing on the scooter. The adjustable range is 76.5 cm to 102 cm.
3. Ensure the handlebar is aligned straight with the front wheel.
4. Cierre el cl de liberación rápida.amp firmly to secure the handlebar at the desired height. Test its stability before riding.

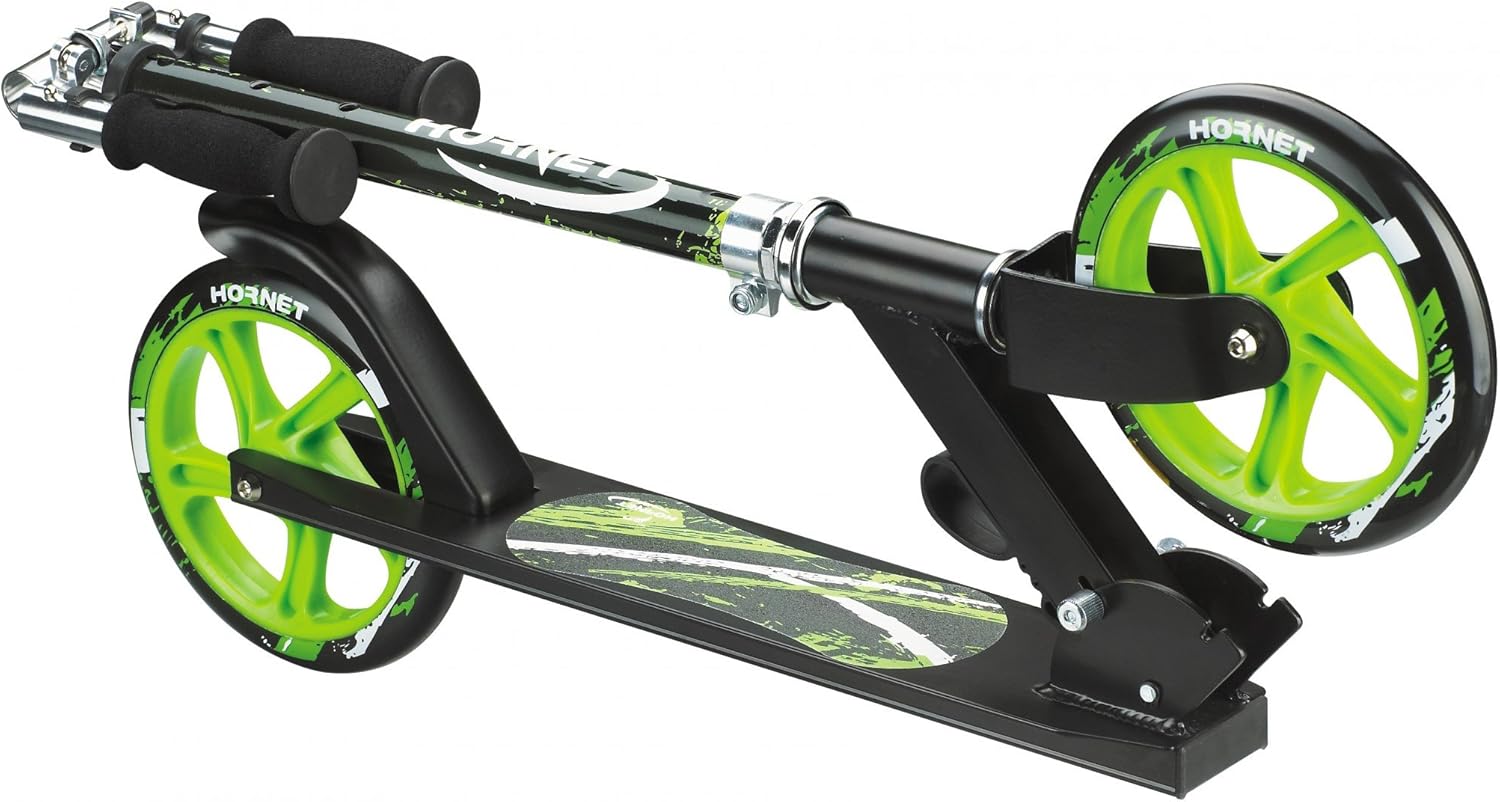

Image 4.1: The HUDORA Hornet 205 Scooter shown in its folded configuration, highlighting its compact design for storage and transport. This image demonstrates the scooter's portability.

5. Instrucciones de funcionamiento

5.1 Conducir el scooter

1. Coloque un pie firmemente sobre la plataforma del scooter.
2. Utilice el otro pie para impulsarse desde el suelo y ganar impulso.
3. Once you have sufficient speed, place both feet on the deck, one behind the other, or side-by-side if comfortable.
4. Dirige el vehículo inclinando y girando suavemente el manillar.

5.2 Frenado

The HUDORA Hornet 205 Scooter features a rear foot brake.

1. To slow down or stop, gently press your heel down on the rear fender brake.
2. Aplique presión gradual para evitar paradas repentinas, que pueden provocar pérdida del equilibrio.

5.3 Plegado para almacenamiento

To fold the scooter for storage or transport, reverse the unfolding steps:

1. Asegúrese de que el manillar esté en su posición más baja y que el cierre rápidoamp está asegurado
2. Release the safety latch on the folding mechanism.
3. Carefully fold the handlebar stem downwards until it clicks into the folded position. Ensure the safety latch re-engages.

6. Mantenimiento

El mantenimiento regular prolongará la vida útil de su scooter y garantizará un funcionamiento seguro.

• Limpieza: Limpiar el patinete con publicidadamp Paño después de usar. Evite productos químicos agresivos o limpiadores abrasivos.
• Inspección: Before each ride, check all bolts, nuts, and fasteners to ensure they are tight. Inspect the wheels for wear and tear.
• Aspectos: The scooter is equipped with ABEC 5 carbon bearings. If the wheels do not spin freely, the bearings may need cleaning or replacement. Avoid riding through water or sand, as this can damage bearings.
• Freno: Asegúrese de que el freno trasero funcione correctamente y no esté excesivamente desgastado.
• Almacenamiento: Guarde el scooter en un lugar seco, alejado de la luz solar directa y de temperaturas extremas.

Imagen 6.1: Un detalle view of the 205mm neon green polyurethane wheel, featuring the 'HORNET' logo and visible ABEC 5 carbon bearings. This image highlights the wheel's construction and design.

7. Solución de problemas

Esta sección aborda problemas comunes que puede encontrar con su scooter.

• Loose Handlebar: If the handlebar feels loose, ensure the quick-release clamp is fully tightened. If it still moves, check the internal locking mechanism.
• Ruedas chirriantes: Squeaking can indicate dirt in the bearings or a need for lubrication. Clean the bearings or apply a small amount of appropriate lubricant.
• Freno no efectivo: Check for wear on the brake pad or rear wheel. Ensure the brake mechanism is free of debris and properly aligned.
• Folding Mechanism Stuck: Ensure no debris is obstructing the mechanism. Apply gentle pressure and check the safety latch. Do not force it.

For issues not listed here, or if troubleshooting steps do not resolve the problem, contact HUDORA customer support or your retailer.

8. Especificaciones

Image 8.1: The HUDORA Hornet 205 Scooter positioned next to a human figure, illustrating its relative size and height. This image helps visualize the scooter's dimensions, particularly its 80 cm (32 inch) height.

9. Garantía y soporte

HUDORA products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official HUDORA website. In case of questions, technical issues, or warranty claims, please contact your retailer or HUDORA customer service directly.

Fabricante: HUDORA
