Introducción
This manual provides detailed instructions for the installation, operation, and maintenance of your RC4WD 1/8 Warn Scale Manual Locking Hubs, model RC4ZS1224. These hubs are designed as an option part for various 1/8 scale electric RC cars and trucks, enhancing their scale realism and functionality. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.

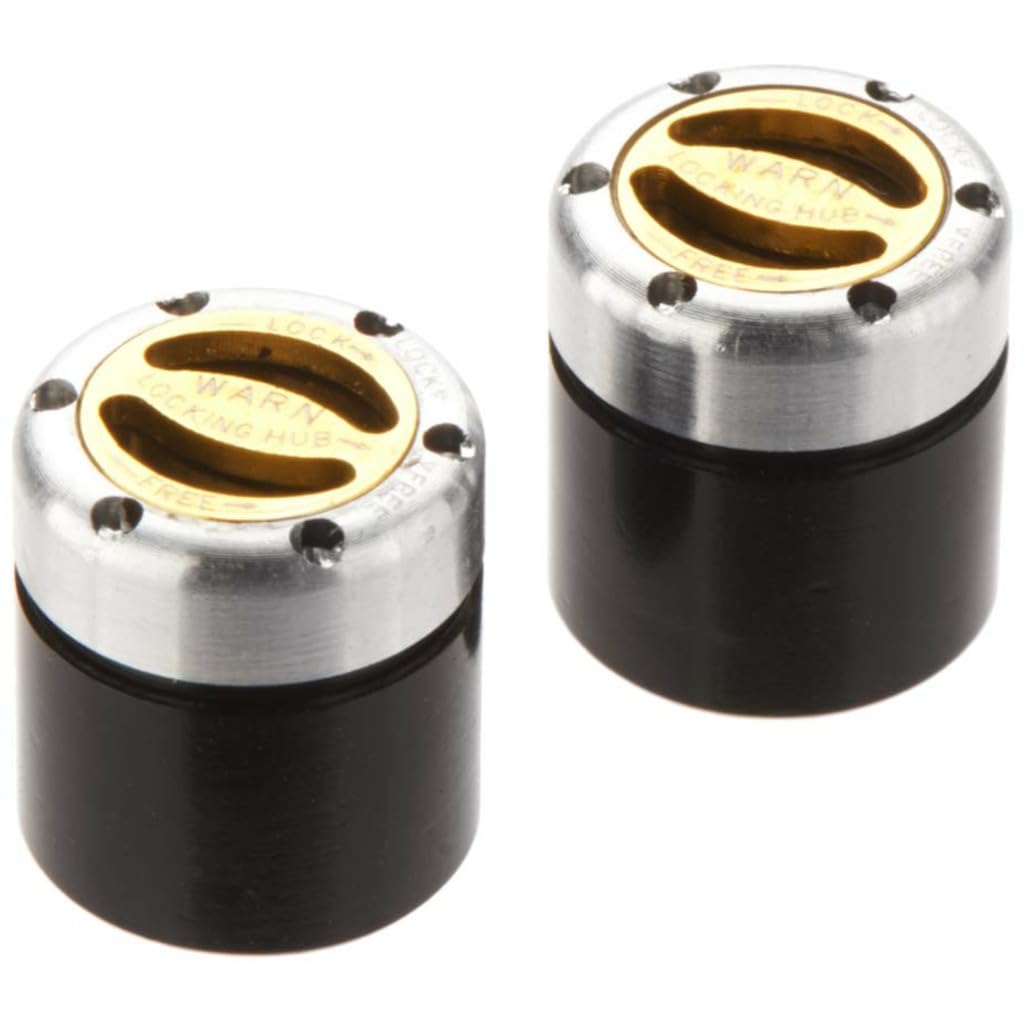

Figura 1: RC4WD 1/8 Warn Scale Manual Locking Hubs. This image displays the front view of the locking hub, highlighting its detailed scale design and construction, ready for installation on an RC vehicle.
Configuración e instalación
Proper installation is crucial for the performance of your locking hubs. Ensure you have the necessary tools before beginning.
Compatibilidad:
These hubs are compatible with a range of RC vehicles, including but not limited to:
- Axial: AX-10 Deadbolt, AX-10 Ridgecrest Crawler, SCX-10 Scale Truck, Wraith 4WD Rock Racer RTR, XR10 Crawler, Yeti
- HPI: Electric Wheely King 1/12
- Kyosho: Rock Force
- Losi: 1:10 Night Crawler
- Tamiya: 1/18 TLT-1 Rockbuster, CR-01 Crawler FJ40, Hi-Lift - F350 Tundra HiLux
Pasos de instalación:
- Preparar el vehículo: Ensure your RC vehicle is powered off and stable. Remove the wheels from the axles where the new hubs will be installed.
- Remove Existing Hubs/Hexes: Carefully remove any existing wheel hexes or hubs from the axle shafts. Keep track of any small parts like pins or washers.
- Install Locking Hubs: Slide the RC4WD Warn Scale Manual Locking Hubs onto the axle shafts. Ensure they seat properly against the axle housing or bearing.
- Secure Hubs: Use the provided fasteners or the vehicle's original hardware to secure the locking hubs to the axle shafts. Precaución: Some users have reported issues with installation tools breaking. Use appropriate tools and apply gentle, even pressure to avoid damage to the hubs or tools.
- Volver a colocar las ruedas: Mount your RC wheels onto the newly installed locking hubs. Ensure all lug nuts or wheel fasteners are tightened securely.
- Funcionalidad de prueba: Before operating the vehicle, manually engage and disengage the hubs to ensure smooth operation.
Instrucciones de funcionamiento
The RC4WD Warn Scale Manual Locking Hubs allow you to manually engage or disengage the drive to the wheels, mimicking full-scale off-road vehicles.
- Engaging Hubs: To engage the hubs, rotate the outer ring of the hub until it locks into position. This connects the wheel directly to the axle shaft, providing power to that wheel. This mode is typically used for off-road driving, climbing, or when maximum traction is required.
- Disengaging Hubs: To disengage the hubs, rotate the outer ring in the opposite direction until it unlocks. In this mode, the wheel spins freely on the axle, disconnecting it from the drivetrain. This can reduce drivetrain wear and improve turning radius on hard surfaces, similar to a 2WD mode.
Always ensure both hubs on an axle are either fully engaged or fully disengaged for consistent performance and to prevent damage to the drivetrain.
Mantenimiento
Regular maintenance will ensure the longevity and reliable performance of your locking hubs.
- Limpieza: After each use, especially in dusty or muddy conditions, clean the hubs to remove dirt and debris. Use a soft brush or compressed air. Avoid harsh chemicals that may damage the finish or plastic components.
- Inspección: Periodically inspect the hubs for any signs of wear, damage, or loose fasteners. Check that the engagement mechanism operates smoothly.
- Lubricación: Lightly lubricate the moving parts of the locking mechanism with a small amount of dry lubricant or silicone grease if you notice stiffness in engagement/disengagement. Avoid over-lubrication, which can attract dirt.
Solución de problemas
If you encounter issues with your RC4WD Warn Scale Manual Locking Hubs, refer to the following common problems and solutions:
- Hubs difficult to engage/disengage:
- Check for dirt or debris obstructing the mechanism. Clean thoroughly.
- Apply a small amount of dry lubricant to the moving parts.
- Ensure the vehicle is not under load when attempting to engage/disengage.
- Hubs not providing drive when engaged:
- Verify that the hubs are fully engaged and locked into position.
- Inspect the axle shaft and internal hub mechanism for damage or stripped components.
- Ensure the wheel is securely fastened to the hub.
- Hubs feel loose or wobbly:
- Check all mounting screws and fasteners for tightness.
- Inspect for any bent or damaged parts that may cause play.
- Installation tool broke during setup:
- This indicates excessive force was applied or the tool was not suitable. Always use the correct tools and apply gentle, even pressure. Replacement tools may be required.
Presupuesto
| Número de modelo | RC4ZS1224 |
| Marca | Vehículo con tracción en las cuatro ruedas (RC4WD) |
| Dimensiones del producto | 2 x 1.9 x 0.46 pulgadas |
| Peso del artículo | 0.32 onzas |
| Código Postal | 639302581735 |
Garantía y soporte
RC4WD products are manufactured to high standards. For specific warranty information regarding your RC4WD 1/8 Warn Scale Manual Locking Hubs (RC4ZS1224), please refer to the official RC4WD websitio o comuníquese directamente con su servicio de atención al cliente.
Para asistencia técnica, repuestos o más consultas, visite el sitio RC4WD Store on Amazon or the official RC4WD websitio.
