Introducción
This manual provides essential instructions for the proper use, setup, operation, and maintenance of your Pentax SMC-M 50mm F1.7 manual focus lens. Please read this manual thoroughly before using the lens to ensure optimal performance and longevity.
Configuración
Colocación de la lente
- Ensure both the camera body and the lens are clean and free of dust.
- Align the red dot (or corresponding mark) on the lens barrel with the mounting index mark on your Pentax K-mount camera body.
- Inserte con cuidado la lente en el soporte de lente de la cámara.
- Gire la lente en sentido horario hasta que encaje en su lugar, lo que indica que está firmemente bloqueada. No fuerce la lente.

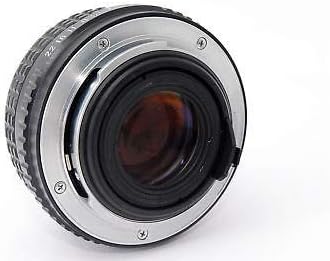

Figura 1: Trasero view of the Pentax SMC-M 50mm F1.7 lens, illustrating the K-mount bayonet for attachment to compatible camera bodies.
Desmontaje de la lente
- Apaga tu cámara.
- Mantenga presionado el botón de liberación de la lente en el cuerpo de la cámara.
- Mientras mantiene presionado el botón, gire la lente en sentido antihorario hasta que se separe del cuerpo de la cámara.
- Immediately attach the front and rear lens caps to protect the lens elements from dust and damage.
Operación de la lente
Enfoque manual
The SMC Pentax-M 50mm F1.7 is a manual focus lens. To achieve sharp focus:
- Mira a través de tu cámara viewBuscador o usa Live View en la pantalla LCD de su cámara.
- Rotate the focus ring (the wider ring closer to the front of the lens) until your subject appears sharp.
- Many modern Pentax cameras offer focus peaking or focus confirmation indicators to assist with manual focusing. Refer to your camera's manual for details.
Figura 2: Arriba view of the lens, highlighting the focus distance scale (in feet and meters) and the aperture ring with f-stop markings.
Control de apertura
The aperture controls the amount of light entering the lens and affects the depth of field. To adjust the aperture:
- Locate the aperture ring, which is typically closer to the camera body.
- Rotate the ring to select your desired f-stop (e.g., F1.7, F2.8, F5.6, F16). A smaller f-number (e.g., F1.7) indicates a wider aperture, allowing more light and creating a shallower depth of field. A larger f-number (e.g., F16) indicates a narrower aperture, allowing less light and creating a greater depth of field.
- For cameras that do not automatically meter with M-series lenses, you may need to use stop-down metering or shoot in manual mode and adjust settings based on a light meter or trial and error.
Mantenimiento
Limpieza de la lente
- Elementos de la lente: Use a lens blower brush to remove loose dust. For smudges or fingerprints, use a clean microfiber lens cloth and a small amount of lens cleaning solution. Apply the solution to the cloth, not directly to the lens. Wipe gently in a circular motion from the center outwards.
- Cuerpo del objetivo: Limpie el cuerpo del objetivo con un paño suave y seco. Evite el uso de productos químicos o disolventes agresivos.
Almacenamiento
- Always attach front and rear lens caps when the lens is not in use.
- Guarde la lente en un lugar fresco y seco, alejado de la luz solar directa y de temperaturas extremas.
- Si lo va a almacenar durante períodos prolongados, considere usar un gabinete deshumidificador o paquetes de gel de sílice para evitar el crecimiento de moho.
Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| Las imágenes están borrosas o desenfocadas. | Incorrect manual focus; camera shake; dirty lens elements. | Carefully adjust the focus ring. Use a faster shutter speed or tripod. Clean the lens elements. |
| Las imágenes son demasiado oscuras o demasiado brillantes. | Incorrect aperture setting; incorrect camera exposure settings (shutter speed, ISO). | Adjust the aperture ring to a wider (smaller f-number) or narrower (larger f-number) setting. Adjust camera's shutter speed and ISO. Ensure camera metering mode is appropriate for manual lenses. |
| La lente no está fijada de forma segura a la cámara. | Misalignment; obstruction in mount. | Ensure the red alignment marks are matched. Check for any debris in the lens or camera mount. Do not force the lens. |
Presupuesto
- Marca: Pentax
- Modelo: SMC Pentax-M 50mm F1.7
- Longitud focal: 50 mm
- Abertura máxima: F1.7
- Tipo de lente: Standard, Manual Focus
- Montajes compatibles: Pentax KAF (K-mount)
- Dimensiones del producto: 2 x 2.25 x 2.25 pulgadas
- Peso del artículo: 9.1 onzas
- Fabricante: Asahi Optical Co.
- Fecha de primera disponibilidad: 23 de noviembre de 2011
Información de garantía
This product is sold "as is" without warranty. Please refer to the seller's terms and conditions at the time of purchase for any applicable return policies.
Apoyo
For further assistance or detailed information regarding Pentax products, please visit the official Pentax support website or consult your camera's instruction manual for compatibility and advanced settings.
Official Pentax Websitio: Ricoh Imaging (Pentax)
