Philips 9003 VisionPlus Headlight Bulb Instruction Manual

Introducción

This instruction manual provides essential information for the installation, operation, and maintenance of your Philips 9003 VisionPlus Headlight Bulbs. Please read this manual thoroughly before installation and retain it for future reference. These bulbs are designed to provide enhanced visibility and safety for your vehicle's lighting system.

Información de seguridad

Always prioritize safety when working on your vehicle's electrical system. Disconnect the vehicle's battery before beginning any installation. Wear appropriate personal protective equipment, such as gloves and eye protection. Avoid touching the glass of the new bulb directly, as oils from your skin can reduce bulb life. Use a clean cloth or gloves for handling.

Advertencia:

Headlight bulbs operate at high temperatures. Allow bulbs to cool completely before handling. Improper installation can lead to electrical shorts or damage to the vehicle's wiring.

Producto terminadoview

The Philips 9003 VisionPlus Headlight Bulbs are high-performance halogen bulbs designed to offer up to 60% more vision compared to standard halogen bulbs. They are suitable for select high beam, low beam, or fog light positions, depending on your vehicle's specifications.

Image: Packaging for Philips 9003 VisionPlus Headlight Bulbs, showing two bulbs in a clear plastic and cardboard package.

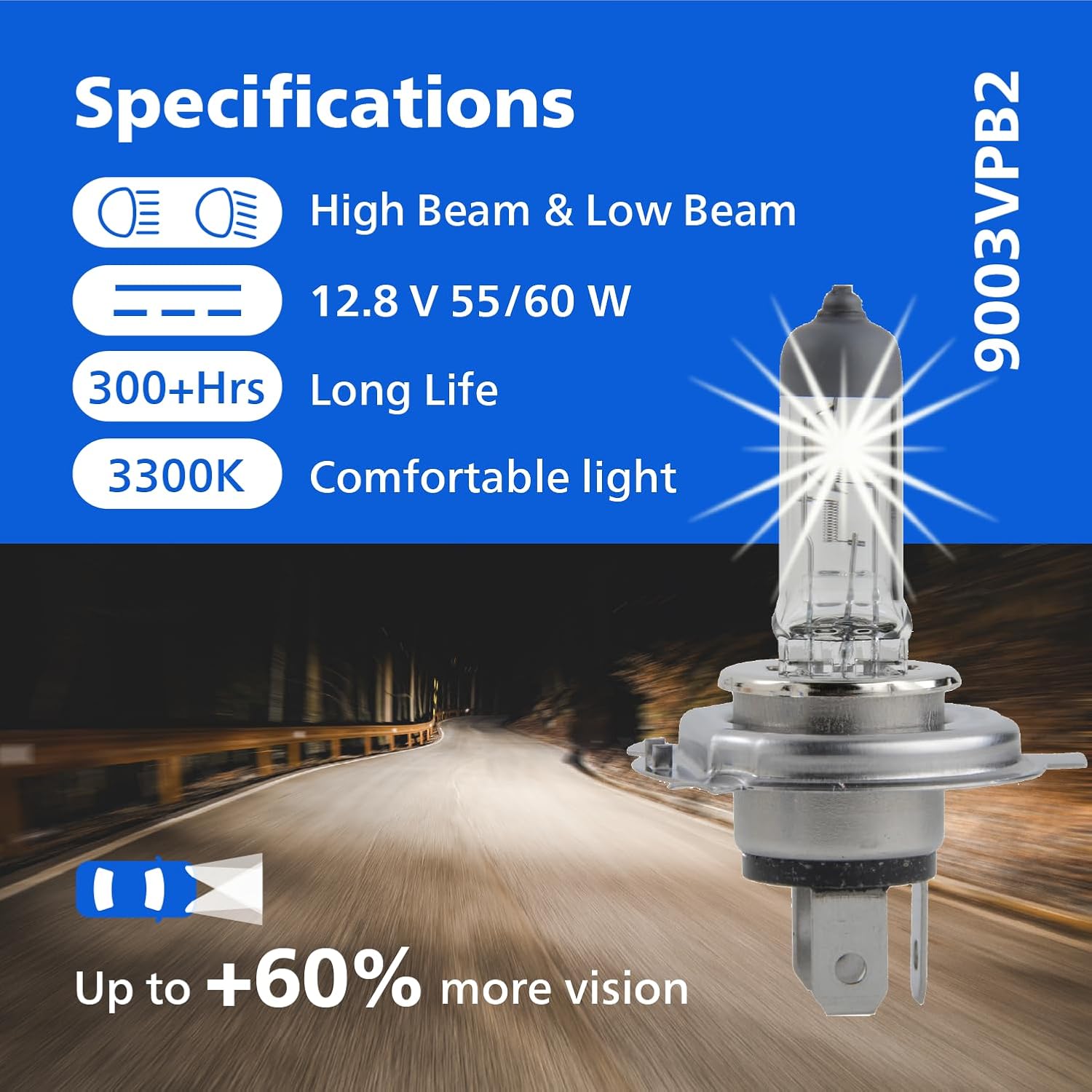

Image: A close-up of the Philips 9003VPB2 headlight bulb with key specifications overlaid: High Beam & Low Beam, 12.8 V 55/60 W, 300+ Hrs Long Life, 3300K Comfortable light, and "Up to +60% more vision".

Configuración e instalación

1. Verificar compatibilidad: Before installation, confirm that the 9003 bulb type is compatible with your vehicle's specific headlight or fog light position. Consult your vehicle's owner's manual or use an online part finder tool.
2. Reunir herramientas: You may need a screwdriver, wrench, or other basic hand tools depending on your vehicle's design.
3. Acceda al conjunto del faro: Open the hood of your vehicle. Locate the back of the headlight assembly. In some vehicles, you may need to remove other components (e.g., battery, air intake) to gain access.
4. Desconectar la energía: Desconecte el conector eléctrico de la bombilla vieja.
5. Quitar la bombilla vieja: Unclip or twist the retaining mechanism that holds the old bulb in place. Carefully pull out the old bulb.
6. Instalar bombilla nueva: Holding the new Philips VisionPlus bulb by its base (avoid touching the glass), insert it into the headlight housing. Ensure it is seated correctly and secure it with the retaining mechanism.
7. Reconectar la energía: Vuelva a colocar el conector eléctrico en la nueva bombilla.
8. Funcionalidad de prueba: Turn on your vehicle's headlights to ensure both new bulbs are functioning correctly.
9. Adjust Headlight Aim (if necessary): After replacing bulbs, it is recommended to check and adjust headlight aim to ensure proper light distribution and avoid blinding oncoming drivers.

Image: A gloved hand carefully installing a new headlight bulb into the housing of a car's headlight assembly, demonstrating the ease of replacement.

Image: A diagram illustrating three methods to find the correct bulb: consulting the vehicle's manual, using an online tool, and checking markings on the old lightbulb (showing base type, energy consumption, and voltagmi).

Instrucciones de funcionamiento

Once installed, your Philips 9003 VisionPlus Headlight Bulbs operate like standard halogen bulbs. Use your vehicle's existing headlight switch to control the low beams, high beams, or fog lights (if applicable).

These bulbs are designed to provide a brighter, longer light beam, improving your ability to see obstacles and road signs earlier, especially during nighttime driving. The increased light output contributes to a safer driving experience.

Image: A side-by-side comparison showing the illumination provided by "Other brands" (standard headlights) on the left, and "Philips VisionPlus" on the right, demonstrating significantly brighter and wider light distribution on a dark road.

Mantenimiento

Philips 9003 VisionPlus bulbs are designed for long-lasting performance. However, like all halogen bulbs, their light output can diminish over time. It is recommended to replace headlight bulbs in pairs to ensure a symmetrical light beam and consistent visibility on the road.

When replacing bulbs, always handle them by the base and avoid touching the glass. Clean any dirt or debris from the headlight lens regularly to maintain optimal light output.

Solución de problemas

• La bombilla no se enciende:
  • Verifique la conexión eléctrica para asegurarse de que sea segura.
  • Verifique que la bombilla esté colocada correctamente en la carcasa.
  • Inspeccione la caja de fusibles del vehículo para ver si hay un fusible del faro quemado.
  • Asegúrese de que la batería del vehículo tenga suficiente carga.
• Luz tenue o desigual:
  • If only one bulb was replaced, consider replacing the other bulb to ensure balanced light output.
  • Check for dirt or condensation inside the headlight assembly.
  • Ensure the bulb is the correct wattage para su vehículo.
• Bombilla parpadeante:
  • Verifique si hay conexiones sueltas o cableado dañado.
  • Ensure the bulb is fully seated and secured.

Si los problemas persisten, consulte con un técnico automotriz calificado.

Presupuesto

Garantía y soporte

Philips Automotive Lighting products are manufactured to high-quality standards. For warranty information or technical support, please refer to the official Philips Automotive Lighting webSitio web o contacte con el servicio de atención al cliente. Conserve su comprobante de compra para reclamaciones de garantía.

Para obtener más ayuda, visite el Tienda Philips en Amazon.
