Atosa ATMG-48 HD 48-inch Manual Griddle User Manual

1. Introducción

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Atosa ATMG-48 HD 48-inch Manual Griddle. Please read this manual thoroughly before installing or operating the equipment. Keep this manual in a safe place for future reference.

2. Instrucciones de seguridad

ADVERTENCIA: El incumplimiento de estas instrucciones de seguridad puede provocar daños a la propiedad, lesiones graves o la muerte.

• Always disconnect the power supply before cleaning, servicing, or performing any maintenance.
• Este aparato está destinado únicamente para uso comercial.
• Do not operate the griddle if it is damaged or malfunctioning. Contact qualified service personnel.
• Mantenga el área alrededor del aparato limpia y libre de materiales combustibles.
• Asegure una ventilación adecuada en el área de instalación.
• Hot surfaces: The griddle surface and surrounding areas become extremely hot during operation. Use caution and wear appropriate protective gear.
• Do not immerse the appliance in water or spray with water.
• Sólo personal calificado debe realizar la instalación y el servicio.

3. Desembalaje e inspección

Upon receiving your Atosa ATMG-48 griddle, carefully inspect the packaging and the unit for any signs of shipping damage. If damage is found, immediately contact the carrier and the supplier.

1. Remove all packaging materials, including plastic films and protective coverings.
2. Verifique que todos los componentes estén presentes.
3. Clean the griddle thoroughly before initial use.

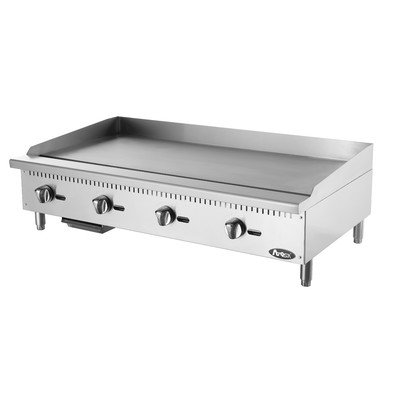

Figura 1: Frente view of the Atosa ATMG-48 HD 48-inch Manual Griddle. This image shows the overall design and dimensions of the griddle, including the control knobs and the cooking surface.

4. Configuración

4.1 Colocación

• Place the griddle on a sturdy, level, non-combustible surface.
• Ensure adequate clearance from walls and other equipment for proper ventilation and heat dissipation. Refer to local fire codes for specific clearance requirements.
• The griddle must be installed under an appropriate ventilation hood.

4.2 Conexión eléctrica

The Atosa ATMG-48 operates on 120 Volts and requires a dedicated electrical circuit. Ensure the power supply matches the specifications on the appliance's data plate.

• Connect the griddle to a properly grounded electrical outlet.
• No utilice cables de extensión ni adaptadores.
• Todas las conexiones eléctricas deben cumplir con los códigos eléctricos locales y nacionales.

4.3 Initial Seasoning (Curing)

Antes del primer uso, la superficie de la plancha debe estar curada para crear una superficie de cocción antiadherente y protegerla contra el óxido.

1. Clean the griddle surface thoroughly with warm, soapy water to remove any manufacturing oils or residues. Rinse completely and dry.
2. Apply a thin, even layer of high-temperature cooking oil (e.g., flaxseed oil, vegetable oil) to the entire cooking surface.
3. Turn the griddle on to a low-medium heat setting (approximately 250-300°F or 120-150°C).
4. Allow the oil to smoke off completely, which may take 15-20 minutes. The surface will darken.
5. Repeat steps 2-4 at least 3-4 times, allowing the griddle to cool slightly between applications.
6. The griddle is properly seasoned when it has a dark, uniform, non-stick appearance.

5. Instrucciones de funcionamiento

5.1 Encendido y precalentamiento

1. Ensure the griddle is properly connected to the power supply.
2. Turn the temperature control knob(s) to the desired cooking temperature. The indicator light will illuminate, indicating the heating elements are active.
3. Allow the griddle to preheat for 15-20 minutes, or until it reaches the set temperature. The indicator light will cycle on and off as the griddle maintains temperature.

5.2 Cocinar

• Aplique una pequeña cantidad de aceite de cocina a la superficie de la plancha antes de colocar la comida.
• Place food evenly on the griddle surface.
• Adjust temperature as needed for different food items.

5.3 Apagado

1. After cooking, turn all temperature control knobs to the "OFF" position.
2. Deje que la plancha se enfríe completamente antes de limpiarla.

6. Limpieza y mantenimiento

La limpieza y el mantenimiento regulares son cruciales para la longevidad y el rendimiento de su plancha.

6.1 Limpieza diaria

1. Ensure the griddle is cool before cleaning.
2. Scrape off excess food debris into the grease tray using a griddle scraper.
3. Remove and empty the grease tray. Clean it with warm, soapy water and rinse thoroughly.
4. Limpie la superficie de la plancha con un paño.amp cloth. For stubborn residue, use a mild griddle cleaner designed for seasoned surfaces.
5. Wipe down the exterior stainless steel surfaces with a clean, damp cloth and a mild detergent. Dry thoroughly to prevent water spots.

6.2 Deep Cleaning and Maintenance Checks

• Periodically check all electrical connections for tightness and signs of wear. This should be done by a qualified technician.
• Inspect the griddle surface for any damage or signs of wear to the seasoning. Re-season as necessary.
• Ensure the griddle is level. Adjust feet if required.

7. Solución de problemas

Antes de contactar con el servicio técnico, review Los siguientes problemas comunes y soluciones:

For issues not listed here or if solutions do not resolve the problem, contact Atosa customer support or a certified service technician.

8. Especificaciones

9. Garantía y soporte

Atosa products are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Atosa webSitio. Conserve su recibo de compra como comprobante de compra.

For technical assistance, parts, or service inquiries, please contact Atosa customer support. Contact information can typically be found on the Atosa website or on the product's data plate.
